Video & Audio Matrix

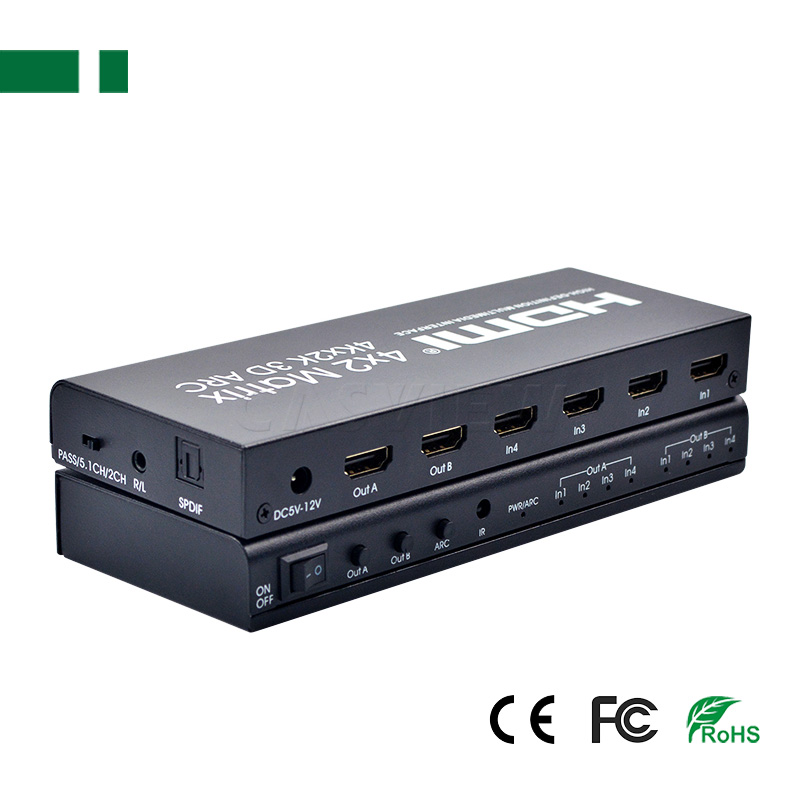

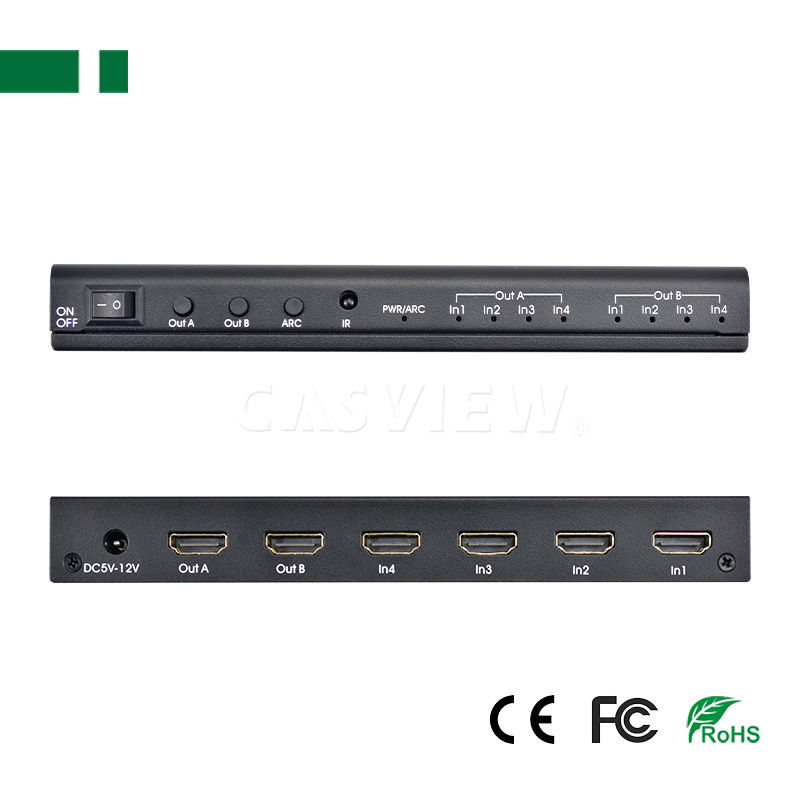

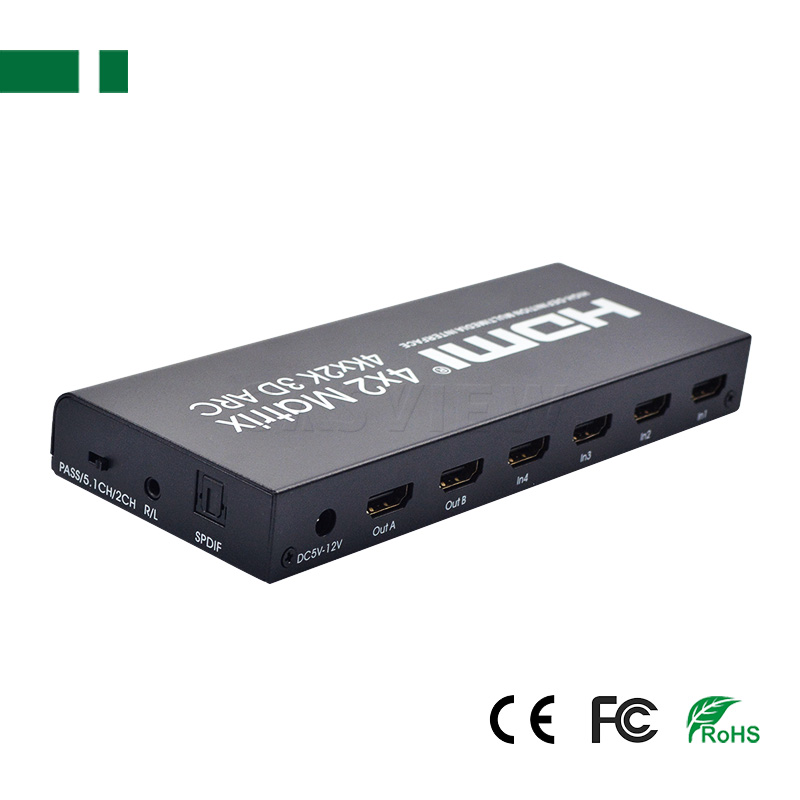

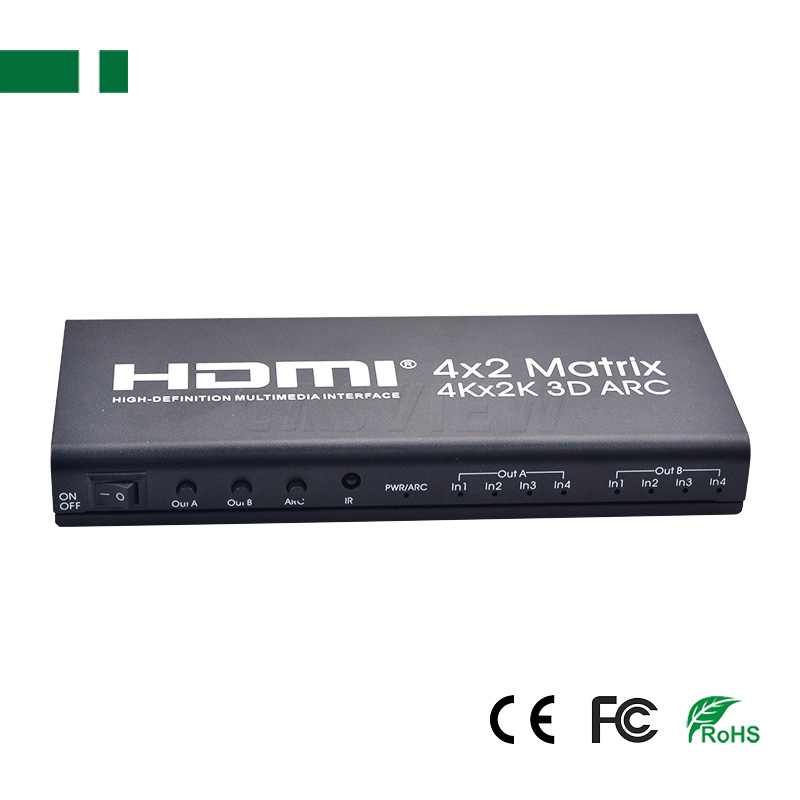

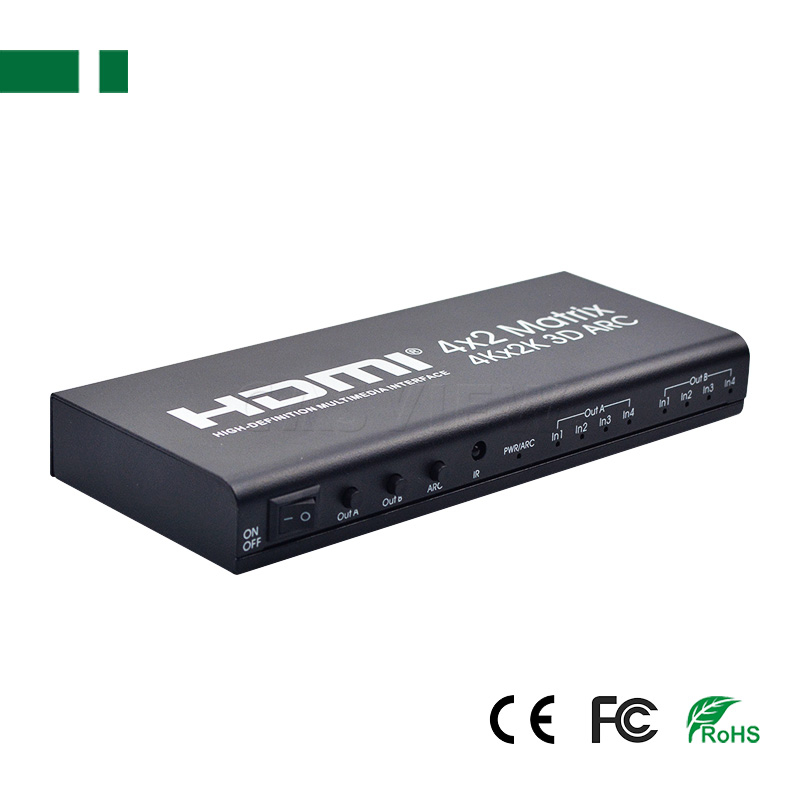

CHM-M1402 4x2 HDMI Matrix Support 4Kx2K@30Hz 3D ARC
- 4Kx2K@30Hz 3D ARC
- Support HDMI 1.4b;
- Support 3.5mm stereo audio output and optical output
- Support 3.4G data rate and TMDS clock up to 340Mhz
- Product description: 4x2 HDMI Matrix Support 4Kx2K@30Hz 3D ARC; 1. Support HDMI 1.4b; 2. Support ARC; 3. Support 3.4G data rate and TMDS clock up to 340Mhz; 4. 1080P: Transmit distance(AWG26): up to 40M(15M+25M); 5.
Download for More Details
This 4x2 HDMI matrix can distribute any one of 4 sources to either of 2 displays, and can work as a splitter to show the same source on 2 displays simultaneously. It also supports SPDIF and stereo headphone audio output（Only Out A interface support audio output）. The matrix allows 4 HD sources to be switched or split easily to 2 HDMI compatible displays or projectors.
Features：1. Support HDMI 1.4b.
2. Support ARC.
3. Support 3D video format.
4. Support highest resolution up to 4096*2160/30Hz.
5. Support 3.4G data rate and TMDS clock up to 340Mhz.
6. Support deep color 8/10/12 bit.
7. When the resolution is 1080p and below,support AWG26 HDMI standard cable input up to 15 meters length ,output up to 25 meters length.
8. When the resolution is 4K ,support AWG26 HDMI standard cable input up to 12 meters length,output up to 15 meters length.
9. Support 3.5mm stereo audio output and optical output.
10. Support four HDMI input to be switched or split to two HDMI output.
11. Support 5.1 audio channel.
12. Support 5V-12V wide voltage input.
Specifications：
HDMI version.......................................................................................HDMI 1.4b
HDMI resolution...............................................................................................Up to 4096*2160/30Hz
Support video format....................................................................................................8/10/12 bit deep color
Support audio format..............................................................................DTS-HD/Dolby-trueHD//DTS/Dolby-AC3/DSD
Max bandwidth...................................................................................................................................................340MHz
Max baud rate....................................................................................................................................................3.4Gbps
Input cable distance.................................(1080p resolution)≤15m,(4K resolution)≤12m AWG26 HDMI standard cable
Output cable distance............................(1080p resolution)≤25m,(4K resolution) ≤15m AWG26 HDMI standard cable
HDMI Input ...................................................................................................................................................................4
HDMI Output.................................................................................................................................................................2
Max working current.............................................................................................................................................700mA
Power Adapter format..................................................................Input:AC (50HZ,60HZ) 100V-240V;Output :DC5V/2A
Operating temperature range....................................................................................................................(-15 to +55℃)
Operating humidity range............................................................................................5 to 90% RH (No Condensation)
Dimension (LxWxH)..............................................................................................................................179x71x21(mm)
Weight.....................................................................................................................................................................282g
Package Contents：
HDMI Matrix........................................................................................1PCS
IR Remote Control...............................................................................1PCS
5V Power Adapter................................................................................1PCS
User Manual........................................................................................1PCS
Note：
Please correctly use and keep the item to guarantee the product performance and work as expected.
1. Please do not expose this unit to the damp, high-temperature, dusty, erosive, or oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Please do not touch the item with wet hands.
4. Please hold the plug when unplugging. Do not pull the power cable directly.
5. Please turn the unit off when it is not in use for a long period of time.
6. Please do not open the cover and do not touch the inside parts.
7. Please use the original factory power adapter.
