Video & Audio Extractor

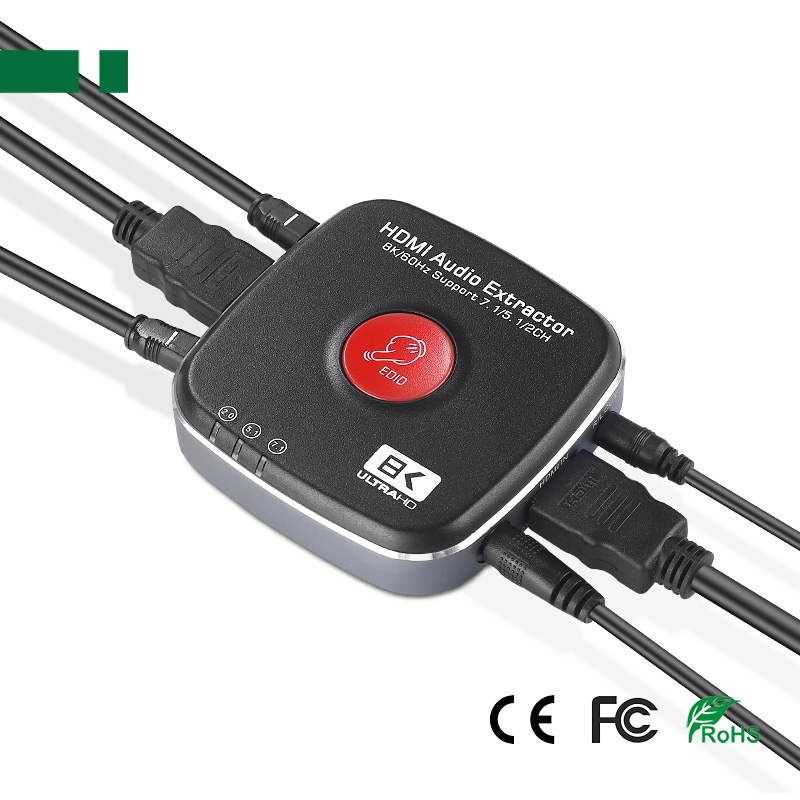

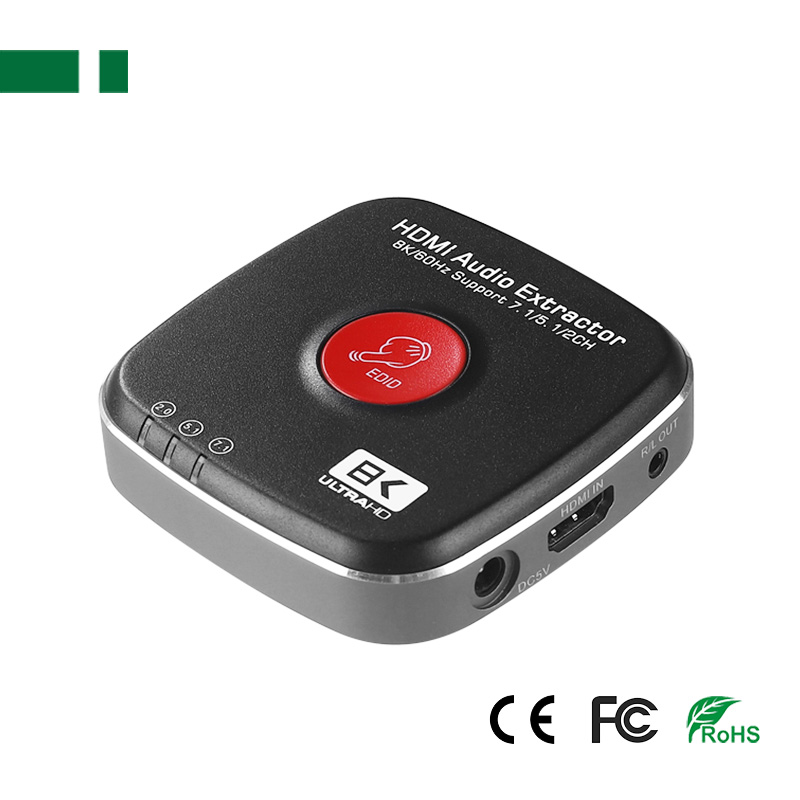

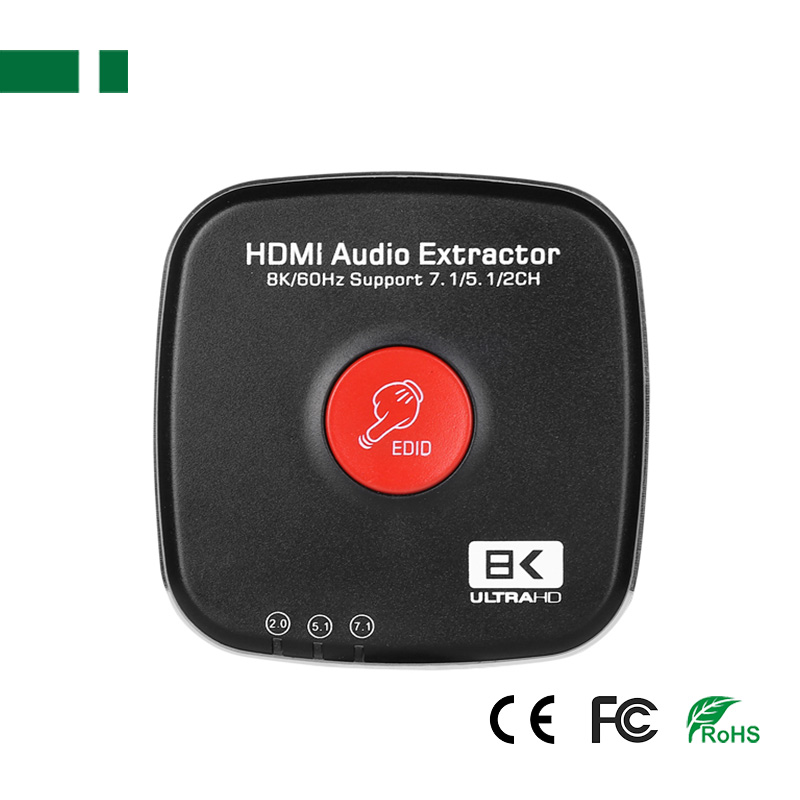

CHM-A6-8K @60Hz HDMI 2.1 Audio Extractor
- 8K@60Hz HDMI 2.1 Audio Extractor
- Convert HDMI input to HDMI + Audio output
- Support 2 SPDIF and 1 stereo audio output port
- HDMI: 2.1, HDCP: 2.3
- Product description: This audio extractor can be connected between the source device (DVD player, Blu-ray player, network player, set-top box, PS2, PS3, Xbox360, PC, etc.) and the display device (TV, HD monitor, projector
This audio extractor can be connected between the source device (DVD player, Blu-ray player, network player, set-top box, PS2, PS3, Xbox360, PC, etc.) and the display device (TV, HD monitor, projector), It can synchronously separate one optical fiber signal and one R/L signal connect stereo channel to the sound system to obtain high-quality audio signals. Support audio formats such as AC-3, DTS, LPCM.The product is also designed with a volume knob, which can flexibly control the output analog volume.
Features：

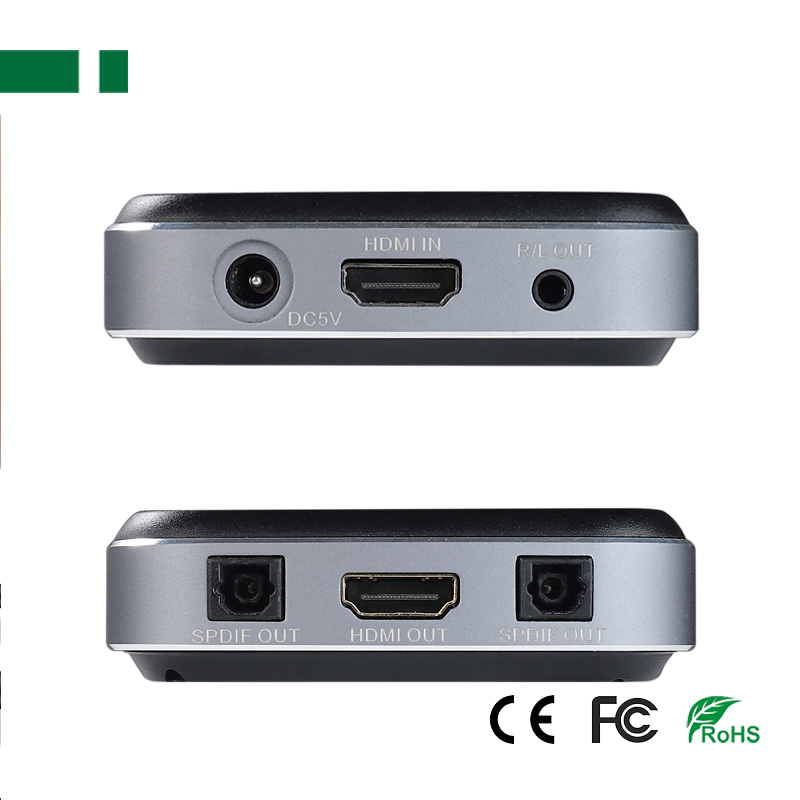

1.Support 1 HDMI 8K input port
2.Support 1 HDMI 8K output port
3.Support 2 SPDIF digital audio output port
5.Support 1 R/L audio output port
6.Support input resolution up to 4K/120fps, 8K/60fps.
7.Support Volume Control
8.Support 3D, HDR. YUV4:4:4
9.Support HDCP2.3
10.Support AC3, DTS, LPCM and other digital audio formats

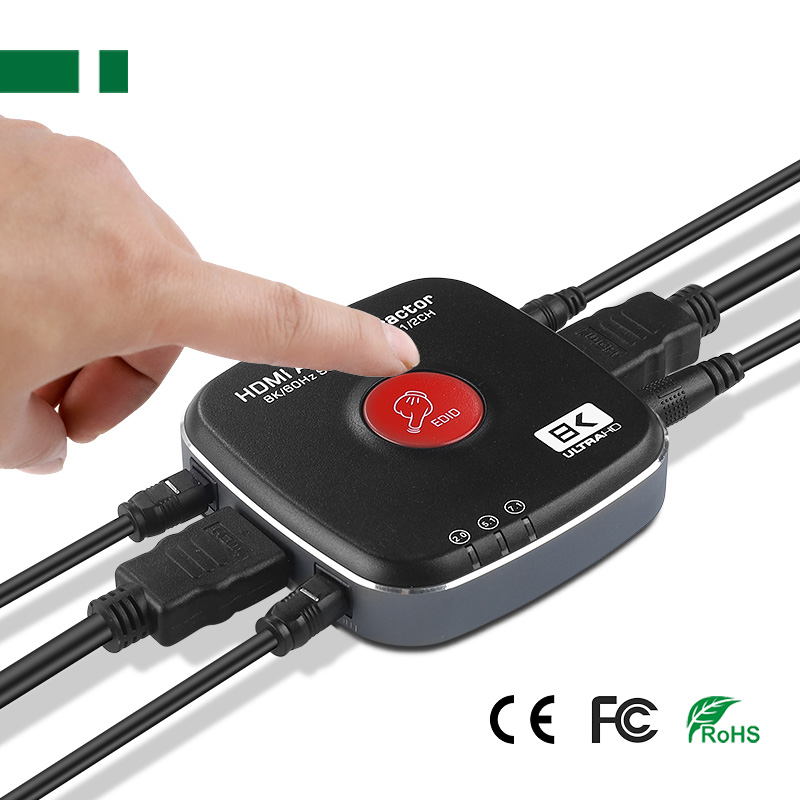

11.Audio output supports 3 EDID selection modes(2CH/5.1CH/ PASS)
12.Lossless signals
13.Simple installation
Specifications：
HDCP Version ...................................................................................................................................................HDCP 2.3
Input/Output Resolution...................................................................................................1080p/60fps、4K/30fps、4K/120fps,4K/60fps, 8k/60fps
Deep color.............................................................8K/60fps-YbCr;4K/60fps-YUV444-8bit;4K/60fps-YUV422-12 bit 2160p, 10/12 bits, 50/60Hz
HDMI Max Bandwidth............................................................................................................................................600MHz
HDMI Max Baud Rate.............................................................................................................................................40Gbps
Input Output TMDS Signal.......................................................................................................................0.5~1.5Vp-p(TTL)
Input Output DDC Signal..................................................................................................................................5Vp-p(TTL)
DAC sampling frequency ................................................................................................................................32~192 KHz
DAC bit rate......................................................................................................................................................16~24 Bit
RCA analog output (1KHz@0dB).....................................................................1V RMS3.5mm audio interface maximum output
level…...............................................................................................................6.5Vp-p3.5mm audio port maximum output
power..............................................................................................................................................................32Ω30mW
Signal to noise ratio @0dB(CC1R/ARM).....................................................................................................................≥90dB
Distortion degree...................................................................................................................................................≤0.1%
Frequency response......................................................................................................................................20HZ~20KHz
HDMI Input Cable Distance..............................................................................................≤3m AWG26 HDMI Standard Cable
HDMI Output Cable Distance............................................................................................≤3m AWG26 HDMI Standard Cable
Max Working Current.............................................................................................................................................400mA
Power Adapter Format......................................................................................................AC 100V-240V 50/60HZ,DC5V/1A
Operating Temperature Range...........................................................................................................................-10~+55℃
Storage Temperature Range..............................................................................................................................-20~+60℃
Operating Humidity Range...................................................................................................10~90%RH（No Condensation）
Storage Humidity Range.......................................................................................................5~95%RH（No Condensation）

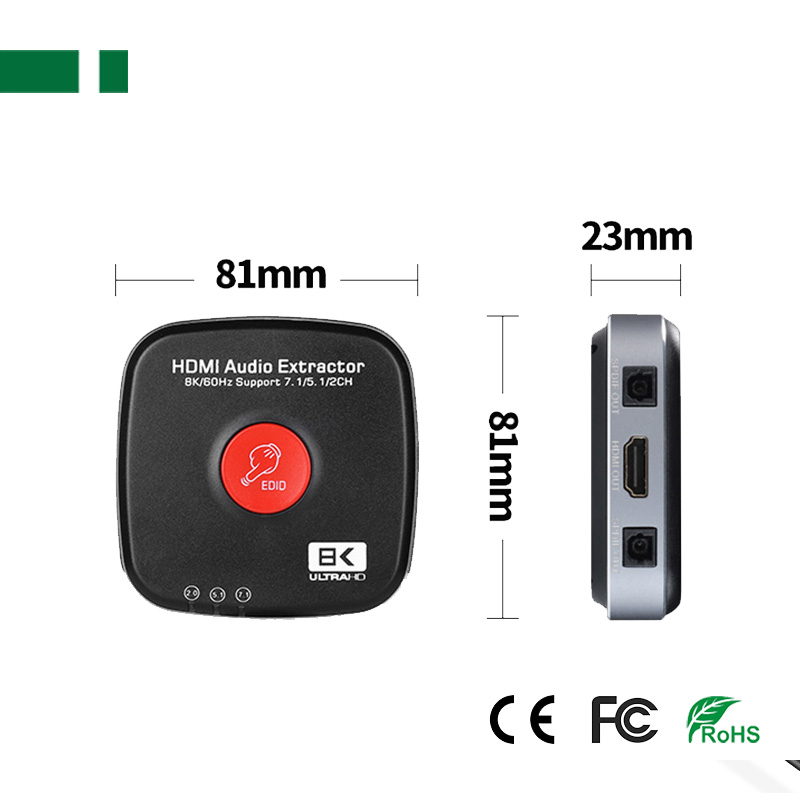

Case Dimension......................................................................................................................................81*81*23 mm
Bare weight.............................................................................................................................................................76g
Features：
1.Support 1 HDMI 8K input port
2.Support 1 HDMI 8K output port
3.Support 2 SPDIF digital audio output port
5.Support 1 R/L audio output port
6.Support input resolution up to 4K/120fps, 8K/60fps.
7.Support Volume Control
8.Support 3D, HDR. YUV4:4:4
9.Support HDCP2.3
10.Support AC3, DTS, LPCM and other digital audio formats
11.Audio output supports 3 EDID selection modes(2CH/5.1CH/ PASS)
12.Lossless signals
13.Simple installation
Specifications：
HDCP Version ...................................................................................................................................................HDCP 2.3
Input/Output Resolution...................................................................................................1080p/60fps、4K/30fps、4K/120fps,4K/60fps, 8k/60fps
Deep color.............................................................8K/60fps-YbCr;4K/60fps-YUV444-8bit;4K/60fps-YUV422-12 bit 2160p, 10/12 bits, 50/60Hz
HDMI Max Bandwidth............................................................................................................................................600MHz
HDMI Max Baud Rate.............................................................................................................................................40Gbps
Input Output TMDS Signal.......................................................................................................................0.5~1.5Vp-p(TTL)
Input Output DDC Signal..................................................................................................................................5Vp-p(TTL)
DAC sampling frequency ................................................................................................................................32~192 KHz
DAC bit rate......................................................................................................................................................16~24 Bit
RCA analog output (1KHz@0dB).....................................................................1V RMS3.5mm audio interface maximum output
level…...............................................................................................................6.5Vp-p3.5mm audio port maximum output
power..............................................................................................................................................................32Ω30mW
Signal to noise ratio @0dB(CC1R/ARM).....................................................................................................................≥90dB
Distortion degree...................................................................................................................................................≤0.1%
Frequency response......................................................................................................................................20HZ~20KHz
HDMI Input Cable Distance..............................................................................................≤3m AWG26 HDMI Standard Cable
HDMI Output Cable Distance............................................................................................≤3m AWG26 HDMI Standard Cable
Max Working Current.............................................................................................................................................400mA
Power Adapter Format......................................................................................................AC 100V-240V 50/60HZ,DC5V/1A
Operating Temperature Range...........................................................................................................................-10~+55℃
Storage Temperature Range..............................................................................................................................-20~+60℃
Operating Humidity Range...................................................................................................10~90%RH（No Condensation）
Storage Humidity Range.......................................................................................................5~95%RH（No Condensation）
Case Dimension......................................................................................................................................81*81*23 mm
Bare weight.............................................................................................................................................................76g
