Audio Converter

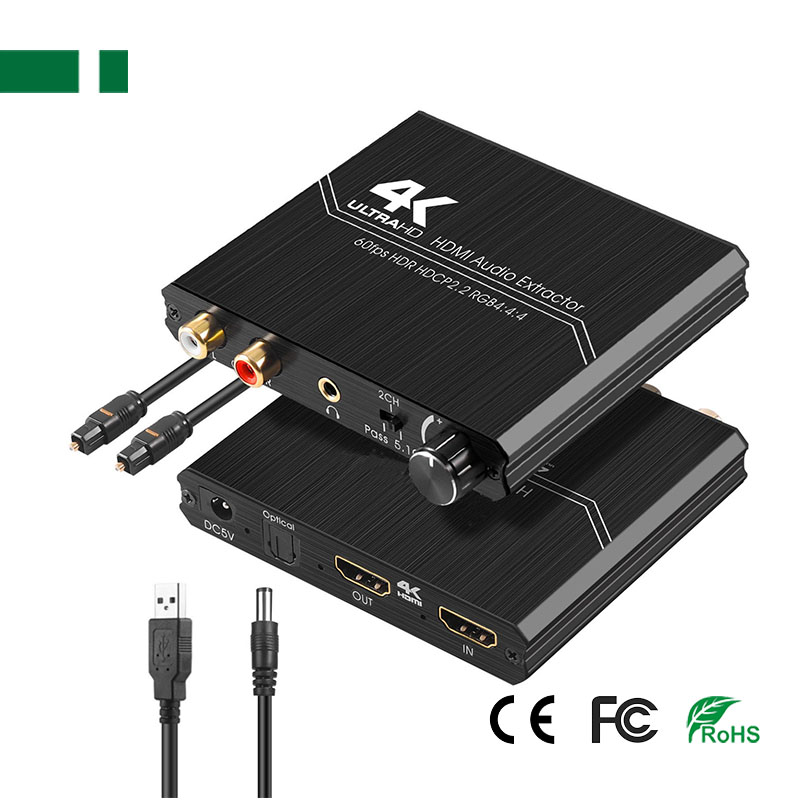

CHM-A5-4K @60Hz HDMI 2.0 Audio Extractor
- 4K*2K@60Hz HDMI 2.0 Audio Extractor
- Convert HDMI input to HDMI + Audio output
- Support 1 optical fiber digital audio output port
- HDMI: 2.0, HDCP: 2.2
- Product description: This audio extractor can be connected between the source device (DVD player, Blu-ray player, network player, set-top box, PS2, PS3, Xbox360, PC, etc.) and the display device (TV, HD monitor, projector

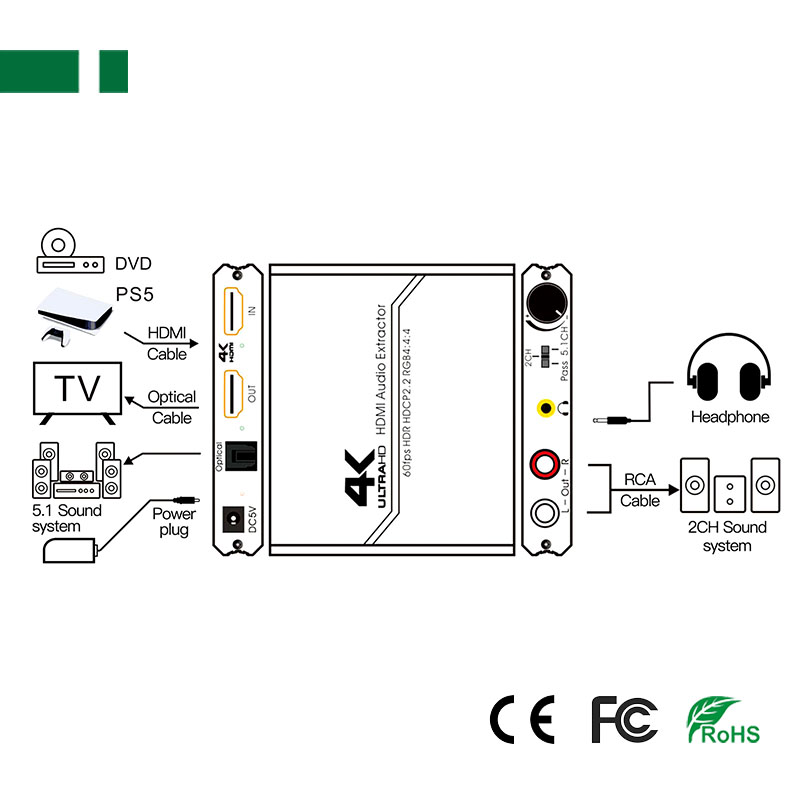

This audio extractor can be connected between the source device (DVD player, Blu-ray player, network player, set-top box, PS2, PS3, Xbox360, PC, etc.) and the display device (TV, HD monitor, projector), It can synchronously separate one optical fiber signal and one R/L signal connect stereo channel to the sound system to obtain high-quality audio signals. Support audio formats such as AC-3, DTS, LPCM.The product is also designed with a volume knob, which can flexibly control the output analog volume.
Features：

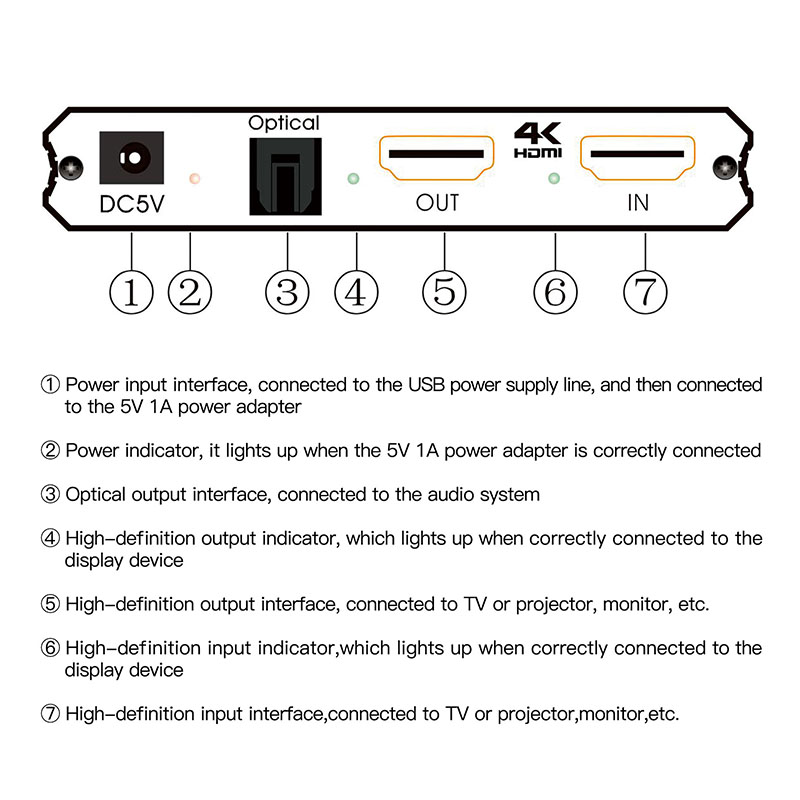

1.Support 1 HDMI input port
2.Support 1 HDMI output port
3.Support 1 optical fiber digital audio output port

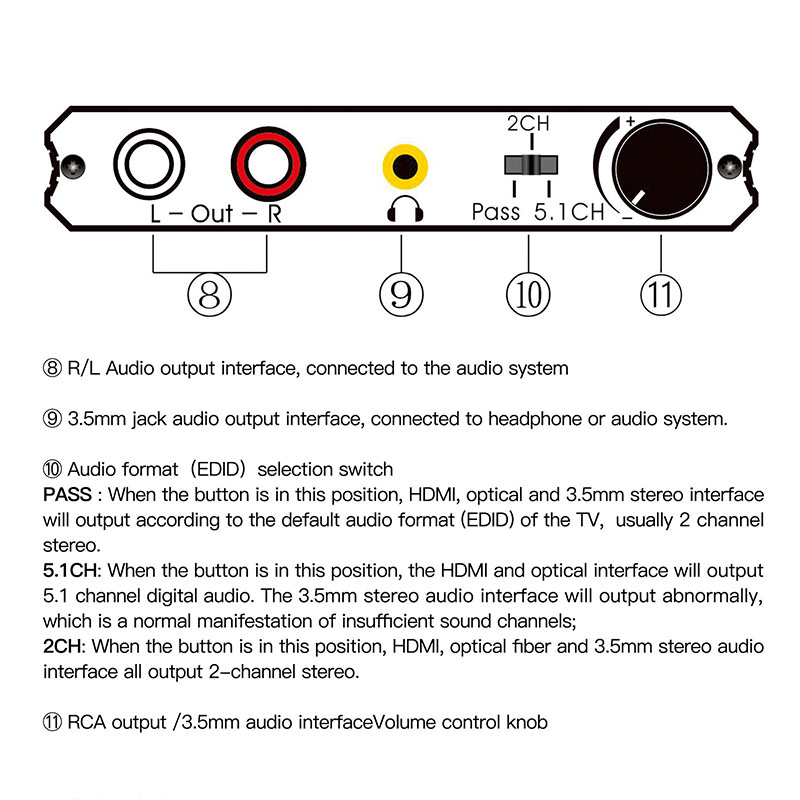

4.Support 1 stereo audio output port,connect to 600Ω high-impedance headphone
5.Support 1 R/L audio output port
6.Support input resolution up to 4K/60fps.
7.Support Volume Control
8.Support 3D, HDR. YUV4:4:4
9.Support HDCP2.2
10.Support AC3, DTS, LPCM and other digital audio formats

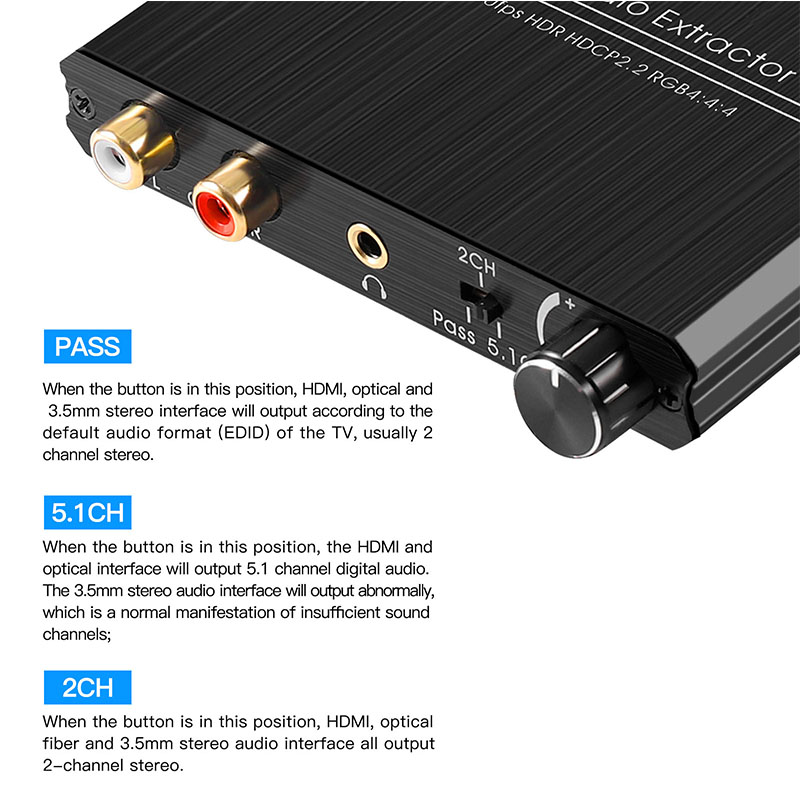

11.Audio output supports 3 EDID selection modes(2CH/5.1CH/ PASS)
12.Lossless signals
13.Simple installation
Specifications：
HDCP Version .......................................................................................................................................HDCP 2.2
Input/Output Resolution.................................................................................1080p/60fps、4K/30fps、4K/60fps
Deep color................................................4K/60fps-YUV444-8bit;4K/60fps-YUV422-12 bit 2160p, 10/12 bits, 50/60Hz
HDMI Max Bandwidth............................................................................................................................................600MHz
HDMI Max Baud Rate.............................................................................................................................................18Gbps
Input Output TMDS Signal.......................................................................................................................0.5~1.5Vp-p(TTL)
Input Output DDC Signal..................................................................................................................................5Vp-p(TTL)
DAC sampling frequency ................................................................................................................................32~192 KHz
DAC bit rate......................................................................................................................................................16~24 Bit
RCA analog output (1KHz@0dB)..................................................1V RMS3.5mm audio interface maximum output
level…...............................................................................................................6.5Vp-p3.5mm audio port maximum output
power..............................................................................................................................32Ω30mW
Signal to noise ratio @0dB(CC1R/ARM).....................................................................................................................≥90dB
Distortion degree...................................................................................................................................................≤0.1%
Frequency response......................................................................................................................................20HZ~20KHz
HDMI Input Cable Distance..................................................................................≤3m AWG26 HDMI Standard Cable
HDMI Output Cable Distance................................................................................≤3m AWG26 HDMI Standard Cable
Max Working Current.............................................................................................................................................400mA
Power Adapter Format..................................................................AC 100V-240V 50/60HZ,DC5V/1A
Operating Temperature Range...........................................................................................................................-10~+55℃
Storage Temperature Range..............................................................................................................................-20~+60℃
Operating Humidity Range.............................................................................10~90%RH（No Condensation）
Storage Humidity Range.................................................................................5~95%RH（No Condensation）
Case Dimension......................................................................................................................................100x 95x 20 mm
Bare weight.............................................................................................................................................................117g
Features：
1.Support 1 HDMI input port
2.Support 1 HDMI output port
3.Support 1 optical fiber digital audio output port
4.Support 1 stereo audio output port,connect to 600Ω high-impedance headphone
5.Support 1 R/L audio output port
6.Support input resolution up to 4K/60fps.
7.Support Volume Control
8.Support 3D, HDR. YUV4:4:4
9.Support HDCP2.2
10.Support AC3, DTS, LPCM and other digital audio formats
11.Audio output supports 3 EDID selection modes(2CH/5.1CH/ PASS)
12.Lossless signals
13.Simple installation
Specifications：
HDCP Version .......................................................................................................................................HDCP 2.2
Input/Output Resolution.................................................................................1080p/60fps、4K/30fps、4K/60fps
Deep color................................................4K/60fps-YUV444-8bit;4K/60fps-YUV422-12 bit 2160p, 10/12 bits, 50/60Hz
HDMI Max Bandwidth............................................................................................................................................600MHz
HDMI Max Baud Rate.............................................................................................................................................18Gbps
Input Output TMDS Signal.......................................................................................................................0.5~1.5Vp-p(TTL)
Input Output DDC Signal..................................................................................................................................5Vp-p(TTL)
DAC sampling frequency ................................................................................................................................32~192 KHz
DAC bit rate......................................................................................................................................................16~24 Bit
RCA analog output (1KHz@0dB)..................................................1V RMS3.5mm audio interface maximum output
level…...............................................................................................................6.5Vp-p3.5mm audio port maximum output
power..............................................................................................................................32Ω30mW
Signal to noise ratio @0dB(CC1R/ARM).....................................................................................................................≥90dB
Distortion degree...................................................................................................................................................≤0.1%
Frequency response......................................................................................................................................20HZ~20KHz
HDMI Input Cable Distance..................................................................................≤3m AWG26 HDMI Standard Cable
HDMI Output Cable Distance................................................................................≤3m AWG26 HDMI Standard Cable
Max Working Current.............................................................................................................................................400mA
Power Adapter Format..................................................................AC 100V-240V 50/60HZ,DC5V/1A
Operating Temperature Range...........................................................................................................................-10~+55℃
Storage Temperature Range..............................................................................................................................-20~+60℃
Operating Humidity Range.............................................................................10~90%RH（No Condensation）
Storage Humidity Range.................................................................................5~95%RH（No Condensation）
Case Dimension......................................................................................................................................100x 95x 20 mm
Bare weight.............................................................................................................................................................117g
