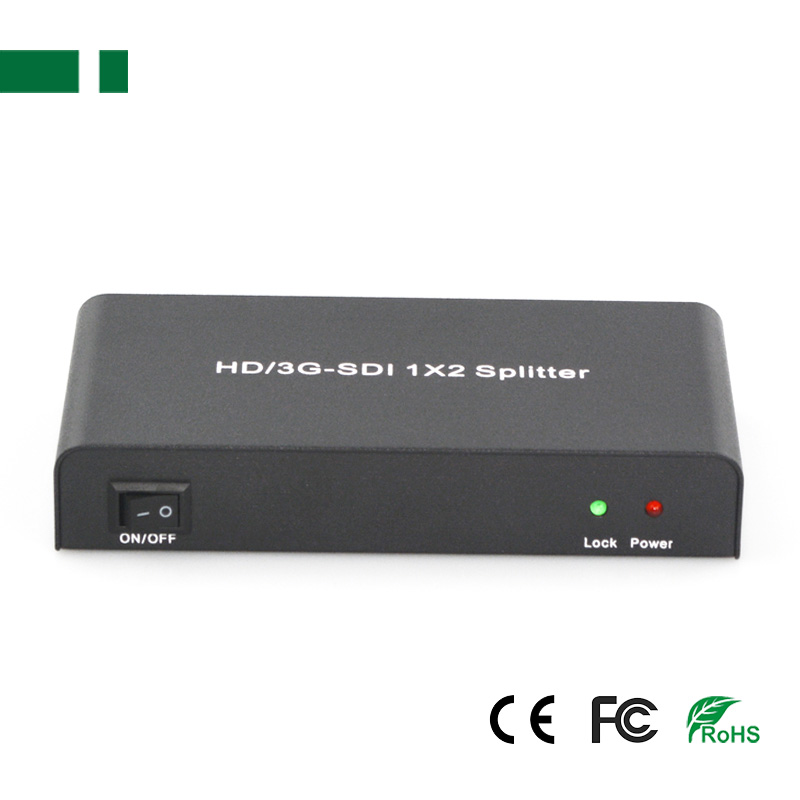

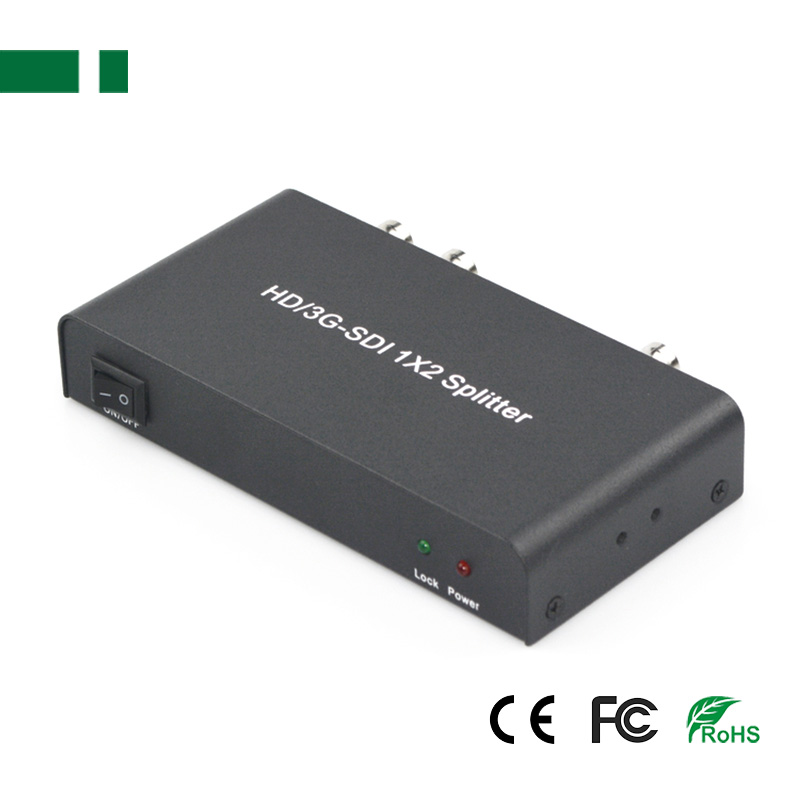

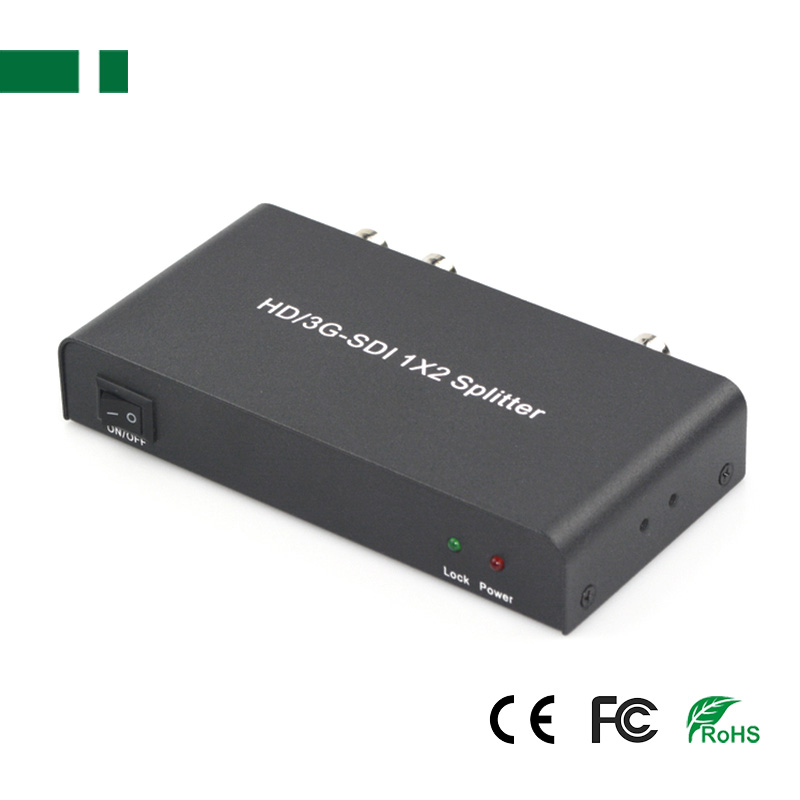

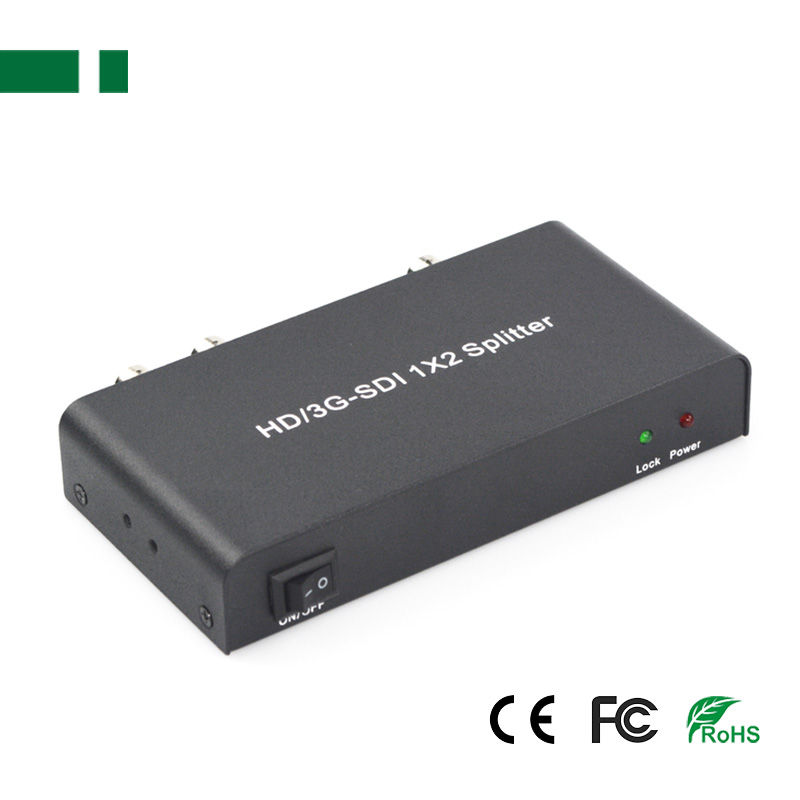

CHM-1002SDI 1080P@60Hz SD-SDI/ HD-SDI/ 3G-SDI 1x2 Video Splitter

Introduction
This SDI splitter can distribute one SDI signal into two SDI signals, the output interface can connect two SDI display devices and display the same picture. The input end has an internal equalizer, which can realize long-distance transmission.
This product can be used in places where noise, transmission distance and safety are limited, data center control, information distribution, remote monitoring, conference room presentations, and digital environments and corporate training venues.

Features:
1. 1080P@60Hz SD-SDI/ HD-SDI/ 3G-SDI 1x2 Video Splitter;
1.1. SD: 480i@60Hz, 576i@50Hz;
1.2. HD: 720P@50/60Hz, 1080i@50/60Hz;
1.3. 3G: 1080P@24/25/29.97/30 /50/59.94/60Hz;

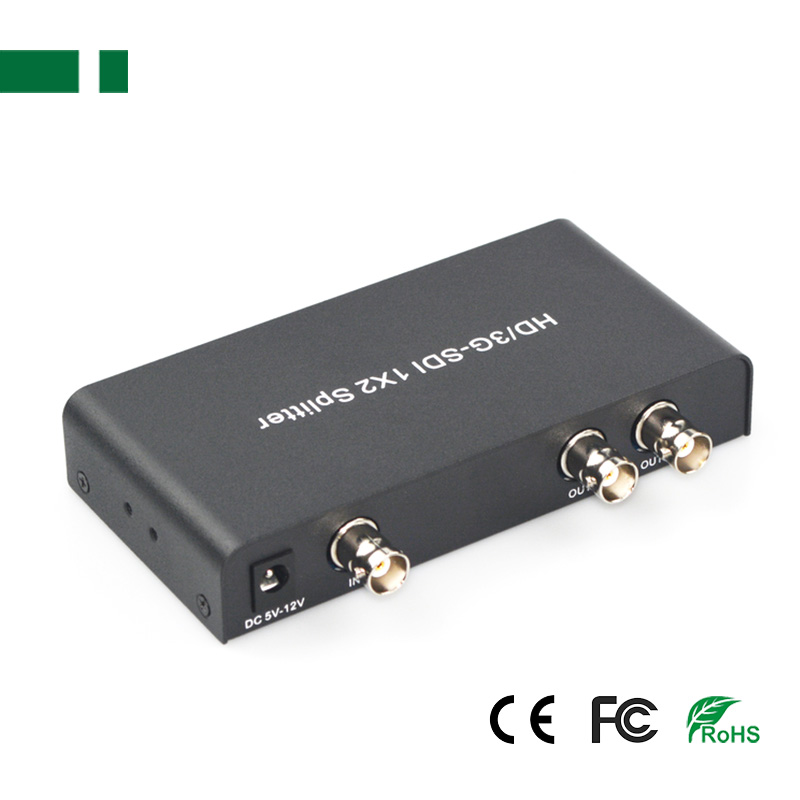

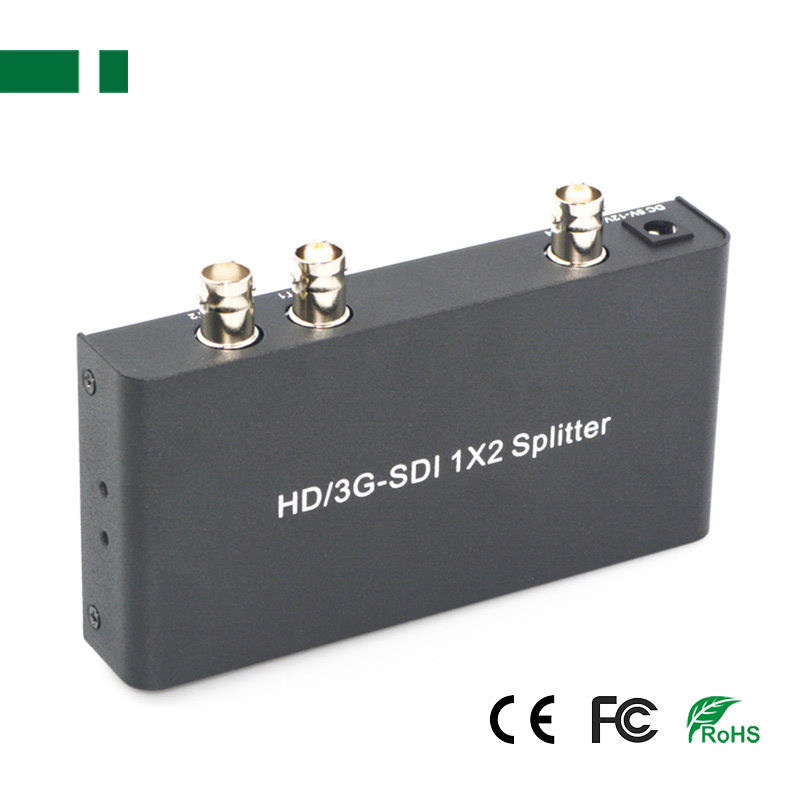

2. Input Port: 1 * BNC (SD-SDI/ HD-SDI/ 3G-SDI);
3. Output Port: 2 * BNC (SD-SDI/ HD-SDI/ 3G-SDI);
4. SDI Transmission Rates: SD-SDI: 270Mbps, HD-SDI: 1.485Gbps, 3G-SDI: 2.97Gbps;
5. Supports SDI output distance up to 180M;
6. Size: 125*66.5*22mm, 230g.

Specification:

1080P@60Hz SD-SDI/ HD-SDI/ 3G-SDI Video Splitter
More Model	CHM-1002SDI	CHM-1004SDI	CHM-1014SDI
Input Port	1 * SD-SDI/ HD-SDI/ 3G-SDI (1080P@50/60Hz, 1080i@50/60Hz, 720P@50/60Hz, 576i, 480i)
Output Port	2 * SD-SDI/ HD-SDI/ 3G-SDI	4 * SD-SDI/ HD-SDI/ 3G-SDI	4 * SD-SDI/ HD-SDI/ 3G-SDI
Transmit Rate	SD-SDI: 270Mbps, HD-SDI: 1.485Gbps, 3G-SDI: 2.97Gbps
SMPTE Standard	425M Level A&B, 424M, 292M, 259MC
Audio Rate	48KHz
Distance	Max. 180M (Input: Max. 100M, Output: Max. 80M or Input: Max. 80M, Output: Max. 100M)
Power Supply	DC5V
ESD Protection	±8kV (air-gap discharge), ±4kV (contact discharge)
Dimension	125*66.5*22mm	125*66.5*22mm	147*87*30mm
Weight	230g	230g	500g

Package Contents：
1. 3G SDI Splitter * 1pc
2. DC5V/DC12V Power Adapter * 1pc
3. User Manual * 1pc
