Inquiry:
Fiber Optic Transceiver/Converter

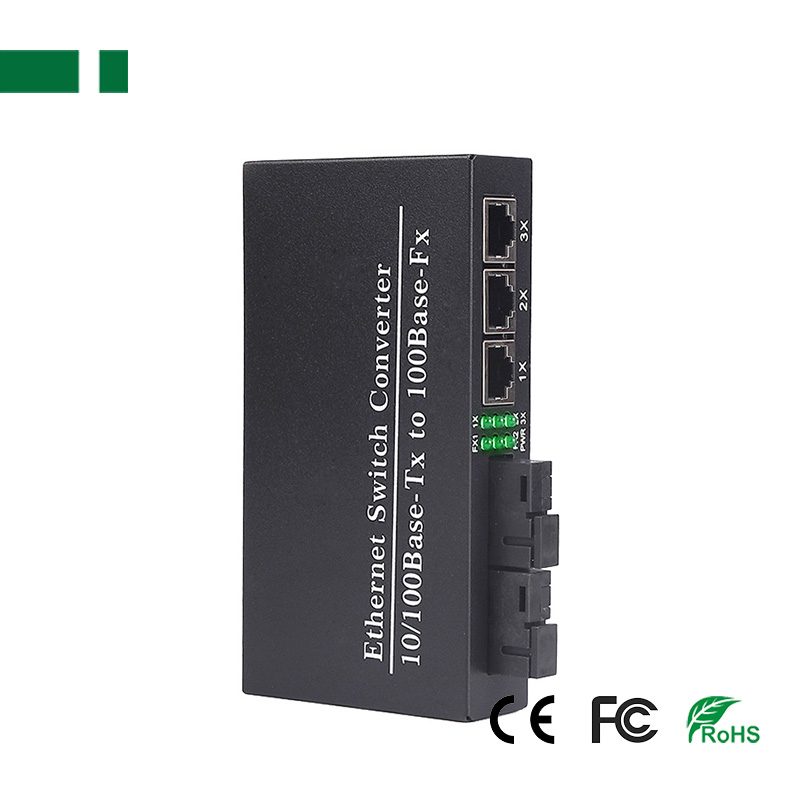

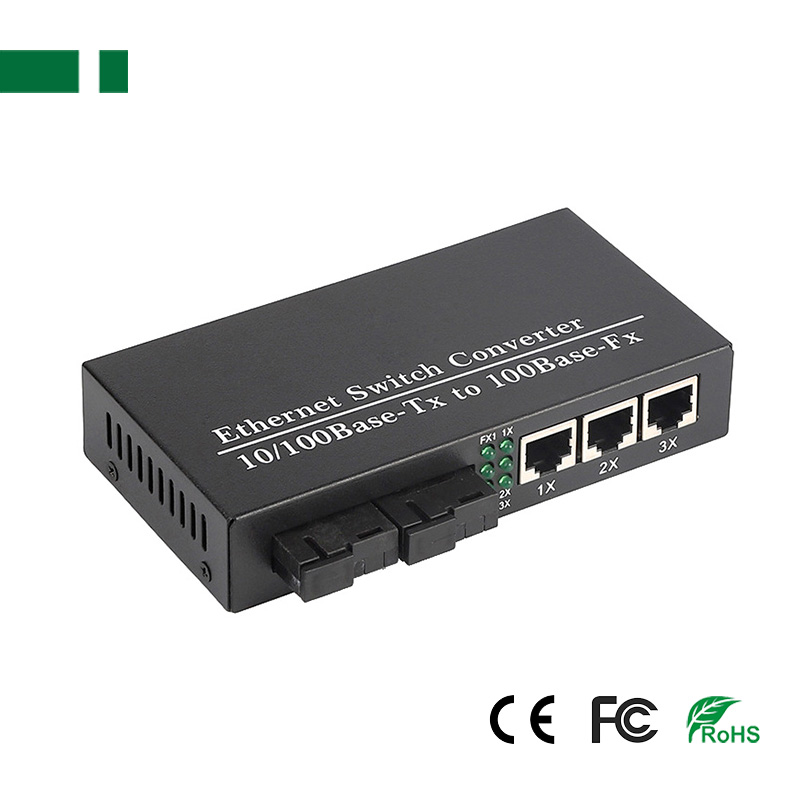

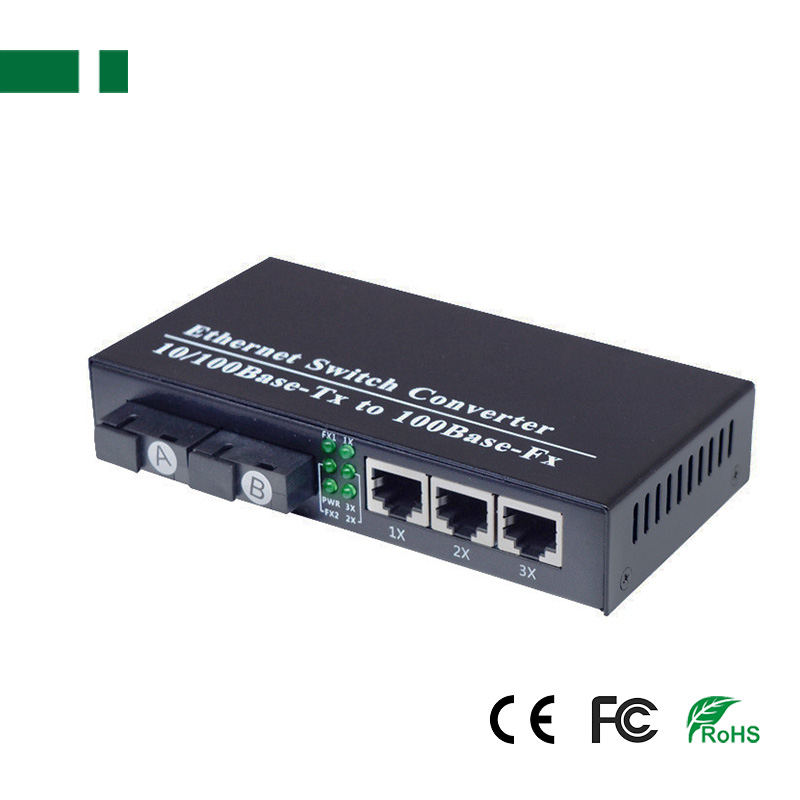

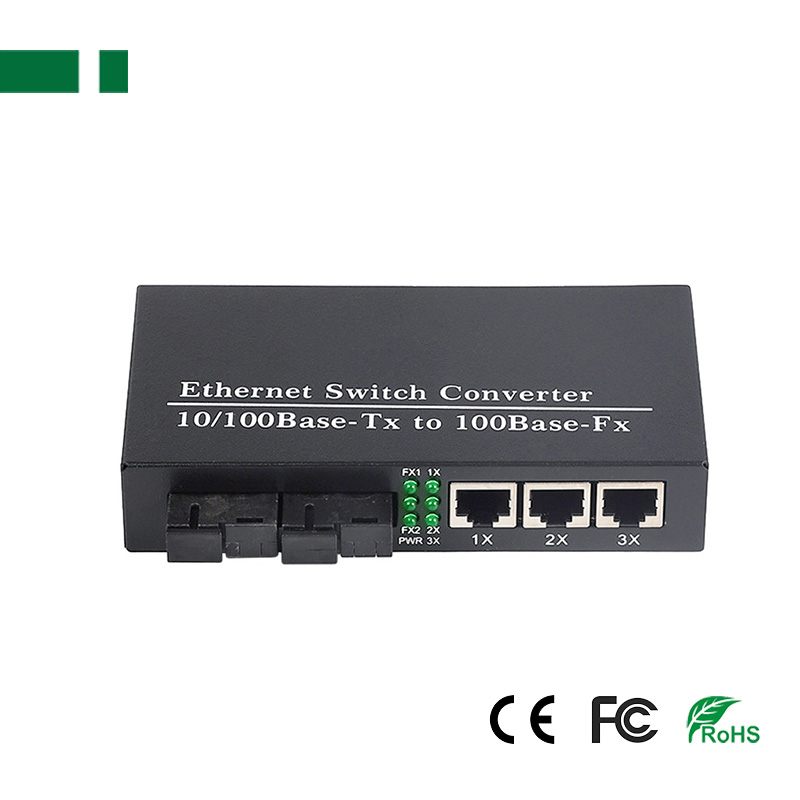

CFS-102-2F3E 100Mbps 2 SFP to 3 RJ45 Fiber Optic Transceiver
- Support the switch between 100Base-T and 100Base-SX/LX
- Support 9K Jumbo Packet
- Transmission distance: 3KM

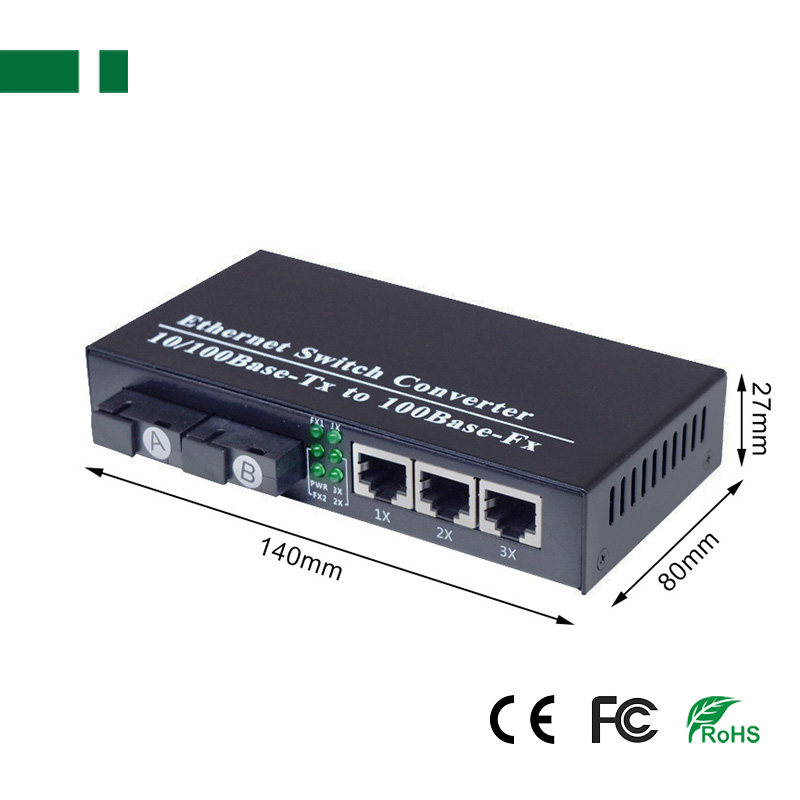

- Size: 140*80*27mm
- Product description: The 10/100Mbps Ethernet Media Converters with external power supply are designed to transmit and receive 10/100Mbps data over optical fiber.
10/100Mbps 2 SFP to 3 RJ45 Fiber Optic Transceiver
Instruction
The 10/100Mbps Ethernet Media Converters with an external power supply are designed to transmit and receive 10/100Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps or 100Mbps Ethernet rate without any adjustments.
Type: SFP Optic Media Converter

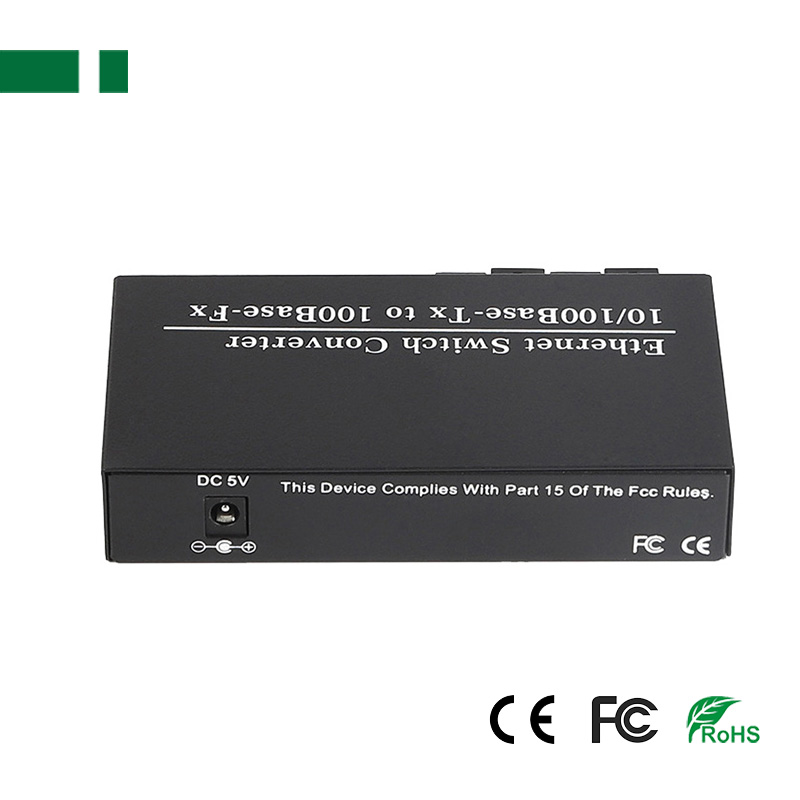

Power: DC 5V
Power Adapter: EU/US Plug
Connector A: 2 TX/RX SFP Port
Connector B: 3 RJ45 Port
Fiber Port Type: SC/FC/ST/LC Optional
Ethernet Port Rate: 10/100Mbps adaptive
SFP Port Rate: 100Mbps
Wavelength: 1310nm / 1550nm
Distance: 3KM / 20Km (Depends on SFP Module)
Feature
2*100Mbps full-duplex fiber port and 3*100Mbps Ethernet port.
Each port has a complete LED Indicator light for installation, commissioning, and maintenance.
Support 9K Jumbo Packet.
Support direct forwarding mode, which supports less time delay.
Low power consumption, only 1.5W in full load condition.
Support isolation protection function, and good data security.
The optical fiber transmission distance depends on the performance of the SFP module, please choose according to your needs.
Small size, suitable for installation in various places.
Auto-negotiation low power consumption chips to ensure a very long time and stable operation.
Instruction
The 10/100Mbps Ethernet Media Converters with an external power supply are designed to transmit and receive 10/100Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps or 100Mbps Ethernet rate without any adjustments.
Type: SFP Optic Media Converter
Power: DC 5V
Power Adapter: EU/US Plug
Connector A: 2 TX/RX SFP Port
Connector B: 3 RJ45 Port
Fiber Port Type: SC/FC/ST/LC Optional
Ethernet Port Rate: 10/100Mbps adaptive
SFP Port Rate: 100Mbps
Wavelength: 1310nm / 1550nm
Distance: 3KM / 20Km (Depends on SFP Module)
Feature
2*100Mbps full-duplex fiber port and 3*100Mbps Ethernet port.
Each port has a complete LED Indicator light for installation, commissioning, and maintenance.
Support 9K Jumbo Packet.
Support direct forwarding mode, which supports less time delay.
Low power consumption, only 1.5W in full load condition.
Support isolation protection function, and good data security.
The optical fiber transmission distance depends on the performance of the SFP module, please choose according to your needs.
Small size, suitable for installation in various places.
Auto-negotiation low power consumption chips to ensure a very long time and stable operation.
