Fiber Optic Transceiver/Converter

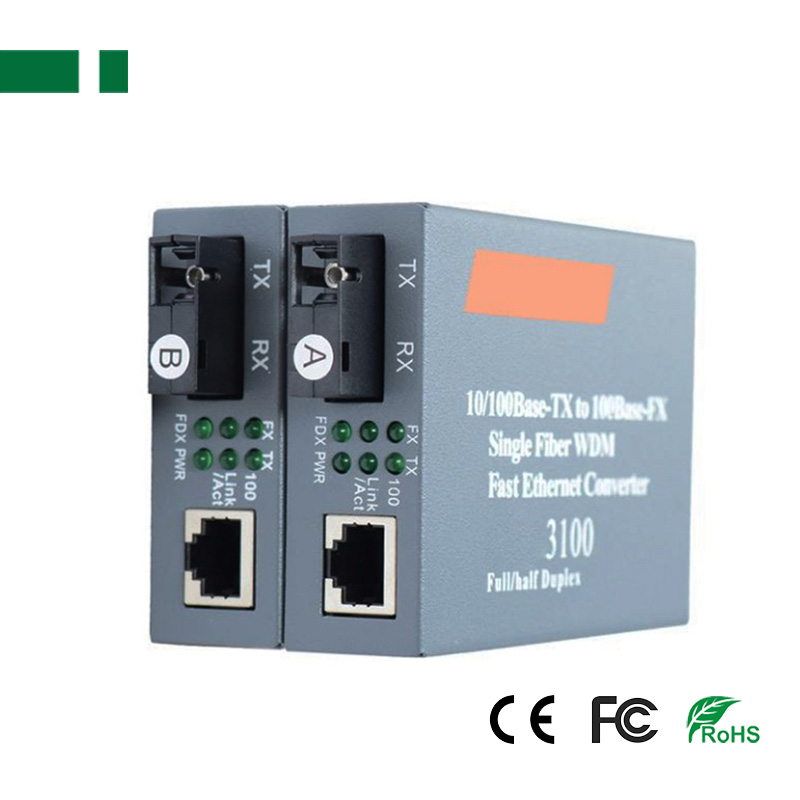

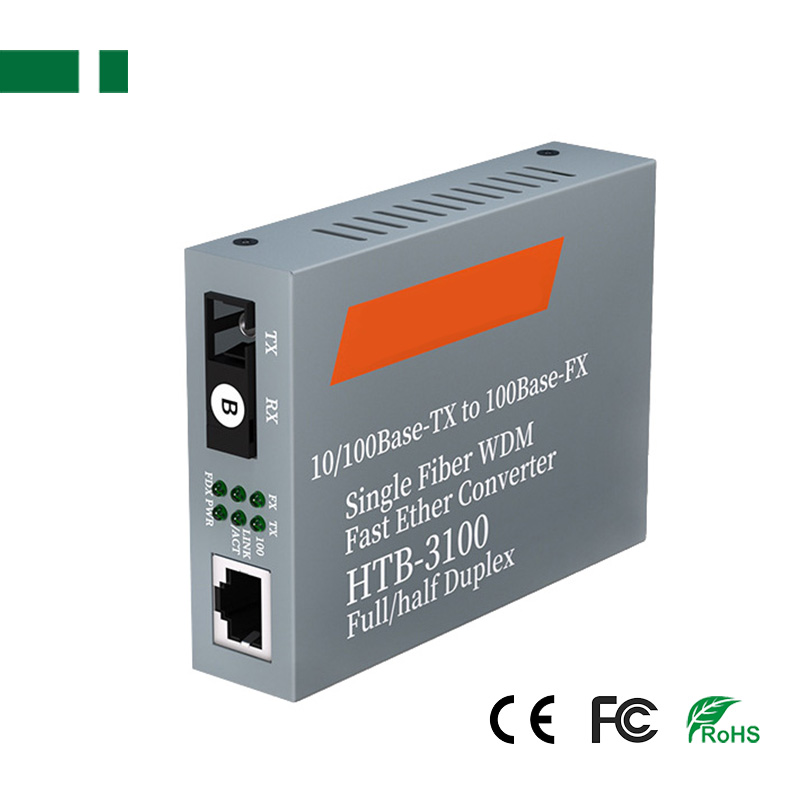

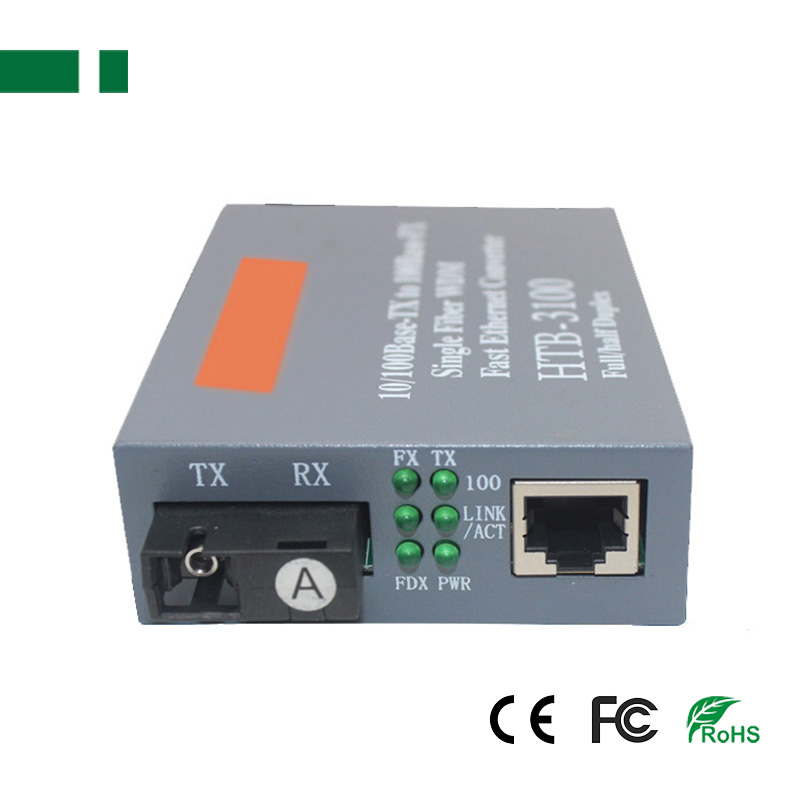

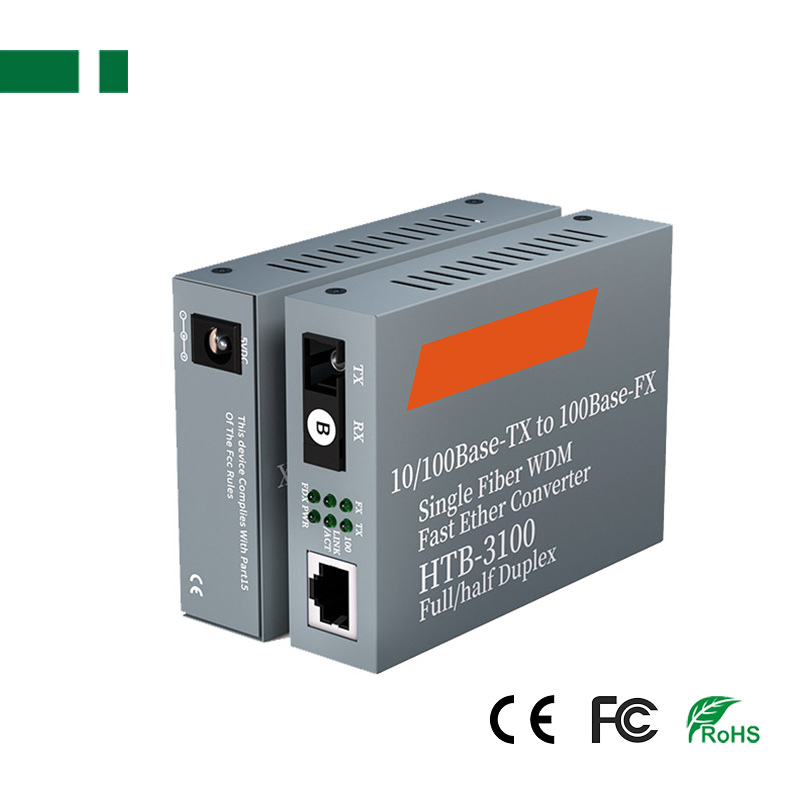

HTB-3100AB 10/100Mbps Single Mode Single SC Port Fiber Optical Media Converter
- Support the switch between 100Base-T and 100Base-SX/LX
- Support 9K Jumbo Packet
- Transmission distance: 3KM
- Size: 94x71x24mm
- Product description: The 10/100Mbps Ethernet Media Converters with external power supply are designed to transmit and receive 10/100Mbps data over optical fiber.
10/100Mbps Single Mode Single SC Port Fiber Optical Media Converter
Overview
The 10/100Mbps Ethernet Media Converters with external power supply are designed to transmit and receive 10/100Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
Features:
1. Support the switch between 100Base-T and 100Base-SX/LX
2. 1*1.25Gbps full-duplex fiber port and 1*100M Ethernet port

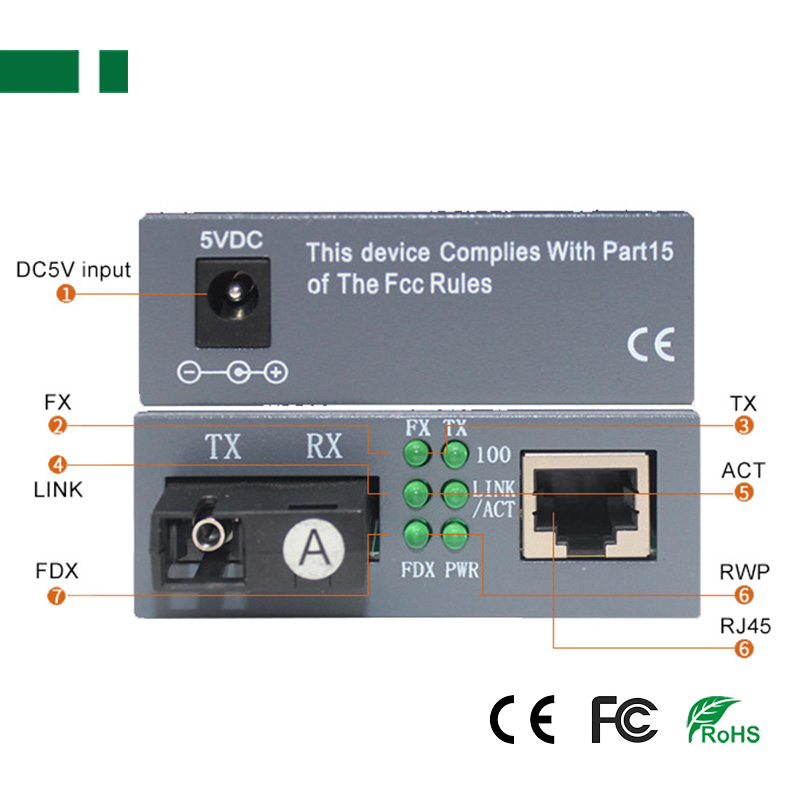

3. Each port has the complete LED Indicator light for installation, commissioning and maintenance
4. Support 9K Jumbo Packet
5. Support direct forwarding mode, which support less time delay
6. Low power consumption, only 1.5W in full load condition
7. Support isolation protection function, good data security
8. Small size, suitable for installation in various places
9. Auto-negotiation low power consumption chips to ensure very longtime and stable operation
Specification:
Overview
The 10/100Mbps Ethernet Media Converters with external power supply are designed to transmit and receive 10/100Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
Features:
1. Support the switch between 100Base-T and 100Base-SX/LX
2. 1*1.25Gbps full-duplex fiber port and 1*100M Ethernet port
3. Each port has the complete LED Indicator light for installation, commissioning and maintenance
4. Support 9K Jumbo Packet
5. Support direct forwarding mode, which support less time delay
6. Low power consumption, only 1.5W in full load condition
7. Support isolation protection function, good data security
8. Small size, suitable for installation in various places
9. Auto-negotiation low power consumption chips to ensure very longtime and stable operation
Specification:
| Model | HTB-3100AB | HTB-GS-03AB |
| Data Rate | 10/100Mbps | 10/100/1000Mbps |
| Fiber Type | Single Mode | |
| Transmission distance | 3KM | |
| Connector Type | SC/UPC | |
| Wavelength | 1310/1550nm | |
| Send-Power | 20dBm(min.), 0dBm(max.) | |
| Standard |
IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX/FX Fast-Ethernet
IEEE802.3z/ab 1000BASE-FX/TX 100M-Ethernet
EEE802.3x
|
|
| RJ-45 Port | Auto-MDI/MDIX | |
| Frequency Offset | ±125,000bps (or ± 100ppm) | |
| MTU | More than 9036 bytes | |

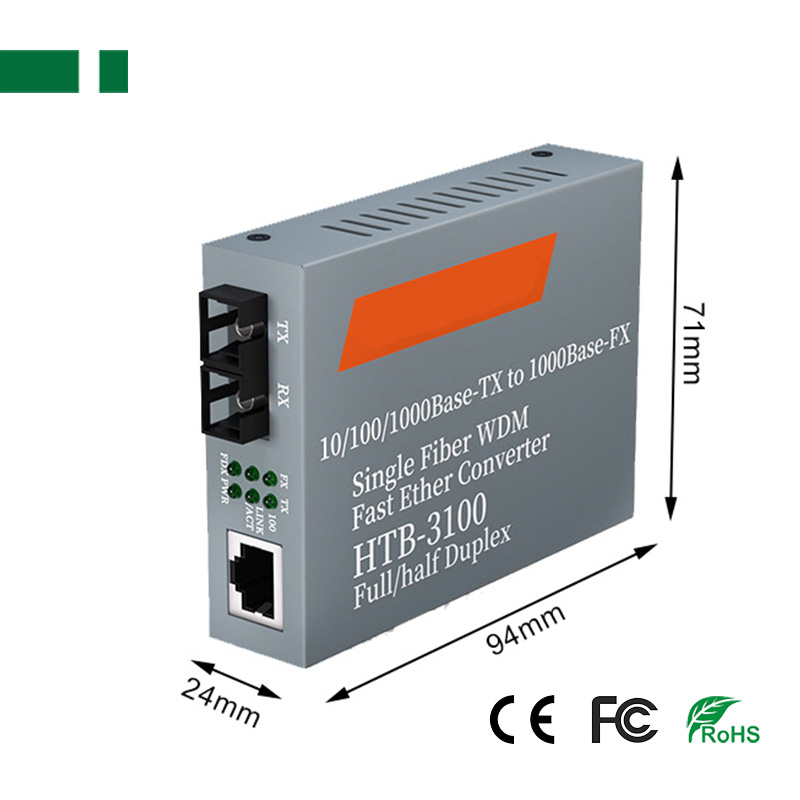

| Dimensions(WxDxH) | 94x71x24mm (External power) | |
| Input Voltage | DC5V1A( External power input : AC100V-AC240V/50-60HZ ) | |
| Operation Temperature | 0°C~70°C | |
| Store Temperature | -40°C~85°C | |
| Humidity | 5%~95% non-condensing | |
| Weight | 0.5kg/Pair (External Power) | |
| Compatible | Compatible with optical fiber equipment from Huawei, ZTE, H3C, Cisco, TPLINK, Ruijie, Dell, HP, Intel, NETGEAR, Juniper, AMD and other brands | |
