Fiber Optic Adapter

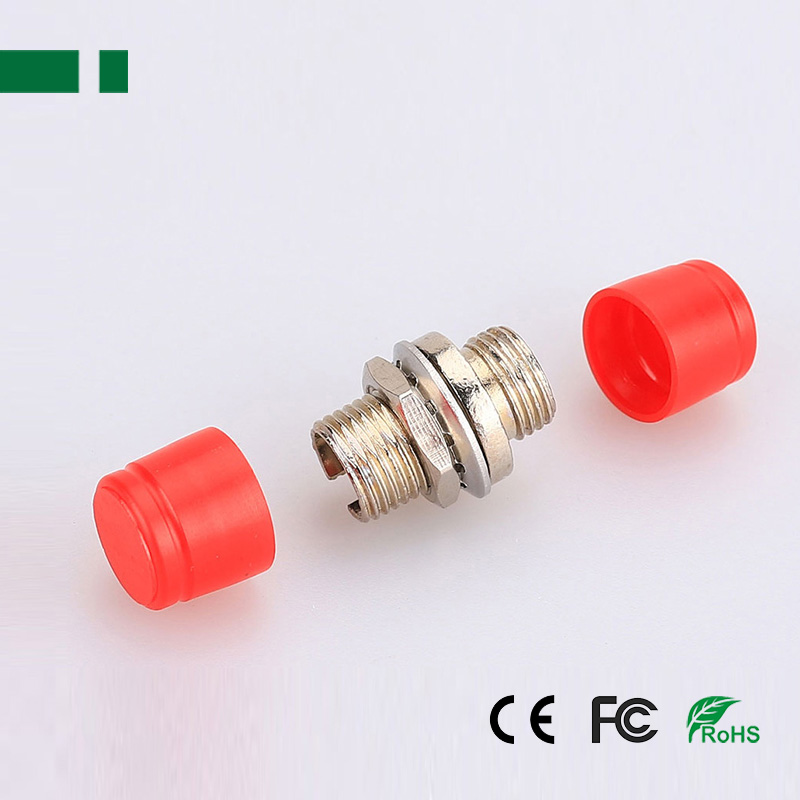

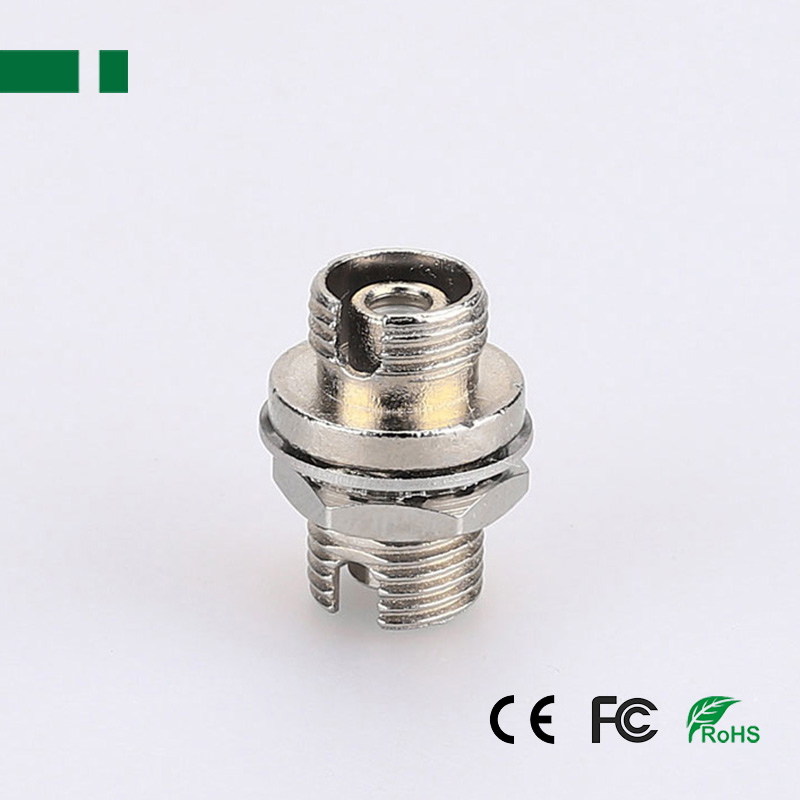

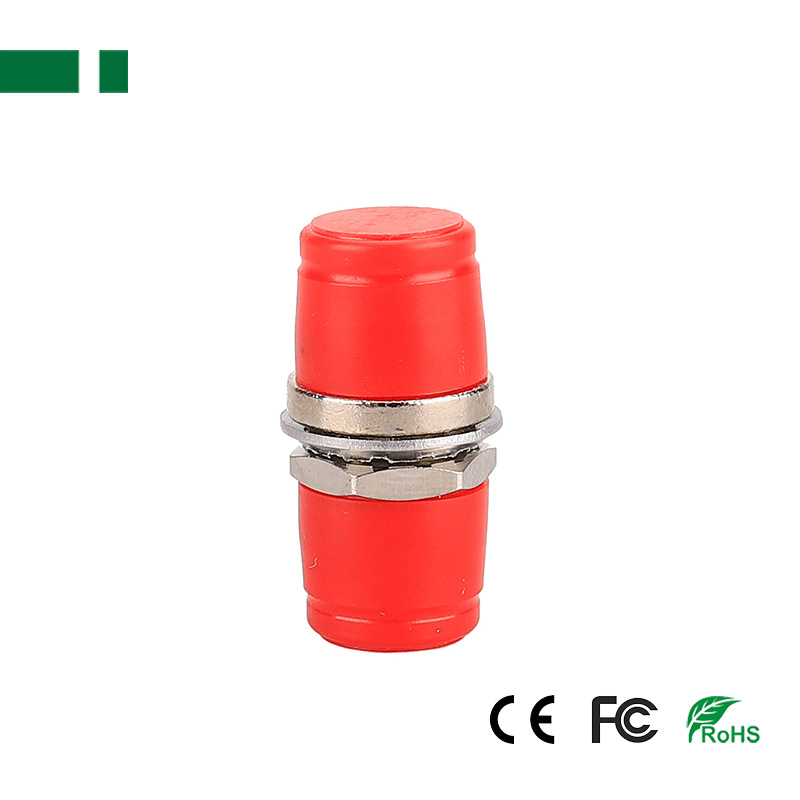

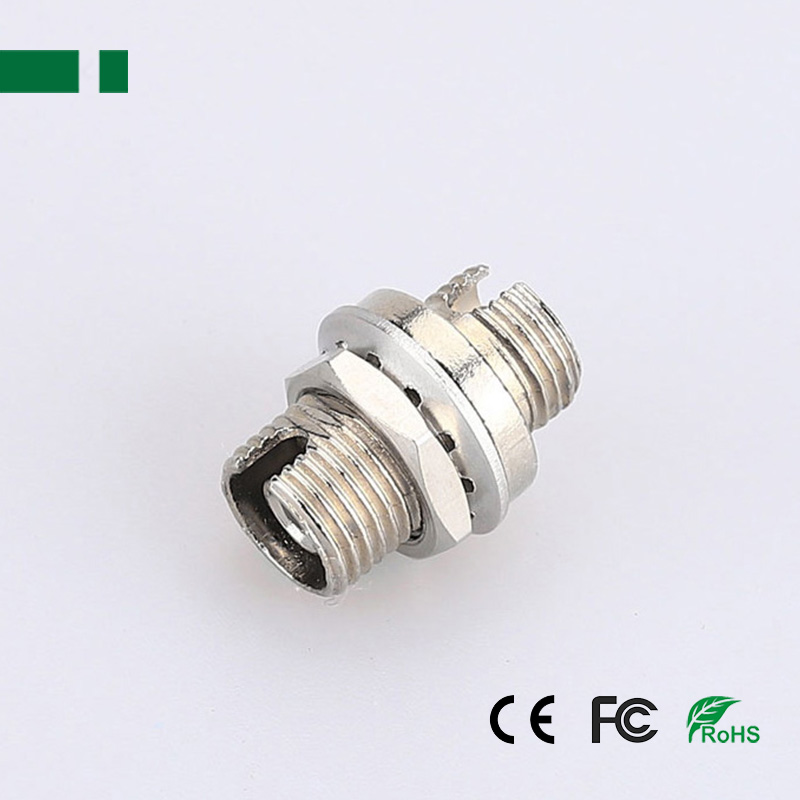

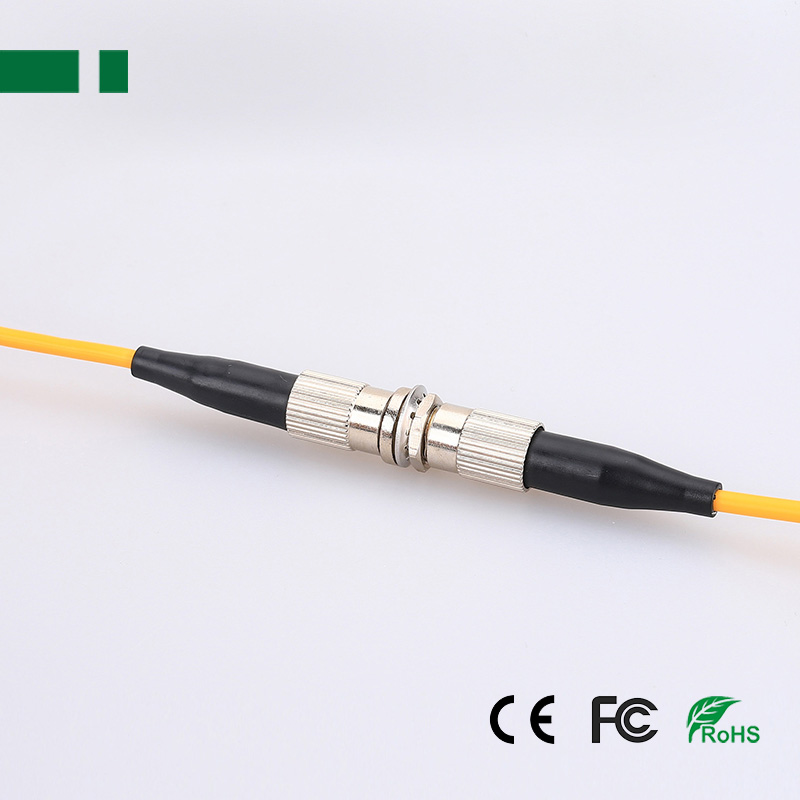

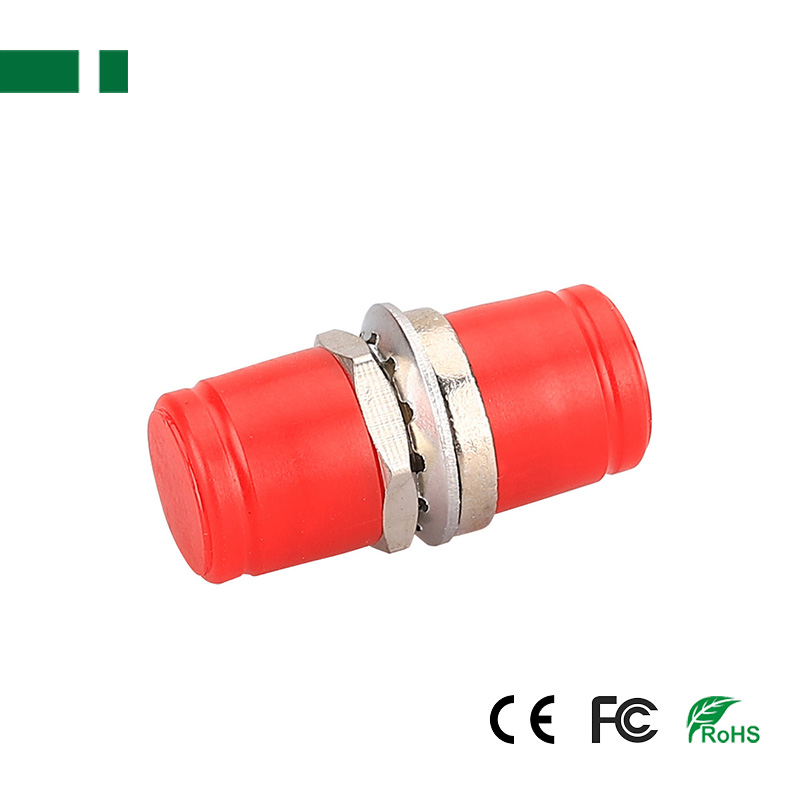

CFC06-FCUF-FCUF FC Female UPC to FC Female UPC Fiber Optic Adapter

FC Female UPC to FC Female UPC Fiber Optic Adapter
Single-mode 9/125
Housing: Metal, Ceramic
Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
Product description: The hybrid adapter Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and th
INQUIRY EMAIL

FC Female UPC to FC Female UPC Fiber Optic Adapter

Description:
FC Female to FC Female hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts FC connector to FC connector, Variable FC interface conversion FC interface, Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.

Specification:

ITEM	FC/ST to FC/ST UPC/ APC Connector Fiber Optic Adapter
Model	CFC06-FCUF-FCUF	CFC06-FCUF-FCUF-D	CFC06-FCAF-FCAF	CFC06-FCAF-FCAF-D	CFC06-STUF-STUF
Connector A	FC Female UPC		FC Female APC		ST Female UPC
Connector B	FC Female UPC		FC Female APC		ST Female UPC
Dimension	22(L)*10(D)mm	221010mm	22(L)*10(D)mm	221010mm	37(L)*10(D)mm
Net Weight	8g	8.3g	8g	8.3g	8.4g
Housing	Metal, Ceramic
Insert Loss	1310nm<0.3dB, 1550nm<0.3dB
Return Loss	1310nm≥50dB, 1550nm≥50dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strength	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
