Fiber Optic Adapter

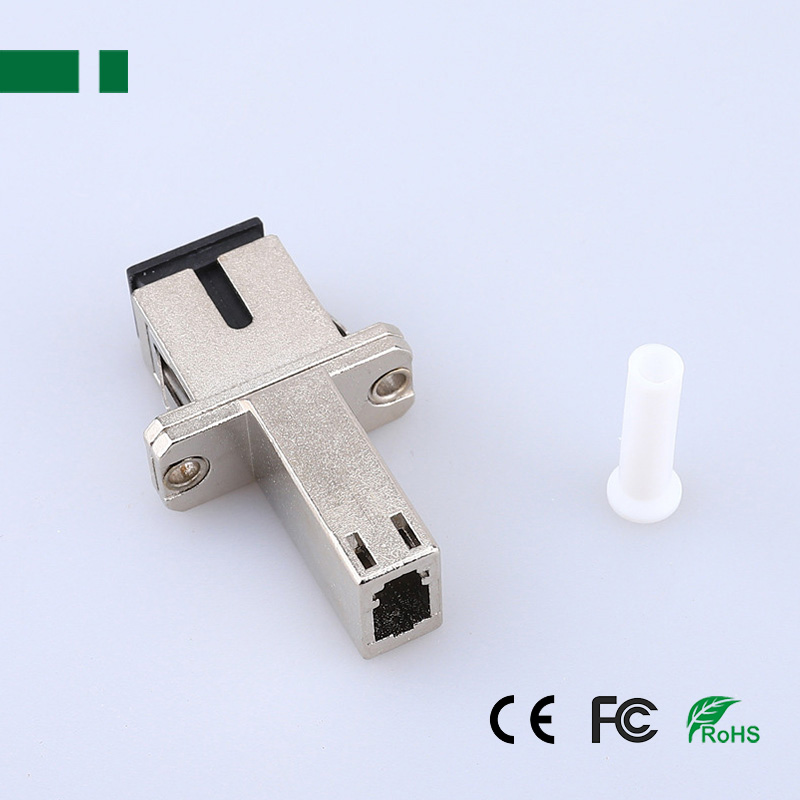

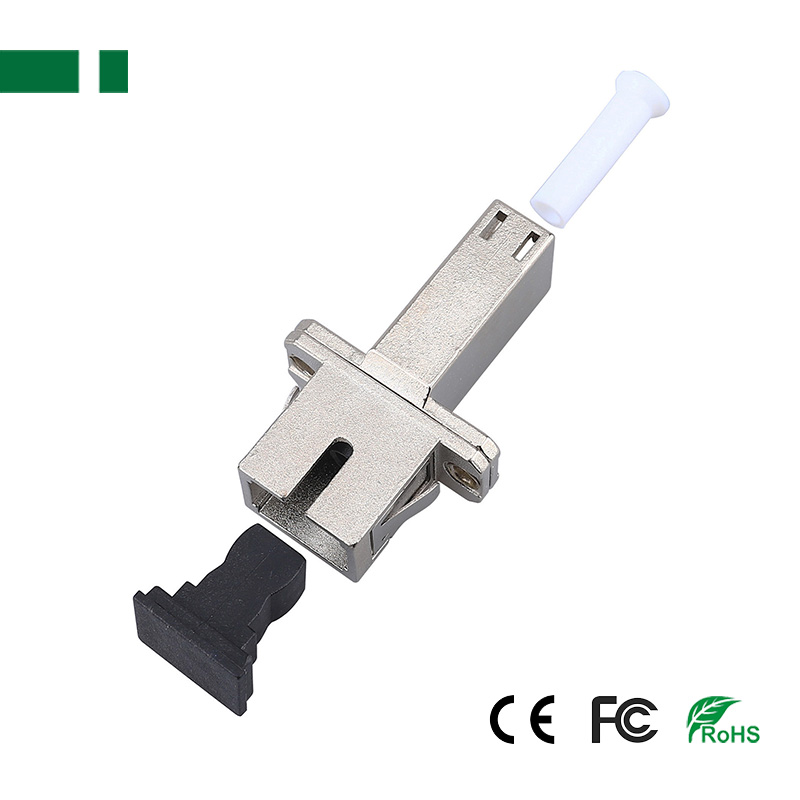

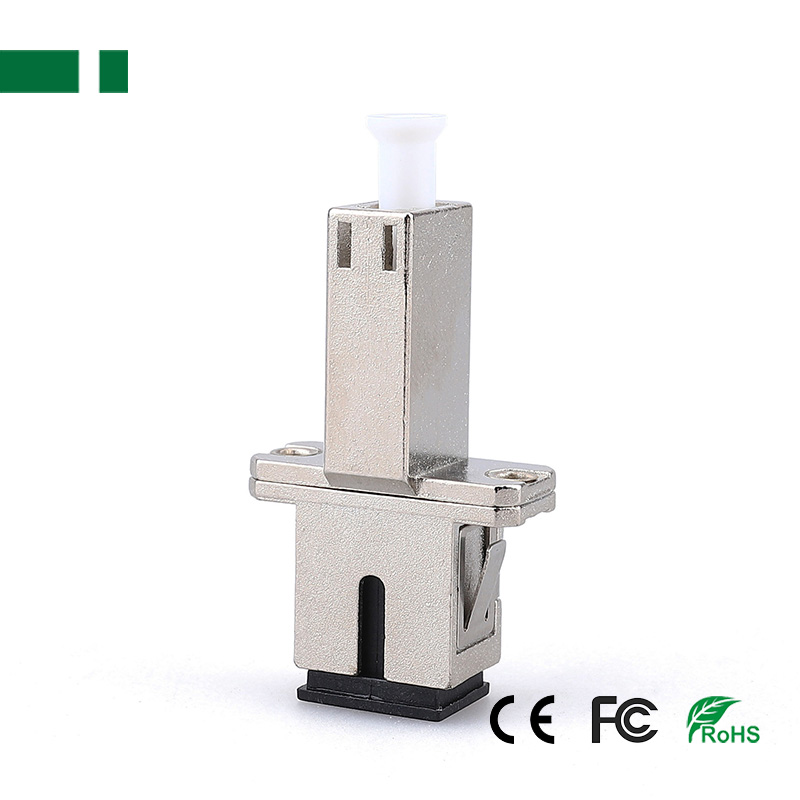

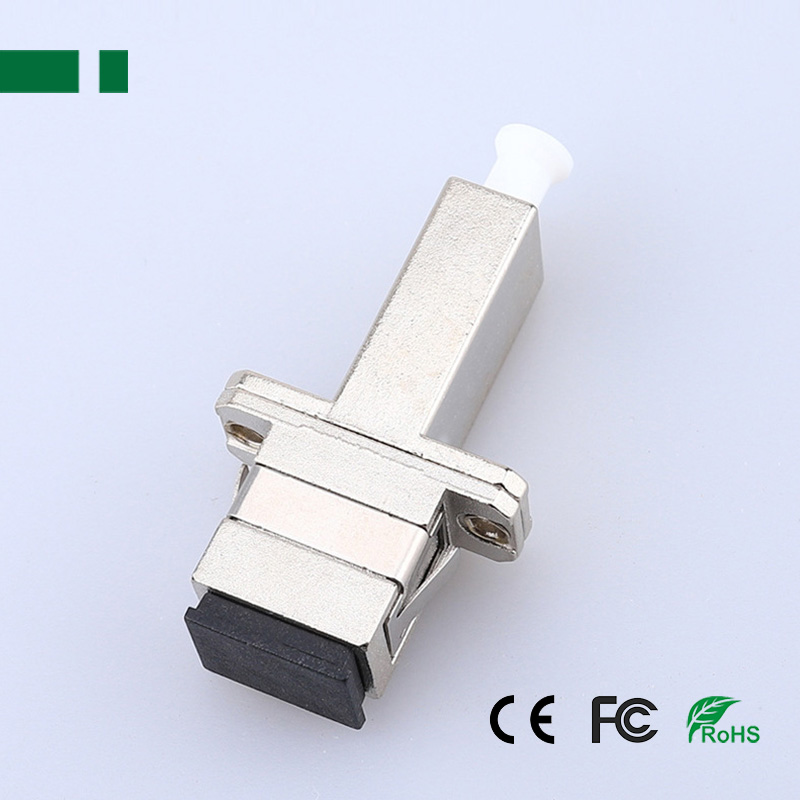

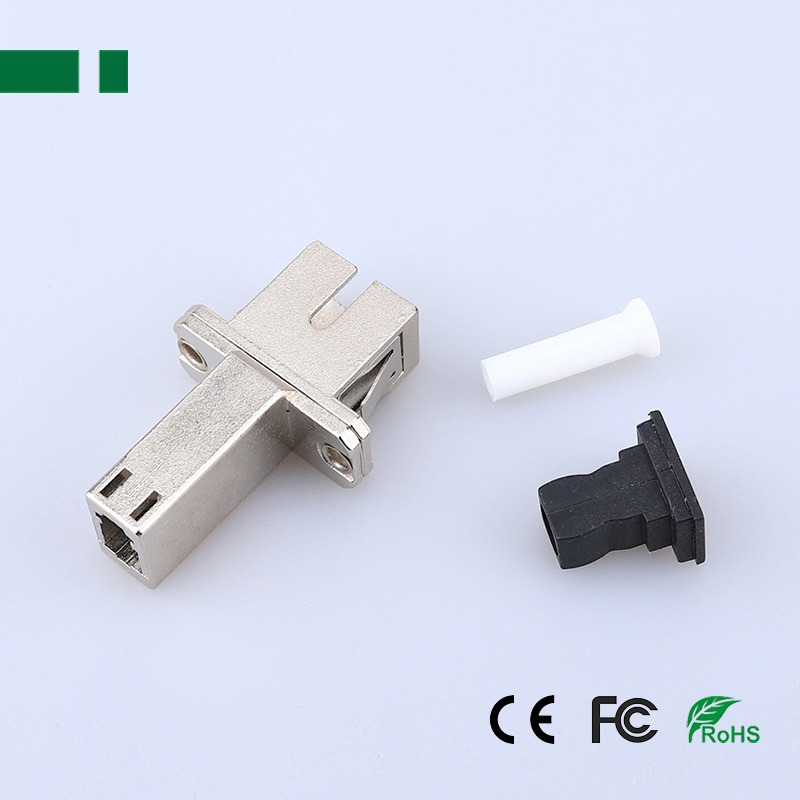

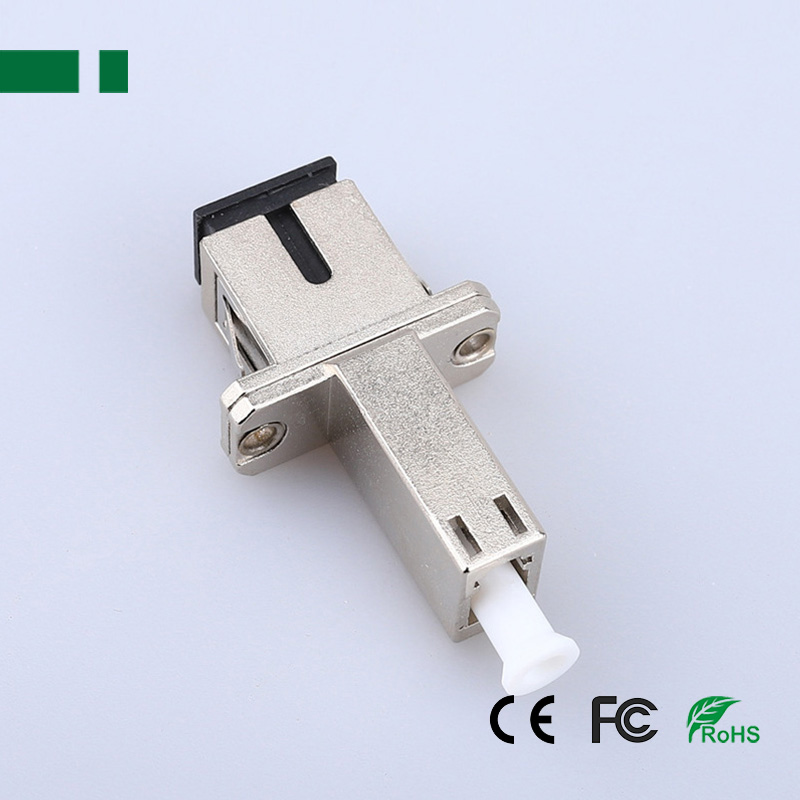

CFC01-LCUF-SCUF LC Female UPC to SC Female UPC Fiber Optic Adapter

LC Female UPC to SC Female UPC Fiber Optic Adapter
Single-mode 9/125
Housing: Metal, Ceramic
Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
Product description: The hybrid adapter Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and th
INQUIRY EMAIL

LC Female UPC to SC Female UPC Fiber Optic Adapter

Description:
LC Female to SC Female hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts LC connector to SC connector, Variable LC interface conversion SC interface, Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.

Specification:

ITEM	UPC/ APC LC to FC/ SC/ ST Connector Fiber Optic Adapter
Model	CFC01-LCUF-FCUF	CFC01-LCAF-FCAF	CFC01-LCUF-SCUF	CFC01-LCAF-SCAF	CFC01-LCUF-STUF
Connector A	LC Female UPC	LC Female APC	LC Female UPC	LC Female APC	LC Female UPC
Connector B	FC Female UPC	FC Female APC	SC Female UPC	SC Female APC	ST Female UPC
Dimension	422210mm
Net Weight	12.3g	12.5g	14.3g	14.6g	13.2g
Housing	Metal, Ceramic
Insert Loss	1310nm<0.3dB, 1550nm<0.3dB
Return Loss	1310nm≥50dB, 1550nm≥50dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strength	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
