Fiber Optic Fast Connector
CFC-02FCU FC UPC Fiber Optic Connector
- FC UPC Fiber Optic Connector
- Fiber Diameter: 125μm
- Housing: ABS + Metal.
- Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
- Product description: Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly.
FC UPC FTTH Fiber Optic Fast Connector Quick Connector
Description:
Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector.
It is designed for high quality and high efficiency for installation. the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. adopted fiber preinstalled structure, and convenient for field installation.
Feature:
1. Factory-installed fiber stub.
2. No epoxy and polishing required; no special tools needed when installed.
3. Allows up to three re-termination result.
4. Easily installed, Quick and easy fiber termination in the field.
5. Only 30 seconds needed to learn the process of installation and making.
6. Cost effective, Warranty: One year.
7. Fast connecting and repeat, no special tools needed when installed.
8. Can be made on-site without splicing connectors.
9. Eliminates cable excess length and pigtail splice storage.
10. Can be installed and make repeatedly thus avoiding loss.
Description:
Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector.
It is designed for high quality and high efficiency for installation. the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. adopted fiber preinstalled structure, and convenient for field installation.
Feature:
1. Factory-installed fiber stub.
2. No epoxy and polishing required; no special tools needed when installed.
3. Allows up to three re-termination result.
4. Easily installed, Quick and easy fiber termination in the field.
5. Only 30 seconds needed to learn the process of installation and making.
6. Cost effective, Warranty: One year.
7. Fast connecting and repeat, no special tools needed when installed.
8. Can be made on-site without splicing connectors.
9. Eliminates cable excess length and pigtail splice storage.
10. Can be installed and make repeatedly thus avoiding loss.
Specification:

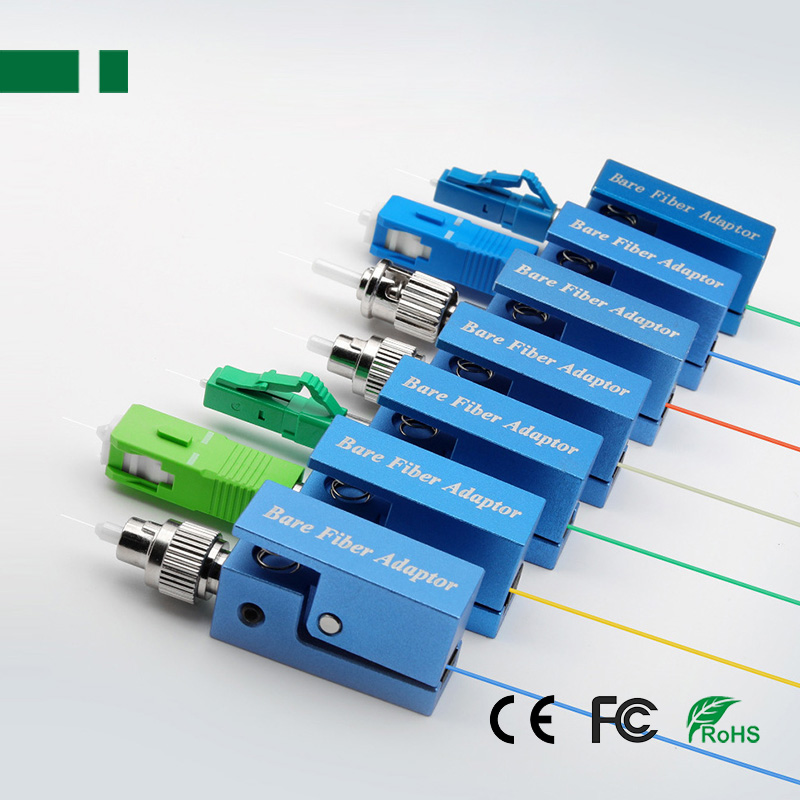

ITEM
Fiber
Optic Single-mode Fast Connector
Model
CFC-02LCU
CFC-02LCA
CFC-02SCU
CFC-02SCA
CFC-02FCU
CFC-02FCA
CFC-02STU
Type
LC
SC
FC
ST
Ferrule
UPC
APC
UPC
APC
UPC
APC
UPC

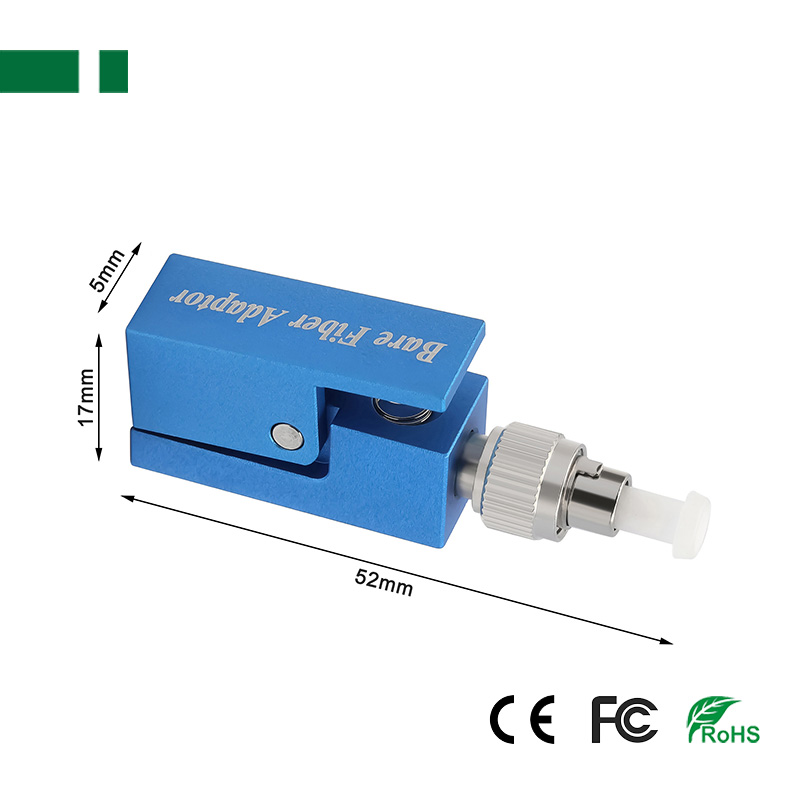

Dimension
57*17*5mm
63*17*5mm
52*17*5mm
61*17*5mm
Net Weight
19.1g
19.1g
18g
16.5g
Fiber Diameter
125μm(657A
& 657B)
Tight Cladding Diameter
250μm
Housing
ABS + Metal
Scope of Application
3.0*2.0mm
Butterfly shaped leather Cable
Application
Single mode FTTH COLD connection
Insert Loss
<0.3dB
Return Loss
≥50dB
≥65dB
≥50dB
≥65dB
≥50dB
≥65dB
≥50dB
Interchangeability
≤0.2dB
Repeatability
≤0.1dB
Durability
≤0.2dB
(1000 times mating)
Tensile Strength
>
10kg
Temperature
≤0.2dB
(-40+85 sustain 100 hours)
Humidity
≤0.2dB (+25+65 93 R.H.100 hours)
