Fiber Optic Fast Connector

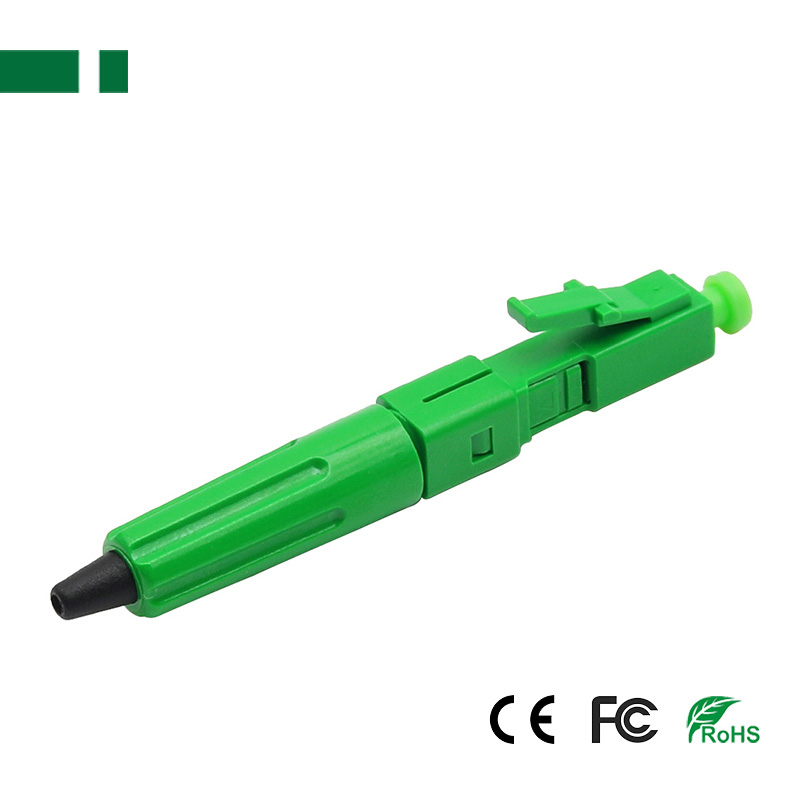

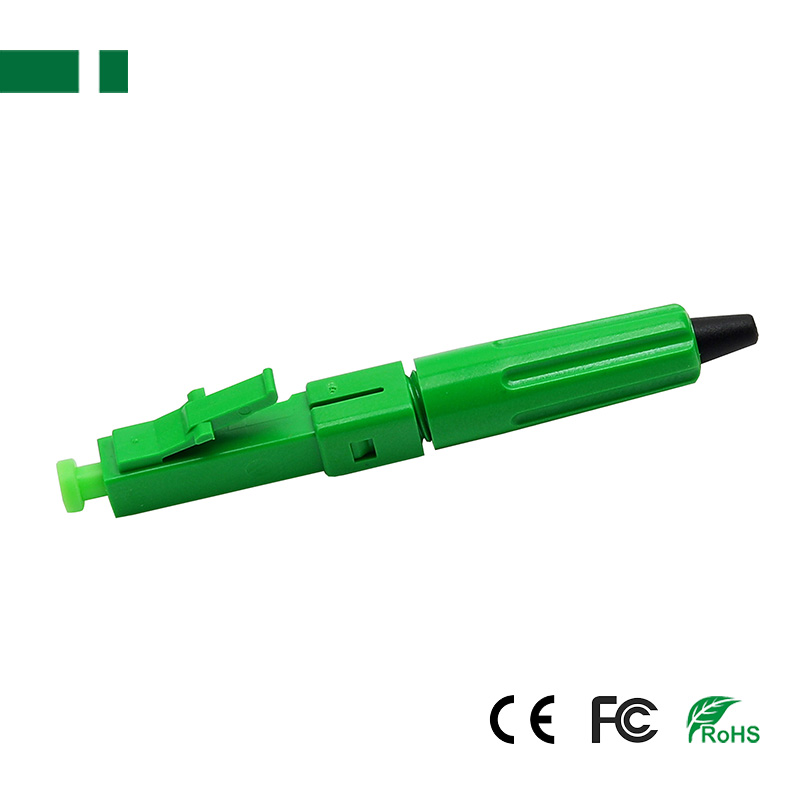

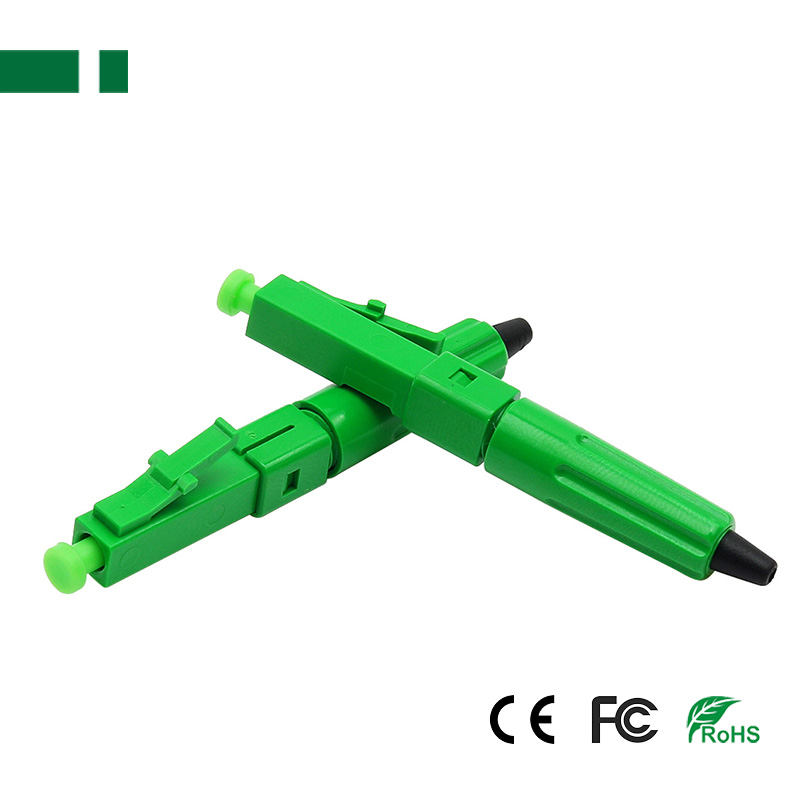

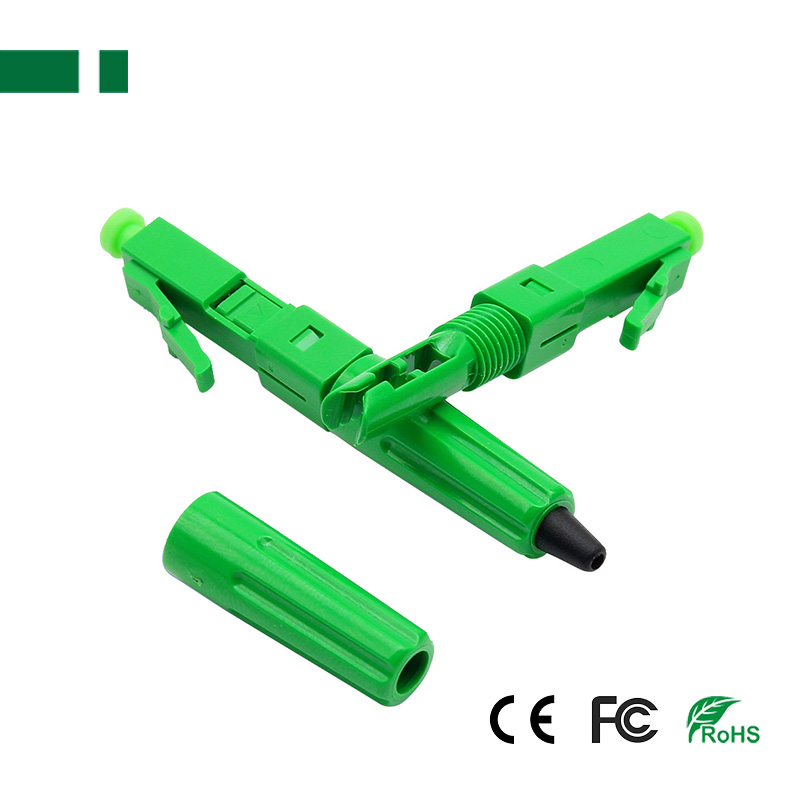

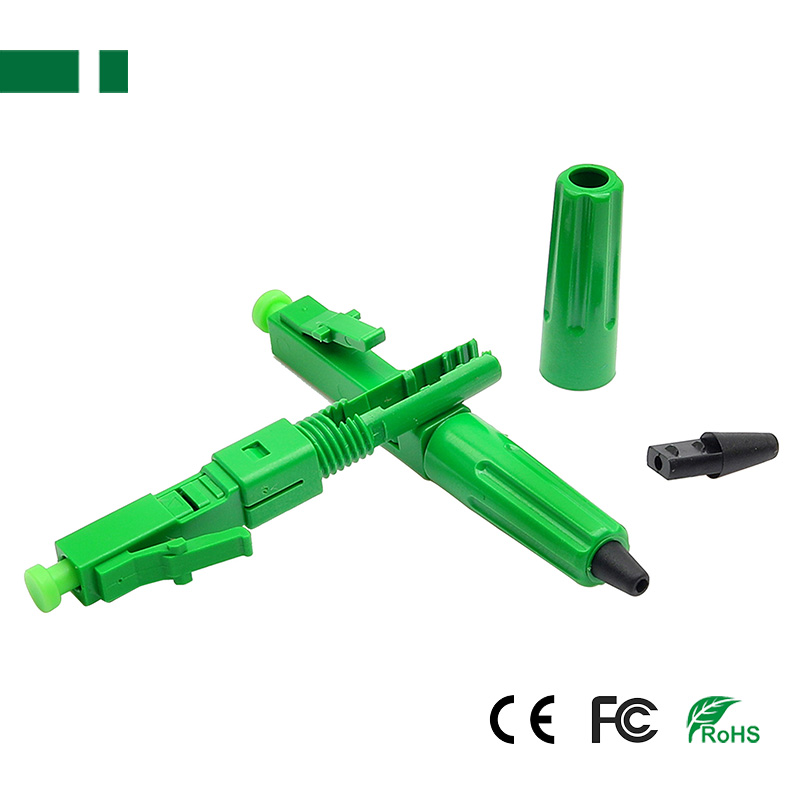

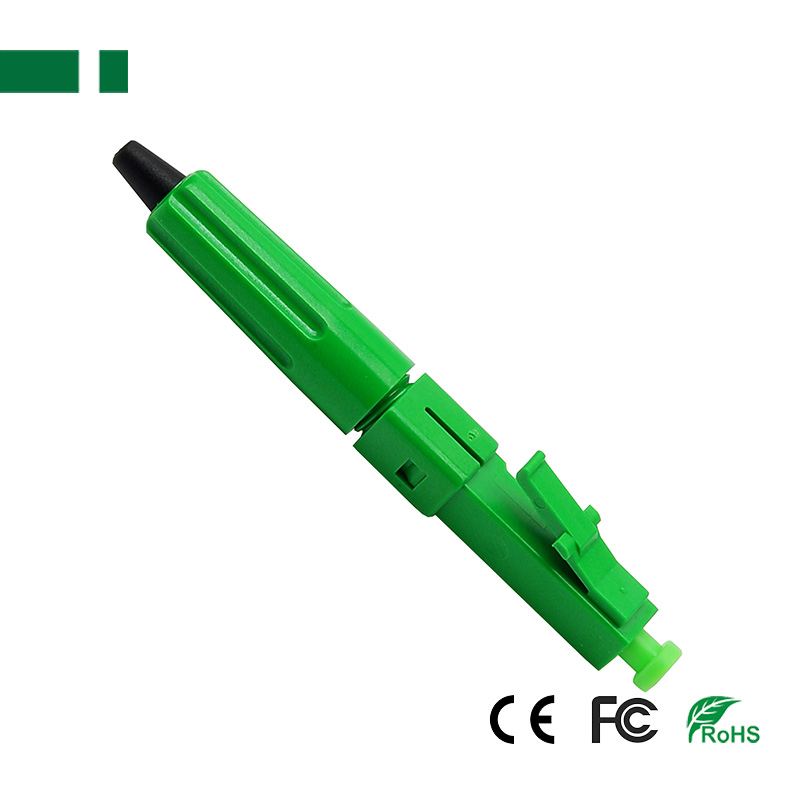

CFC-01LCA LC APC Fiber Optic Connector
- LC APC Fiber Optic Connector
- Fiber Diameter: 125μm
- Housing: ABS
- Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
- Product description: Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly.
LC APC FTTH Fiber Optic Fast Connector Quick Connector
Description:
Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector.
It is designed for high quality and high efficiency for installation. the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. adopted fiber preinstalled structure, and convenient for field installation.
Feature:
1. Factory-installed fiber stub.
2. No epoxy and polishing required; no special tools needed when installed.
3. Allows up to three re-termination result.
4. Easily installed, Quick and easy fiber termination in the field.
5. Only 30 seconds needed to learn the process of installation and making.
6. Cost effective, Warranty: One year.
7. Fast connecting and repeat, no special tools needed when installed.
8. Can be made on-site without splicing connectors.
9. Eliminates cable excess length and pigtail splice storage.
10. Can be installed and make repeatedly thus avoiding loss.
LAN and WAN.
FTTH Applicaitons.
CCTV.
Testing equipment.
Telecommunications systems.
Description:
Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector.
It is designed for high quality and high efficiency for installation. the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. adopted fiber preinstalled structure, and convenient for field installation.
Feature:
1. Factory-installed fiber stub.
2. No epoxy and polishing required; no special tools needed when installed.
3. Allows up to three re-termination result.
4. Easily installed, Quick and easy fiber termination in the field.
5. Only 30 seconds needed to learn the process of installation and making.
6. Cost effective, Warranty: One year.
7. Fast connecting and repeat, no special tools needed when installed.
8. Can be made on-site without splicing connectors.
9. Eliminates cable excess length and pigtail splice storage.
10. Can be installed and make repeatedly thus avoiding loss.
Specification:
ITEM
Fiber Optic Single-mode Fast Connector
Model
CFC-01LCU
CFC-01LCA
CFC-01SCU
CFC-01SCA
CFC-01SCU-1
CFC-01SCA-1
CFC-01FCU
CFC-01FCA
Type
LC
SC
SC
FC
Ferrule
UPC
APC
UPC
APC
UPC
APC
UPC
APC
Dimension
Φ4*50mm
Φ6*60mm
Φ6*55mm
Φ6*60mm
Φ6*55mm
Φ6*57mm
Net Weight
1.4g
4g
4.2g
3g
Fiber Diameter
125μm(657A & 657B)
Tight Cladding Diameter
250μm
Housing
ABS
Scope of Application
3.0*2.0mm Butterfly shaped leather Cable
Application
Single mode FTTH COLD connection
Insert Loss
<0.3dB
Return Loss
≥50dB
≥65dB
≥50dB
≥65dB
≥50dB
≥65dB
≥50dB
≥65dB
Interchangeability
≤0.2dB
Repeatability
≤0.1dB
Durability
≤0.2dB (1000 times mating)
Tensile Strength
> 10kg
Temperature
≤0.2dB (-40+85 sustain 100 hours)
Humidity
≤0.2dB (+25+65 93 R.H.100 hours)
Package
100pcs/Pack
Size
200*165*60mm
Gross Weight
453g
430g
450g
506g
Application:
LAN and WAN.
FTTH Applicaitons.
CCTV.
Testing equipment.
Telecommunications systems.
