CES-2105 5 Ports 100Mbps Network Switch

  • 5 Ports 100Mbps Network Switch
  • Auto-MDI/MDIX eliminates the need for crossover cables.
  • Supports MAC address auto-learning and auto-aging.
  • Size(W×D×H): 97*68*25mm
  • Product description: 100Mbps non-managed switch, provide 5 *10/100Mbps RJ45 adaptive ports, supporting all port line speed forwarding, mute operation, easy to use, no configuration, plug and play, suitable for small home
  • INQUIRY   EMAIL

5 Ports 100Mbps RJ45 Fast Network Switch Ethernet Smart Switcher Hub with EU/US Adapter Mini Network Switch

Description:
100Mbps non-managed switch, provide 5* 10/100Mbps RJ45 adaptive ports, supporting all port line speed forwarding, mute operation, easy to use, no configuration, plug and play, suitable for small home office, small and medium business environment.

Features:
● 5* 10/100/Mbps RJ45 Ports   AUTO Negotiation/AUTO MDI/MDIX
● Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
● Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput.
● Auto-MDI/MDIX eliminates the need for crossover cables.
● Supports MAC address auto-learning and auto-aging.
● Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
● Fanless design ensures quiet operation.
● Desktop or wall-mounting design.
● Plug and Play design simplifies installation.

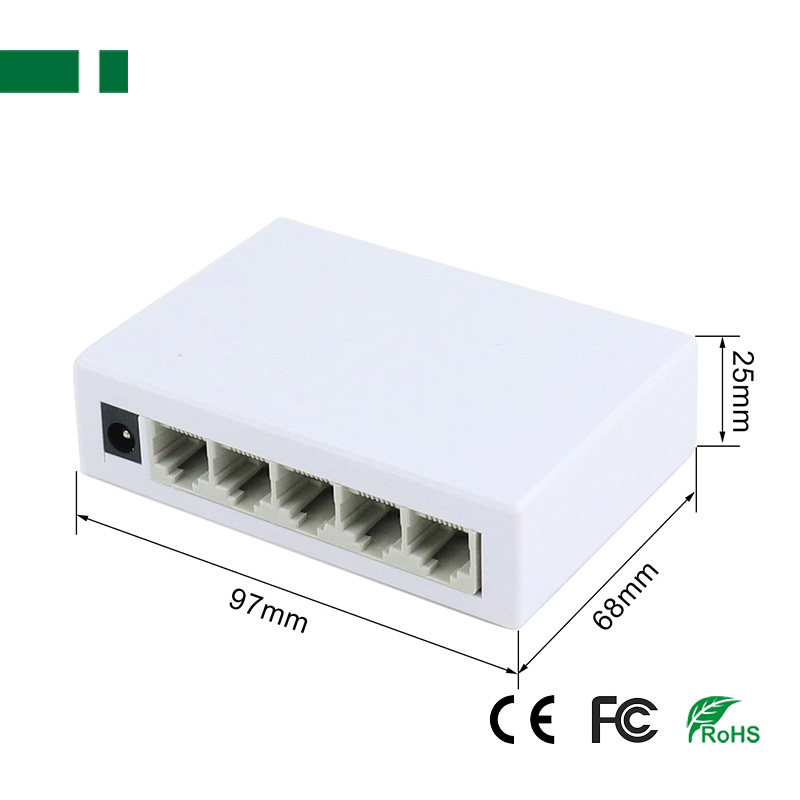

● Size(W×D×H): 97*68*25mm

Specification:

Model CES-2105 CES-2308
Port number 5 port 10/100Mbps Auto MDI-MDIXRJ45 8 port 10/100Mbps Auto MDI-MDIXRJ45
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Network media 10Base-T, cat6 or above UTP,10Base-Tx, cat5 UTP
Data rate 10/100Mbps
Forwarding rate 10Mbps / 14,880pps, 100Mbps / 148,800pps

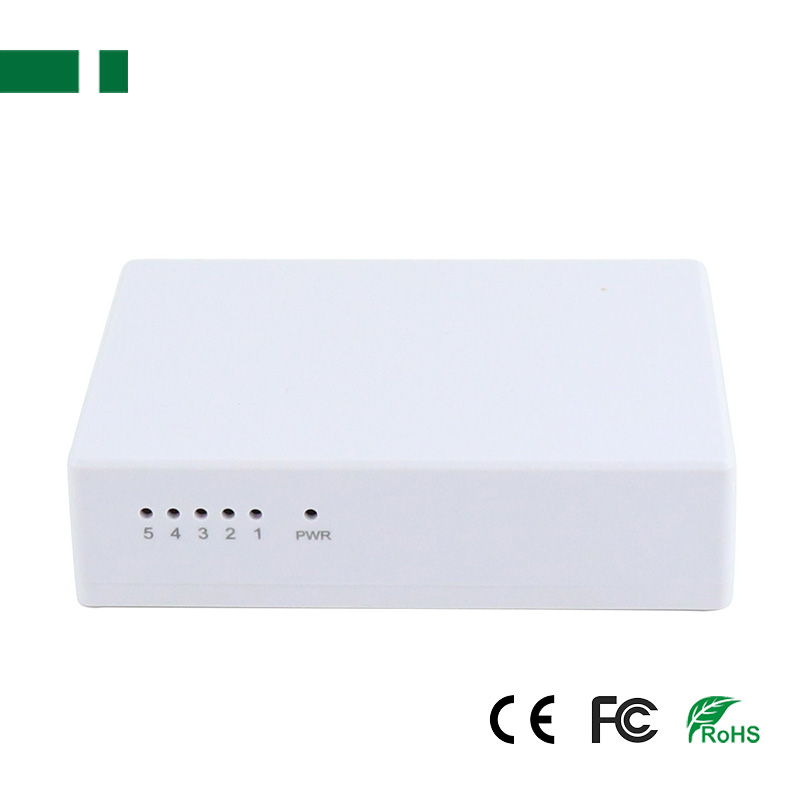

LED Indicator 10/100Mbps (Link/Act), Power
Dimension 97*68*25mm 125*60**24mm
Power Input DC5V/500mA
Power Consumption Max. 1.5W
Operating Temperature 0-40
Relative Humidity 10%-90%(non-condensing)
Storage Temperature -40-70
Relative Humidity 5%-90%(non-condensing)


Packaging contains:
1* 5 Port Desktop Switch
1* DC5V Power supply
