Ethernet Switch

CES-1308 8 Ports 100Mbps Network Switch

8 Ports 100Mbps Network Switch
Auto-MDI/MDIX eliminates the need for crossover cables.
Supports MAC address auto-learning and auto-aging.
Size(W×D×H): 125*60*24mm
Product description: 100Mbps non-managed switch, provide 8 *10/100Mbps RJ45 adaptive ports, supporting all port line speed forwarding, mute operation, easy to use, no configuration, plug and play, suitable for small home
INQUIRY EMAIL

8 Ports 100Mbps RJ45 Fast Network Switch Ethernet Smart Switcher Hub with EU/US Adapter Mini Network Switch

Description:
100Mbps non-managed switch, provide 8* 10/100Mbps RJ45 adaptive ports, supporting all port line speed forwarding, mute operation, easy to use, no configuration, plug and play, suitable for small home office, small and medium business environment.

Features:
● 8* 10/100/Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
● Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
● Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput.
● Auto-MDI/MDIX eliminates the need for crossover cables.
● Supports MAC address auto-learning and auto-aging.
● Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
● Fanless design ensures quiet operation.
● Desktop or wall-mounting design.
● Plug and Play design simplifies installation.

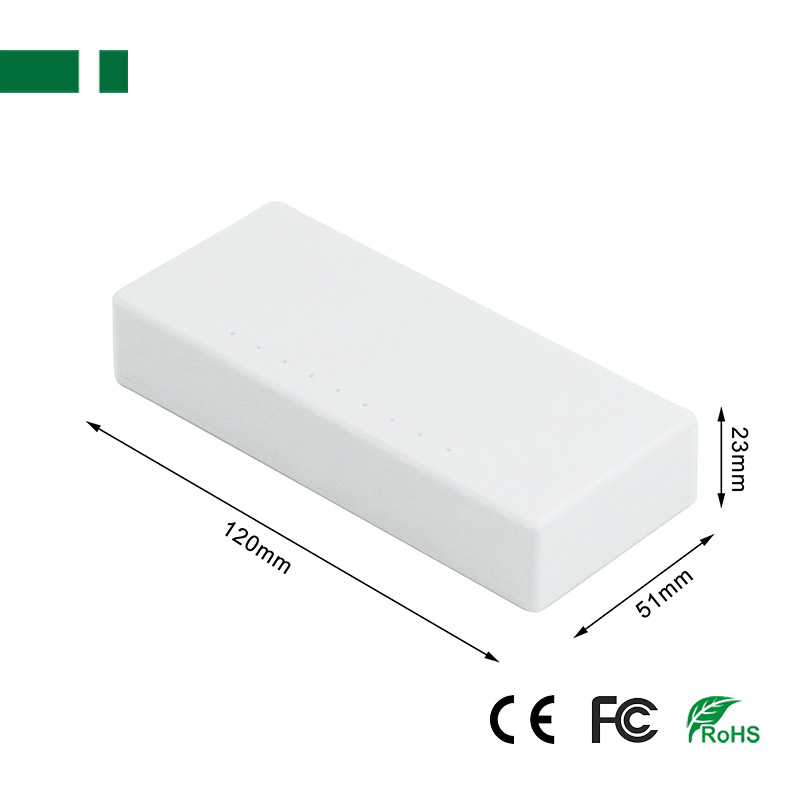

● Size(W×D×H): 120*51*23mm

Specification:

Model	CES-1308	CES-G1308
Port number	8 port 10/100Mbps Auto MDI-MDIXRJ45	8 port 10/100/1000Mbps Auto MDI-MDIXRJ45
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Network media	10Base-T, cat6 or above UTP,10Base-Tx, cat5 UTP
Data rate	10/100Mbps	10/100/1000Mbps
Forwarding rate	10Mbps / 14,880pps, 100Mbps / 148,800pps
LED Indicator	10/100Mbps (Link/Act), Power
Dimension	1205123mm	1325125mm
Power Input	DC5V/500mA
Power Consumption	Max. 1.5W
Operating Temperature	0℃-40℃
Relative Humidity	10%-90%(non-condensing)
Storage Temperature	-40℃-70℃
Relative Humidity	5%-90%(non-condensing)
