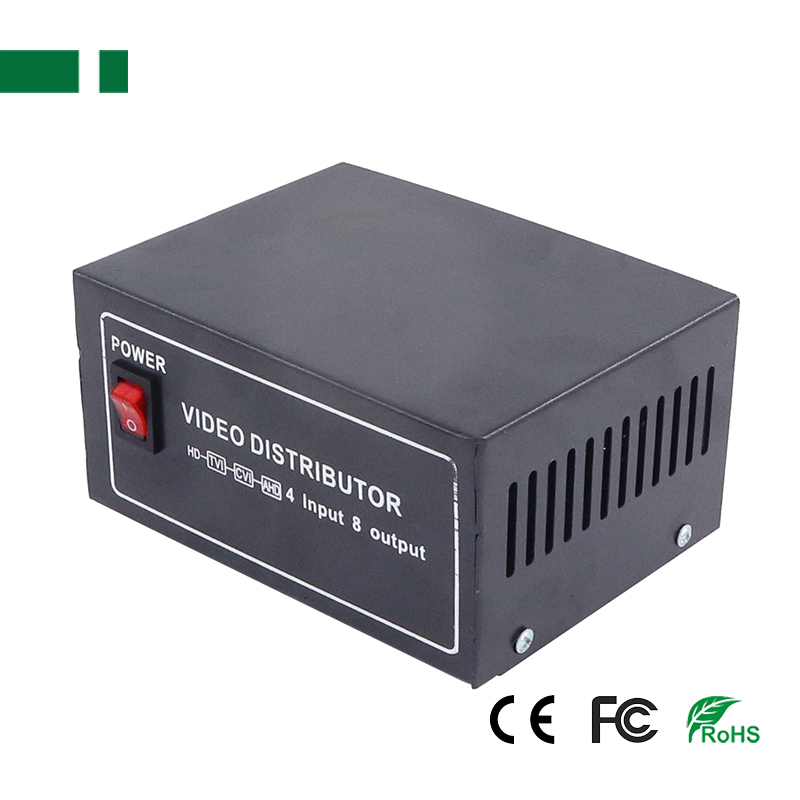

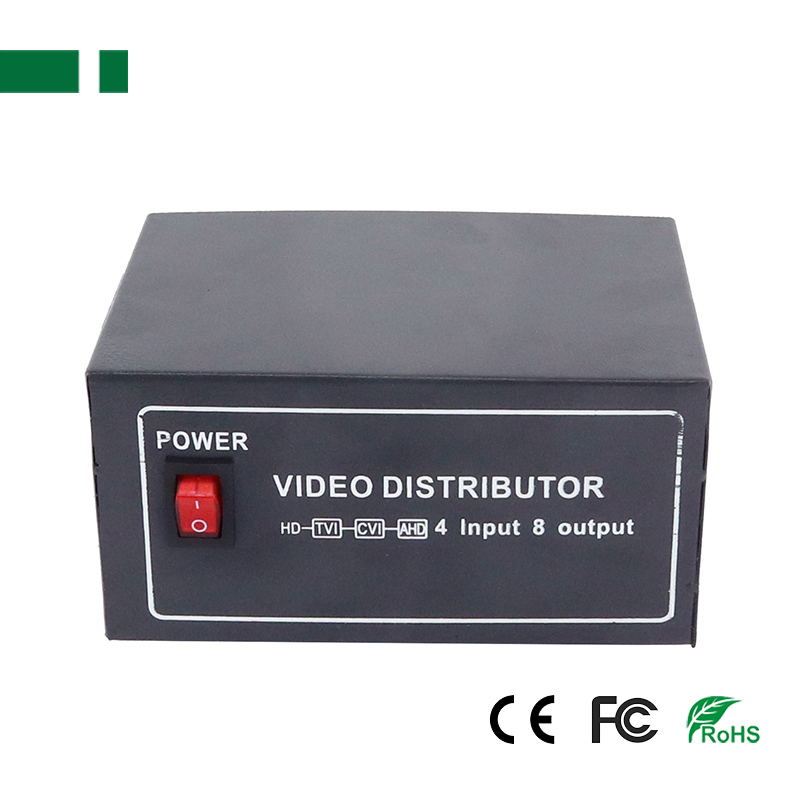

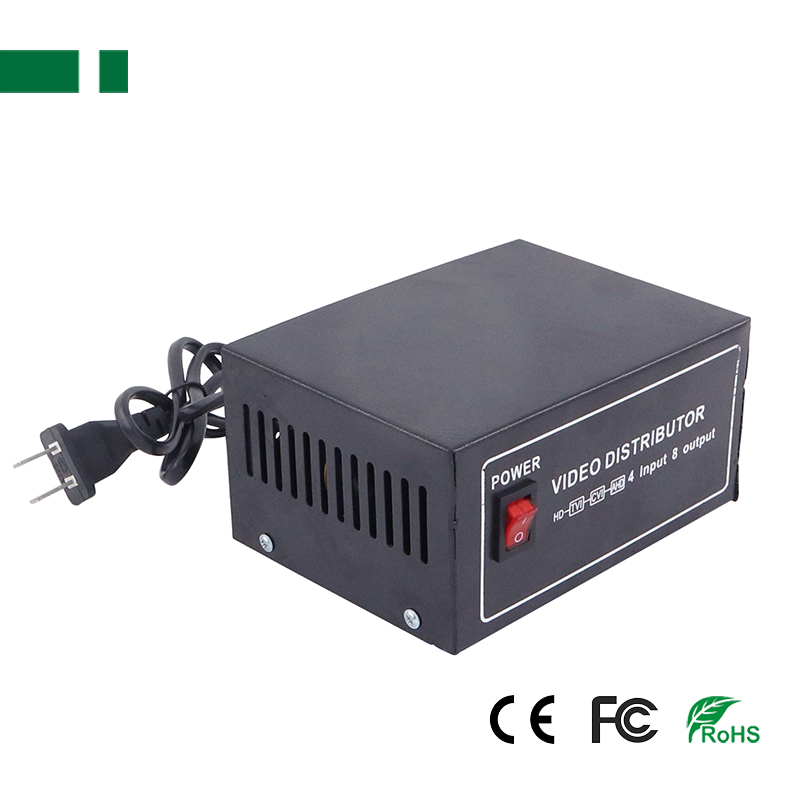

This CCTV video splitter is one of the portable splitter which can split 4-channel HD CCTV signal to 8-channel signals. This machine is suitable for DVD, VCD, SVCD, multimedia computer, recording and whoever has video output function of the equipment, all can be used as the native source input. It's useful for entertainment, audiovisual education, monitoring and control system, suitable for signal transmission over long distances. (400-600Meter)
Main features:
* Support HD-AHD, HD-TVI, HD-CVI, CVBS/ analog video transmission over UTP.
* 760P/ 960P/ 1080P up to 600 meters.
* 60dB cross talk and noise immunity.
* Frequency respond can be adjusted according to the specific circumstances.
* Support Coaxial two-way data communication, through the receiver to send control signals
* Automatic correction of the signal distortion of different transmission channels.
* Using the Coaxial Cable as the transmission medium.
* 12 months warranty & life time maintenance service.
Specification:
Model | CDV-408 | CDV-H408 |
Support | 4 input & 8 output Analog | 4 in & 8 out AHD/TVI/CVI/Analog |
Transmission distance | 760P/960P: 200-300meters; | 760P/960P/1080P: 300-600meters; |

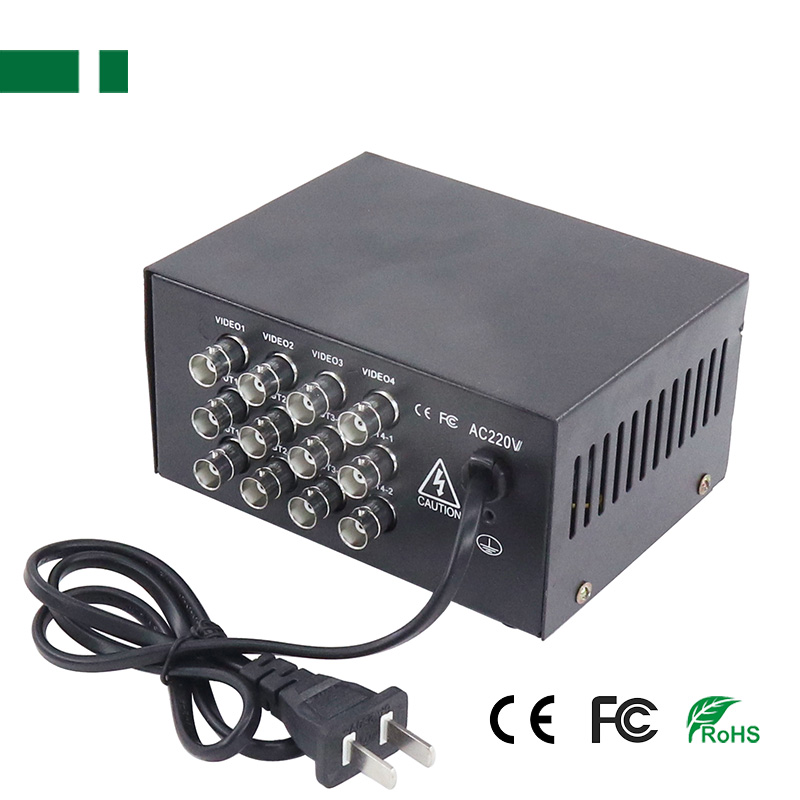

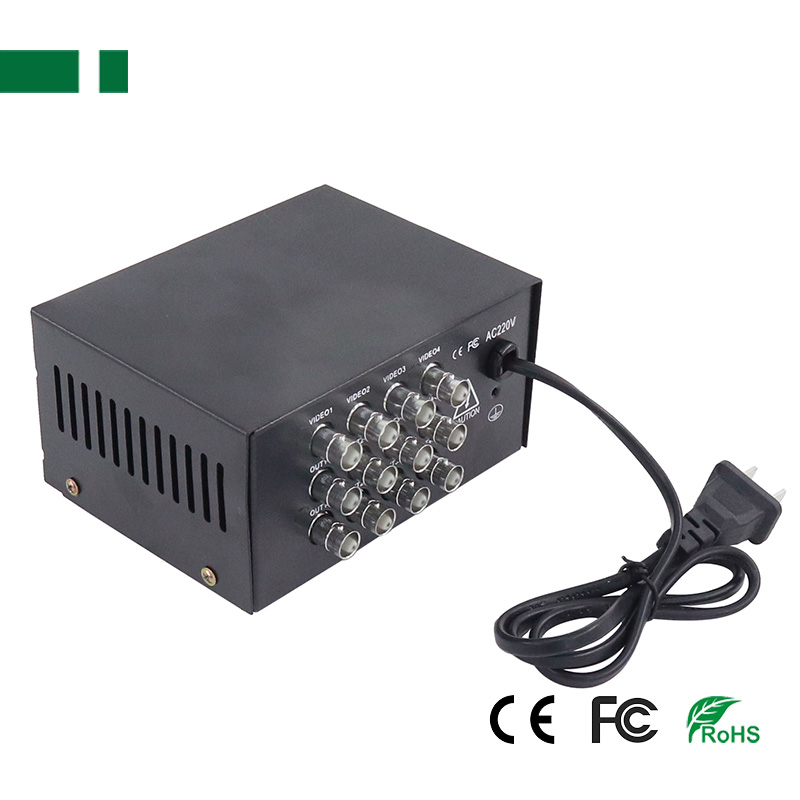

Connector | Female BNC and terminal Block | |
Housing | Aluminium alloy | |
CMRR | 60dB | |
MTBF | ≥ 100000Hours | |
Impedance | BNC: 75 ohms | |
Standard video input/output voltage | 1.0Vp-p | |
Video Bandwidth | 60MHz | |
Sampling Frequency | 120MHz | |
Rise and Fall time | <0.8ns | |
Differential Gain | < ±1.5% | |
Differential Phase | < ±1° | |
Category type | Coaxial Cable, RG59/RG6 suggested | |
Working temperature | -10℃ to +70℃ | |
Storage temperature | -30℃ to +70℃ | |
Humidity | 0-95% | |
Power | AC110V / AC 220V ±10% (Default US/CN type power plug only) | |
Power Consumption | ≤3W | |
Dimension | 100*130*100mm | |
Unit Weight | 1.2kg | |
Warranty | 12months |
Cautions installation
1). Do not attempt to disassemble the unit.Contact: Sales Departmment
