HDMI Splitter

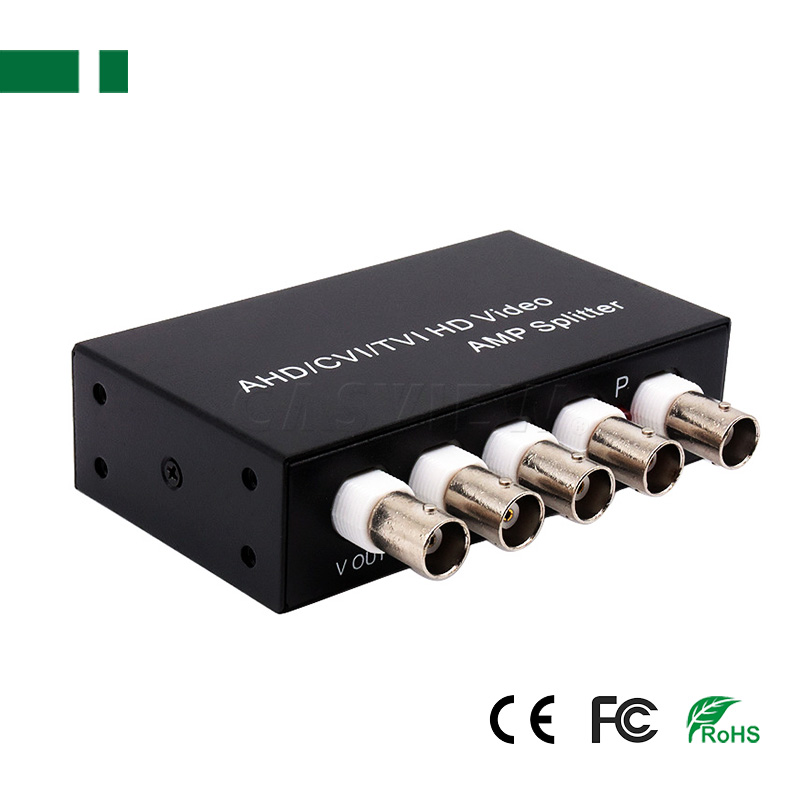

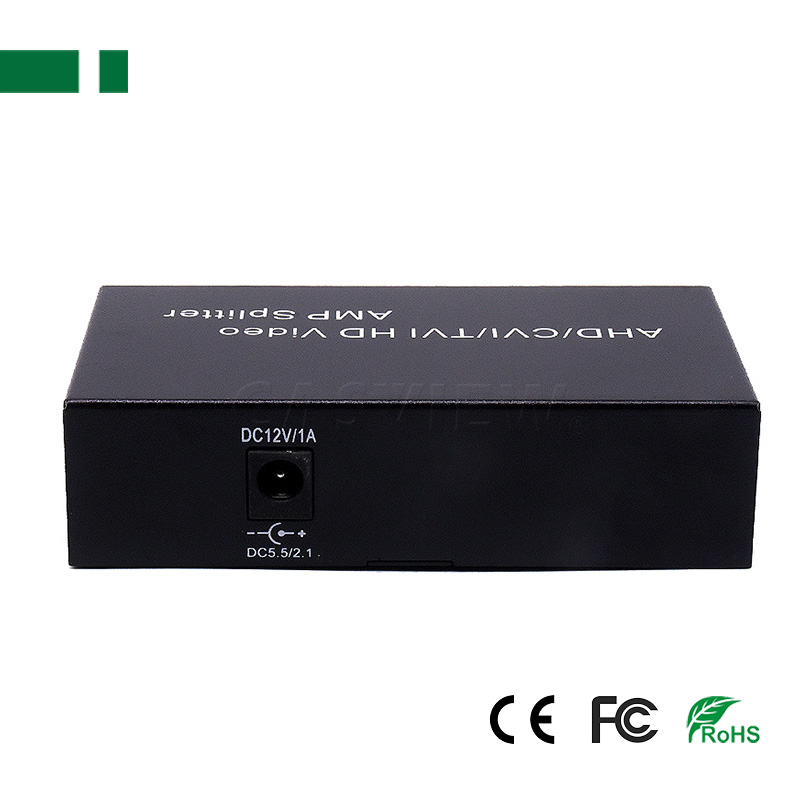

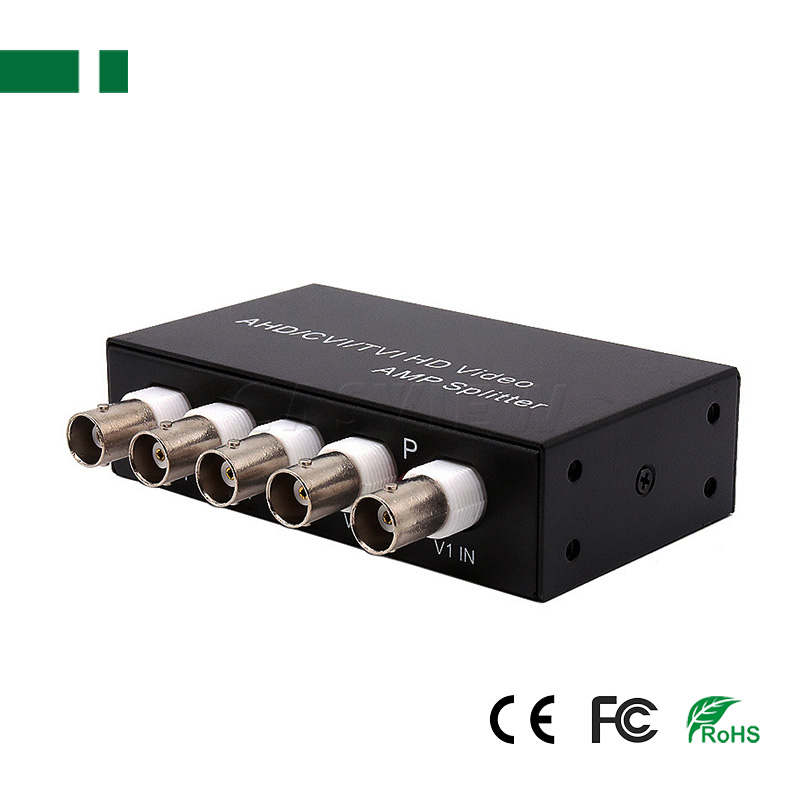

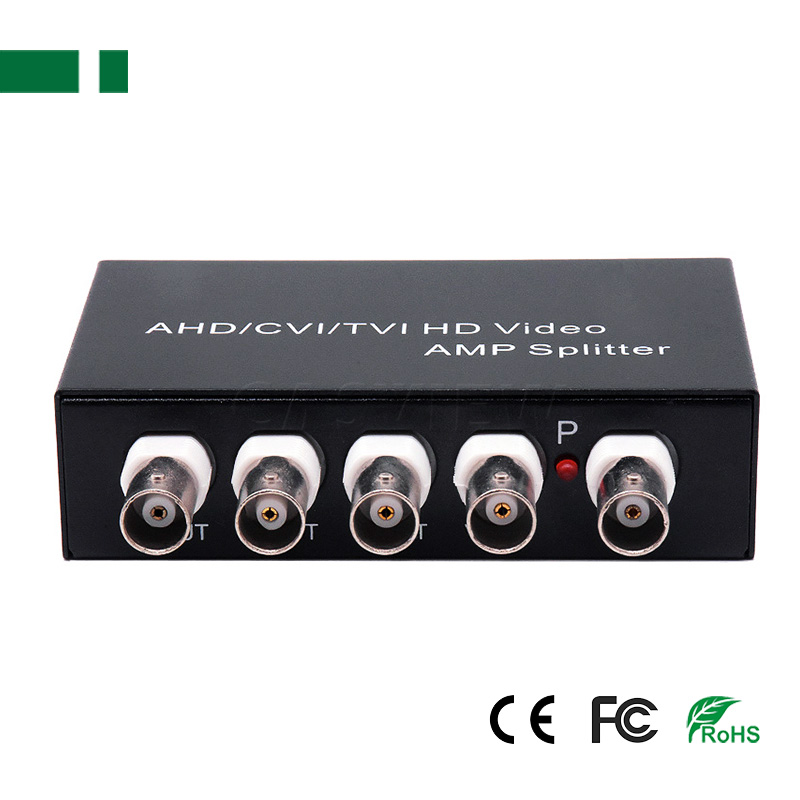

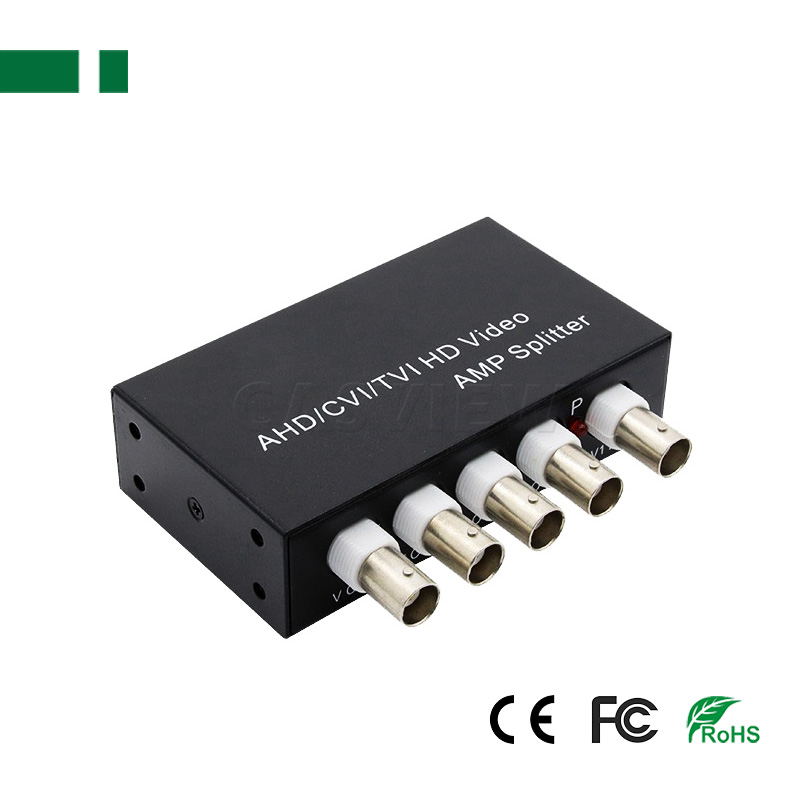

CDV-H104S 1 in 4 out 5MP HD AHD TVI CVI Video Distributor
- 1 in 4 out 5MP HD AHD TVI CVI Video Distributor
- Support 760P/ 960P/ 1080P/ 5MP
- HD AHD TVI CVI and CVBS
- Transmission up to 400-600 meters
- Product description: This CCTV video splitter is one of the portable splitter which can splitter 1 channel HD CCTV signal to 4 channel signals. suitable for signal transmission over long distances. (400-600Meter).
1 input 4 output HD AHD/ TVI/ CVI Video Distributor
This CCTV video splitter is one of the portable splitter which can split 1 channel HD CCTV signal to 4-channel signals. This machine is suitable for DVD, VCD, SVCD, multimedia computer, recording and whoever has video output function of the equipment, all can be used as the native source input.Its useful for entertainment, audiovisual education, monitoring and control system, suitable for signal transmission over long distances. (400-600Meter)
Main features:
* Support HD-AHD, HD-TVI, HD-CVI, CVBS/ analog video transmission over UTP;
* 760P/ 960P/ 1080P/ 5MP up to 600 meters;
* 60dB cross talk and noise immunity;
* Frequency respond can be adjusted according to the specific circumstances;
* Support Coaxial two-way data communication, through the receiver to send control signals
* Automatic correction of the signal distortion of different transmission channels.
* Using the Coaxial Cable as the transmission medium.
* 12 months warranty & life time maintenance service.
Specification:
| Model | CDV-H104S | ||||
| Support | 1 input & 4 output AHD/TVI/CVI/Analog | ||||
| Transmission distance | 760P/ 960P/ 1080P/ 5MP: 100-600meters | ||||
| Connector | Female BNC and terminal Block | ||||
| Housing | Aluminium alloy | ||||
| CMRR | 60dB | ||||
| MTBF | ≥ 100000Hours | ||||
| Impedance | BNC: 75 ohms | ||||
| Standard video input/output voltage | 1.0Vp-p | ||||
| Video Bandwidth | 60MHz | ||||
| Sampling Frequency | 120MHz | ||||
| Rise and Fall time | <0.8ns | ||||
| Differential Gain | < ±1.5% | ||||
| Differential Phase | < ±1° | ||||
| Category type | Coaxial Cable, RG59/RG6 suggested | ||||
| Working temperature | -10℃ to +70℃ | ||||
| Storage temperature | -30℃ to +70℃ | ||||
| Humidity | 0-95% | ||||
| Power | AC220V | ||||
| Power Consumption | ≤3W | ||||
| Dimension | 97*75*26mm | ||||
| Unit Weight | 0.2kg | ||||
| Warranty | 12months | ||||
Cautions installation
1). Do not attempt to disassemble the unit.To prevent electric shock, do not attempt to disassemble this unit.There are no user serviceable parts inside.Ask qualified service person for servicing.
2). Handle the unit with care.
Do not abuse the unit.Avoid striking, shaking,etc.improper handling or storage could damage the unit.
3) Do not expose the unit to rain or moisture,or try to operate it in wet areas.
Turn the power off immediately and ask a qualified service person for servicing. Moisture can damage the unit and also create the danger of electric shock.
4). Do not use strong or abrasive detergents when cleaning the unit.
Use a soft cloth to clean the unit when dirty.In case the dirt is hard to remove,use a mild detergent and wipe gently.
5). Do not operate the unit beyond the specified temperature, humidity or power source ratings.
Use the unit under conditions where temperature is between –10 ℃ -+45 ℃ and humidity is below 90%.
The input power source is 220VAC.
