BNC Video Connector

  • CBN-041 BNC Male Connector T-type
  • CBN-041 BNC Male Connector T-type
  • CBN-041 BNC Male Connector T-type
  • CBN-041 BNC Male Connector T-type
  • CBN-041 BNC Male Connector T-type
  • CBN-041 BNC Male Connector T-type
CBN-041 BNC Male Connector T-typeCBN-041 BNC Male Connector T-typeCBN-041 BNC Male Connector T-typeCBN-041 BNC Male Connector T-typeCBN-041 BNC Male Connector T-typeCBN-041 BNC Male Connector T-type

CBN-041 BNC Male Connector T-type

  • BNC Male Connector T-tpye
  • High quality termination
  • Simply & Professional appearance for cabling
  • Product description: BNC Male Connector T-type. email: info@casview.com
  • INQUIRY   EMAIL

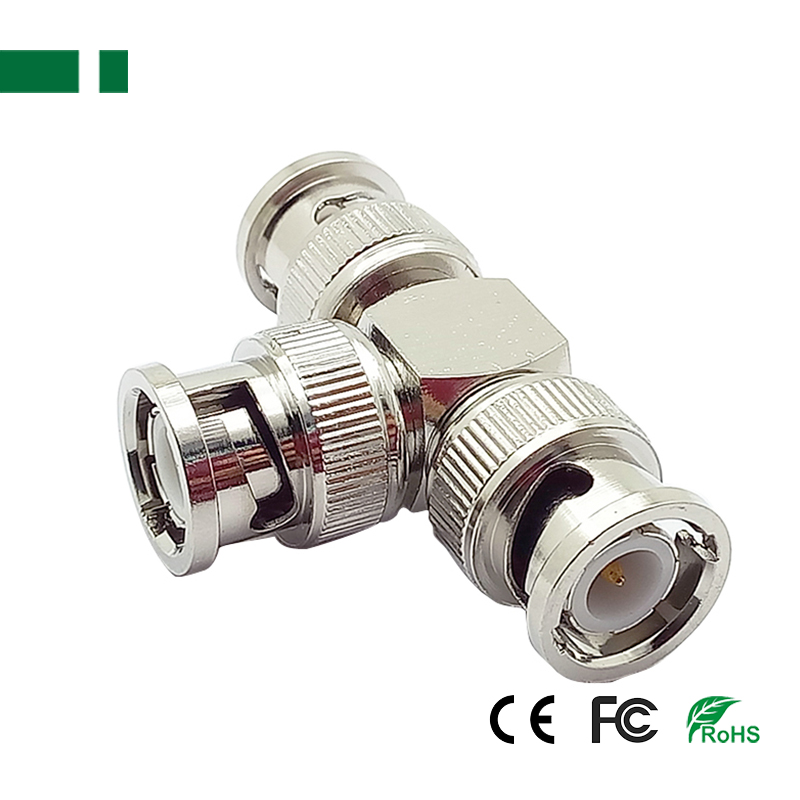

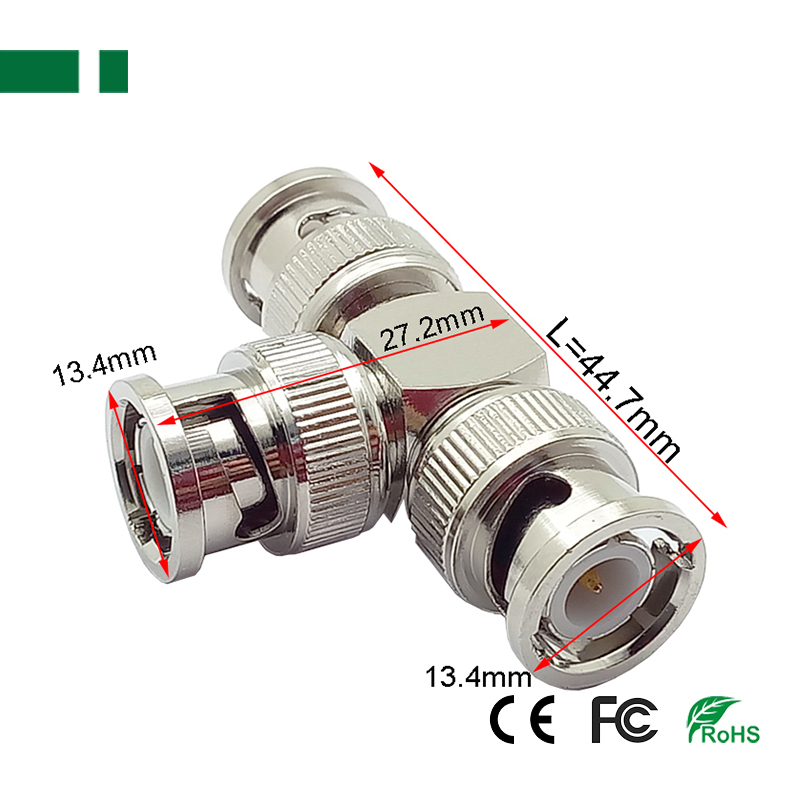

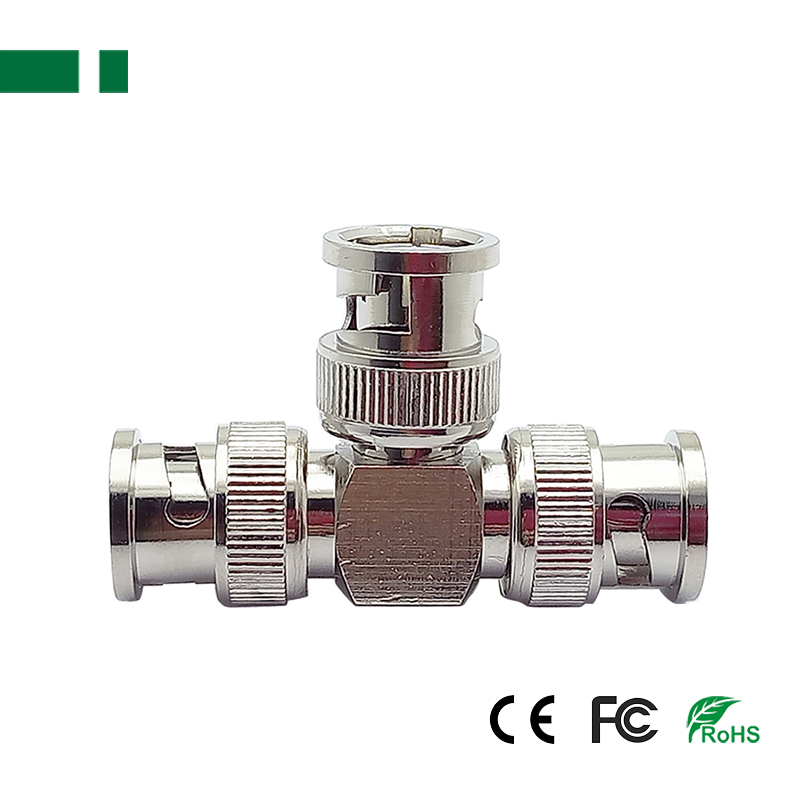

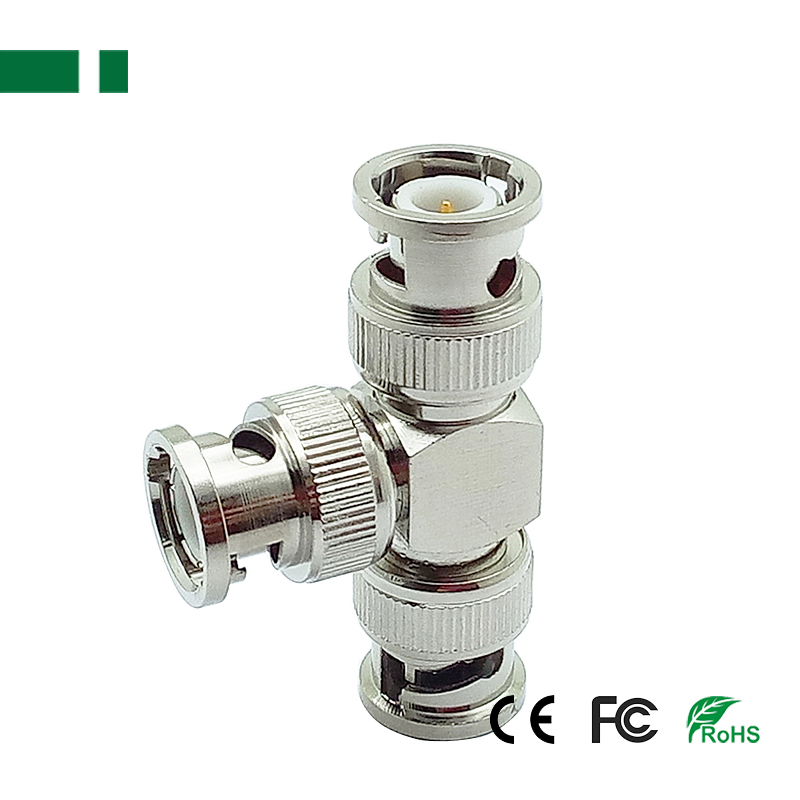

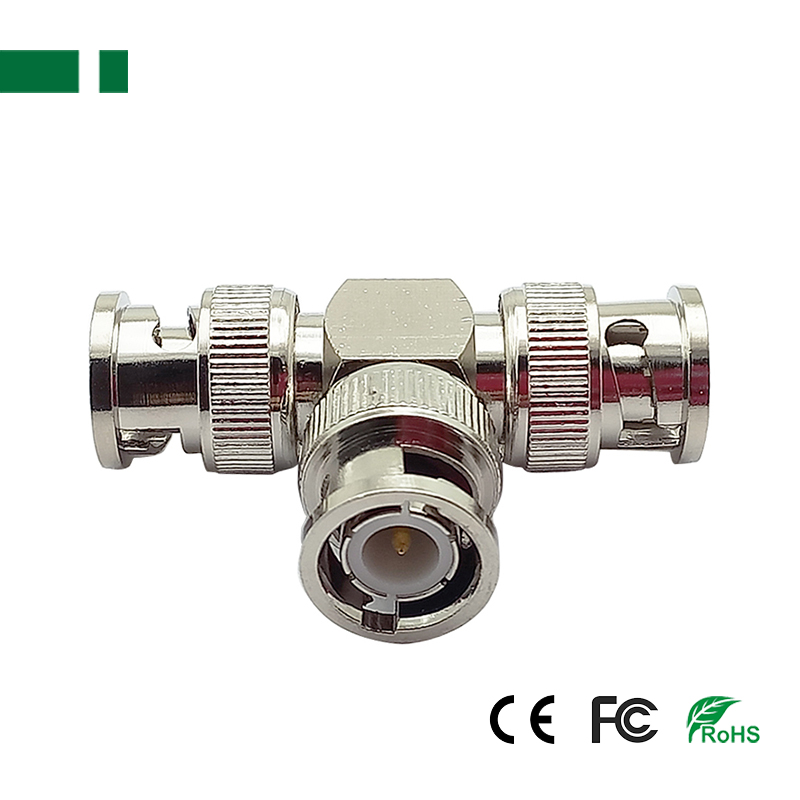

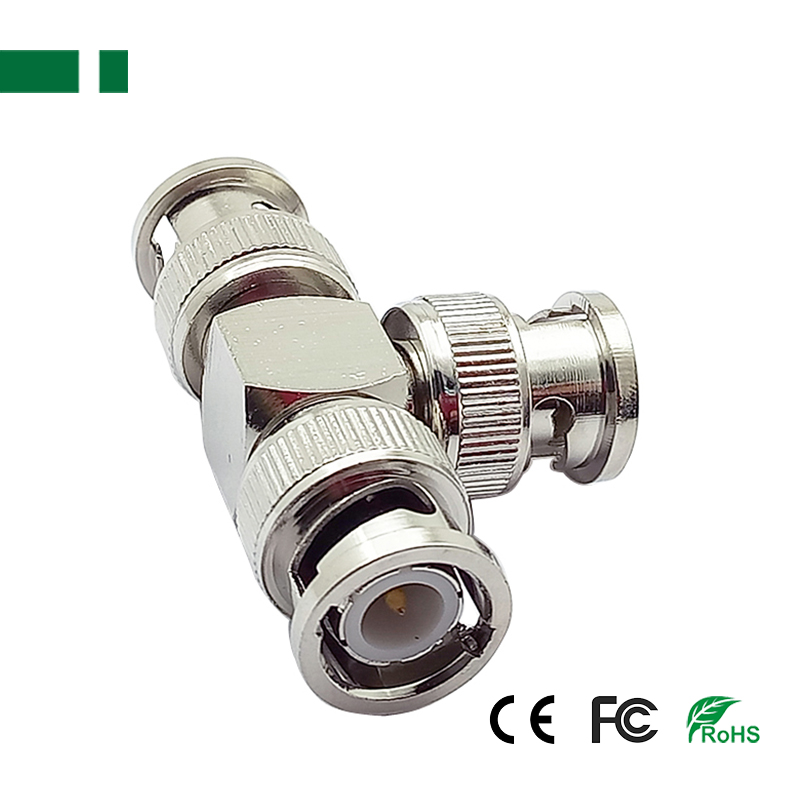

BNC Male Connector T-type
100% brand new and high quality product
Great for cctv system connection

High quality termination
Simply & Professional appearance for cabling
Easier for CCTV camera installation save time and money


Model CBN-041
Impedance 50Ω,75Ω
Resistanc Inner conductor ≤2.0mΩ
Contact Resistance center conductor≤1.5mΩ; outer conductor≤1mΩ
Insulation Resistance ≥5000MΩ
Frequency Range 0~3GHZ
Disengage Force ≥0.6N
Attenuation 0.5dB type
Wire Type Coaxial Cable
DC Loop Resistance 52 ohms per 1,000 ft
Withstand Voltage 1500V rms
Frequency Response DC to 8 MHz
Working Temperature -10°C to +70°C
Humidity 0 to 95%
Packing 100pcs/bag
