BNC Video Connector

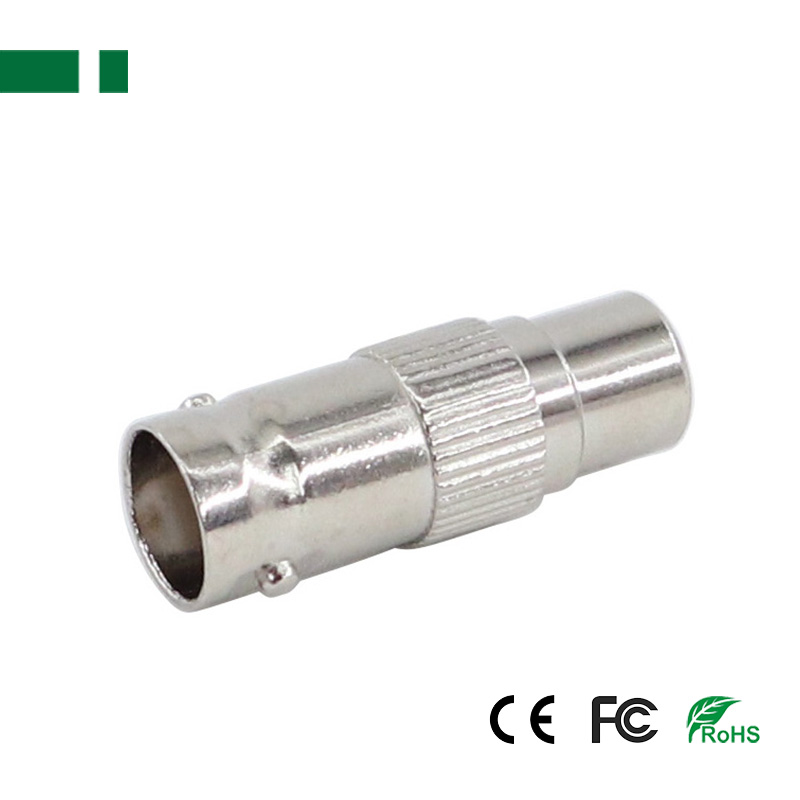

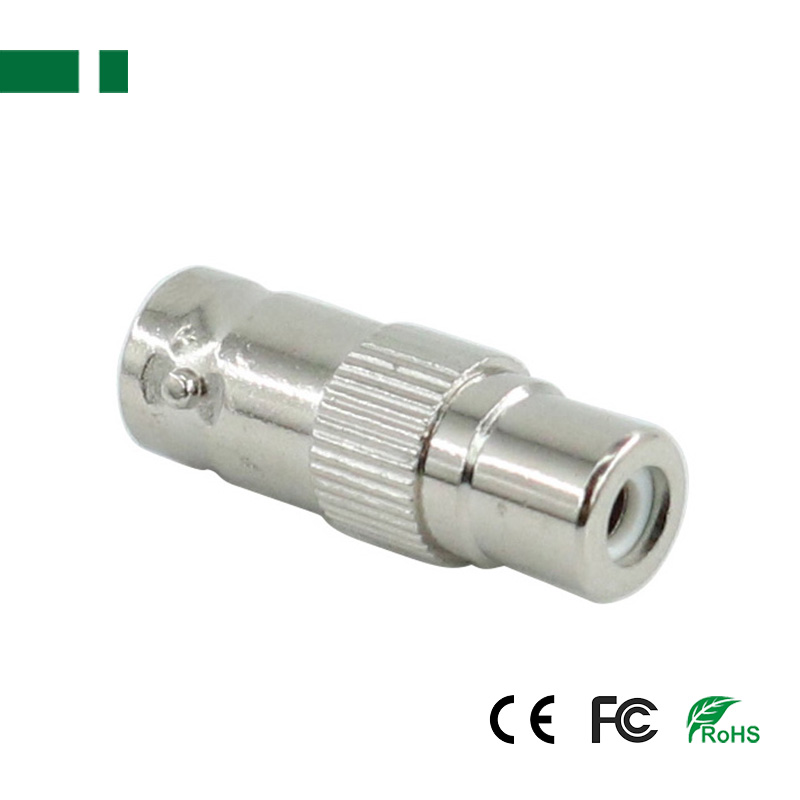

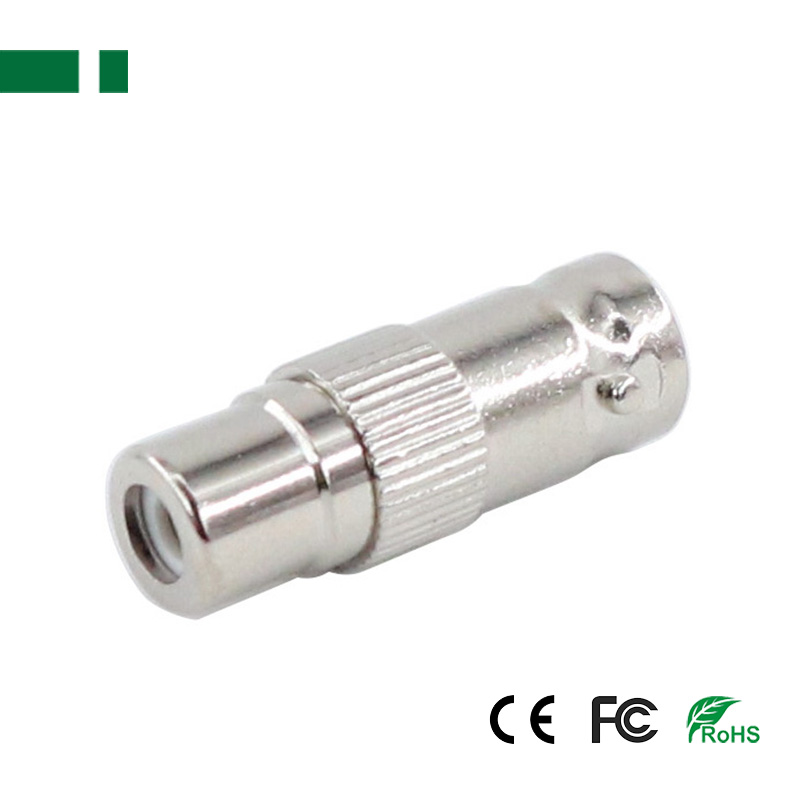

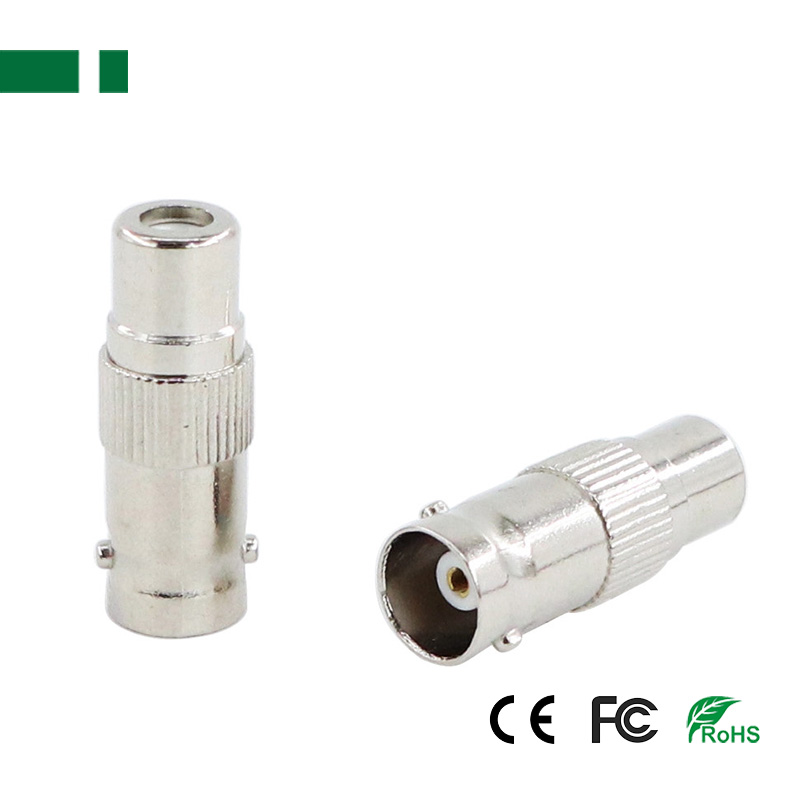

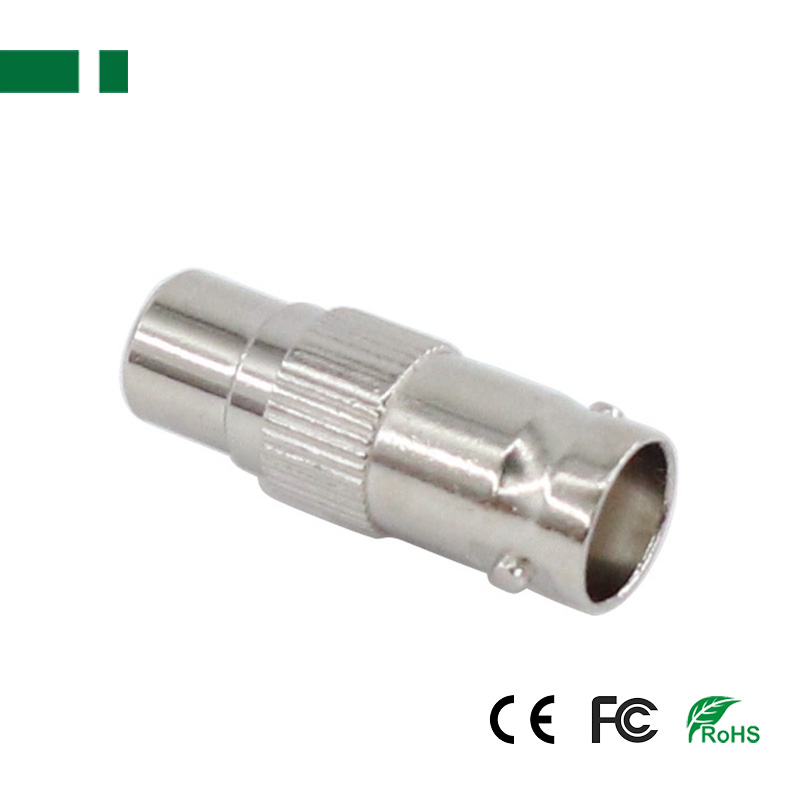

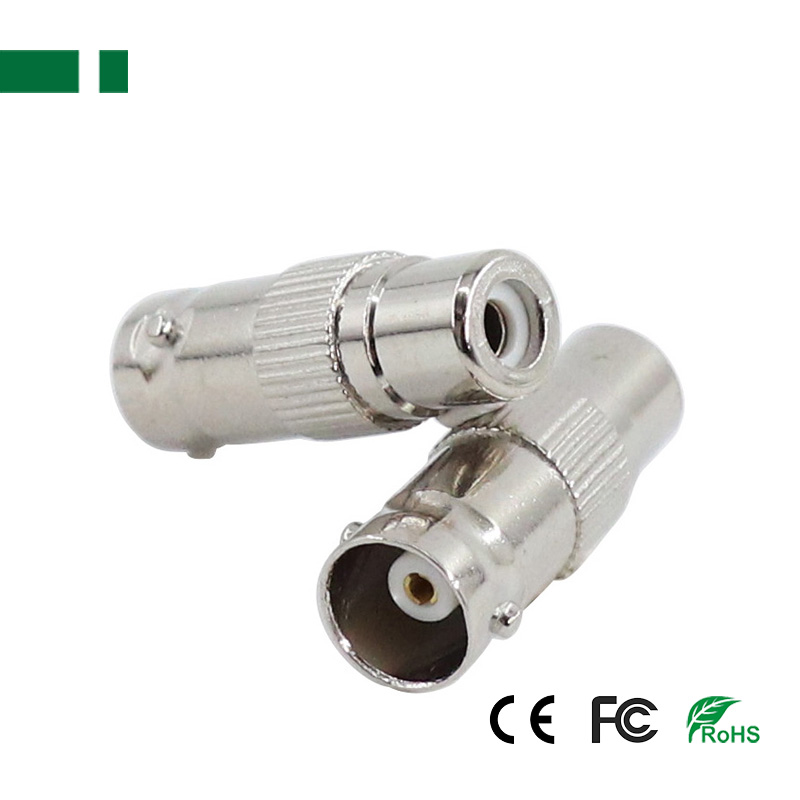

CBN-040 BNC Female to RCA Female Connector
- BNC Female to RCA Female Connector
- Simply & Professional appearance for cabling
- High quality termination
- Product description: BNC Female to RCA Female Connector. email: info@casview.com
BNC Female to RCA Female Connector
100% brand new and high quality product
Great for cctv system connection
High quality termination
Simply & Professional appearance for cabling
Easier for CCTV camera installation save time and money
100% brand new and high quality product
Great for cctv system connection
High quality termination
Simply & Professional appearance for cabling
Easier for CCTV camera installation save time and money
| Model | CBN-040 |
| Impedance | 50Ω,75Ω |
| Resistanc | Inner conductor ≤2.0mΩ |
| Contact Resistance | center conductor≤1.5mΩ; outer conductor≤1mΩ |
| Insulation Resistance | ≥5000MΩ |
| Frequency Range | 0~3GHZ |
| Disengage Force | ≥0.6N |
| Attenuation | 0.5dB type |
| Wire Type | Coaxial Cable |
| DC Loop Resistance | 52 ohms per 1,000 ft |
| Withstand Voltage | 1500V rms |
| Frequency Response | DC to 8 MHz |
| Working Temperature | -10°C to +70°C |
| Humidity | 0 to 95% |
| Packing | 100pcs/bag |
