BNC Video Connector

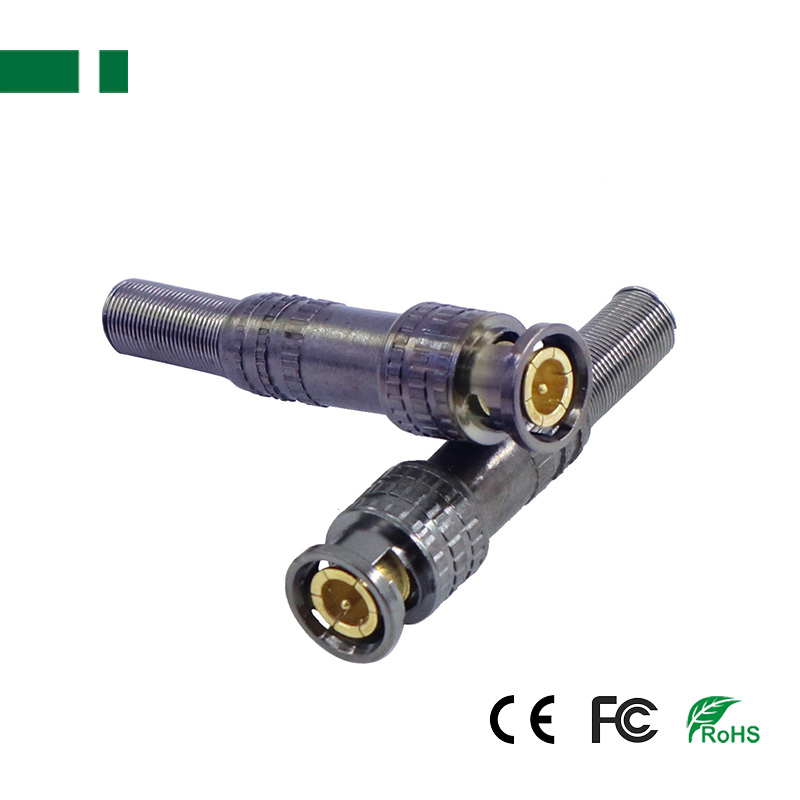

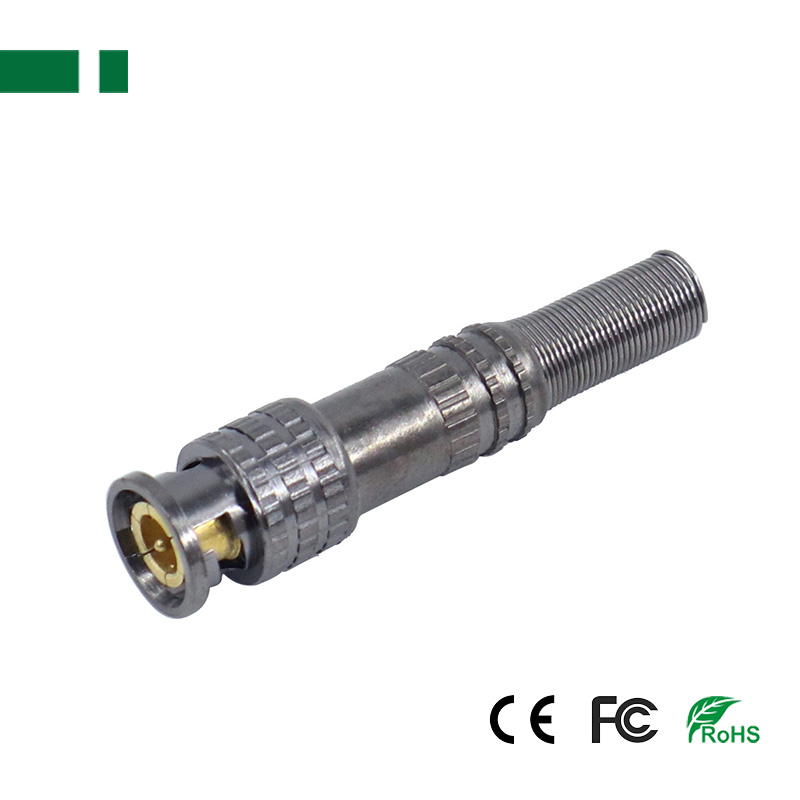

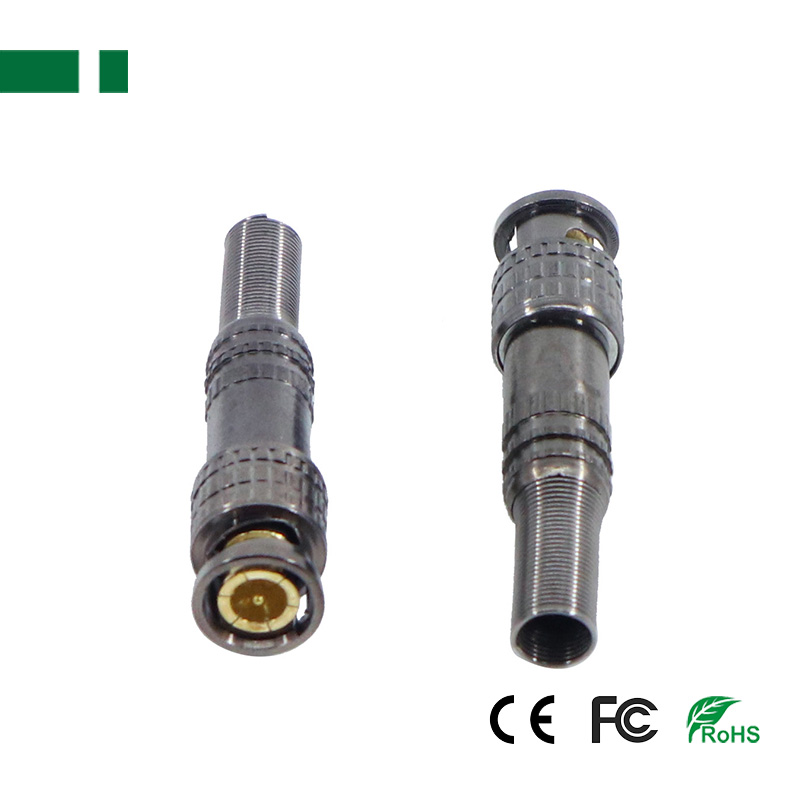

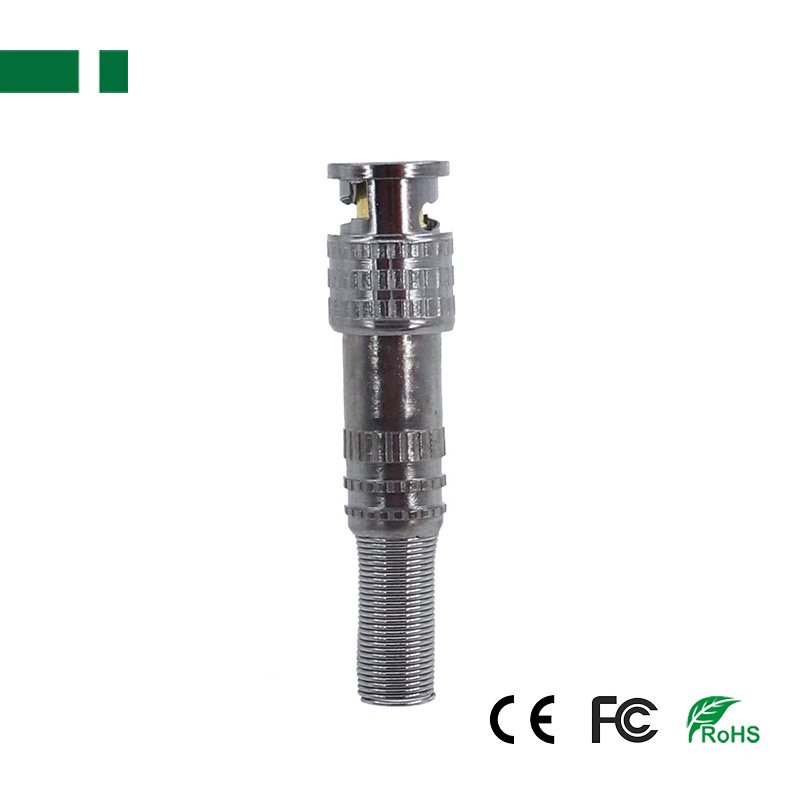

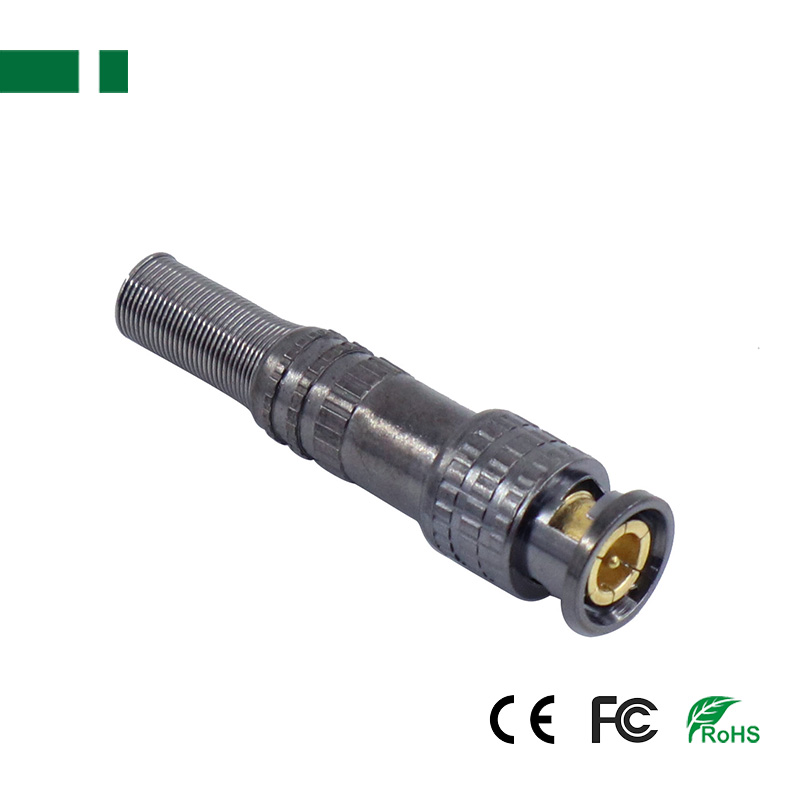

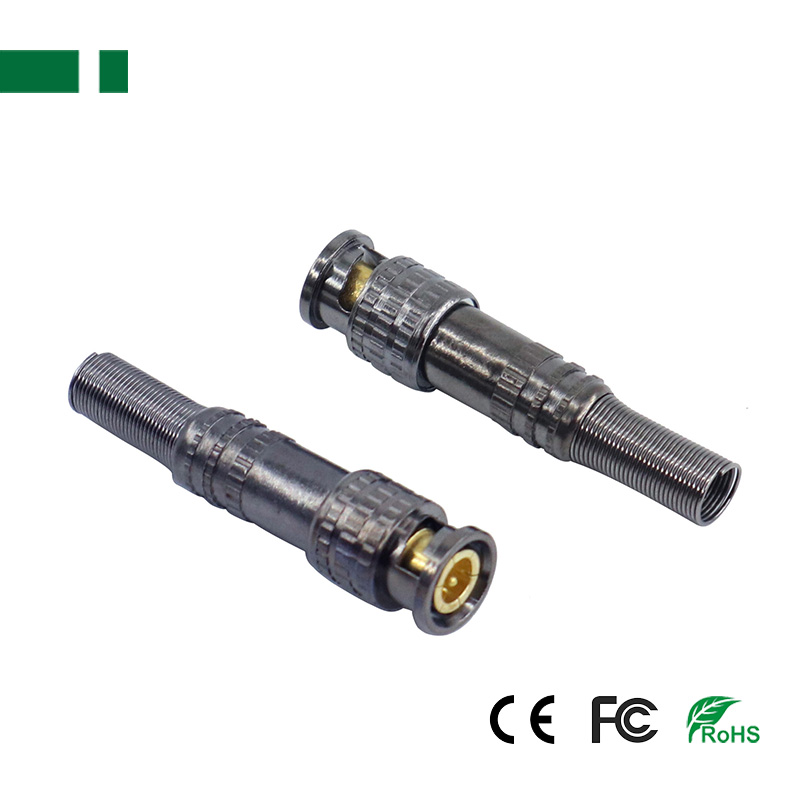

CBN-023 RG6 Solder BNC Male Connector

RG6 Solder BNC Male Connector
Solder type without screw
High Temperature Resistant Paint
Product description: CCTV camera RG6 Solder BNC Male Connector. email: info@casview.com
INQUIRY EMAIL

Feature:
1. CCTV camera BNC 75-5(RG60) male connector;
2. Solder type without screw;
3. Material: Copper Pin and Zinc Alloy Body;
4. High Temperature Resistant Paint;
5. 100% brand new and high quality product;
6. Great for cctv system connection;
7. High quality termination;
8. Simply & Professional appearance for cabling;
9. Easier for CCTV camera installation save time and money.

Specification:

Model	CBN-023	CBN-024
Connectors	Male BNC
Installation	Solder type without screw	Solderless with screw inside
Material	Zinc Alloy Body + Copper Pin
Contact Resistance	center conductor≤1.5mΩ; outer conductor≤1mΩ
Insulation Resistance	≥5000MΩ
Frequency Range	0~3GHZ
Disengage Force	≥0.6N
Attenuation	0.5dB type
Wire Type	coaxial cable
DC Loop Resistance	52 ohms per 1,000 ft
Withstand Voltage	1500V rms
Frequency Response	DC to 8 MHz
Working Tempremature	-10°C to +70°C
Humidity	0 to 95%
Packing	100pcs/bag
Dimension	13.5598mm
Weight	12g
