BNC Video Connector

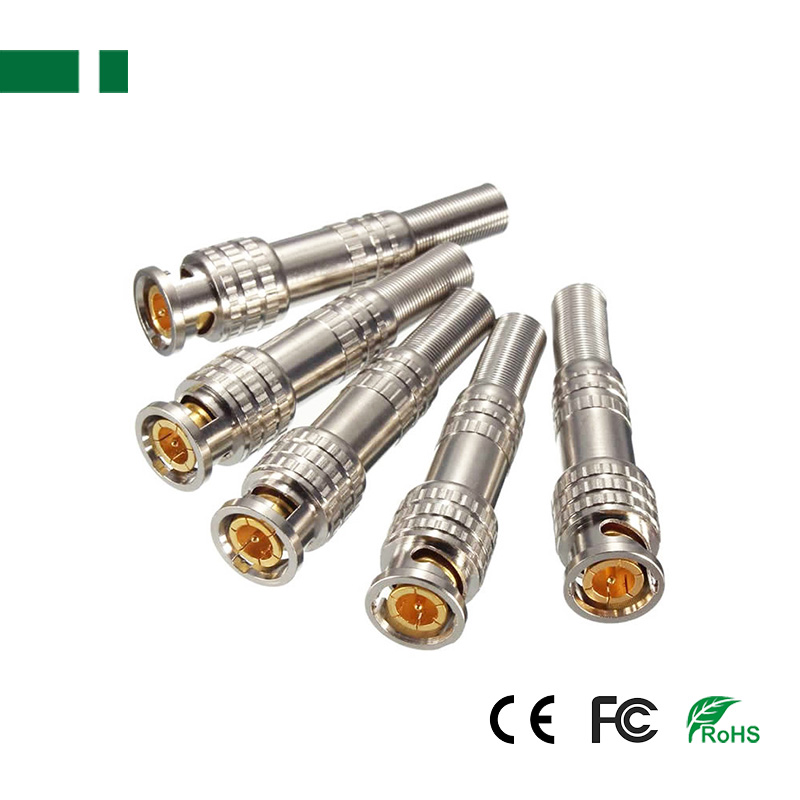

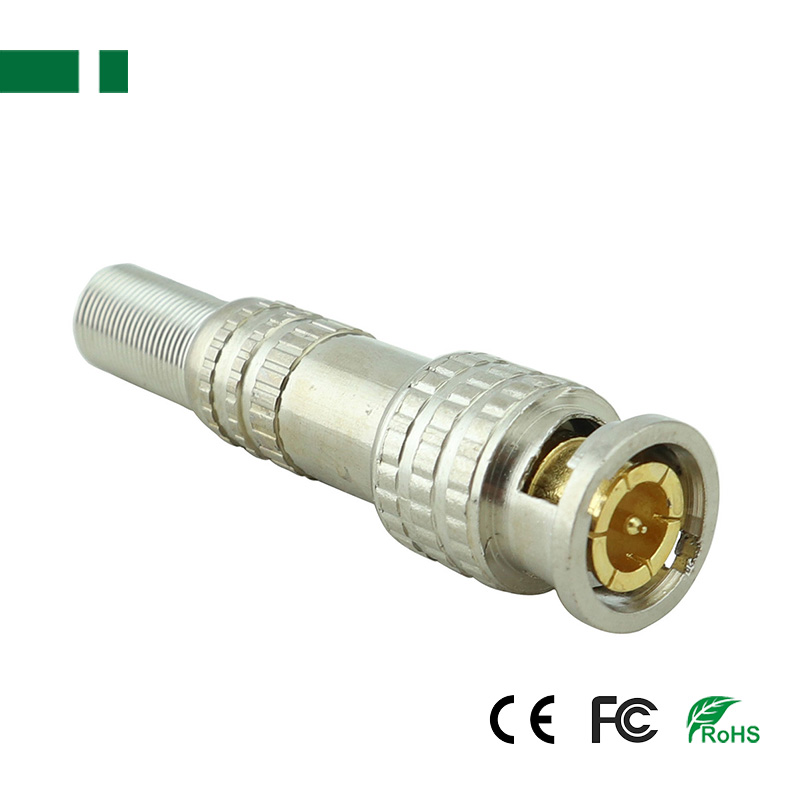

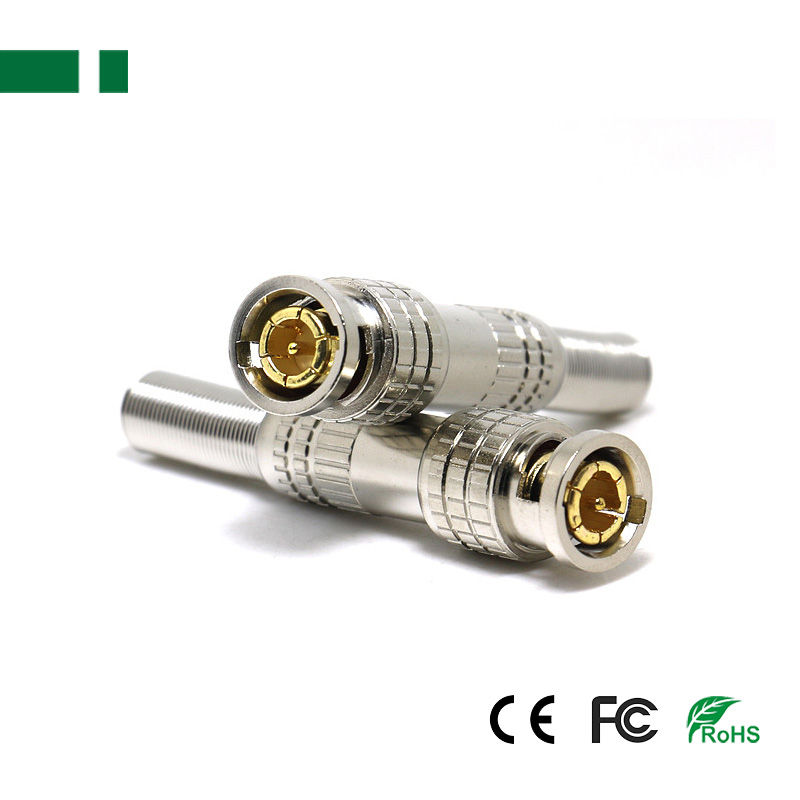

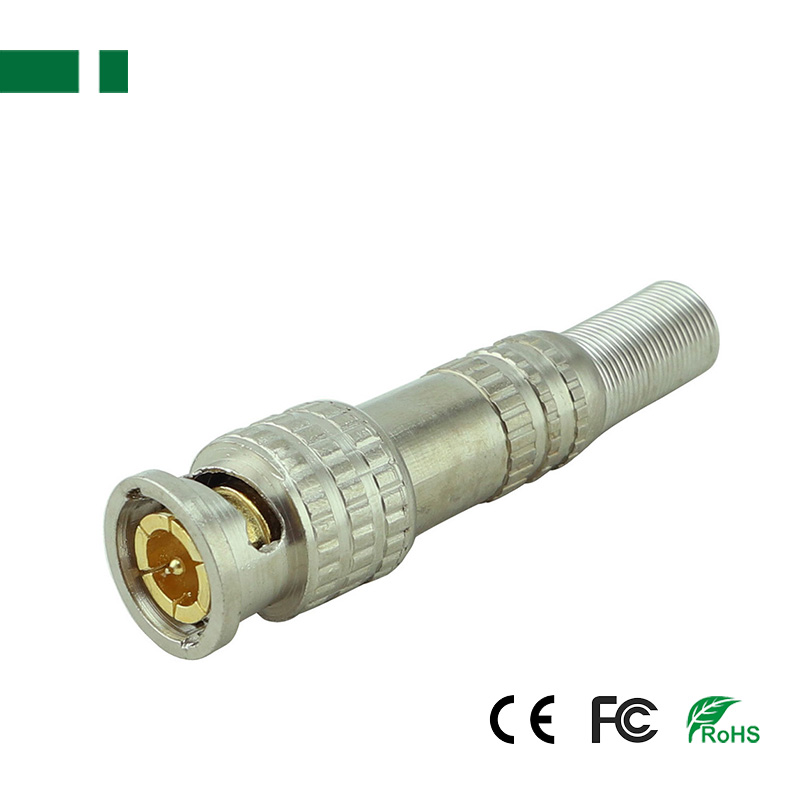

CBN-022 RG6 Solderless BNC Male connector

CBN-022 RG6 Solderless BNC Male connector

RG6 Solderless BNC Male connector

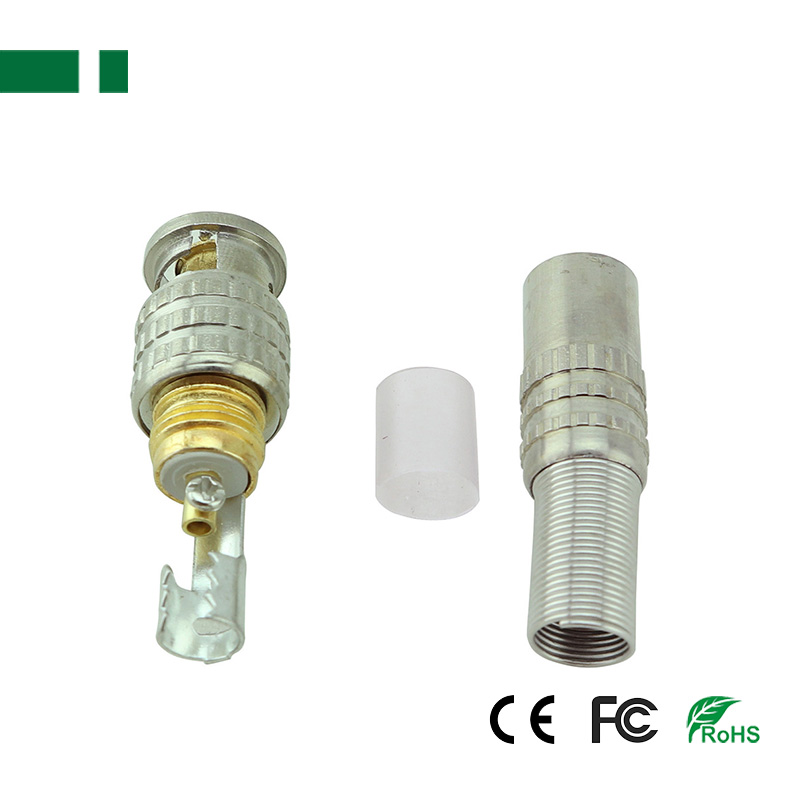

Solderless with screw inside
Copper Pin and Zinc Alloy Body
Product description: CCTV camera RG6 Solderless BNC Male connector. email: info@casview.com
INQUIRY EMAIL

Male Solderless BNC Connector for CCTV Camera Security System

Main Features
1. Connectors: Solderless with screw Male BNC to Coaxial Cable
2. Can connect a RG59 / RG-6 coaxial cable to a BNC connection port
3. Easier for camera installation, save time and more securer cable connection;
4. General quality termination;
5. No electrical tap, No splicing, no crimping, but only a small screw driver ;
6. Material: Copper Pin and Zinc Alloy body;

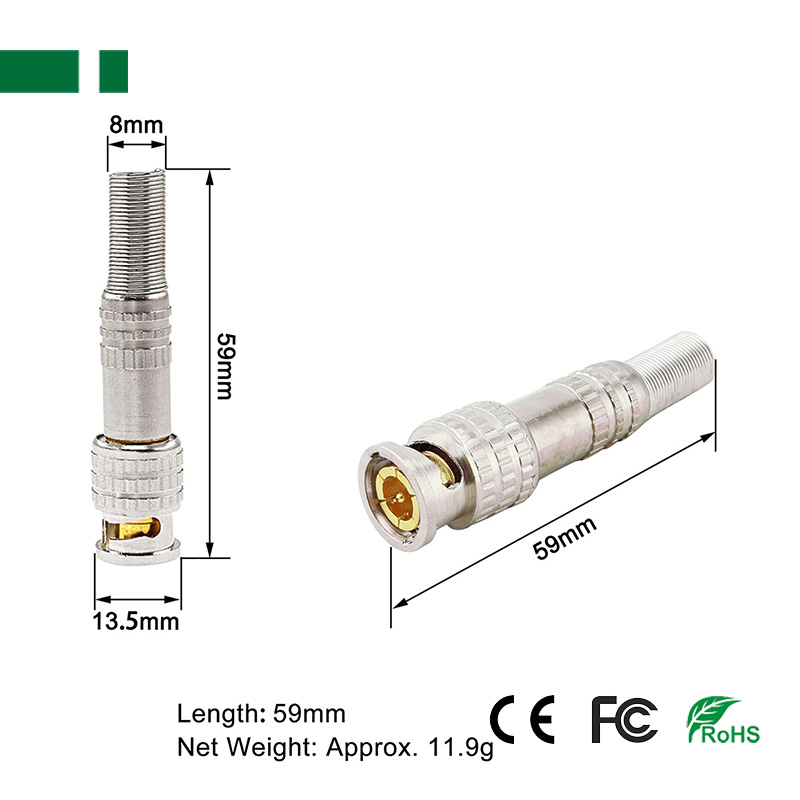

7. Size: 5.9cm(length)x 1.35cm(width);
8. Net Weight: Approx. 11.9G
9. Packing list: 100pcs/pack

Specification:

Model	CBN-021	CBN-022
Connectors	Male BNC
Installation	Solder type without screw	Solderless with screw inside
Material	Zinc Alloy Body + Copper Pin
Contact Resistance	center conductor≤1.5mΩ; outer conductor≤1mΩ
Insulation Resistance	≥5000MΩ
Frequency Range	0~3GHZ
Disengage Force	≥0.6N
Attenuation	0.5dB type
Wire Type	coaxial cable
DC Loop Resistance	52 ohms per 1,000 ft
Withstand Voltage	1500V rms
Frequency Response	DC to 8 MHz
Working Tempremature	-10°C to +70°C
Humidity	0 to 95%
Packing	100pcs/bag
Dimension	13.5598mm
Weight	11.9g
