Universal Brackets & Junction Box

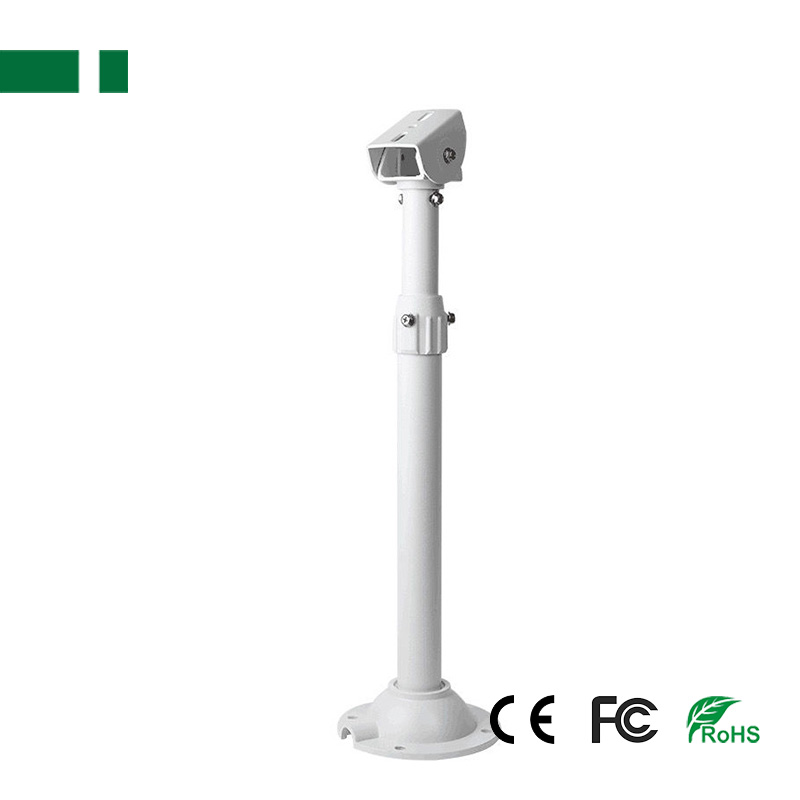

CB-163 Surveillance telescopic extension bracket
- Material: aluminum alloy
- Color: White
- Tube 1: outer tube 35mm, inner tube 28mm, Outlet: 15*20mm

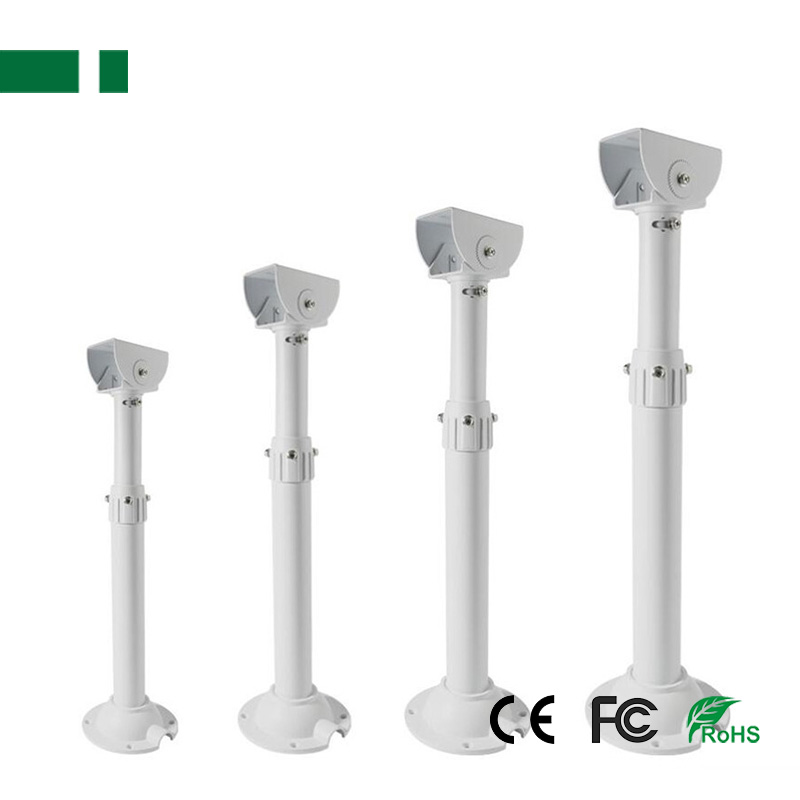

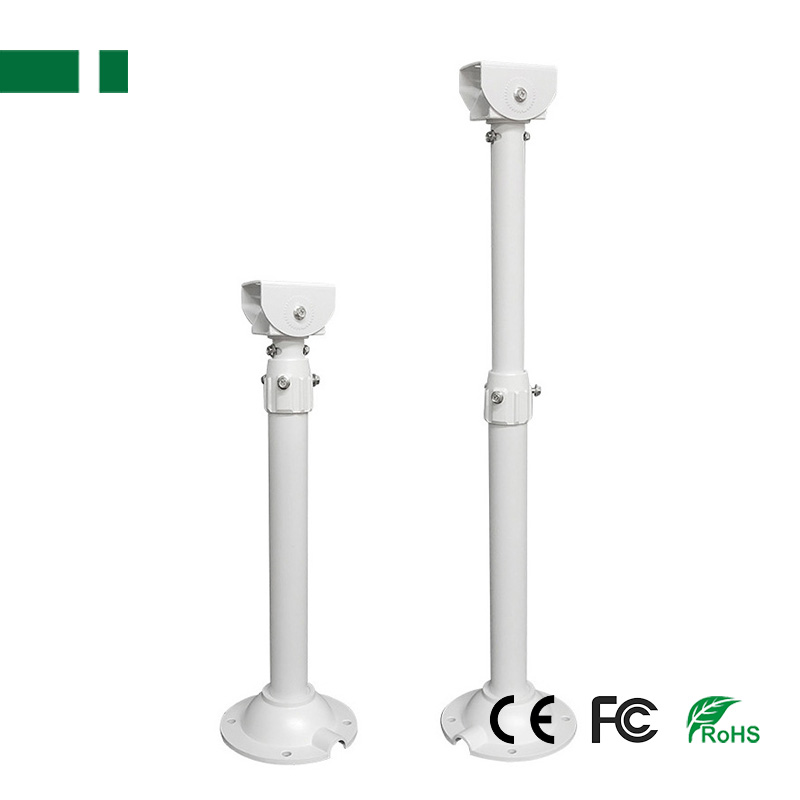

- Length: 20-40cm, 30-60cm, 40-80cm,60-120cm optional.
- Product description: Product name: Surveillance telescopic extension bracket aluminum alloy indoor and outdoor Security cctv camera pole universal hoisting wall mount stand
Product name: Surveillance telescopic extension Bracket aluminum alloy indoor and outdoor Security cctv camera pole universal hoisting wall mount stand
Feature:
Product name: I type monitoring hoisting bracket
Material: aluminum alloy
Color: White
Tube 1: outer tube 35mm, inner tube 28mm, Outlet: 15*20mm
Tube 2: outer tube 45mm, inner tube 38mm, Outlet: 15*20mm

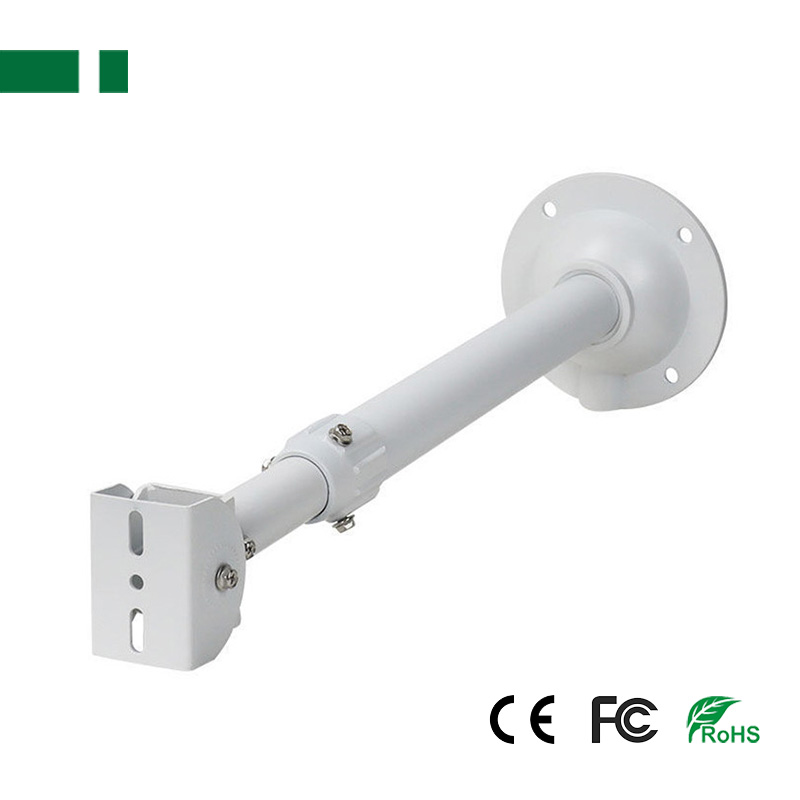

Installation method: wall-mounted, ceiling-mounted , hoisting, vertical installation
Installation Place: Outdoor & indoor. (Note: Wall mounting is not recommended for sizes above 60-120cm.)
Length: 20-40cm, 30-60cm, 40-80cm,60-120cm optional.
It supports universal adjustment, thickened material, corrosion prevention and rust prevention, durability, high compatibility, and supports for HIKVISION Dahua camera.
Package Including:
1pcs camera bracket

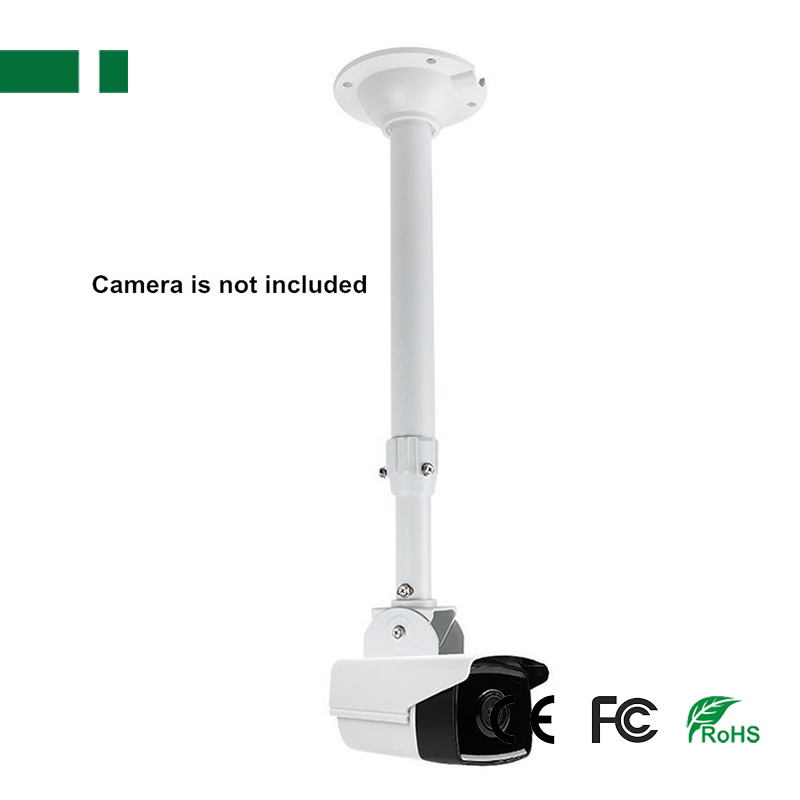

Warm prompt: Camera is not included in the package.
Disclaimer: The size is manually measured by hand, and there may be an error of 1-3MM.
Feature:
Product name: I type monitoring hoisting bracket
Material: aluminum alloy
Color: White
Tube 1: outer tube 35mm, inner tube 28mm, Outlet: 15*20mm
Tube 2: outer tube 45mm, inner tube 38mm, Outlet: 15*20mm
Installation method: wall-mounted, ceiling-mounted , hoisting, vertical installation
Installation Place: Outdoor & indoor. (Note: Wall mounting is not recommended for sizes above 60-120cm.)
Length: 20-40cm, 30-60cm, 40-80cm,60-120cm optional.
It supports universal adjustment, thickened material, corrosion prevention and rust prevention, durability, high compatibility, and supports for HIKVISION Dahua camera.
Specification:
| Model | CB-163(30-60cm) | CB-163(60-120cm) | CB-163(75-150cm) | CB-163(100-200cm) | CB-163(150-300cm) |
| Name | "I" Shape Monitoring Hoisting Aluminum Bracket | ||||
| Material | Aluminum alloy | ||||
| Installation | Wall-mounted, Ceiling-mounted , Hoisting, Vertical installation | ||||
| Applicable | Outdoor & Indoor | ||||
| Rotation | Support up and down rotation 180°, left and right rotation 360°, the direction can be adjusted. | ||||
| Length | 30-60cm | 60-120cm | 75-150cm | 100-200cm | 150-300cm |
| Fixed Base | 130(D)mm | ||||
| Clamp size | 90(L)*58(W)mm | ||||
| Inner Tube diameter | 28mm | ||||
| Outer Tube diameter | 35mm | ||||
| More optional | Other different sizes Tube diameter are available: Inner Tube diameter: 38mm, Outer Tube diameter:45mm. | ||||
1pcs camera bracket
Warm prompt: Camera is not included in the package.
Disclaimer: The size is manually measured by hand, and there may be an error of 1-3MM.
