Universal Brackets & Junction Box

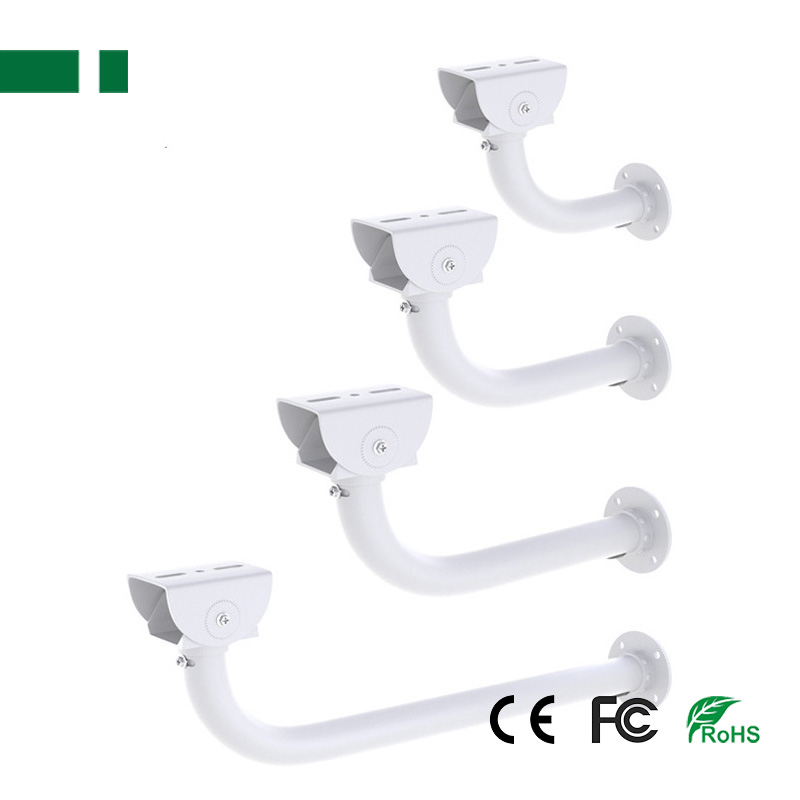

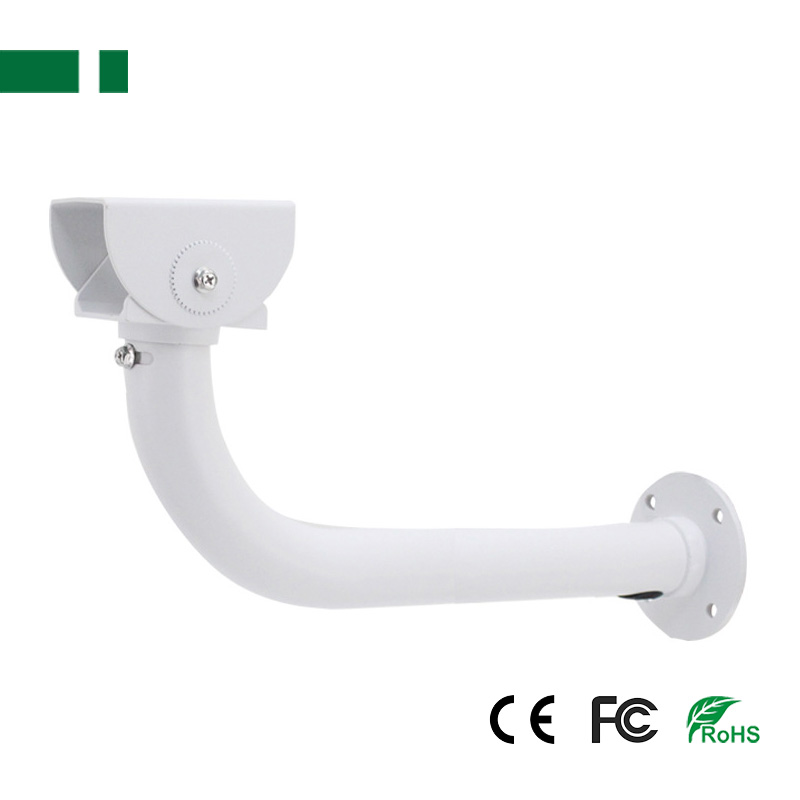

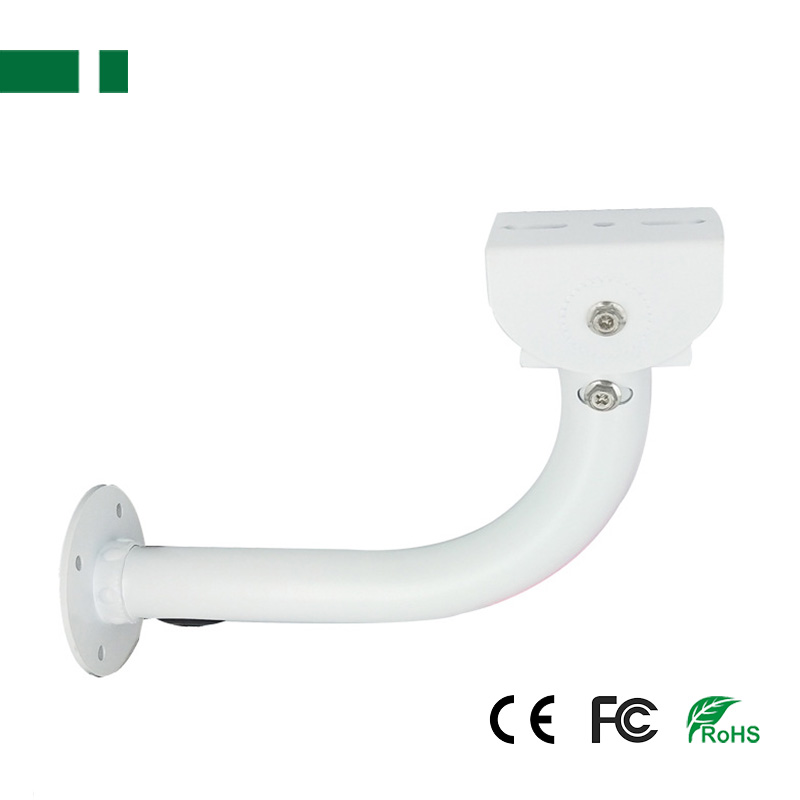

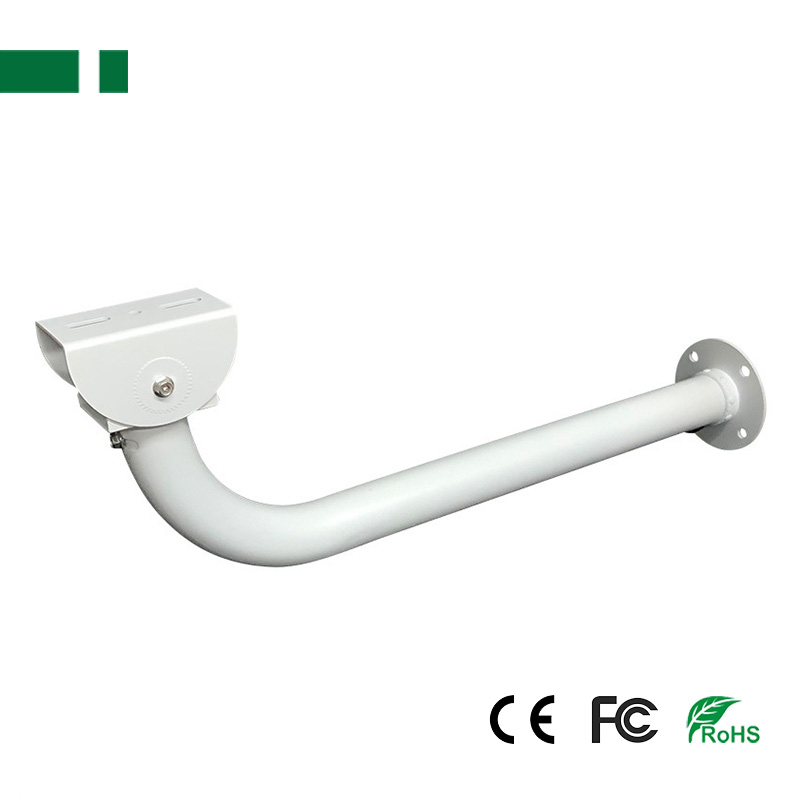

CB-161 L type monitoring hoisting bracket

CB-161 L type monitoring hoisting bracket

Material: aluminum alloy
Color: White
Tube diameter: 38mm, Outlet: 15*20mm
Length: 200mm,300mm,400mm,500mm,600mm,800mm ,1000mm optional.
Product description: Monitoring duckbill gun machine stand aluminum alloy wall-mounted lifting bracket
INQUIRY EMAIL

Product name: Monitoring duckbill gun machine stand aluminum alloy wall-mounted lifting Bracket

Feature:
Product name: L type monitoring hoisting bracket
Material: aluminum alloy
Color: White
Tube diameter: 38mm, Outlet: 15*20mm
Installation method: wall-mounted, ceiling-mounted , hoisting, vertical installation
Installation Place: Outdoor & indoor. (Note: Wall mounting is not recommended for sizes above 60-120cm.)
Length: 200mm,300mm,400mm,500mm,600mm,800mm ,1000mm optional.

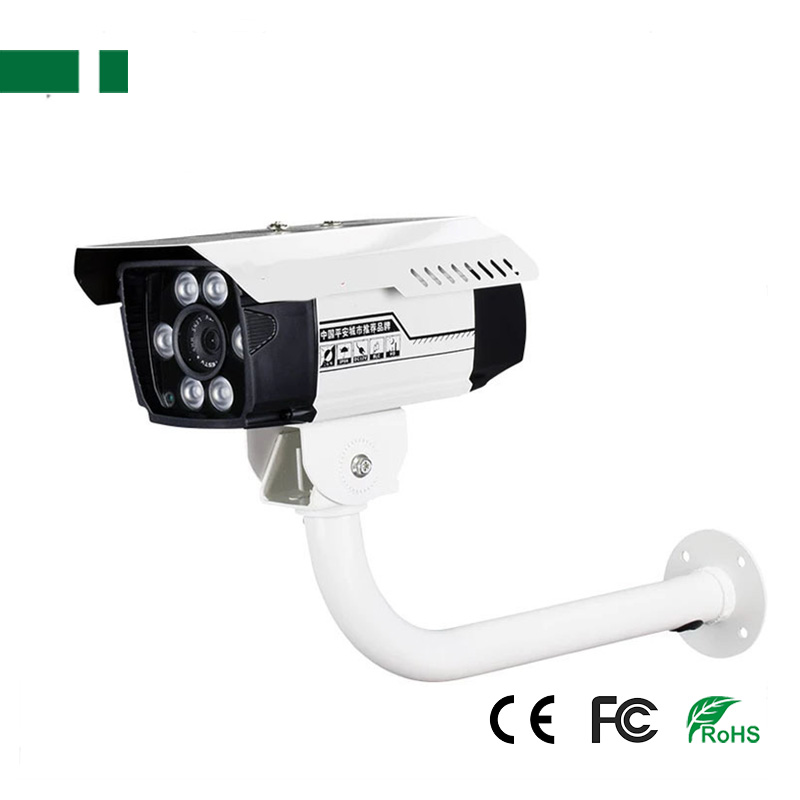

It supports universal adjustment, thickened material, corrosion prevention and rust prevention, durability, high compatibility, and supports for HIKVISION Dahua camera.

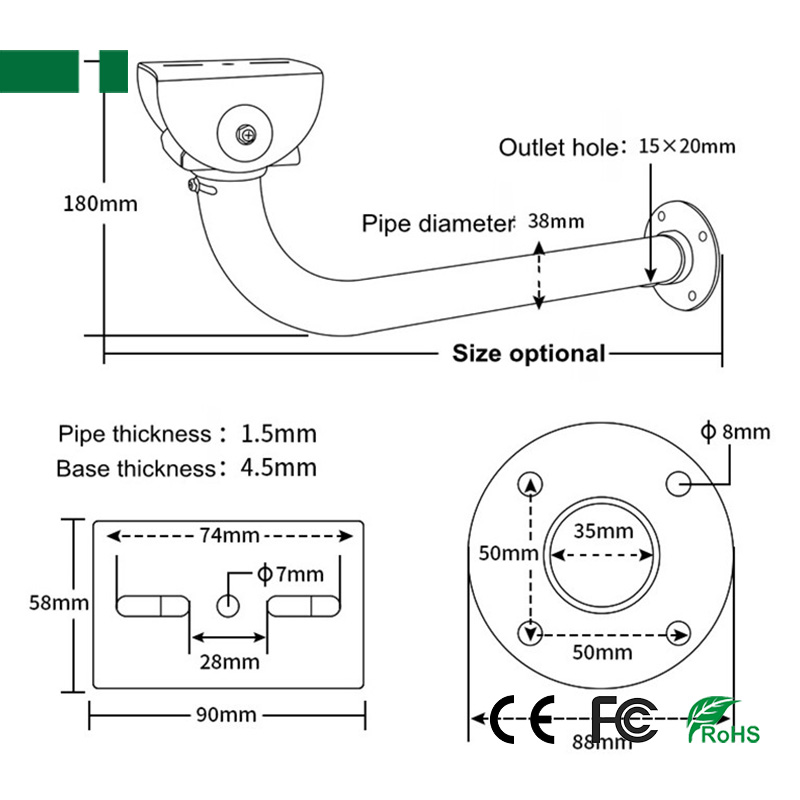

Speicification:

Model	CB-161A	CB-161B	CB-161D	CB-161E	CB-161F	CB-161G	CB-161H
Name	"L" Shape Monitoring Hoisting Aluminum Bracket
Material	Aluminum alloy
Installation	Wall-mounted, Ceiling-mounted , Hoisting, Vertical installation
Applicable	Outdoor & Indoor
Rotation	Support up and down rotation 180°, left and right rotation 360°, the direction can be adjusted.
Length	2000mm	300mm	400mm	500mm	600mm	800mm	1000mm
Fixed Base	88(D)mm
Clamp size	90(L)*58(W)mm
Tube diameter	38mm
Weight	400g	450g	515g	530g	545g	631g	780g

Package Including:
1pcs camera bracket
Warm prompt: Camera is not included in the package.

Disclaimer: The size is manually measured by hand, and there may be an error of 1-3MM.
