What is Power over Ethernet (PoE)?

Power over Ethernet (PoE) allows electrical power to be transmitted over standard Ethernet cables along with data. Put simply, devices like IP cameras, VoIP phones, and wireless access points can receive both power and data over one cable instead of a separate power connection.

The Basics of PoE

Power devices operate on two basic standards: IEEE 802.3af (PoE)—up to 15.4 watts of power per port, and IEEE 802.3at (PoE+)—up to 30 watts of power per port for more power-hungry devices. IEEE 802.3bt (PoE++) can take power up to 60-100 watts for even more demanding applications. These standards mean interoperability across devices and technologies, which makes PoE a great product for various networking applications.

How Does Power over Ethernet (PoE) Work?

1. Power Sourcing Equipment (PSE)

The PSE refers to the device providing power to the connected device. PSE could be a POE Switch (a robust switch, with built-in PoE capabilities), or PoE injector (an external device that adds power to a standard Ethernet cabling before it reaches the powered device).

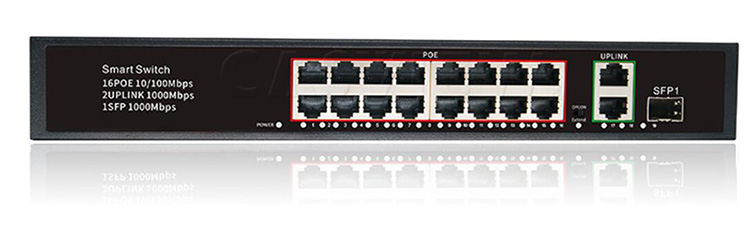

PoE Switch

When the switch connects a powered device to power, whether that is an IP camera, a PoE phone, or other powered devices, it supplies power straight to the device.

PoE Injector

An injector functions similarly to a switch, adding power to a standard Ethernet cabling configuration before it reaches the powered device.

2. Powered Devices (PD)

PD is defined as the devices that are powered through the Ethernet cabling. Examples of powered devices include: IP cameras, VoIP phones Wireless APs (access points) Network printers

3. Ethernet Cabling

PoE uses standard Ethernet cabling (Cat5e, Cat6, etc.) in both power and data transmission. The installation is simple and inexpensive because power travels through the same wire as data.

4. Enhanced Safety

PoE is governed by IEEE standards that determine how power is delivered and how to ensure interoperability across manufacturers. This standard helps justify a network's scalability and function across manufactures.

Benefits of PoE

1. Less complicated installations

PoE eliminates the need for an electricity source, providing a significant savings in installation time and installation costs. This is especially benefit in places where creating a new electrical source is difficult or infeasible.

2. Flexible

PoE allows users to move devices wherever the user wants without determining the proximity of a power outlet. Adding devices to an existing system is convenient.

3. Cost effective

Savings can be significant through reduced electric and building costs and cable purchases, as cables do not need to be replaced, or building plans do not have to considered any additional installed electrical costs.

4. Enhanced safety

The inherently safe nature of PoE includes designed architectural reference for load limits the amount of the overload, short circuit, or insufficient power is being supplied to the device.

Applications of PoE

Power over Ethernet is employed for numerous applications including; Surveillance: IP cameras are readily installed in hard to reach locations without attempts to find an electrical outlet at the devices location.

Telephony: PoE is a segue way for VoIP phones to be easily implemented and more importantly provide consumers with mobility.

Wireless Networks: Access points can be easily positioned to place coverage where there is none.

Intelligent buildings: Power over Ethernet (PoE) allows for the seamless functioning of intelligent lighting and IoT devices on the same network.

Conclusion

Power over Ethernet (PoE) is a game-changing technology that simplifies network installation by transmitting power and data over the same cable. It is a vital enabler of modern networking solutions by reducing cost and increasing flexibility while supporting IoT devices. The increasing demand for more efficient power management implies that PoE will serve a very significant role in the future of technology. By understanding PoE's purpose and all the scenarios you can employ PoE, you can make informed networking decisions for business and personal IoT applications while utilizing many benefits offered by PoE.
