FC-6S Fiber Cleaver

  • Typical Cleave Angle: 0.5 Degrees
  • Coating Diameter: 250um ~ 900um
  • Fiber Diameter: 125um
  • Applicable fibers: Single mode or Multimode Use
  • Product description: FC-6S Fiber Cleaver FTTH Optical Fiber Cable Cutting Tools Fiber Cable Cutter Knife 16 Surface Blade Metal Material
  • INQUIRY   EMAIL

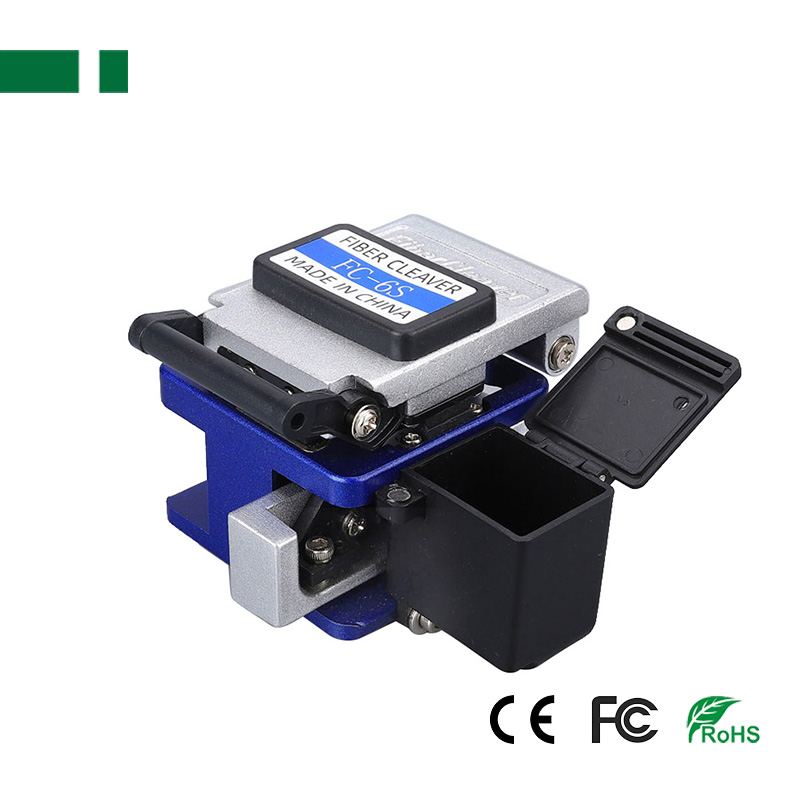

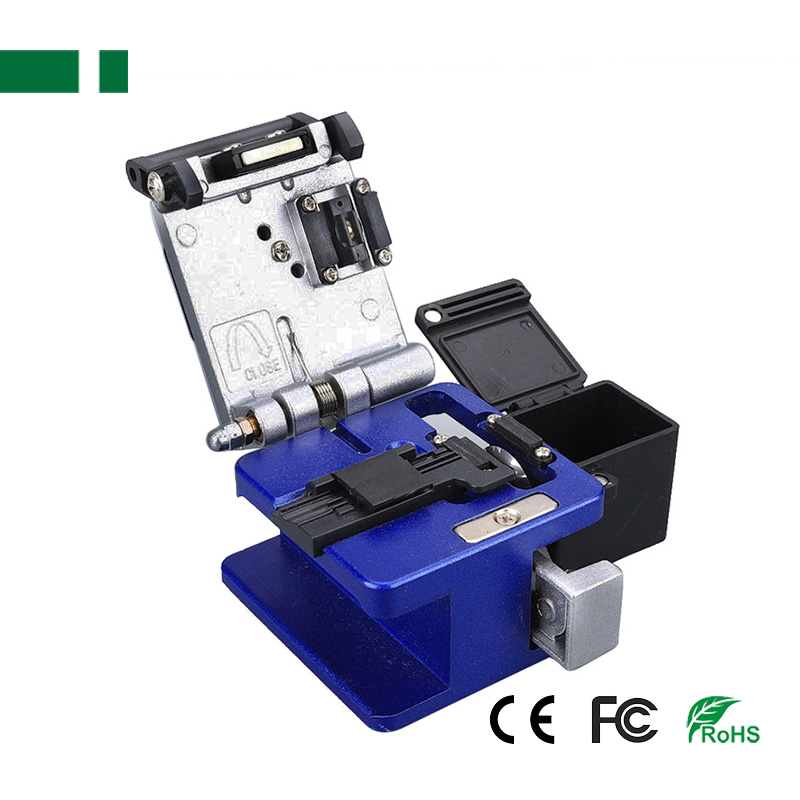

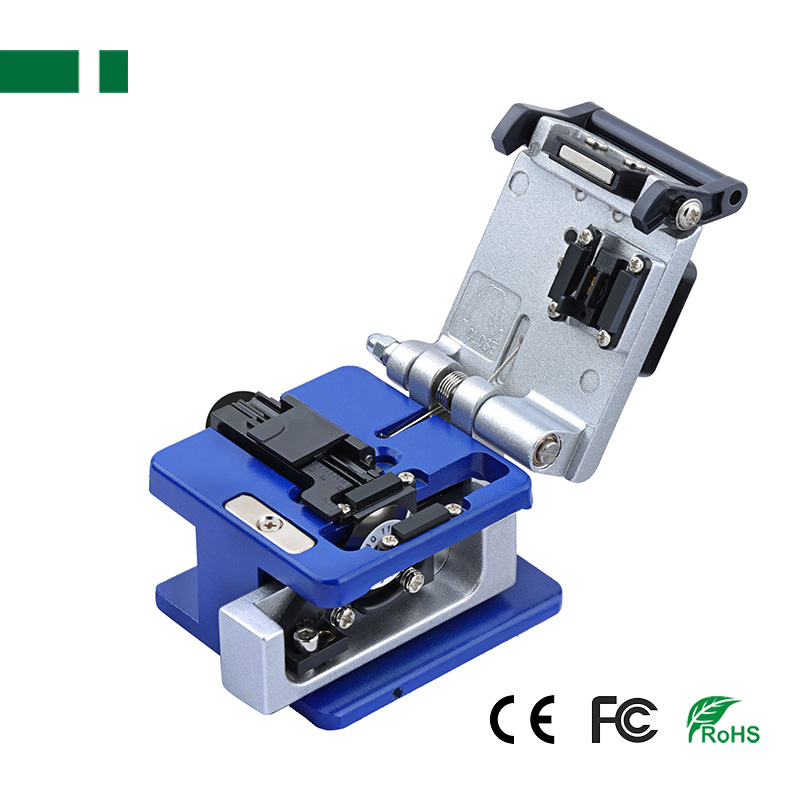

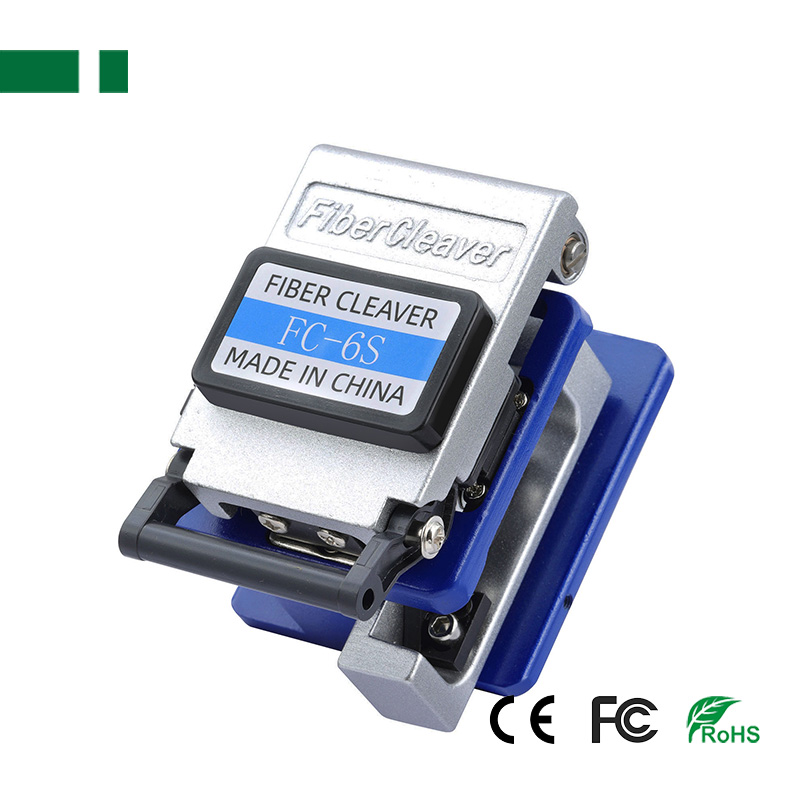

FC-6S Fiber Cleaver FTTH Optical Fiber Cable Cutting Tools Fiber Cable Cutter Knife 16 Surface Blade Metal Material

Features:
• Provides approximately 36,000 cleaves
• Compact body& light weight
• High Precision Cleaves
• 250um Coated or 900um Buffer fiber
• Single mode or Multimode Use

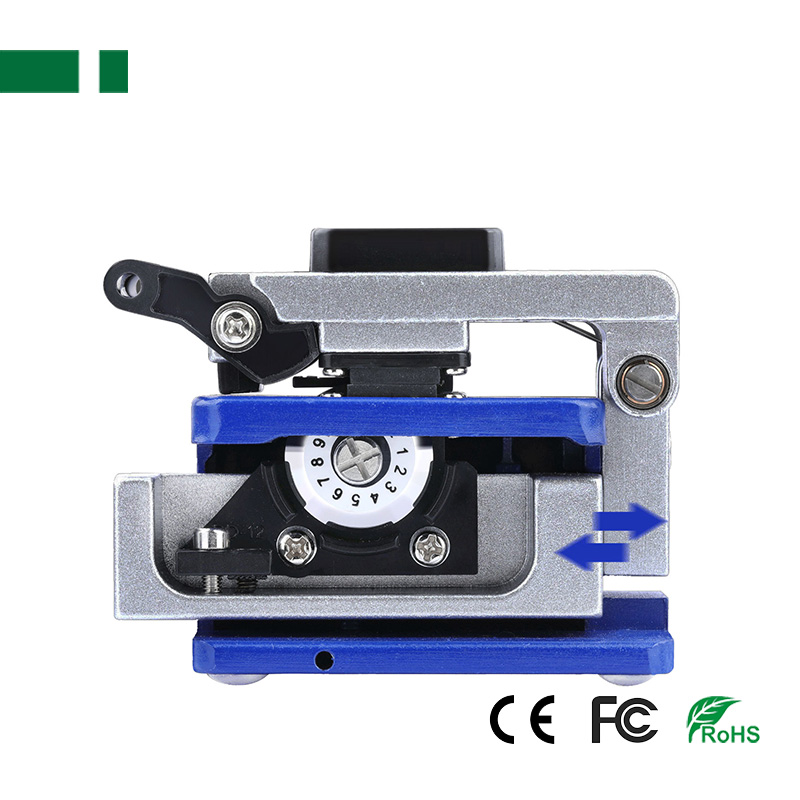

• 12 Position Rotatable and Replicable Blade

Specification:
Model: FC-6S
Applicable fibers: Single mode or Multimode Use
Fiber Diameter: 125um
Coating Diameter: 250um ~ 900um
Typical Cleave Angle: 0.5 Degrees
Cleave Length: 9 - 16mm (Single Fiber - 0.25mm Coating)
10 - 16mm (Single Fiber - 0.9mm Coating)
Blade Life Time: 36,000 cleaves (3,000 per blade position)

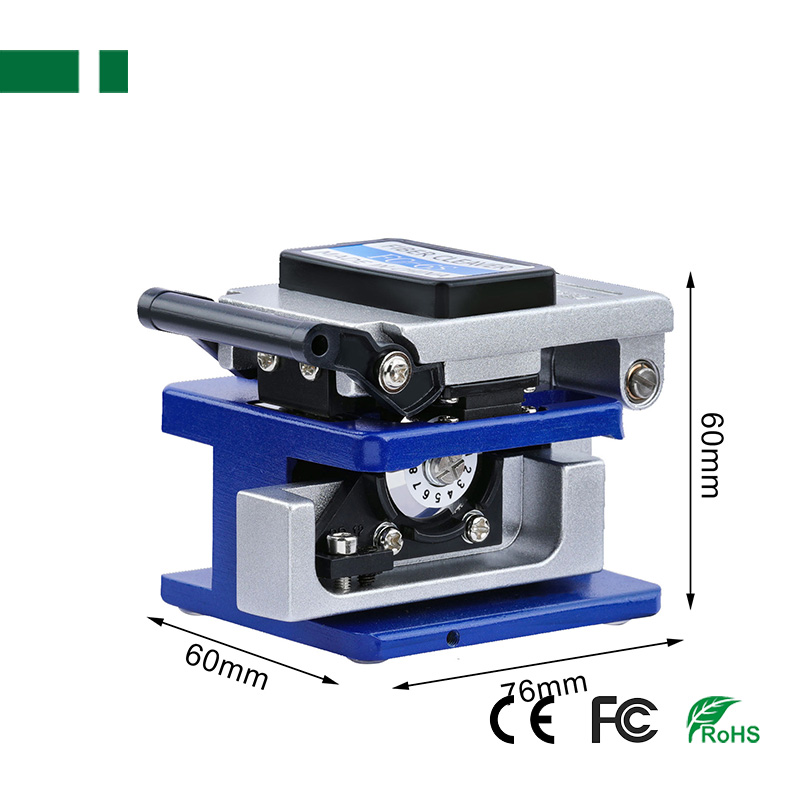

Cleaver Dimensions: 63 x 65 x 63mm
Weight: 475g

Package Includes:
1 x FC-6S Fiber Cleaver
1 x Bag
2 x Allen wrench
