CWE-M1203 1200Mbps 2.4G/5.8G Dual Band Mesh Router

Download for More Details

The Mesh Router, automatically recognized as Router Mode after the Device is connected to the Internet. While other Devices  are connected to Mesh Router,  automatically become Extender.
Whole-Home Mesh WiFi System for home networking, with it's multiple smart units, delivers data speeds up to 1200Mbps and provides seamless floor-to-floor roaming throughout your home.
While signals of traditional individual router significantly decrease after crossing two or three walls, this Whole-Home Mesh WiFi System, a distributed wireless network, is interconnected and does not sacrifice signal strength and stability within a much larger area, which is highly-valued.
It's a flexible system that can extend with your needs, you can add as to 8 satellites as you need. Each unit covers 1000-1500 sq ft, while the 3-unit kit covers 3000-4000 sq ft, and 2-unit kit covers 2000-3000 sq ft, depending on how you place them at your home.

Feature:
1. 1200Mbps 2.4G/5.8G Dual Band WiFi Mesh Router;
2. 4* 2dBi  internal Antennas;

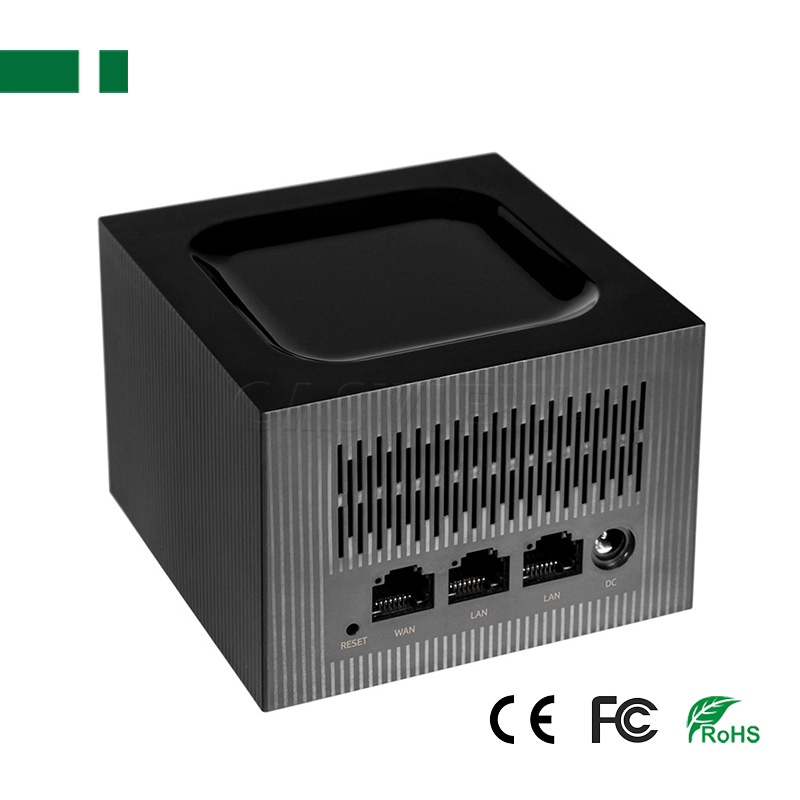

3. Provides 3* 10/100Mbps WAN/ LAN ports;
4. Complies with IEEE802.11ac/a and IEEE802.11n/g/b standards;
5.  Wireless Signal Rates:
5.8G: IEEE802.11ac: up to 867Mbps (dynamic);
5.8G:  IEEE802.11a: up to 54Mbps (dynamic);
2.4G:  IEEE802.11n: up to 300Mbps (dynamic);
2.4G:  IEEE802.11g: up to 54Mbps (dynamic);
2.4G:   IEEE802.11b: up to 11Mbps (dynamic);
6. Easy setup assistant provides quick & hassle free installation;
7. Provide work mode: Router/ AP;
8. Supports remote/local web management and web upgrade;
9. Suitable for Home, Office, Hotel, Coffee shop and Library etc.

Specification:
Chipset-------------------------------------------RTL8197F+RLT8812
Interface------------------------------------------3* 10/100Mbps Wan/ Lan port
Wireless speed-----------------------------------802.11n: up to 300Mbps, 802.11ac：867Mbps
Frequency range---------------------------------2.4-2.484GHz, 11ac：5.15~5.25Ghz, 5.725~5.850Ghz
Wireless transmit power-------------------------20dBm(max EIRP)
Antenna-----------------------------------------4* 2dBi Internal Antennas
Work mode-------------------------------------Router/ AP
Wireless security--------------------------------64/128 Bits WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Power supply-----------------------------------AC100-240V input
Operating Temperature-------------------------20℃ to 70℃
Storage Temperature---------------------------40℃ to 90℃
Operating Humidity-----------------------------10% to 95% (non-condensing)
Storage  Humidity-------------------------------5% to 95% (non-condensing)
Support operating system----------------------Windows XP/ Vista/ Linnux/ Win 7/ Win 8 / Win8.1 / Win10 / Mac OS

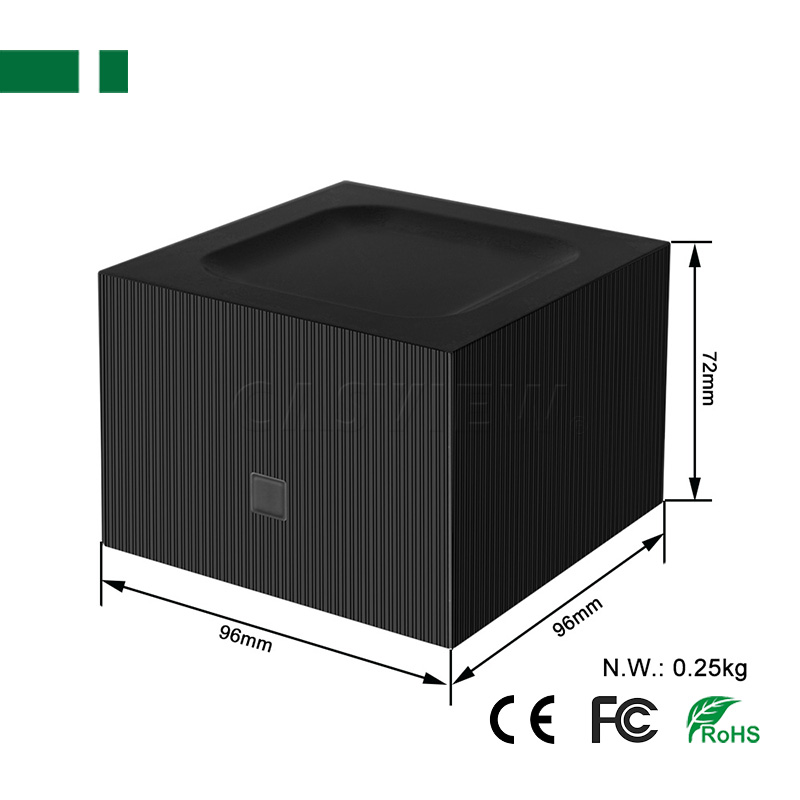

Dimensions (H*W*D)----------------------------96*96*72mm, N.W.: 0.22kg

Packing list:
1* 1200Mbps 2.4G/5.8G Dual Band Mesh Router
1* Quick Installation Guide
1* Power Adapter

Notes:
1. WiFi Range Extender(Repeater):  Extend WiFi coverage of an existing wireless network；
2. Wireless Access Point(AP):  Covert a wired network to a wireless network；
3. Wireless Router:  Create an instant private wireless network, also can as a router function.
