Inquiry:
WIFI Repeater/Extender

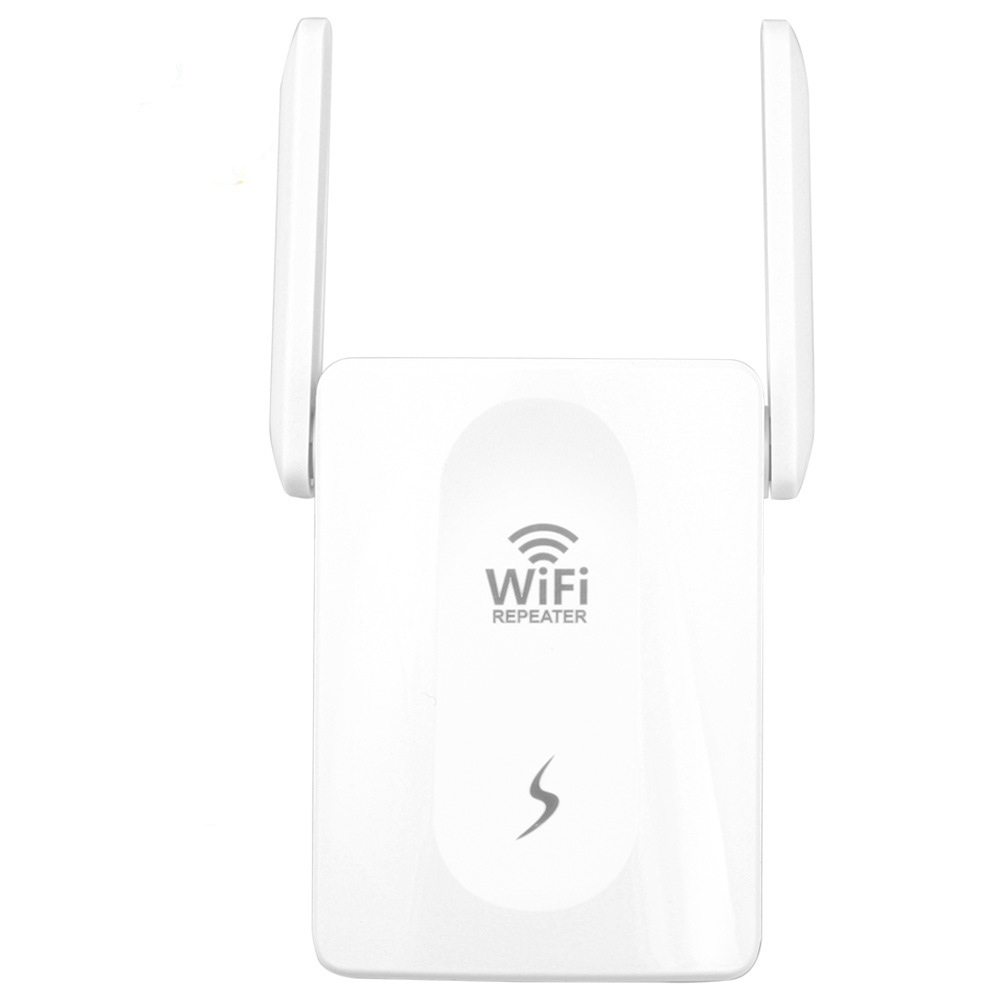

CWE-3107 300Mbps 2.4G WiFi Range Extender
- 2* 2dBi External Antennas
- 1* 10/100Mbps WAN/ LAN auto port
- Complies with IEEE802.11n/g/b
- Work mode: Repeater/ AP
- Product description: The Wireless Mini AP supports 802.11 N wireless transmission standards, and is backward compatible with IEEE802.11 n/b/g standards. It supports data rate up to 300 Mbps.
Overview:The Wireless-N Mini Router is a combined wired/wireless network connection device designed specifically for small business,office,and home office networking requirements.It complies with the IEEE 802.11n standard. It adopts MIMO as well as SST technologies.It also works well with other 11b/g and 11n protocol wireless products.Create instant WiFi hotspots at any location where you have Internet connection.
Features:
1.Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, standards.
2.Supports Router,Client,Bridge,Repeater,AP mode.
3.2dBi antennas integrated, Dual Signal Boosting Antennas.
4.Wireless N speed up to 300Mbps and Backward compatible with 802.11b/g products.
5.Supports WEP,WPA/WPA2,WPA-PSK/WPA2-PSK encryption.
6.Provides one 10/100Mbps Auto-Negotiation Ethernet LAN ports.
7.Travel size design, compact and portable, ideal for home or travel use.
Five operation modes:
1.Wireless Router Mode (Default) - Creates an instant private wireless network and share Internet to multiple Wi-Fi devices, which is suitable for most hotel and home network.
2.Repeater Mode - Extend existing Wi-Fi, improving signal strength and maximizing coverage.
3.Access Point Mode - Creates a wireless network for Wi-Fi devices.
4.WISP Client Router Mode - Simultaneous Wireless ISP access and sharing.
5.Client Mode (TV/Game Console) - Gives wired-only devices access to an existing Wi-Fi networks.
Specification:
1.Color : Polish White
2.Frequency range : 2.4-2.4835GHz
3.Wireless transmit power : 14 ~17 dBm (Typical)
4.Power supply unit : 100V-240V AC
5.Wireless Signal Rates With Automatic Fallback : 11n: Up to 300Mbps (dynamic)
6.11g : Up to 54Mbps(dynamic) 11b : Up to 11Mbps(dynamic)
7.Modulation Technology : DBPSK , DQPSK , CCK , OFDM , 16-QAM , 64-QAM
8.Receiver Sensitivity : 300M : -68dBm@10% PER / 150M : -68dBm@10% PER / 108M : -68dBm@10% PER / 54M : -68dBm@10% PER / 11M : -85dBm@8% PER / 6M : -88dBm@10% PER / 1M : -90dBm@8% PER
9.Networking cable : 1M
10.Product size : 102*68*90mm, Package weight :110g
11.Wireless Repeater Mode : You will need WiFi AP/Router internet access , just plug the WiFi extender to a power slot , after configuration to be an access point.
12.Wireless AP Mode : You will need broadband Router internet access , Connect the WiFi repeater to your router /switch with RJ-45 Cable.
Features:
1.Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, standards.
2.Supports Router,Client,Bridge,Repeater,AP mode.
3.2dBi antennas integrated, Dual Signal Boosting Antennas.
4.Wireless N speed up to 300Mbps and Backward compatible with 802.11b/g products.
5.Supports WEP,WPA/WPA2,WPA-PSK/WPA2-PSK encryption.
6.Provides one 10/100Mbps Auto-Negotiation Ethernet LAN ports.
7.Travel size design, compact and portable, ideal for home or travel use.
Five operation modes:
1.Wireless Router Mode (Default) - Creates an instant private wireless network and share Internet to multiple Wi-Fi devices, which is suitable for most hotel and home network.
2.Repeater Mode - Extend existing Wi-Fi, improving signal strength and maximizing coverage.
3.Access Point Mode - Creates a wireless network for Wi-Fi devices.
4.WISP Client Router Mode - Simultaneous Wireless ISP access and sharing.
5.Client Mode (TV/Game Console) - Gives wired-only devices access to an existing Wi-Fi networks.
Specification:
1.Color : Polish White
2.Frequency range : 2.4-2.4835GHz
3.Wireless transmit power : 14 ~17 dBm (Typical)
4.Power supply unit : 100V-240V AC
5.Wireless Signal Rates With Automatic Fallback : 11n: Up to 300Mbps (dynamic)
6.11g : Up to 54Mbps(dynamic) 11b : Up to 11Mbps(dynamic)
7.Modulation Technology : DBPSK , DQPSK , CCK , OFDM , 16-QAM , 64-QAM
8.Receiver Sensitivity : 300M : -68dBm@10% PER / 150M : -68dBm@10% PER / 108M : -68dBm@10% PER / 54M : -68dBm@10% PER / 11M : -85dBm@8% PER / 6M : -88dBm@10% PER / 1M : -90dBm@8% PER
9.Networking cable : 1M
10.Product size : 102*68*90mm, Package weight :110g
11.Wireless Repeater Mode : You will need WiFi AP/Router internet access , just plug the WiFi extender to a power slot , after configuration to be an access point.
12.Wireless AP Mode : You will need broadband Router internet access , Connect the WiFi repeater to your router /switch with RJ-45 Cable.
