Video Multi-Viewer

CVM-801V Quad Processor with VGA

Quad Processor
High definition: PAL: 720X576@50Hz, NTSC: 720X480@60Hz.
With VGA output
Remote Control, Buttons control
Product description: Connect the 1-8 channels video Signal of camera and brightness, saturation, contrast, HUE and sharpness.
INQUIRY EMAIL

System Features:

1. Connect the 1-8 channels video Signal of camera and brightness, saturation, contrast, HUE and sharpness.

2. High definition: PAL: 720X576@50Hz, NTSC: 720X480@60Hz.

3. Multiple display modes : 8 pictures, 4 pictures, 2 pictures,1 picture ,PIP(picture eight picture) automatic inverting mode.

4. High performance picture frozen function: Glitter picture catch.

5. High performance picture amplifying function: The area to be zooming in can be selected.

6. The various fonts folded information: The title of camera, real time display and warning date/ video/ moving Detecting information.

7. The four pictures and single picture mode recycle.

8. There are multiple modes: Warning input, video loss detection, moving detection can keep over 60 reports, built in buzzer.

Specification:

Model	CVM-801	CVM-801V
Video System	25fps (PAL), 30fps (NTSC)
Definition	PAL: 720X576, NTSC: 720X480

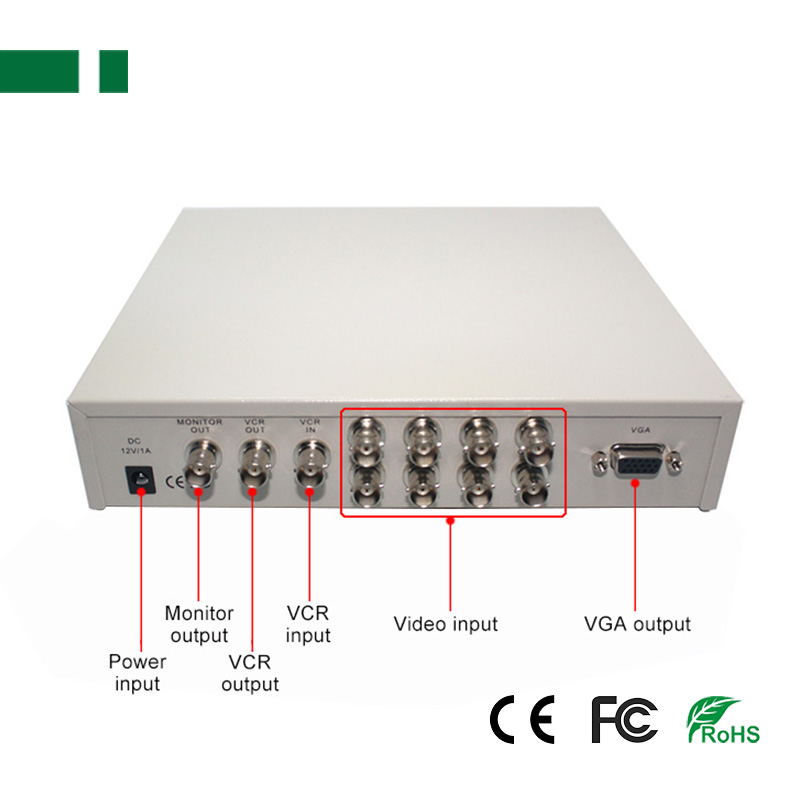

Video input	8 x BNC, 1.0Vp-p75Ω input
Input / Output Voltage	1.0Vp-p
Input / Output Impedance	75Ω
Monitor output	1 x BNC, 1.0Vp-p75Ω output
VGA output	NO	VGA×1 (1024×768)
Alarm mode	Video lost warning ,touch and start mode, moving detection warning
Video input mode	Full screen, electronic amplifying, 8 pictures, 4 pictures, PIP and automatic
Video output mode	Single picture, dual-picture, PIP, POP and 8-picture,4-picture, support auto switch

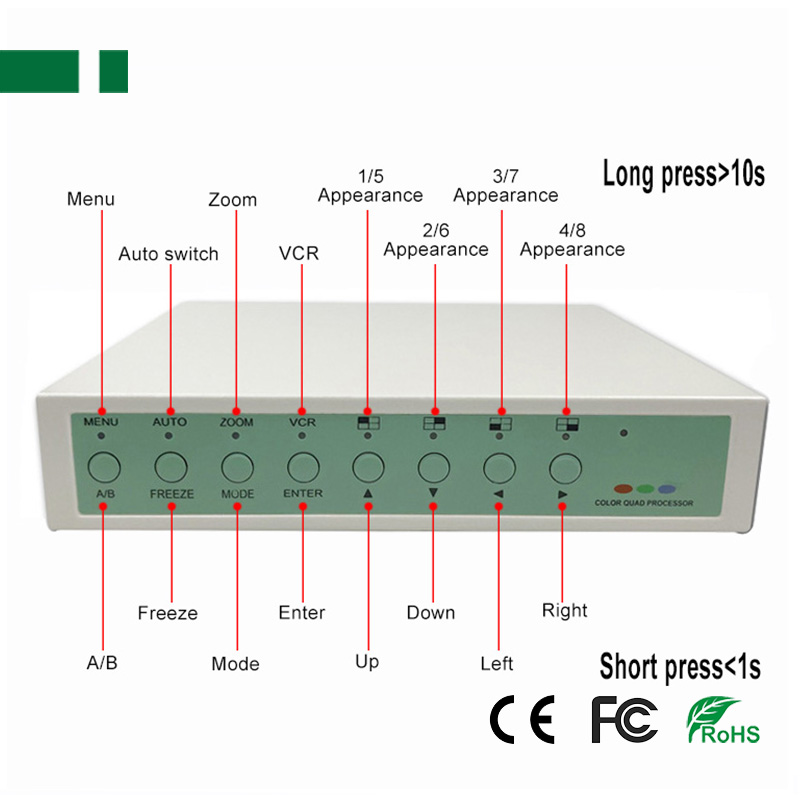

Switching Mode	Remote Control, Buttons
Power supply	DC12V/1A

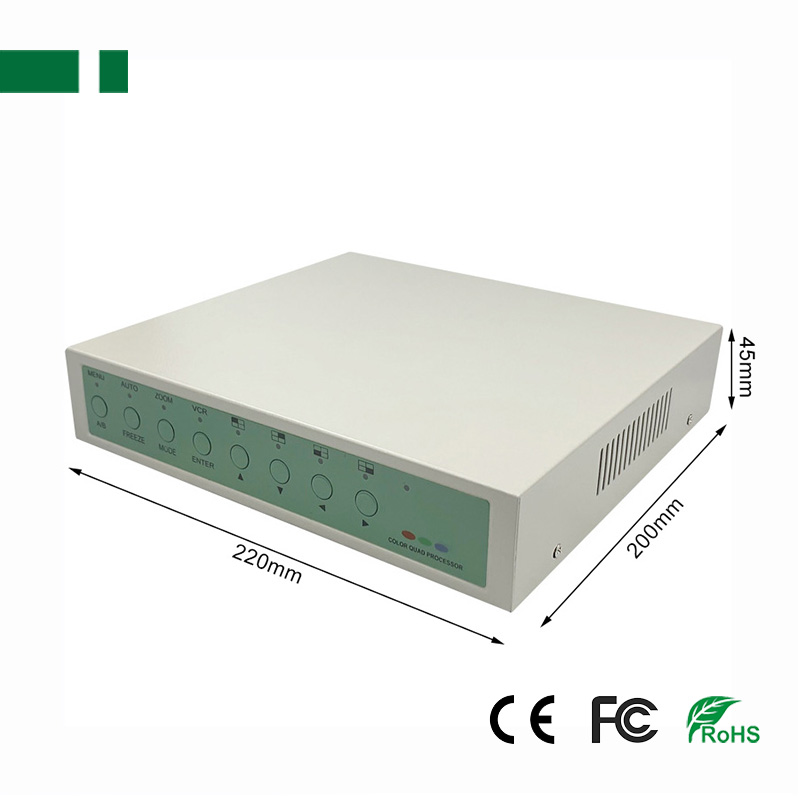

Dimension	220x200x45mm
G.W.	1KG
Environmental temperature	-30°C-60°C
