HD Video Multiplexer
CVM-02TAC 2 Channel AHD/TVI/CVI 1080P Coaxial Video Multiplexer
- HD-CVI/TVI/AHD & CVBS
- Support 1080P, 960P, 720P;
- Lightning protection design
- Real-time transmission over UTP Cat5e/6
- Product description: This product uses special compression modulation technology, on the front end (transmitter) let 2-channel CVI/AHD/TVI hd camera to compressed, then made into digital signal in coaxial cable transmissi
Description:

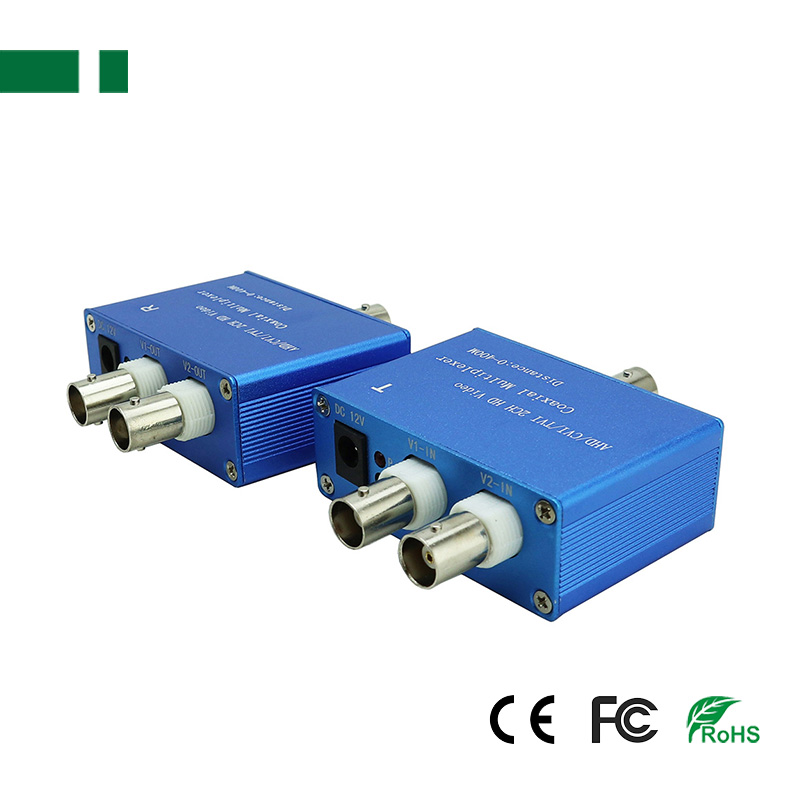

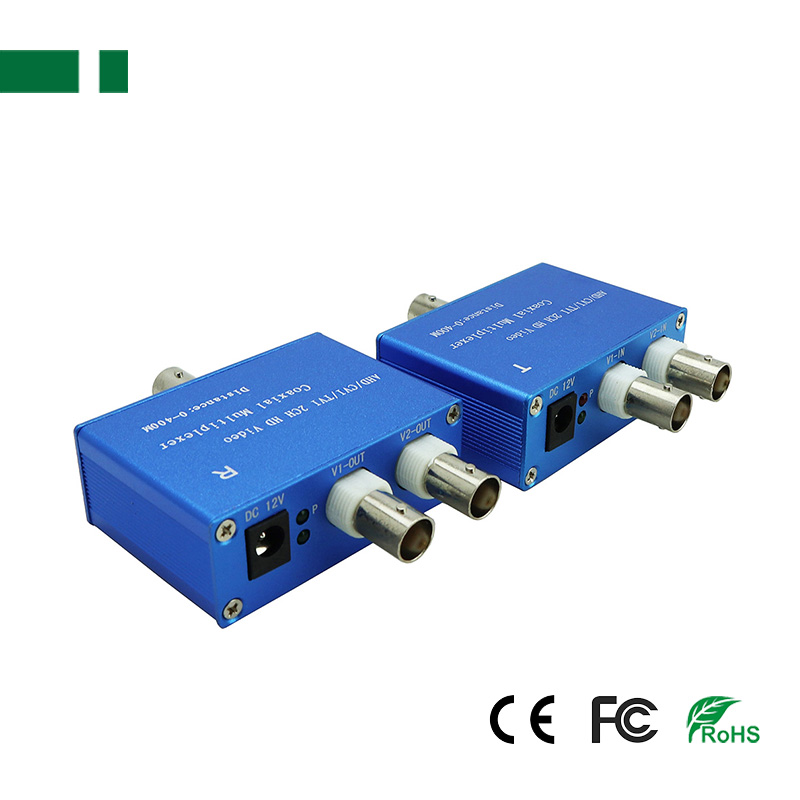

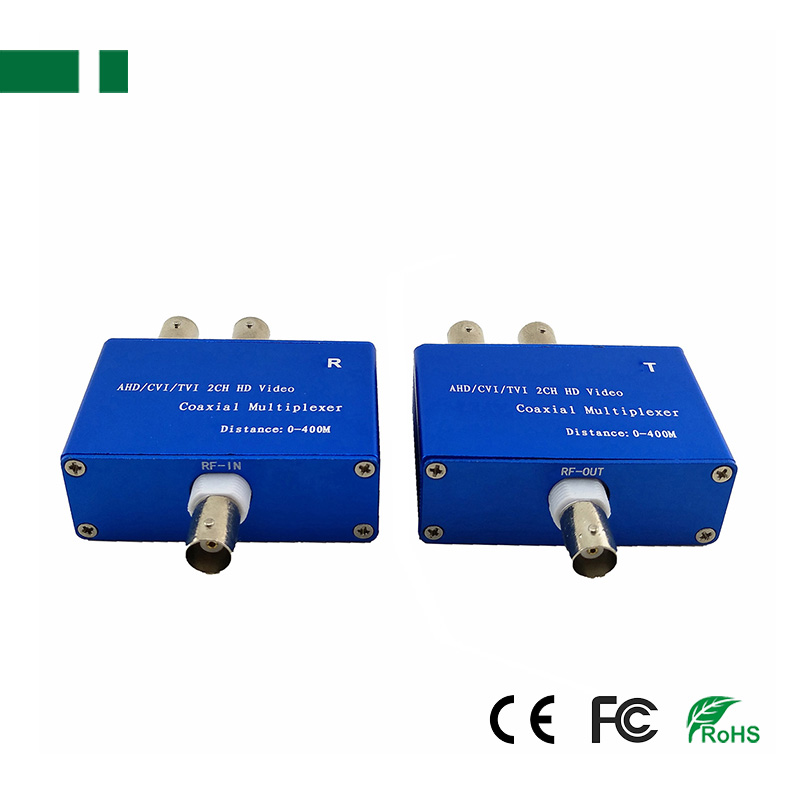

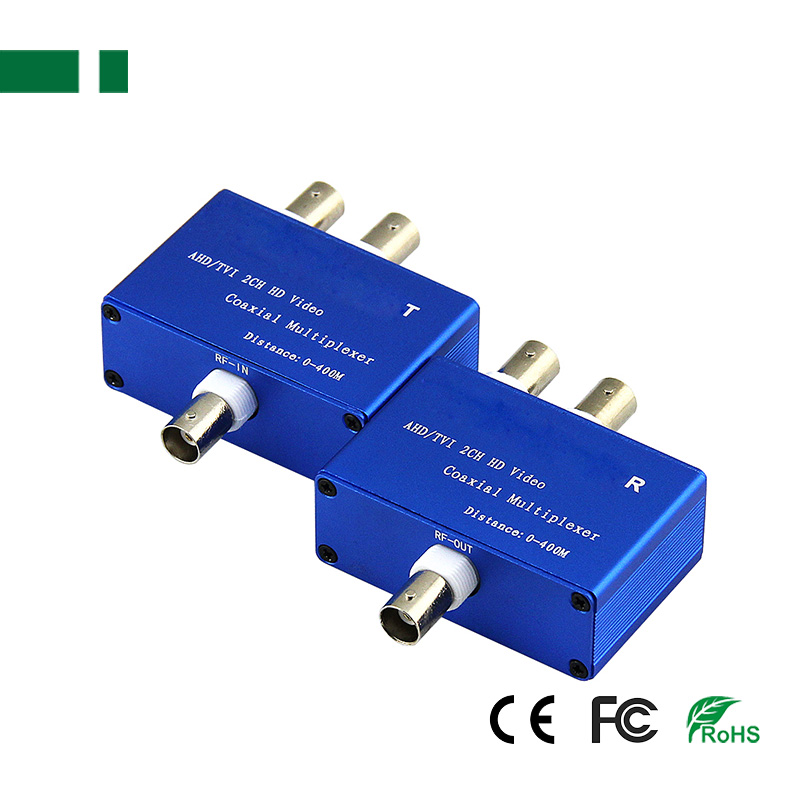

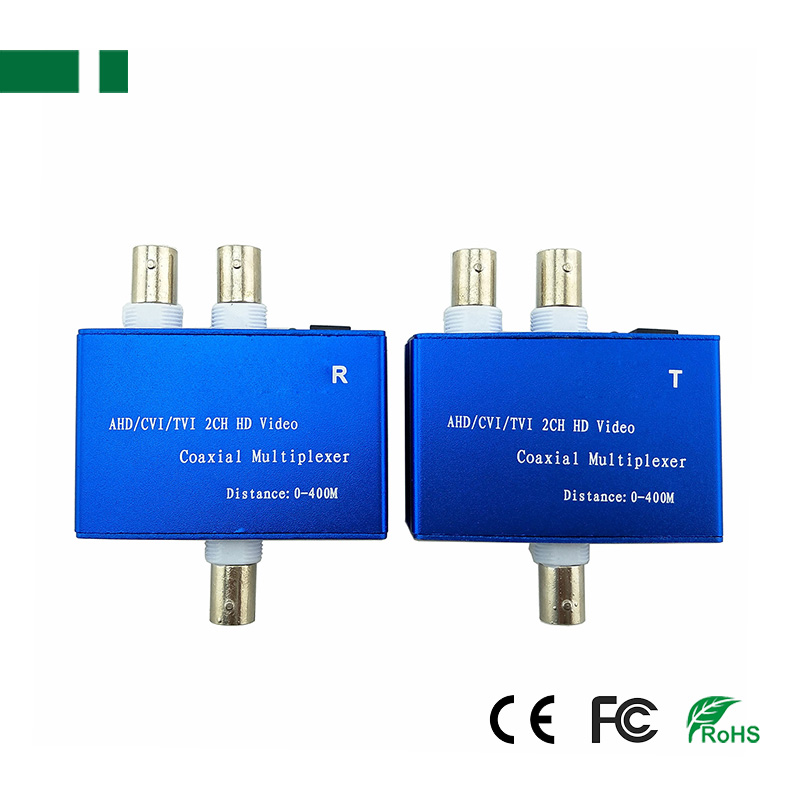

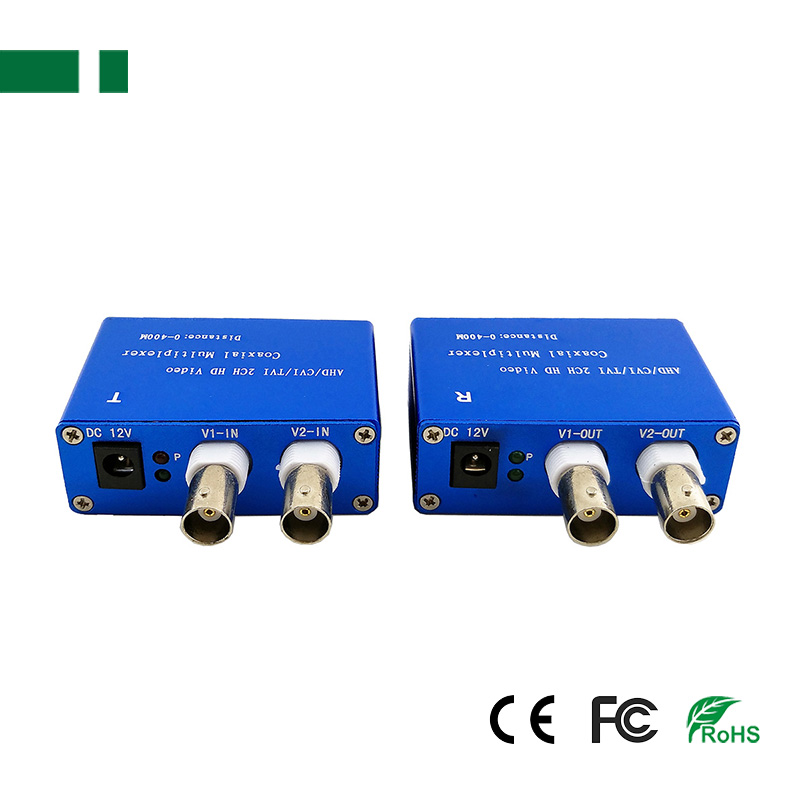

CVM-02TAC is HD 4-in-1 AHD/ TVI/ CVI/ analog video multiplexer bound the 2 channel video signal of the camera in one Coaxial Cables transmission. The video multiplexer is composed of a transmitter and a receiver. From the receiver to the transmitter, it transmits 2 channel video signals through one coaxial cable to long distance. Besides, as you don't need to install extra cable for data signals, you can save your money and time. It is suitable for improvement of old projects and building under new projects. Its can be in adaptive adjust transmission distance within 0-400 meters.
Features
2 Channel HD video signal for cameras over one coaxial cable;
Designed according to projects with minimum installation volume requirement;
Long distance transmission up to 400meters;
Frequency division multiplexing, with all video and data transmission real-time and all images high-definition and non-delay;
Non-debug, adaptive: as long as the transmission distance range, the device will automatically adjust their targets;
One coaxial cable, no extra cable, which save infrastructure cost,(cost saving 25~30%);
Maintaining high quality video & anti-interference immunity;
Easy installation with BNC harness;
Perfect support coaxial video line RG59 cable, etc.
Mini size and lighter weight, save more shipping costs.
Specification:
CVM-02TAC is HD 4-in-1 AHD/ TVI/ CVI/ analog video multiplexer bound the 2 channel video signal of the camera in one Coaxial Cables transmission. The video multiplexer is composed of a transmitter and a receiver. From the receiver to the transmitter, it transmits 2 channel video signals through one coaxial cable to long distance. Besides, as you don't need to install extra cable for data signals, you can save your money and time. It is suitable for improvement of old projects and building under new projects. Its can be in adaptive adjust transmission distance within 0-400 meters.
Features
2 Channel HD video signal for cameras over one coaxial cable;
Designed according to projects with minimum installation volume requirement;
Long distance transmission up to 400meters;
Frequency division multiplexing, with all video and data transmission real-time and all images high-definition and non-delay;
Non-debug, adaptive: as long as the transmission distance range, the device will automatically adjust their targets;
One coaxial cable, no extra cable, which save infrastructure cost,(cost saving 25~30%);
Maintaining high quality video & anti-interference immunity;
Easy installation with BNC harness;
Perfect support coaxial video line RG59 cable, etc.
Mini size and lighter weight, save more shipping costs.
Specification:
| Item name | 2 Channel HD video multiplexer over coaxial cable |
| Model No | CVM-02TAC |
| Compatible mode |
AHD: 720P/960P/1080P
TVI: 720P/1080P
CVI: 720P/960P/1080P
CVBS/Analog
|
| Interface | BNC port |
| Power supply input | DC12V/1A |
| Transmission distance | 0-400meters adaptive |
| Operating temperature | -30°C-50°C |
| Humidity | 0 to 95% non-condensing |
| Shell material | High quality aluminum alloy materials |
| Product weight | 67.5g /pc |
| Product size | 6.4(L)x4.3(W)x2.3(H) cm/pc |
