Video/ Power/ Audio Cable

  • CVD-20-C 20M Video and Power Cable
  • CVD-20-C 20M Video and Power Cable
  • CVD-20-C 20M Video and Power Cable
  • CVD-20-C 20M Video and Power Cable
  • CVD-20-C 20M Video and Power Cable
CVD-20-C 20M Video and Power CableCVD-20-C 20M Video and Power CableCVD-20-C 20M Video and Power CableCVD-20-C 20M Video and Power CableCVD-20-C 20M Video and Power Cable

CVD-20-C 20M Video and Power Cable

  • BNC+DC coaxial cable for CCTV camera
  • DC Power Male and Female Size: 5.5 * 2.1;
  • Support DC12-24V, 1-2A Power supply;
  • Transmit Video signals and supply DC power for security systems.
  • Product description: Various specifications available uses: This specical wire foe monitoring is composite line composed of a video cable and power cord (with monitoring connector and power cord connector), convenient ins
  • INQUIRY   EMAIL

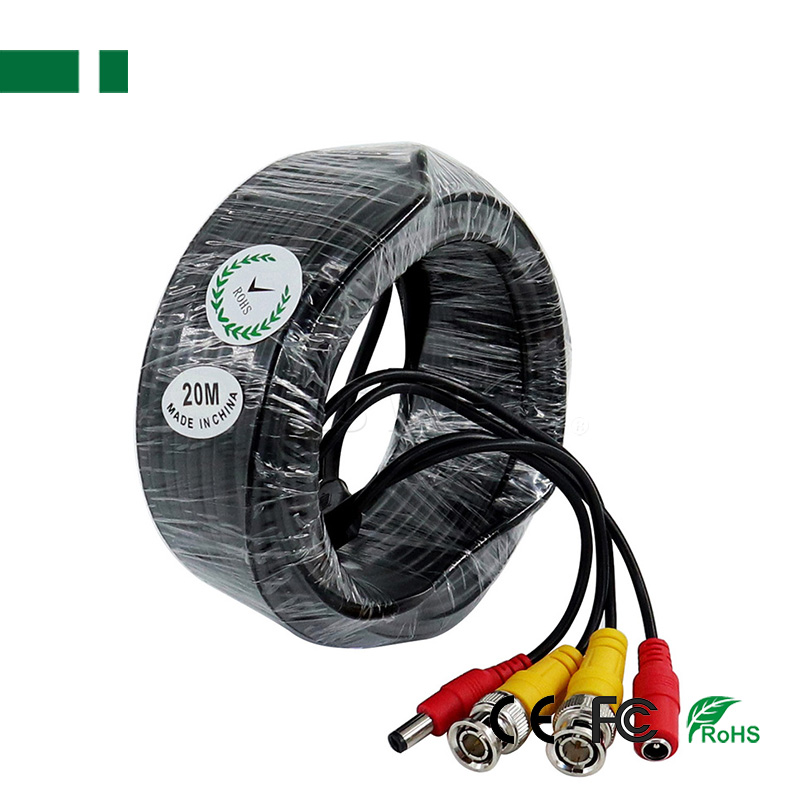

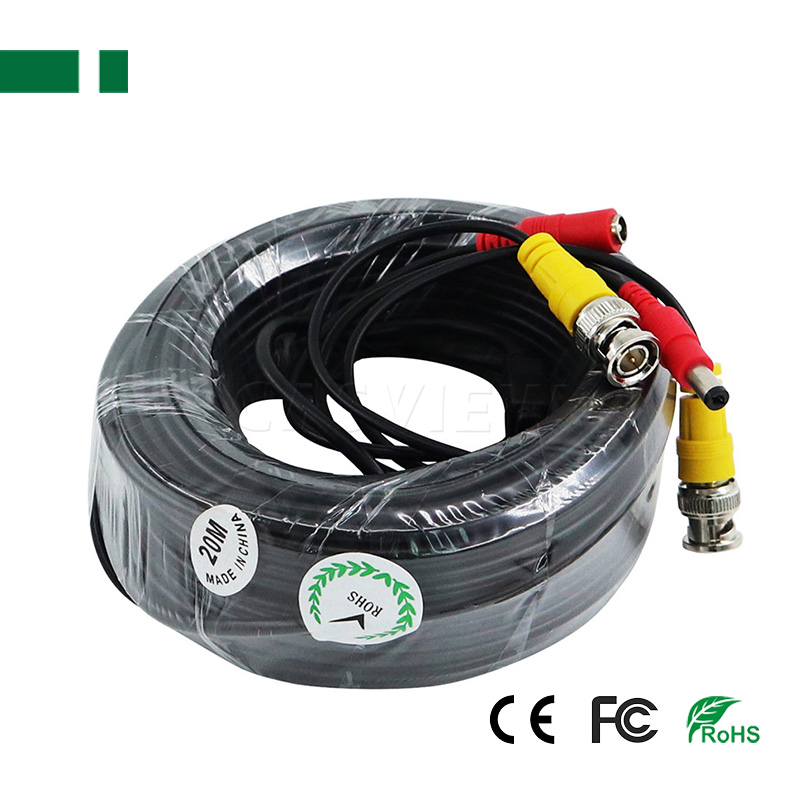

5m/ 10m/ 15m/ 20m/ 30m/ 40m/ 50m Monitoring Video and Power Extension Cable

Product Description:
Various specifications available uses: This specical wire foe monitoring is composite line composed of a video cable and power cord (with monitoring connector and power cord connector), convenient installation is the mose ideal cable for monitoring projects and setting up small and medium-sized security systems, which is convenient and fast.
All injection molding connectors use high-quality plugs, which will not affect the tranmission of the maching due to unstable performance for a period of time.

Features:
OD4.0 Monitoring Video and Power Extension Cable;

DC Power Male and Female Size: 5.5 * 2.1;

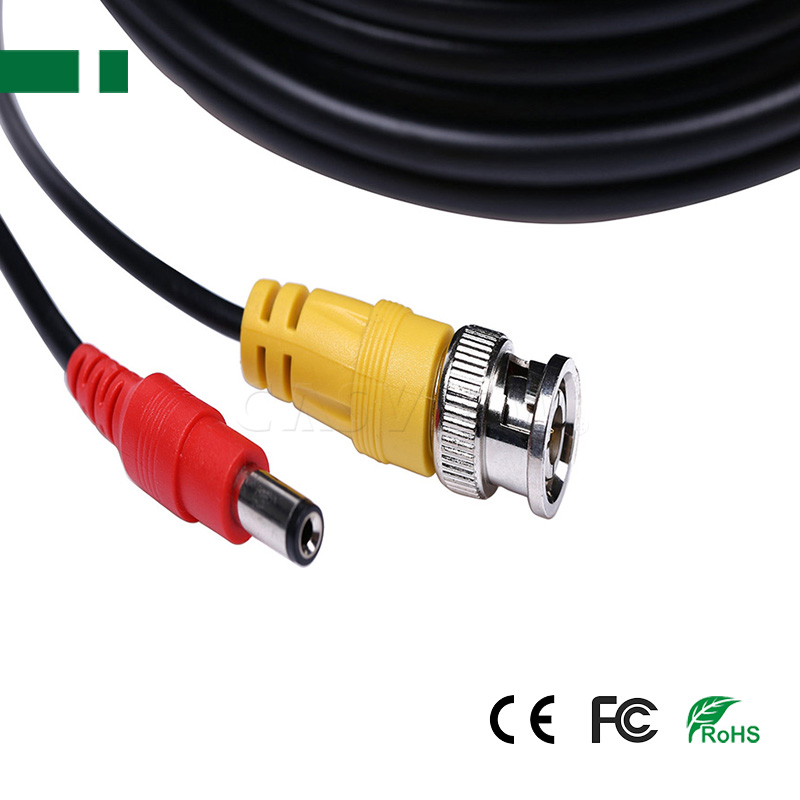

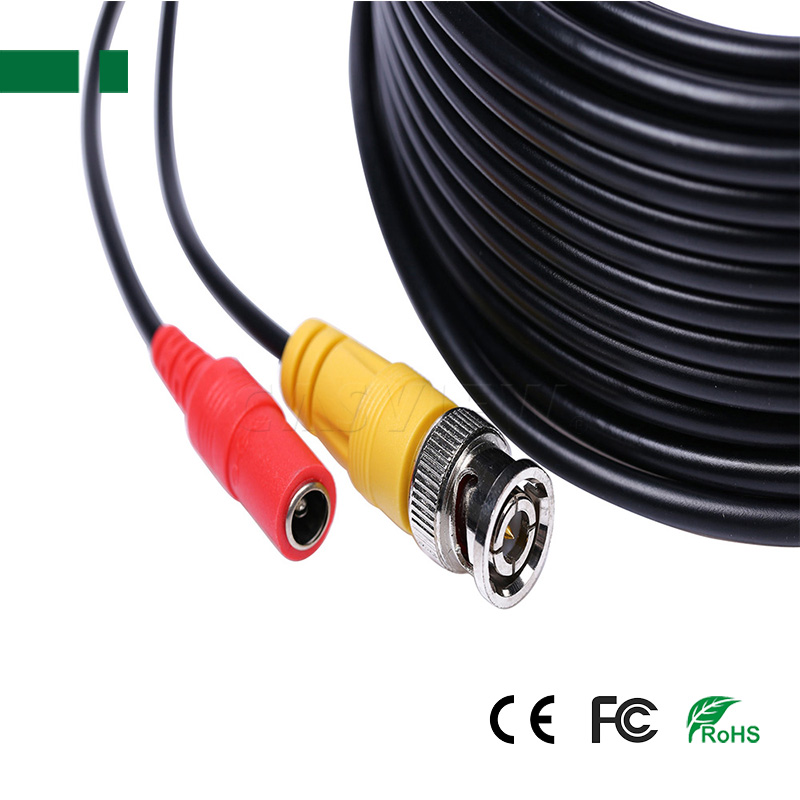

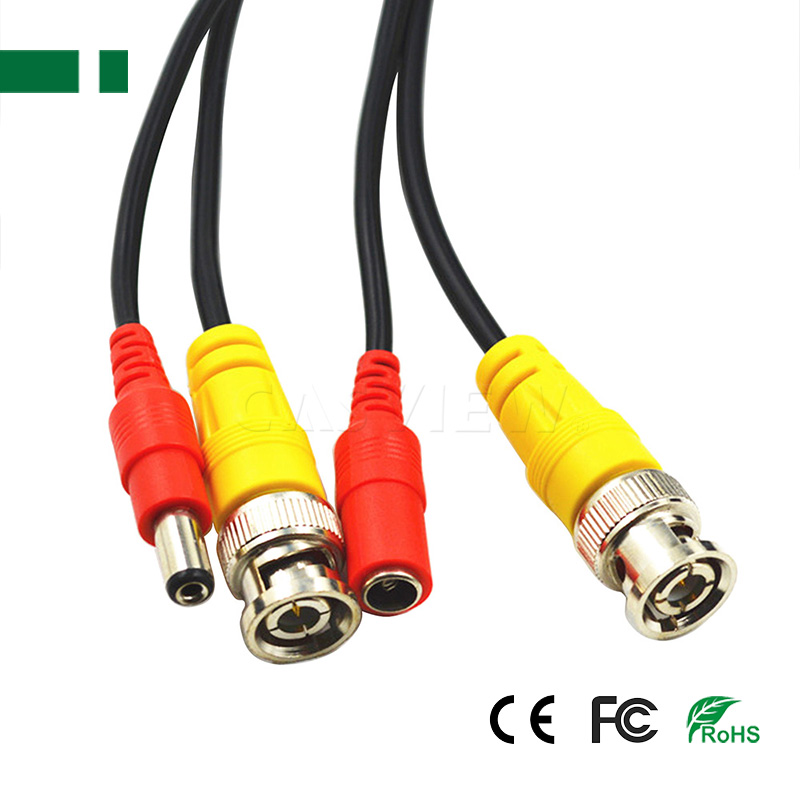

Plug: BNC Male + DC 5.5 × 2.1 Male plug to BNC Male + DC5.5 × 2.1 Female jack,  Environmental protection PVC injection molding.

Matierial: PVC+ Oxygen-free copper;
Support DC12-24V, 1-2A Power supply;
Cable Length: 5M, 10M, 20M, 30M, 40M, 50M;
Transmit Video signals and supply DC power for security systems.

Application:

The wire anti-jamming, video signal transmission performance is stable, long service life, high-quality connectors, strong and reliable connection. Suitable for various security syestems such as infrared cameras, DVR, network cameras and other equipment.


Specification:

Model CVD-5 CVD-10 CVD-15 CVD-20

CVD-30

CVD-40 CVD-50
Exact Type Low Voltage,BNC+DC cable
Length 5m

10m

15m

20m

30m

40m

50m

Conductor Material Copper
Insulation Material PVC
plug size 5.5*2.1mm
Power 12V-36V
Connector color Black or Red(DC)+Yellow(BNC) optional
Cable Color Black or White optional

Model CVD-5-C CVD-10-C CVD-15-C CVD-20-C

CVD-30-C

CVD-40-C CVD-50-C
Exact Type Low Voltage,BNC+DC cable
Length 5m

10m

15m

20m

30m

40m

50m

Conductor Material Pure Copper
Insulation Material PVC
plug size 5.5*2.1mm
Power 12V-36V
Connector color Black or Red(DC)+Yellow(BNC) optional
Cable Color Black or White optional
