Video/ Power/ Audio Cable

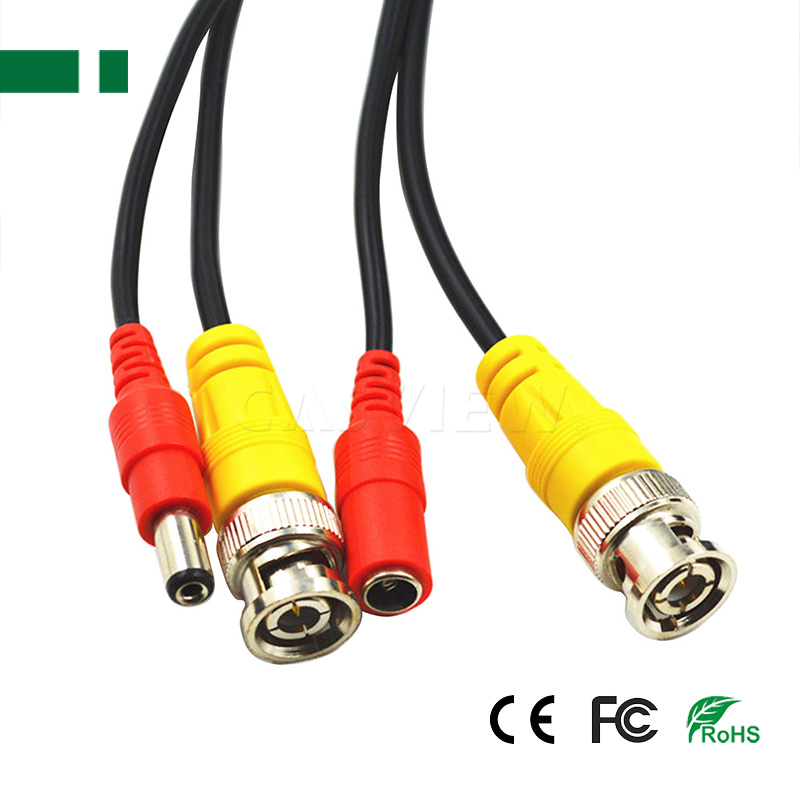

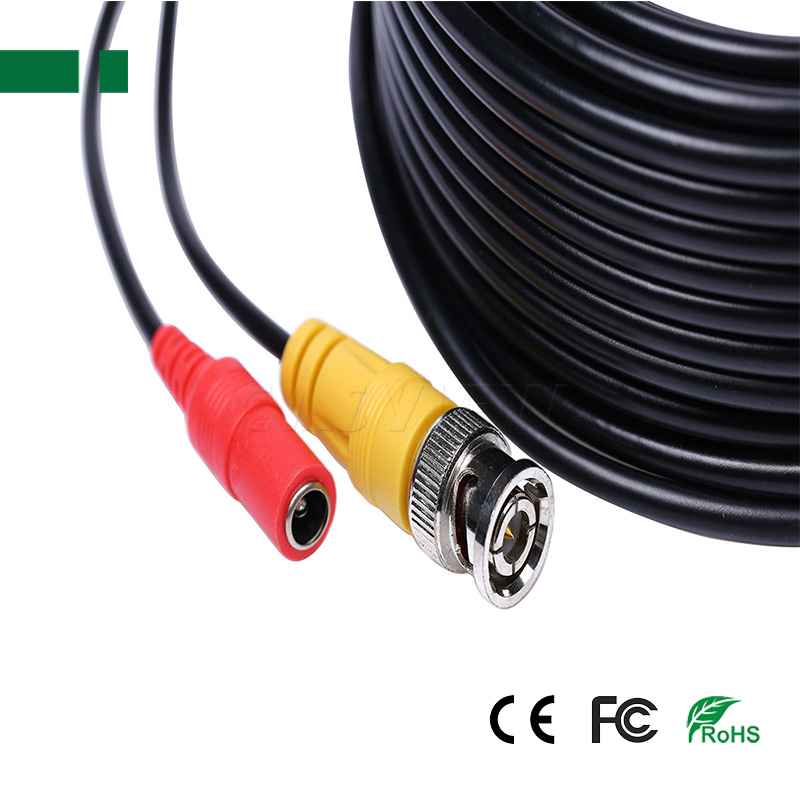

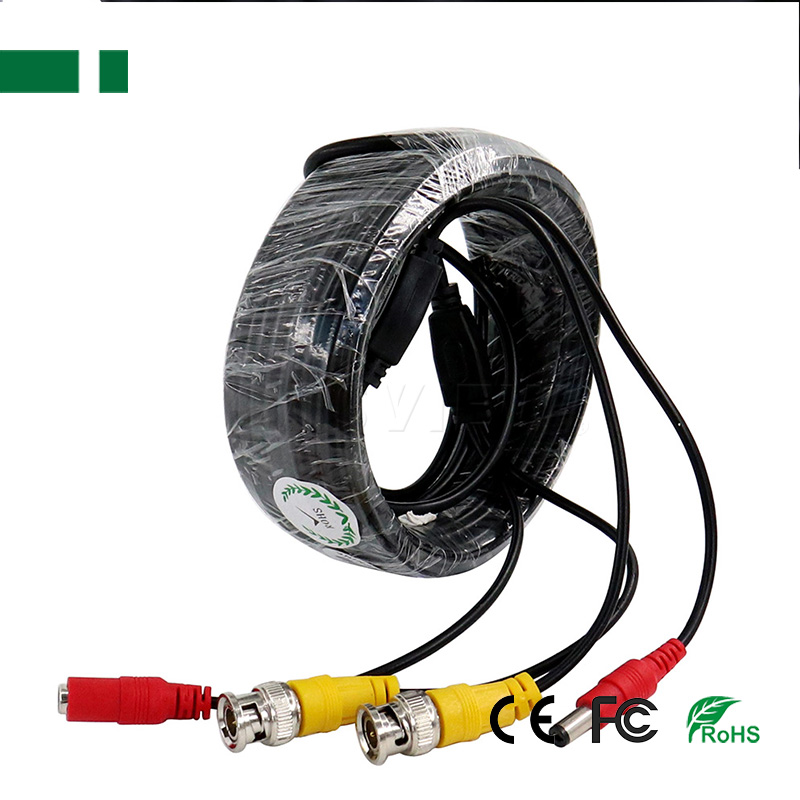

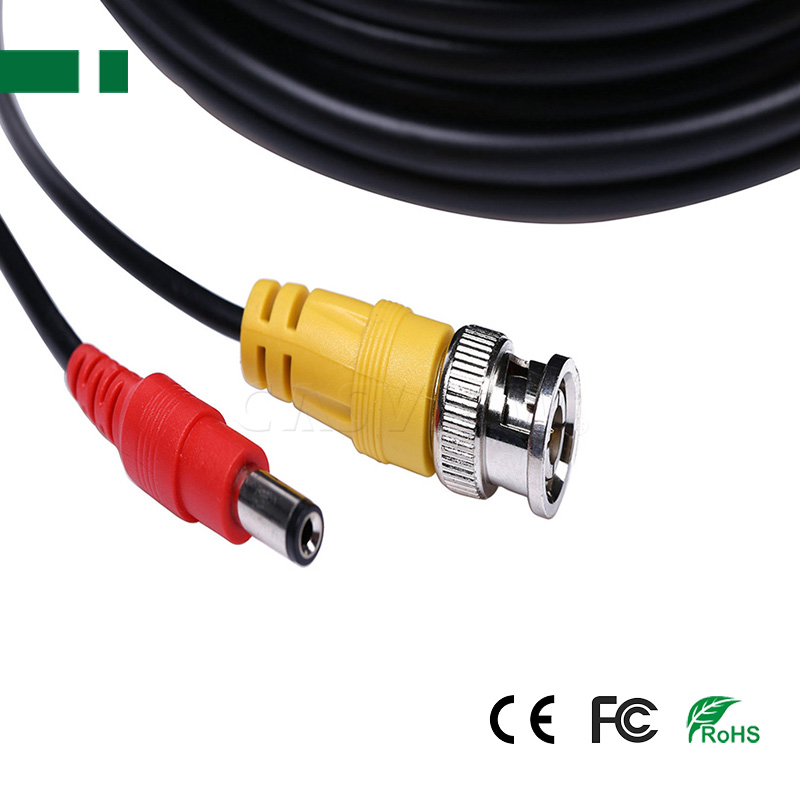

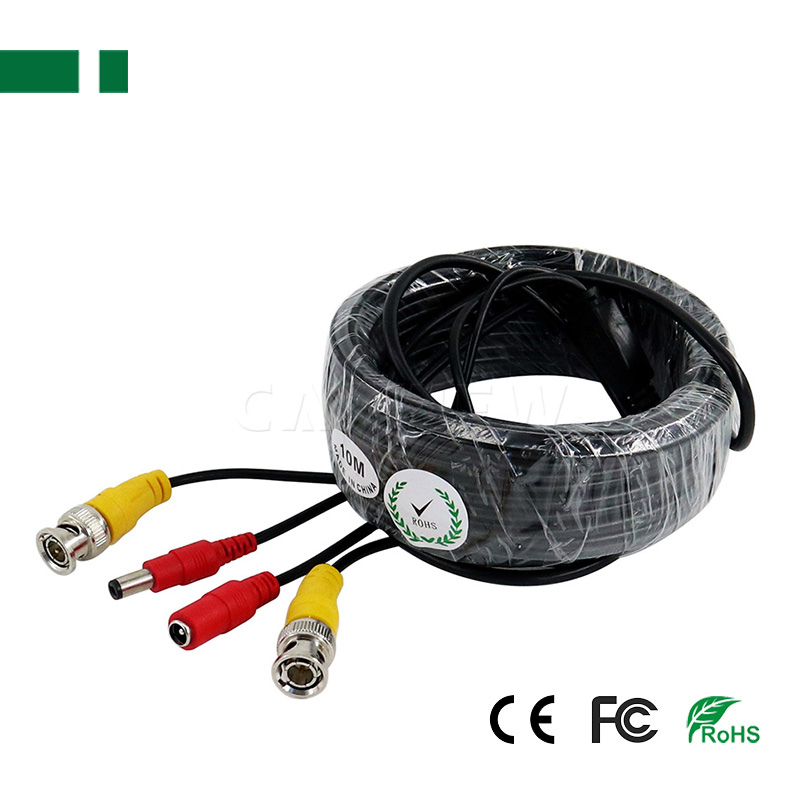

CVD-10-C 10M Video and Power Cable

BNC+DC coaxial cable for CCTV camera
DC Power Male and Female Size: 5.5 * 2.1;
Support DC12-24V, 1-2A Power supply;
Transmit Video signals and supply DC power for security systems.
Product description: Various specifications available uses: This specical wire foe monitoring is composite line composed of a video cable and power cord (with monitoring connector and power cord connector), convenient ins
INQUIRY EMAIL

5m/ 10m/ 15m/ 20m/ 30m/ 40m/ 50m Monitoring Video and Power Extension Cable

Product Description:
Various specifications available uses: This specical wire foe monitoring is composite line composed of a video cable and power cord (with monitoring connector and power cord connector), convenient installation is the mose ideal cable for monitoring projects and setting up small and medium-sized security systems, which is convenient and fast.
All injection molding connectors use high-quality plugs, which will not affect the tranmission of the maching due to unstable performance for a period of time.

Features:
OD4.0 Monitoring Video and Power Extension Cable;

DC Power Male and Female Size: 5.5 * 2.1;

Plug: BNC Male + DC 5.5 × 2.1 Male plug to BNC Male + DC5.5 × 2.1 Female jack, Environmental protection PVC injection molding.

Matierial: PVC+ Oxygen-free copper;
Support DC12-24V, 1-2A Power supply;
Cable Length: 5M, 10M, 20M, 30M, 40M, 50M;
Transmit Video signals and supply DC power for security systems.

Application:

The wire anti-jamming, video signal transmission performance is stable, long service life, high-quality connectors, strong and reliable connection. Suitable for various security syestems such as infrared cameras, DVR, network cameras and other equipment.

Specification:

Model	CVD-5	CVD-10	CVD-15	CVD-20	CVD-30	CVD-40	CVD-50
Exact Type	Low Voltage,BNC+DC cable
Length	5m	10m	15m	20m	30m	40m	50m
Conductor Material	Copper
Insulation Material	PVC
plug size	5.5*2.1mm
Power	12V-36V
Connector color	Black or Red(DC)+Yellow(BNC) optional
Cable Color	Black or White optional

Model	CVD-5-C	CVD-10-C	CVD-15-C	CVD-20-C	CVD-30-C	CVD-40-C	CVD-50-C
Exact Type	Low Voltage,BNC+DC cable
Length	5m	10m	15m	20m	30m	40m	50m
Conductor Material	Pure Copper
Insulation Material	PVC
plug size	5.5*2.1mm
Power	12V-36V
Connector color	Black or Red(DC)+Yellow(BNC) optional
Cable Color	Black or White optional
