Inquiry:
USB Extender
CVA-3205 50M 1*4 USB2.0 Extender
- 120M 1*4 USB1.1 Extender
- Size:79x64x23mm, 189G
- Power supply: DC5V
- Suitable for monitoring projects.
- Product description: This Item is made by two single unit, Sender and Receiver. The max distance between Sender and Receiver can reach 500 meters when using CAT6 UTP cable.
Summary

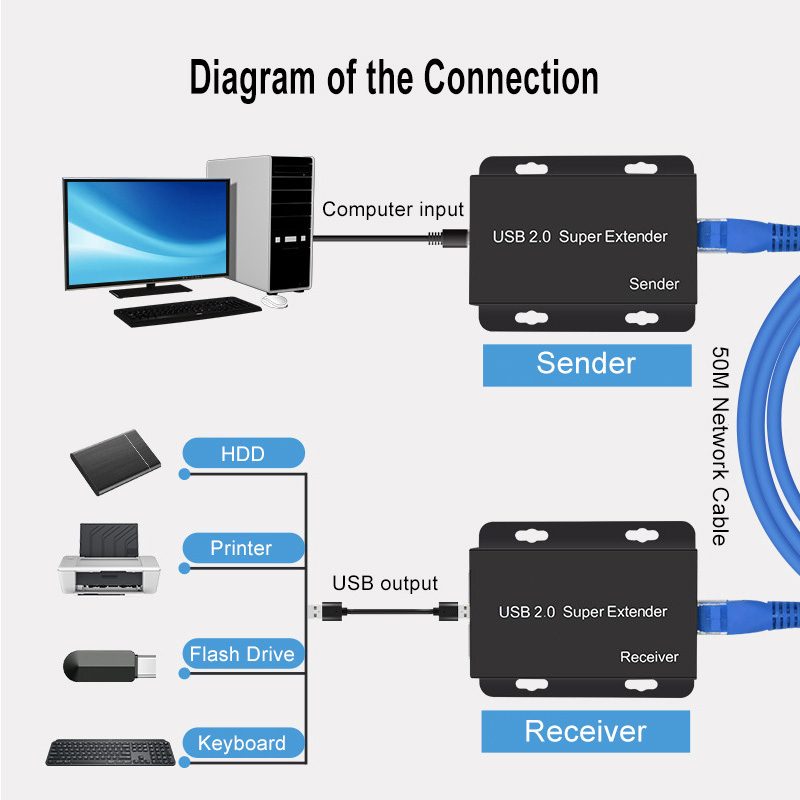

This Item is made by two single unit, Sender and Receiver. transmission by CAT5E/CAT6 UTP cable (same line orders with ethernet). No need extra install software. The max distance between Sender and Receiver can reach 50 meters when using CAT6 UTP cable. lt is a ideal product in extend keyboard, mouse, writing pad and game controller, etc. USB devices.
Features
● One CAT5E/6 cable can instead of USB cable to transmit long distance.
● Using CAT6 cable support USB2.0 device transmit up to 50 meters.
● Compliant with USB 2.0 & USB 1.1.
● Supports major operating systems: Windows, Mac OS X, Linux etc.
● Supports full-speed(480Mbps) and low speed (1.5Mbps) USB device.
● Plug and Play, no driver installation needed.
● Support swap function, plug and play.
● Simple installation.
Specifications
USB input interface……………………………………………………………………………… I*USB-A/B
USB output interface ………………………………………………………………..………… 4*USB-A/F
Compatible USB version ……………………………………………………..…….………… USB1.1 and USB2.0
Wiring method …………………………………………………………………………………… lEEE-568B
Maximum working current ………………………………………………………..………… <50m CAT6 standard cable
lnput cable distance …………………………………………………………………………… <5m USB standard cable
Output cable distance ………………………………………………………………………… <5m USB standard cable
Supports data transfer rates ……………………………………………………….……… 480Mbps
Power Input ……………………………………………………………………….…….……… 100V-240VAC
DC Output ………………………………………………………………………….…………… DC5V/1A
Operating temperature range …………………………………………………………… 0~40°
Operating humidity range ………………………………………………………………… 5~85% RH(non-condensing)
Sender Dimension(L*W*H) ……………………………………………………………… 79x64x23mm
Sender Weight ………………………………………………………………………………… 90g
Receiver Dimension(L*W*H) ……………………………………………….…………… 79x64x23mm
Receiver Weight ……………………………………………………………………………… 99g
This Item is made by two single unit, Sender and Receiver. transmission by CAT5E/CAT6 UTP cable (same line orders with ethernet). No need extra install software. The max distance between Sender and Receiver can reach 50 meters when using CAT6 UTP cable. lt is a ideal product in extend keyboard, mouse, writing pad and game controller, etc. USB devices.
Features
● One CAT5E/6 cable can instead of USB cable to transmit long distance.
● Using CAT6 cable support USB2.0 device transmit up to 50 meters.
● Compliant with USB 2.0 & USB 1.1.
● Supports major operating systems: Windows, Mac OS X, Linux etc.
● Supports full-speed(480Mbps) and low speed (1.5Mbps) USB device.
● Plug and Play, no driver installation needed.
● Support swap function, plug and play.
● Simple installation.
Specifications
USB input interface……………………………………………………………………………… I*USB-A/B
USB output interface ………………………………………………………………..………… 4*USB-A/F
Compatible USB version ……………………………………………………..…….………… USB1.1 and USB2.0
Wiring method …………………………………………………………………………………… lEEE-568B
Maximum working current ………………………………………………………..………… <50m CAT6 standard cable
lnput cable distance …………………………………………………………………………… <5m USB standard cable
Output cable distance ………………………………………………………………………… <5m USB standard cable
Supports data transfer rates ……………………………………………………….……… 480Mbps
Power Input ……………………………………………………………………….…….……… 100V-240VAC
DC Output ………………………………………………………………………….…………… DC5V/1A
Operating temperature range …………………………………………………………… 0~40°
Operating humidity range ………………………………………………………………… 5~85% RH(non-condensing)
Sender Dimension(L*W*H) ……………………………………………………………… 79x64x23mm
Sender Weight ………………………………………………………………………………… 90g
Receiver Dimension(L*W*H) ……………………………………………….…………… 79x64x23mm
Receiver Weight ……………………………………………………………………………… 99g
