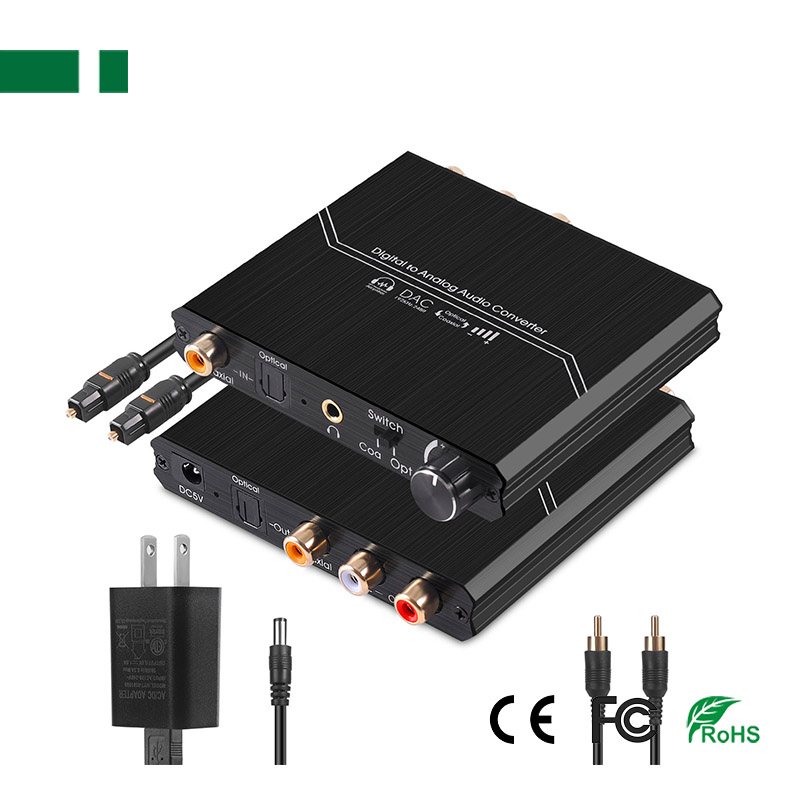

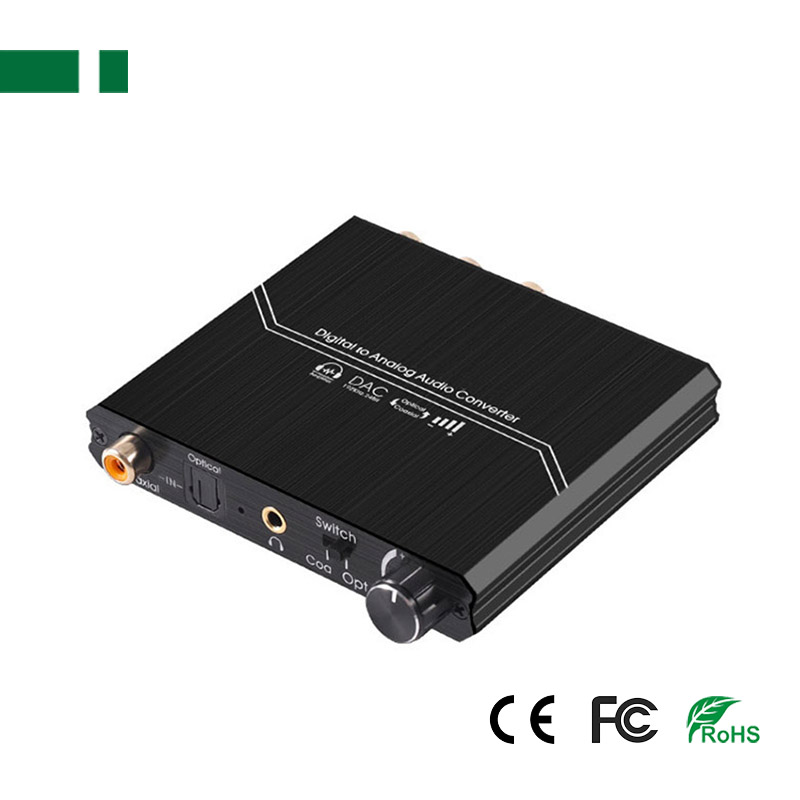

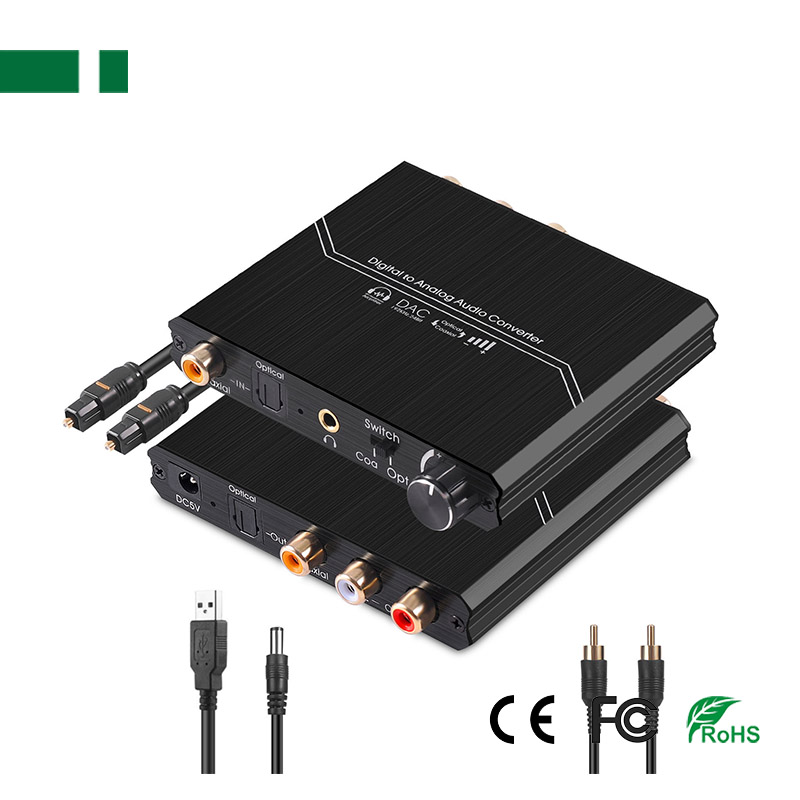

CVA-3034 Optical/Coaxial Switch to Analog Audio Converter
- Optical/Coaxial Switch to Analog Audio Converter
- Support Optical input to 1 Optical and 1 Coaxial Output
- Support Coaxial input to 1 Optical and 1 Coaxial Output
- Support volume control
- Product description: Optical/Coaxial Switch to Analog Audio Converter, Support volume control &optical/coaxial loop out.
Optical/Coaxial Switch to Analog Audio Converter
Support volume control &optical/coaxial loop out
Product Inductions：
This DAC support 1 optical digital audio and 1 coaxial digital audio signal input,it could be switched through the button.It supports 1 optical digital audio loop out and 1 coaxial digital audio loop out,it could connect two sets of stereo system.At the same time, high-quality analog stereo is output through the internal decoder of the product. The product is also designed with a volume knob, which can flexibly control the output analog volume.
Product Features：
● Support 1 optical and 1 coaxial input, could be switched through button;

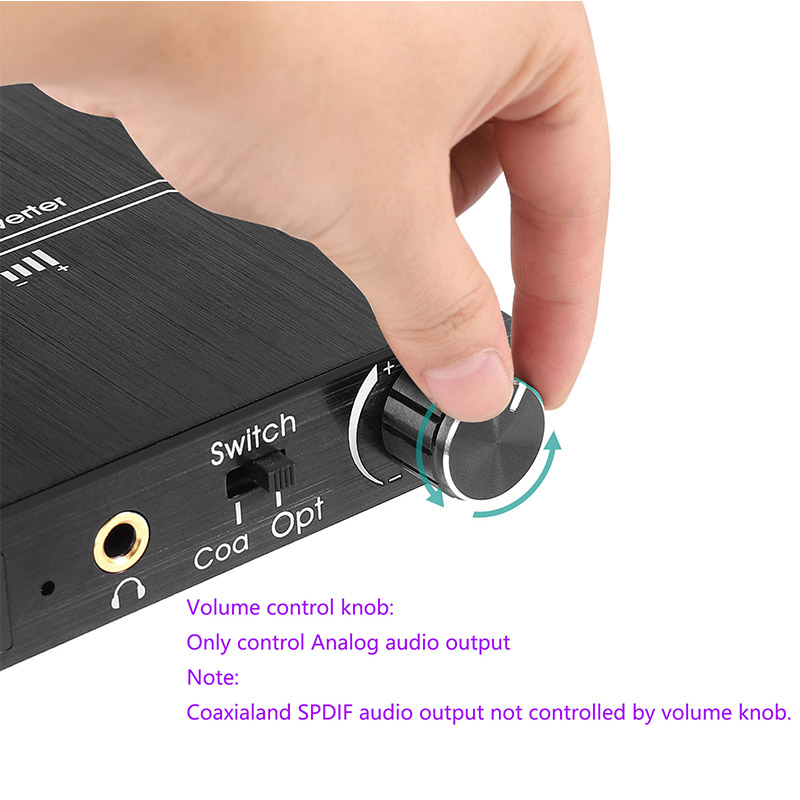

● Support volume control(Note:Only control RCA audio and 3.5mm audio output);
● Support Optical input to 1 Optical output and 1 Coaxial Output;
● Support Coaxial input to 1 Optical output and 1 Coaxial Output;
● Support connect to 600Ω high-impedance headphone;
● Support 192khz 24bit sampling rate;
● Ultra low power consumption;
● Metal designed, good anti-interference.
Product Specifications:
Audio format -------------------------------------------------------------- PCM
Audio Sampling rate ------------------------------------------------------- 32~192K
RCA Output maximum level -------------------------------------------------- 8Vp-p
3.5mm audio interface maximum output level -------------------------------- 6.5Vp-p
3.5mm audio port maximum output power ------------------------------------- 32Ω30mW
Maximum working current --------------------------------------------------- 5V/50mA
Working environment temperature ------------------------------------------- -10~+55℃
Storage environment temperature ------------------------------------------- -26~+60℃
Working environment humidity ---------------------------------------------- 10~90%RH(No condensation)
Storage environment humidity ---------------------------------------------- 5~95%RH（No condensation）
Dimension ----------------------------------------------------------------- 100*95*20 mm
Bare Weight --------------------------------------------------------------- 116.5 g
Shell material ------------------------------------------------------------ Aluminum Alloy
Color --------------------------------------------------------------------- Black

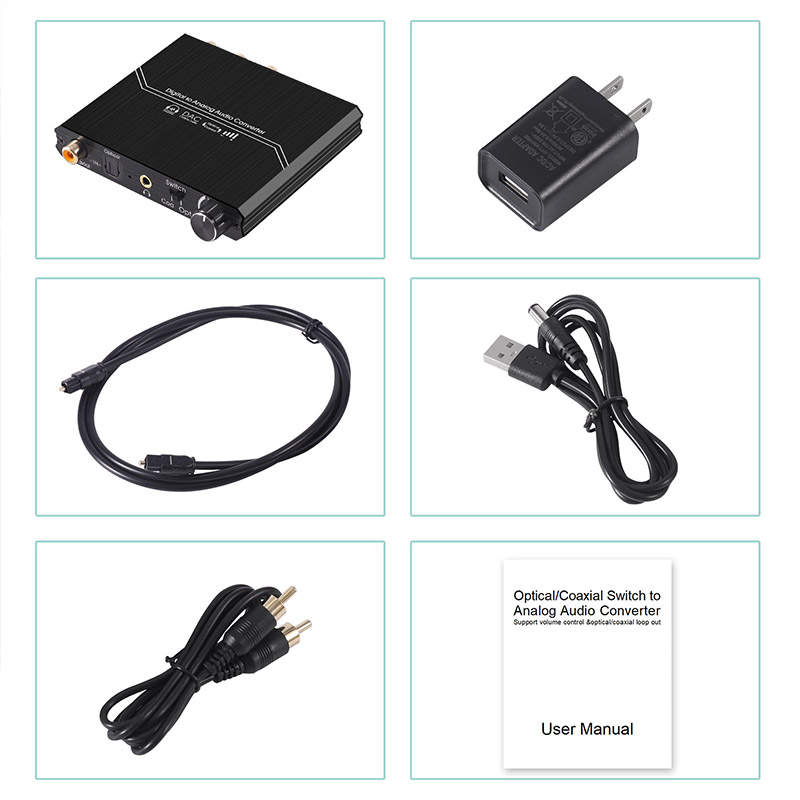

Package Content：
DAC Converter * 1PC
Optical Cable * 1PC
USB Power Cable * 1PC
User Manual * 1PC
Support volume control &optical/coaxial loop out
Product Inductions：
This DAC support 1 optical digital audio and 1 coaxial digital audio signal input,it could be switched through the button.It supports 1 optical digital audio loop out and 1 coaxial digital audio loop out,it could connect two sets of stereo system.At the same time, high-quality analog stereo is output through the internal decoder of the product. The product is also designed with a volume knob, which can flexibly control the output analog volume.
Product Features：
● Support 1 optical and 1 coaxial input, could be switched through button;
● Support volume control(Note:Only control RCA audio and 3.5mm audio output);
● Support Optical input to 1 Optical output and 1 Coaxial Output;
● Support Coaxial input to 1 Optical output and 1 Coaxial Output;
● Support connect to 600Ω high-impedance headphone;
● Support 192khz 24bit sampling rate;
● Ultra low power consumption;
● Metal designed, good anti-interference.
Product Specifications:
Audio format -------------------------------------------------------------- PCM
Audio Sampling rate ------------------------------------------------------- 32~192K
RCA Output maximum level -------------------------------------------------- 8Vp-p
3.5mm audio interface maximum output level -------------------------------- 6.5Vp-p
3.5mm audio port maximum output power ------------------------------------- 32Ω30mW
Maximum working current --------------------------------------------------- 5V/50mA
Working environment temperature ------------------------------------------- -10~+55℃
Storage environment temperature ------------------------------------------- -26~+60℃
Working environment humidity ---------------------------------------------- 10~90%RH(No condensation)
Storage environment humidity ---------------------------------------------- 5~95%RH（No condensation）
Dimension ----------------------------------------------------------------- 100*95*20 mm
Bare Weight --------------------------------------------------------------- 116.5 g
Shell material ------------------------------------------------------------ Aluminum Alloy
Color --------------------------------------------------------------------- Black
Package Content：
DAC Converter * 1PC
Optical Cable * 1PC
USB Power Cable * 1PC
User Manual * 1PC
