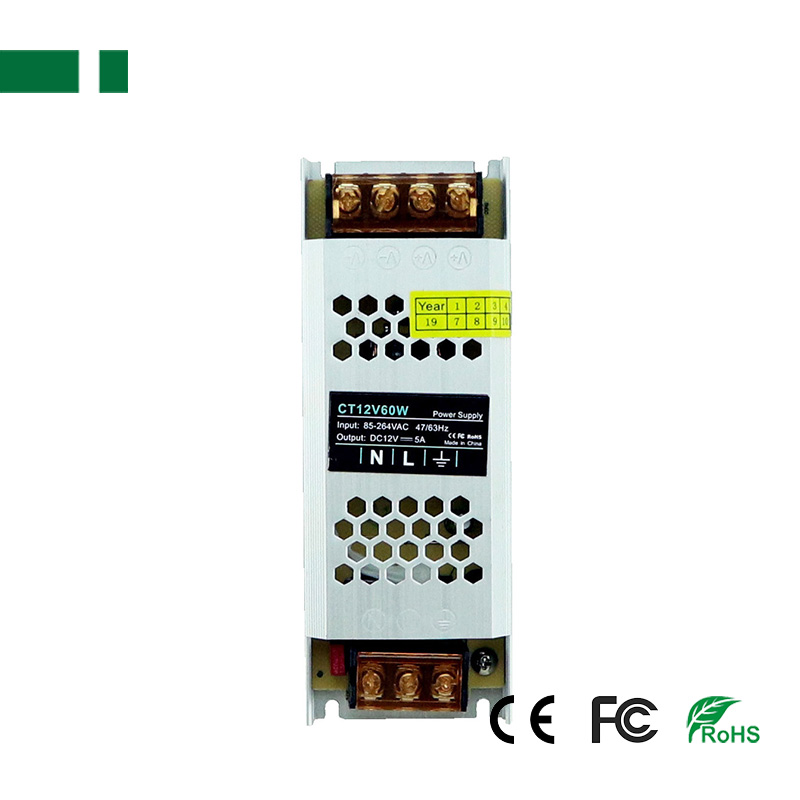

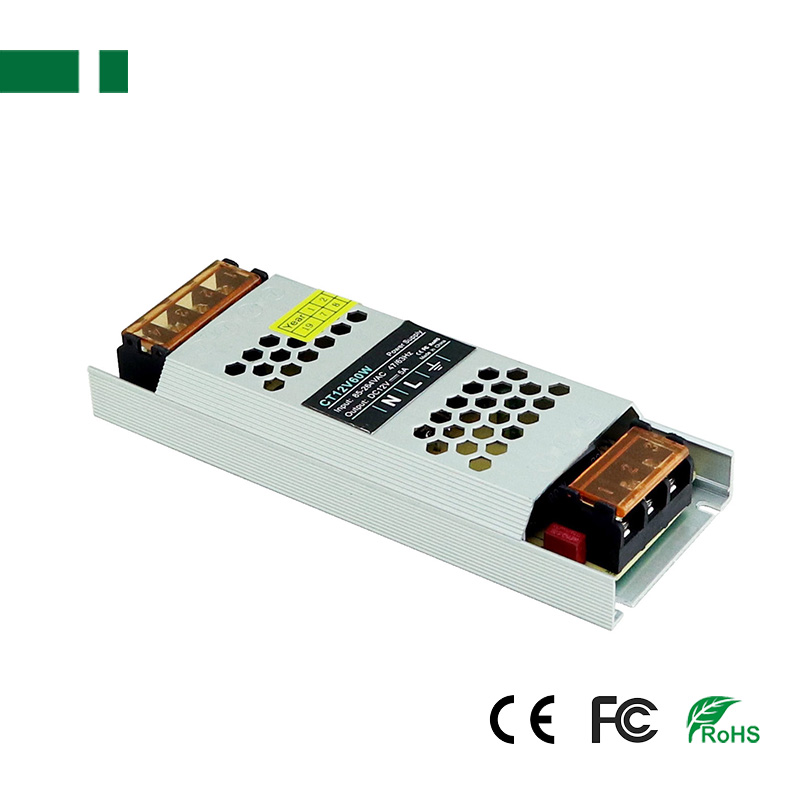

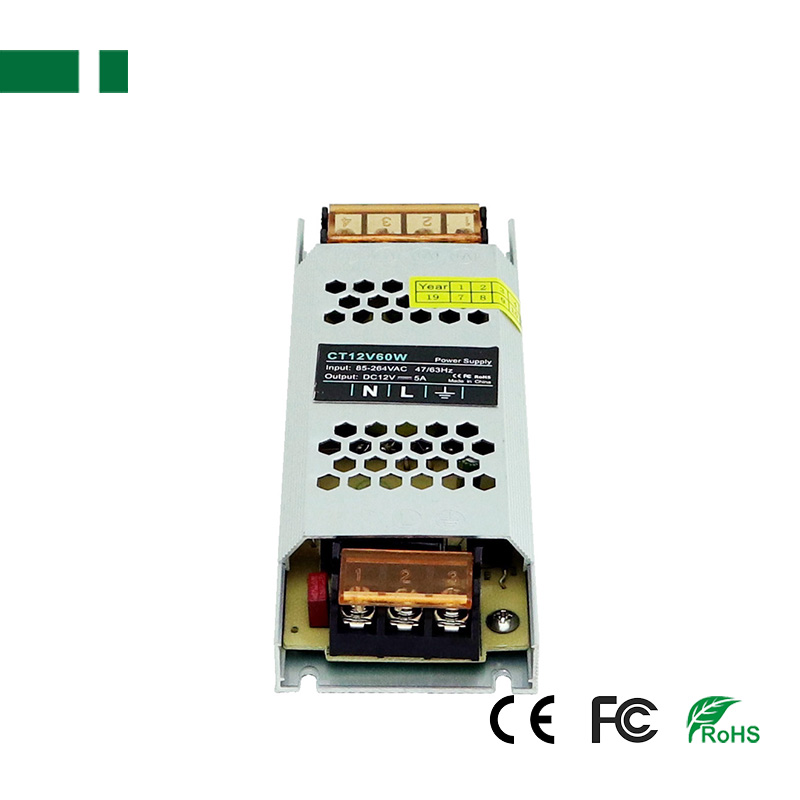

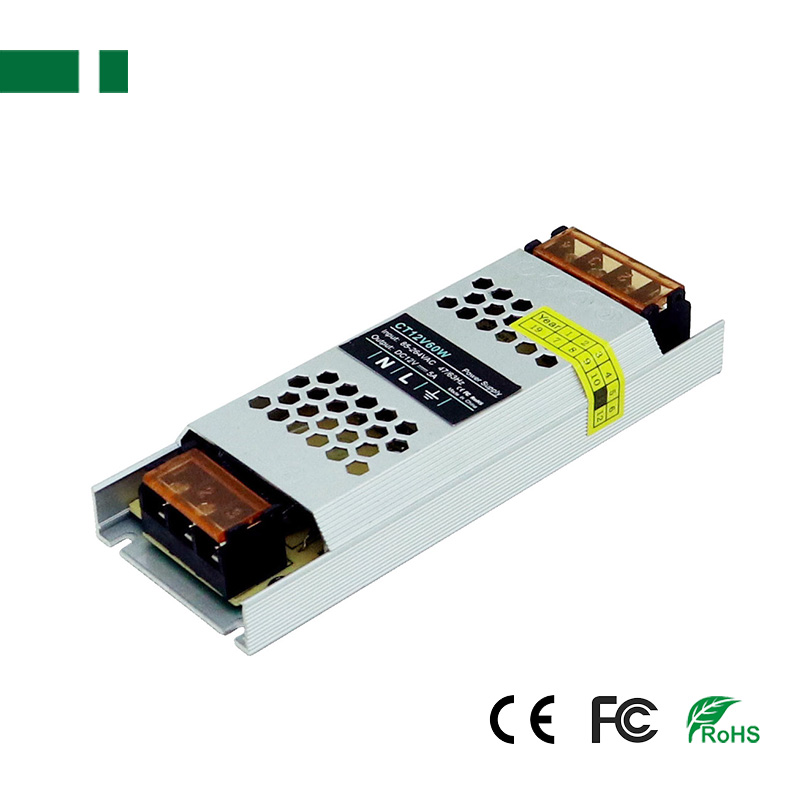

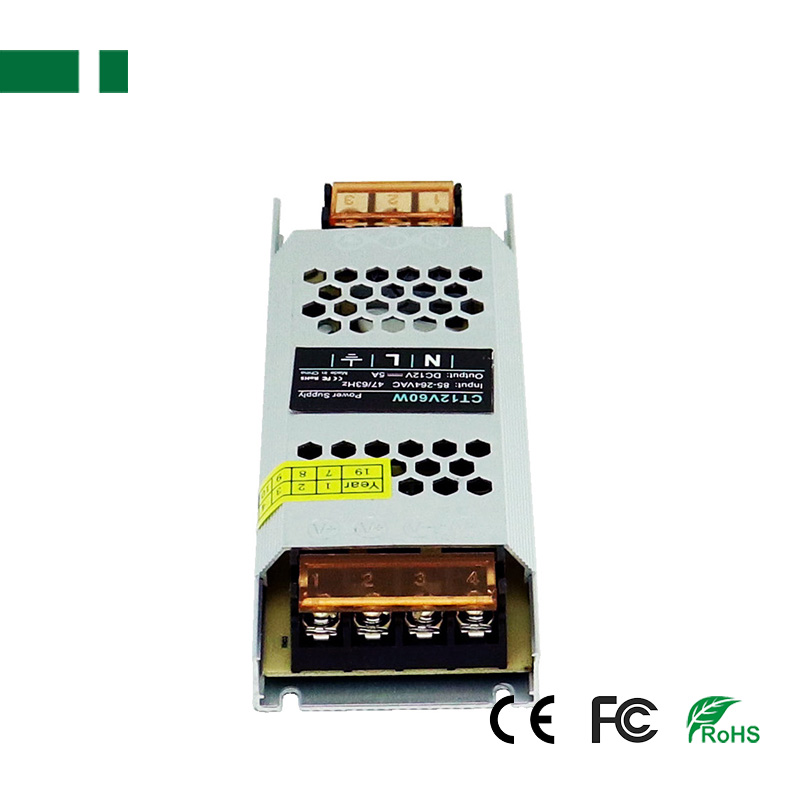

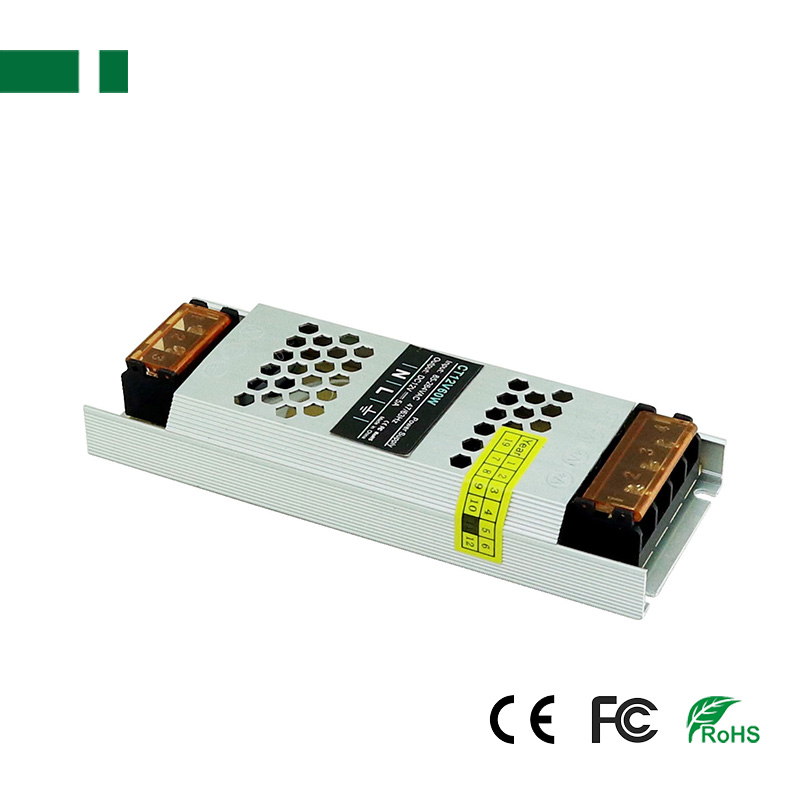

CT12V60W Ultra-thin Switching Power Supply

CT12V60W Ultra-thin Switching Power Supply

DC12V60W Ultra-thin Switching Power Supply
DC12V 5A
100% full load burn-in test
Product description: ◆ Built in EMI filter with tiny ripple ◆ 100% full load burn-in test ◆ Protection: Short circuit/ Overload/ Over voltage/ Over temperature
INQUIRY EMAIL

Features:

1. 60W Output Ultra-thin Power Supply
2. Output voltage & current: DC12V 5A
3. Input voltage range: 85~264VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature

DC12V-DC24V Thin Switching Power Supply for Lightbox
More Model	DC Output	Input Voltage	Input Current	Dimension	Weight
CT12V60W	DC12V 5A 60W	85~264VAC	0.54A/ 115V, 0.27A/ 230V	1465322mm	150g
CT12V100W	DC12V 8.3A 100W	85~264VAC	0.88A/ 115V, 0.44A/ 230V	1675322mm	170g
CT12V150W	DC12V 12.5A 150W	85~264VAC	1.4A/115V, 0.7A/230V	2355320mm	225g
CT12V200W	DC12V 16.5A 200W	85~264VAC	1.8A/115V, 0.9A/230V	3105322mm	315g
CT12V300W	DC12V 25A 300W	85~264VAC	2.7A/115V, 1.35A/230V	3105322mm	336g

Specification:

Model		CT12V60W	CT24V60W
Output	DC output Voltage	12V±10%	24V±10%
	Output Current Range	0-5A	0-2.5A
	Wave and Noise	120mVp-p
	DC output Power	60W
	Efficiency	0.85
	DC Voltage Adjustable Scope	（at full load）≦0.5%
Input	Voltage Range	85~264VAC 47-63Hz
	Input Current	0.54A/115V, 0.27A/230V
	Leakage Current	<1mA/ 240VAC
	Inrush Current	Cold start 20A/120VAC, 40A/230VAC
Protection	Over-load	105%~135%, Protection type: Constant current limiting,recovers automatically after fault condition is removed
	Over-voltage	105%---150% Rated Voltage, Protection type: Shut off
	High-temperature	RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment	Working temperature and humidity	-10°C~+50°C, 20~90%RH
	Store temperature and humidity	-20°C~+85°C, 10~95%RH
	Temperature coefficient	±0.03%°C(0~50°C)
	Vibration	10~500Hz, 2G 10min./1cycle, Period for 60min, EACH AXES
Safety	Withstand voltage	I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
	Isolation resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Standard	CE EMC Standard	EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
	CE LVD Standard	EN61347-2-13:2014+A1:2017, EB61347-1:2015
	ROHS Standard	IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.
Other	Dimension	1465322mm (LWH)
	Weight	150g
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure.
