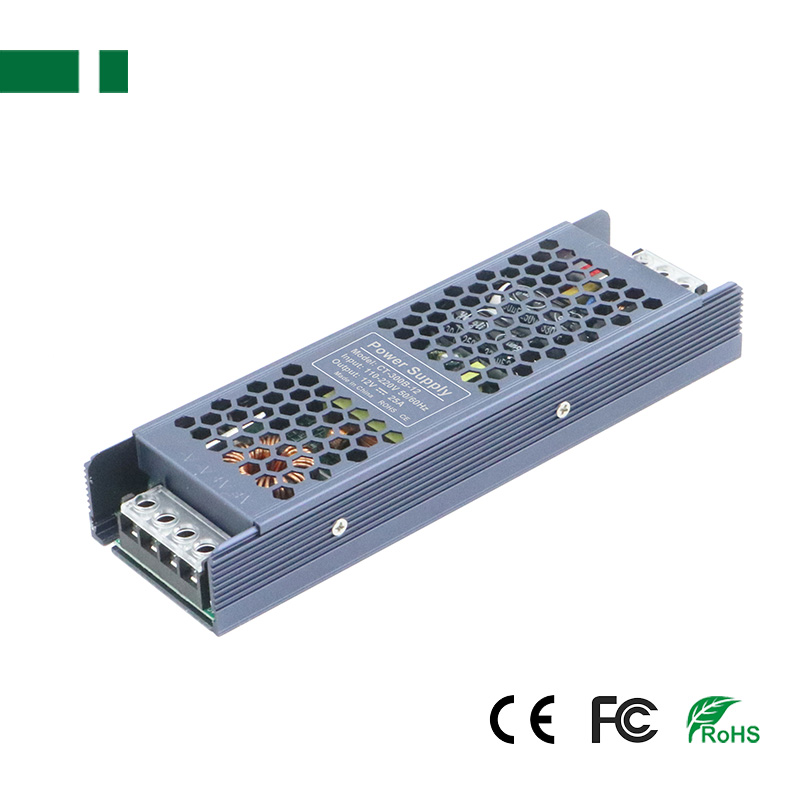

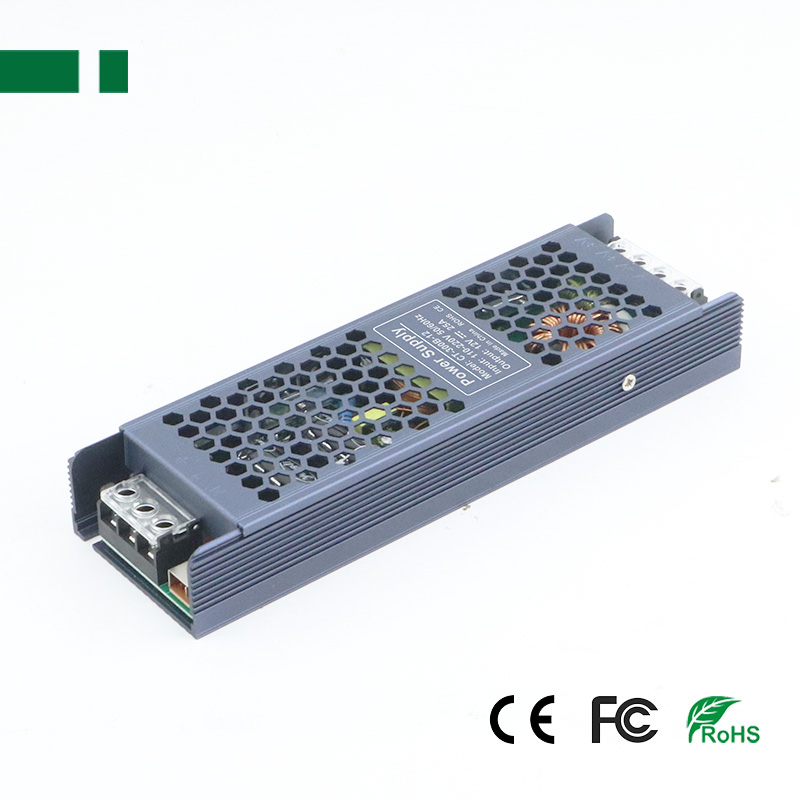

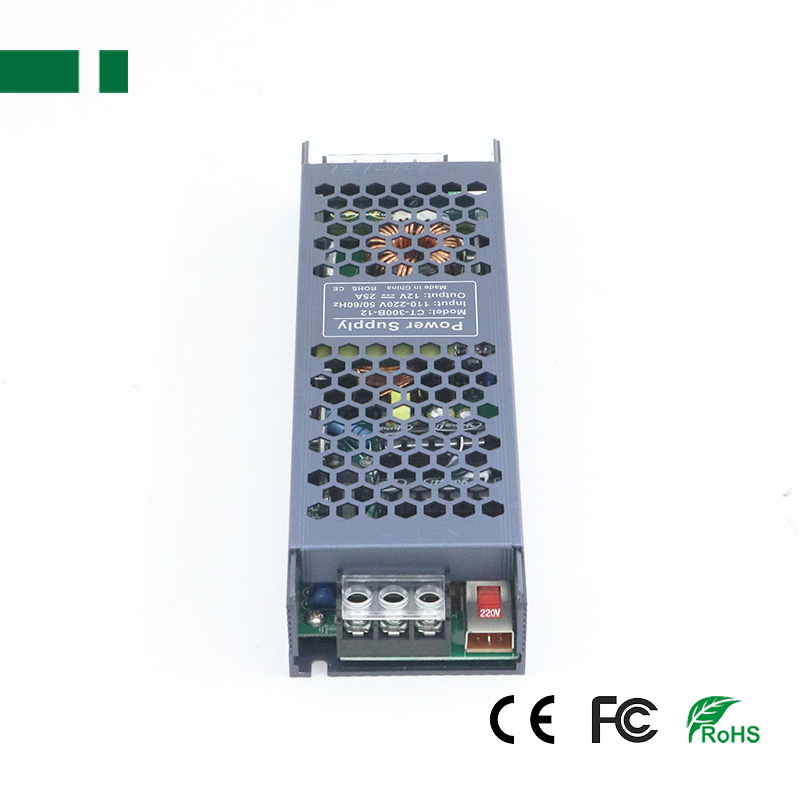

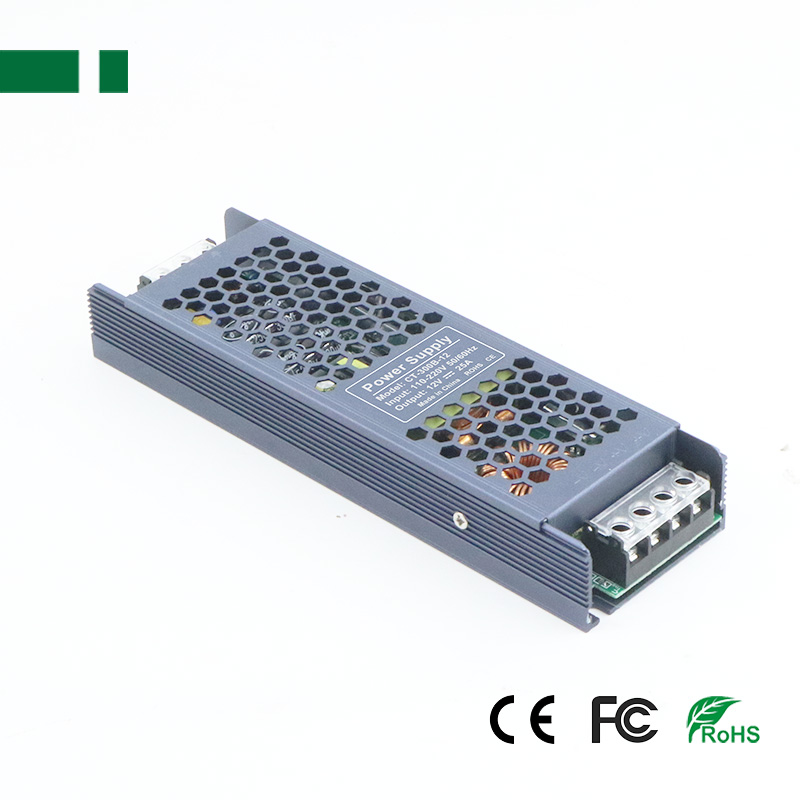

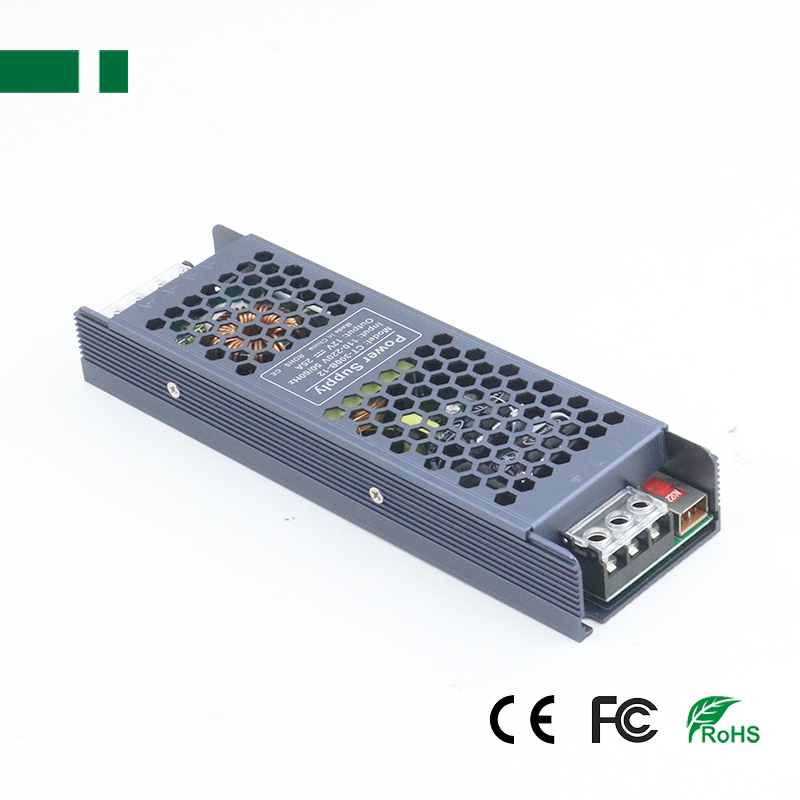

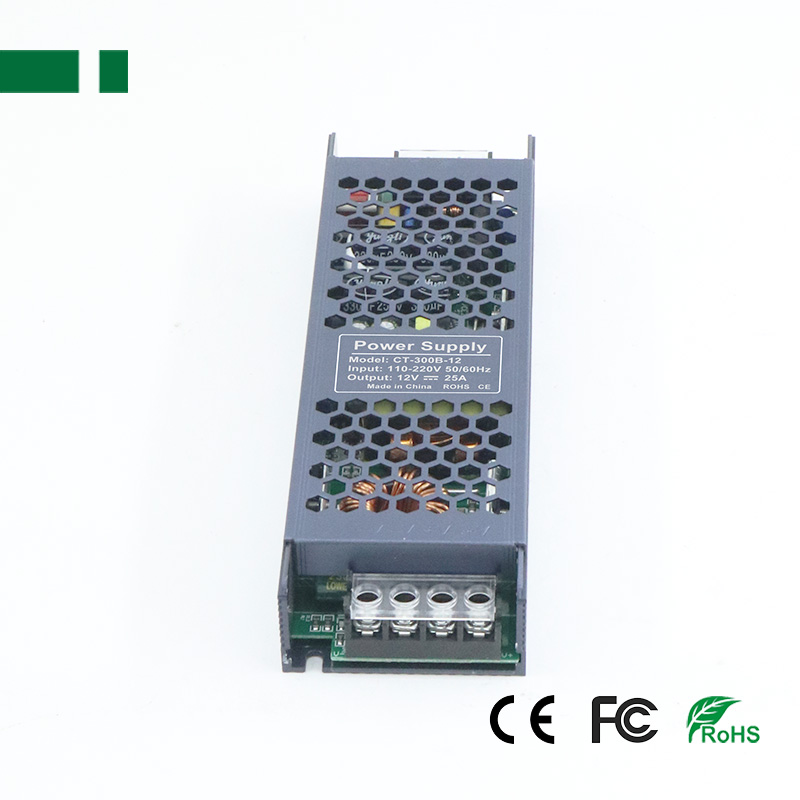

CT-300B-12 300W Ultra-thin Power Supply for LED Lightbox

300W Ultra-thin Power Supply for LED Lightbox
Input voltage range: 110~220VAC
Adopts durable aluminum housing and honeycomb style
DC12V and DC24V optional
Product description: The DC12V-DC24V Ultra-thin Power Supply driver adopts durable aluminum housing and honeycomb style, for easy heat dissipation and natural air cooling.
INQUIRY EMAIL

Description:
The DC12V-DC24V Ultra-thin Power Supply driver adopts durable aluminum Housing and honeycomb style, for easy heat dissipation and natural air cooling. It is IP20 rated . It has output over-voltage, over-current, short circuit and other safety protections, long service life, high reliability.

Features:

1. 300W Output Ultra-thin Power Supply
2. Output voltage & current: DC12V 25A
3. Input voltage range: 110~220VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Forced air Cooling by built-in DC fan
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature

Specification:

Model		CT-300B-12	CT-300B-24
Output	DC output Voltage	12V±10%	24V±10%
	Output Current Range	0-25A	0-12.5A
	Wave and Noise	120mVp-p
	DC output Power	300W
	Efficiency	0.85
	DC Voltage Adjustable Scope	（at full load）≦0.5%
Input	Voltage Range	110~220VAC 47-63Hz
	Input Current	2.7A/115V, 1.35A/230V
	Leakage Current	<1mA/ 240VAC
	Inrush Current	Cold start 20A/120VAC, 40A/230VAC
Protection	Over-load	105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed
	Over-voltage	105%---150% Rated Voltage, Protection type: Shut off
	High-temperature	RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment	Working temperature and humidity	-10°C~+50°C, 20~90%RH
	Store temperature and humidity	-20°C~+85°C, 10~95%RH
	Temperature coefficient	±0.03%°C(0~50°C)
	Vibration	10~500Hz, 2G 10min. /1cycle, Period for 60min, EACH AXES
Safety	Withstand voltage	I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
	Isolation resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Standard	CE EMC Standard	EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
	CE LVD Standard	EN61347-2-13:2014+A1:2017, EB61347-1:2015
	ROHS Standard	IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.
Other	Dimension	3105322mm (LWH)
	Weight	336g
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure.
