Cut & Crimp & Test Tools

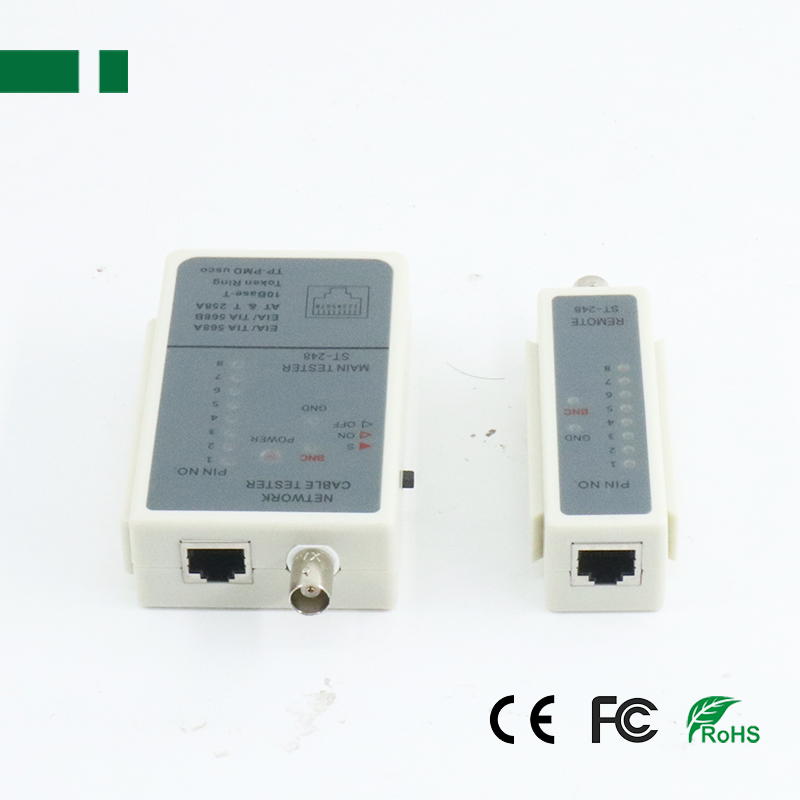

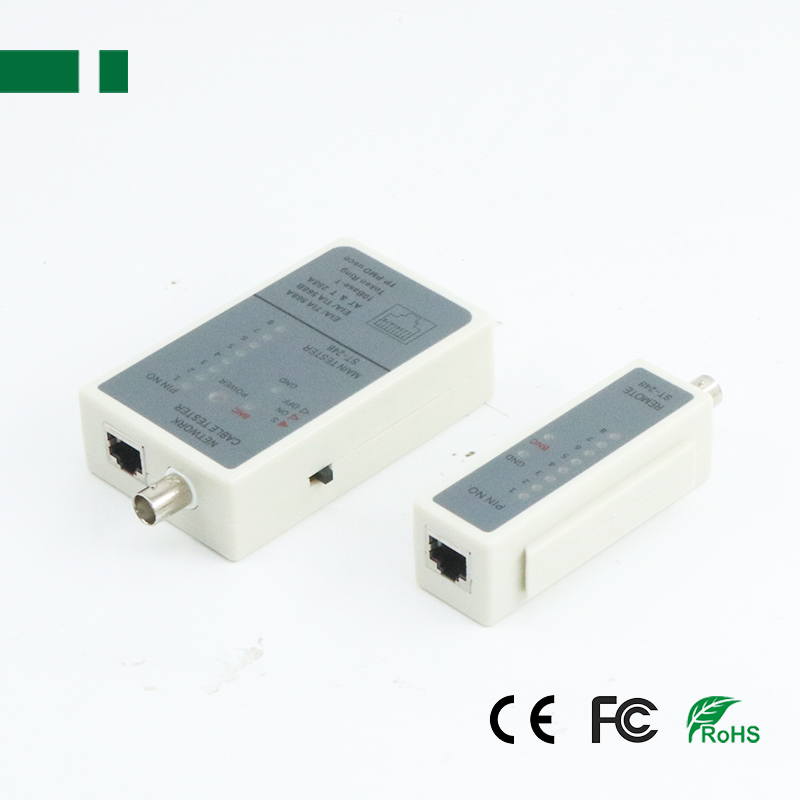

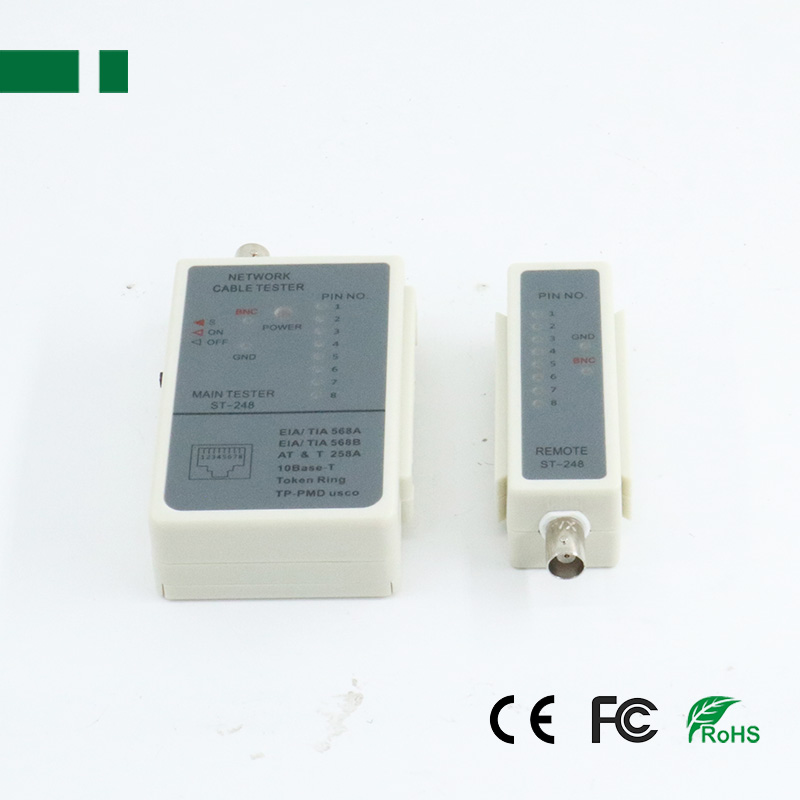

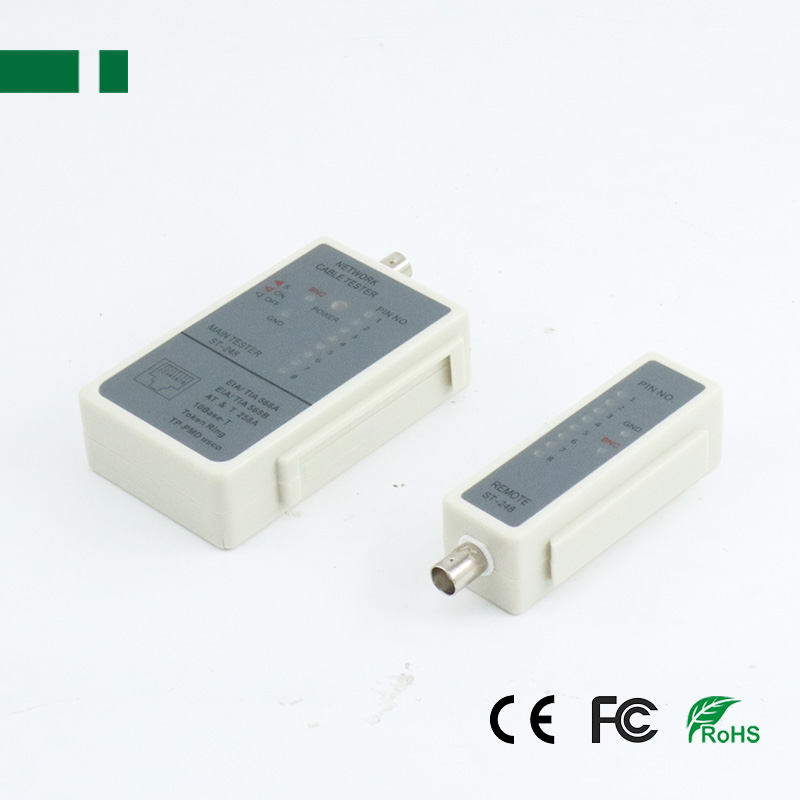

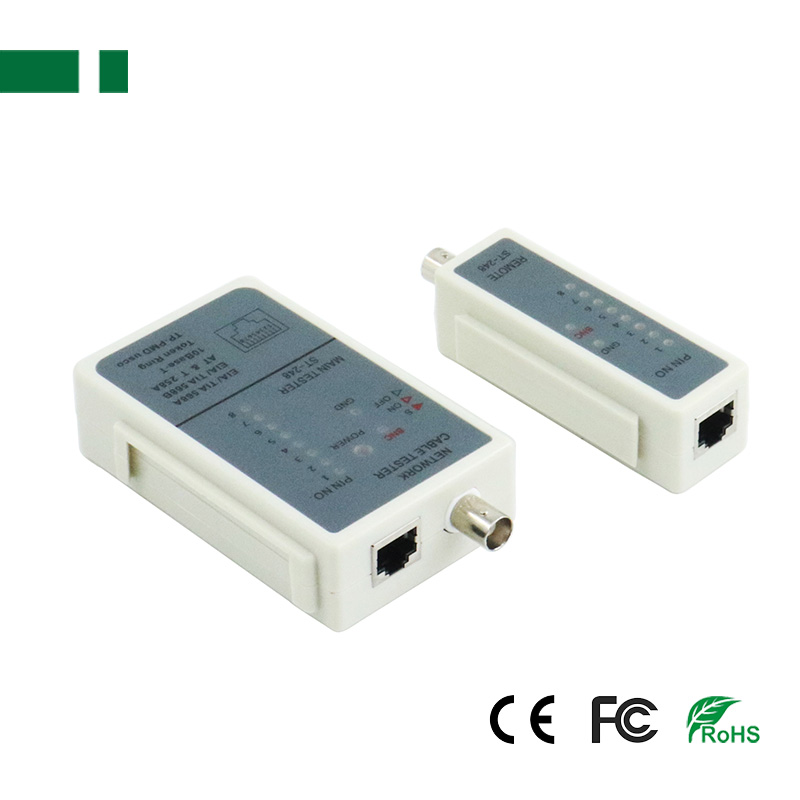

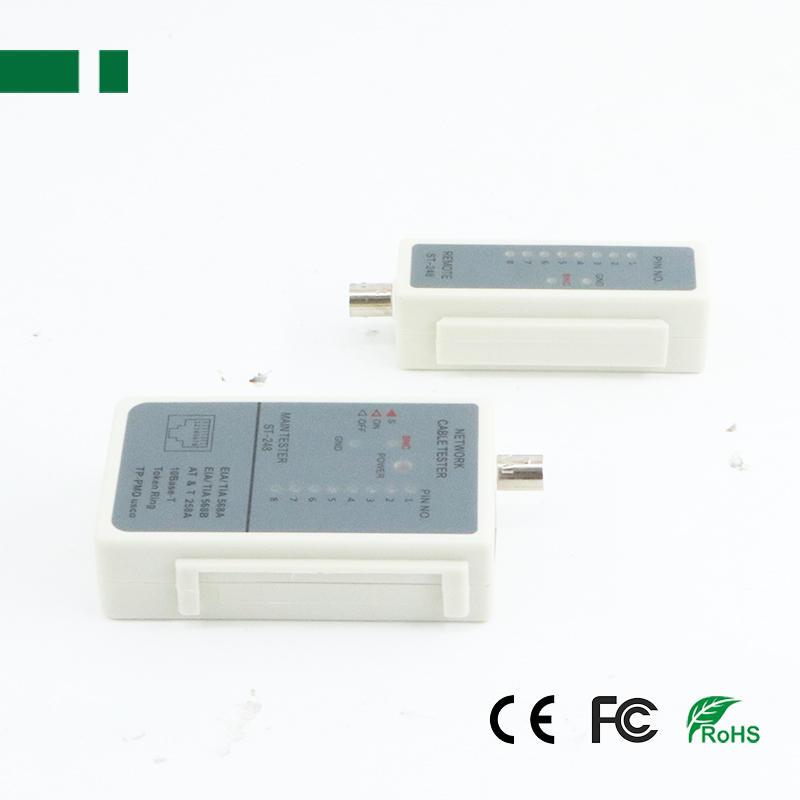

CST-248 Network Cable and Coaxial Cable Tester
- Support RJ11 RJ45 Network Cable test
- Support RG59/RG6 Coaxial Cable test
- Material: PC+ metal
- 9V reduplicated battery is used in this tester.
- Product description: Network Cable Tester Telephone Cable RJ11 RJ45 Network Cable Cat5e Cable Coaxial Cable RG59/RG6 CCTV Ethernet
Network Cable Tester Telephone Cable RJ11 RJ45 Network Cable Cat5e Cable Coaxial Cable RG59/RG6 CCTV Ethernet
1. Keep your network running smoothly by testing your cables to uncover problematic shorts, open wires, crossing pairs and other wiring mishaps
2. Use for testing your homemade Ethernet patch cables to make sure they are in working order prior to connecting to your devices
3. Tests RJ45 cables, RJ11 telephone cables and network cables
4. Easy to read LED display indicates problems.Hand-held for portability.
5. Requires one 9-volt battery (not included)
Following are abnormal connections:
1. If one cable, for example cable NO.3 is open circuited, the two NO.3 lights of the main tester and remote tester will not turn on.
2. If several cables are not connected, several lights will not turn on respectively. If less than two cables are connected, none of the lights is on.
3. If two ends of a cable is disordered, for example NO. 2 and NO. 4, then displays on:
Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-4-3-2-5-6-7-8-G
4. If two cables are short circuited, neither of the corresponding lights is on of the remote tester while main tester remains unchanged. If three cables, including three, are short circuited, none of the corresponding lights is on.
5. If test patch panels or wall plate outlles, two cables which can match each other (RJ45) will be connected to the tester.
6. If test cables of the same axes, BNC turns on when the cable works.
7. 9V reduplicated battery is used in this tester.
Battery is advised to change if any weak light appears.( Battery is not included.)
Material: PC+ metal
colour: Black + white
Package Contents:
1 * Network Cable Tester
1. Keep your network running smoothly by testing your cables to uncover problematic shorts, open wires, crossing pairs and other wiring mishaps
2. Use for testing your homemade Ethernet patch cables to make sure they are in working order prior to connecting to your devices
3. Tests RJ45 cables, RJ11 telephone cables and network cables
4. Easy to read LED display indicates problems.Hand-held for portability.
5. Requires one 9-volt battery (not included)
Following are abnormal connections:
1. If one cable, for example cable NO.3 is open circuited, the two NO.3 lights of the main tester and remote tester will not turn on.
2. If several cables are not connected, several lights will not turn on respectively. If less than two cables are connected, none of the lights is on.
3. If two ends of a cable is disordered, for example NO. 2 and NO. 4, then displays on:
Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-4-3-2-5-6-7-8-G
4. If two cables are short circuited, neither of the corresponding lights is on of the remote tester while main tester remains unchanged. If three cables, including three, are short circuited, none of the corresponding lights is on.
5. If test patch panels or wall plate outlles, two cables which can match each other (RJ45) will be connected to the tester.
6. If test cables of the same axes, BNC turns on when the cable works.
7. 9V reduplicated battery is used in this tester.
Battery is advised to change if any weak light appears.( Battery is not included.)
Material: PC+ metal
colour: Black + white
Package Contents:
1 * Network Cable Tester
