CST-2107 Tone Generator Kit Wire Tracer Circuit Tester Tone Tracing Probe Kit

Tone Generator Kit Wire Tracer Circuit Tester Tone Tracing Probe Kit CST-2107 High Accuracy Cable Tester Line Finder Toner

Description
【Tone Generator Kit】: CST-2107 Tone generator and probe kit with probe are widely used in the maintenance of cables and wires.The tone generator kit measurement area includes line tracking, short circuit test, clear,busy,ringing identification.

【High Quality】: This tone generator wire tracer is made of high-quality materials, wear-resistant, corrosion-resistant. Cable toner tracer is normal 30dB, the input impedance is nominal 100M Ohm. Note: The wire toner tracer needs two 9V batteries ( This tone generator batteries NOT included).

【Widely used】: The tone generator and probe kit is primarily used to measure non-energized cables, or low voltage conditions below 24V. This tone generator kit is widely used for cable and wire maintenance. The measurement area includes line tracking, short circuit test, clear/busy/ringing identification. Insulation probe and built-in loudspeaker can effectively avoid short circuits of conductor and make the network toner and probe kit safer to use, essential tool for electricians

【Accurate & Easy】: This tone generator wire tracer is simple and the test results are accurate. One Button Operation. Clip and trace, One second to identify cables. Convenient to carry and storage the cable tracer with carrying bag, and protect wire toner tracer from demage, makes the tone and probe kit durable.

Specification:
Item Type: Wire Tracer Kit
Model: CST-2107
Material: ABS
Battery: 9V 6F22 battery x 1 (battery not included)
Application: Widely used in the maintenance of cables and wires. Measurement areas include line tracing, short circuit testing, clear, busy, ring recognition.
Gain: 30 dB
Input Impedance: 100MOhm
Probe Tip Resistance (Minimum):
Metal Tip: 0 Ohm
Plastic Head: 300 Ohm

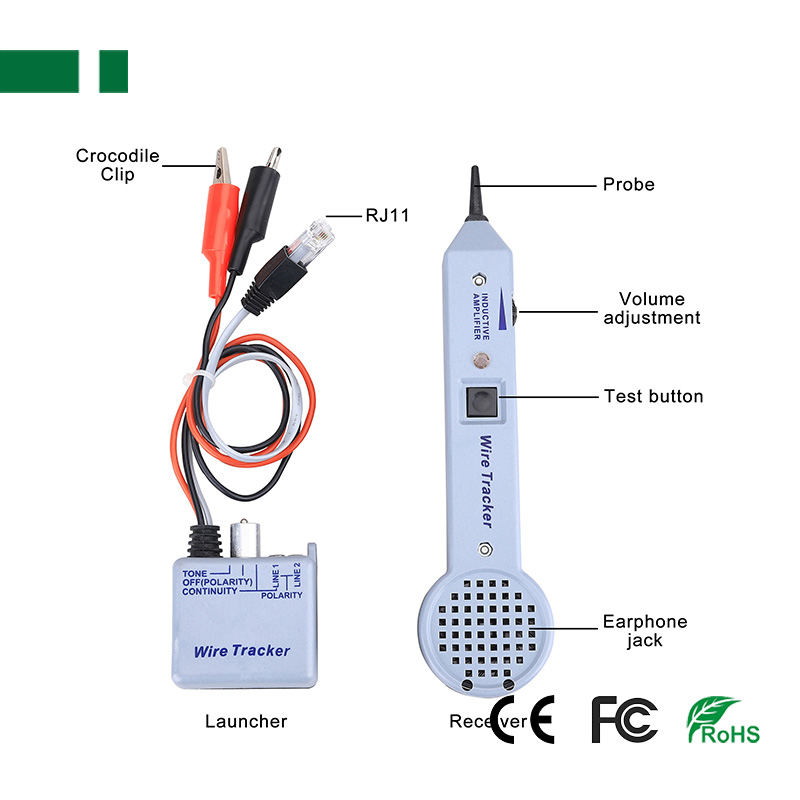

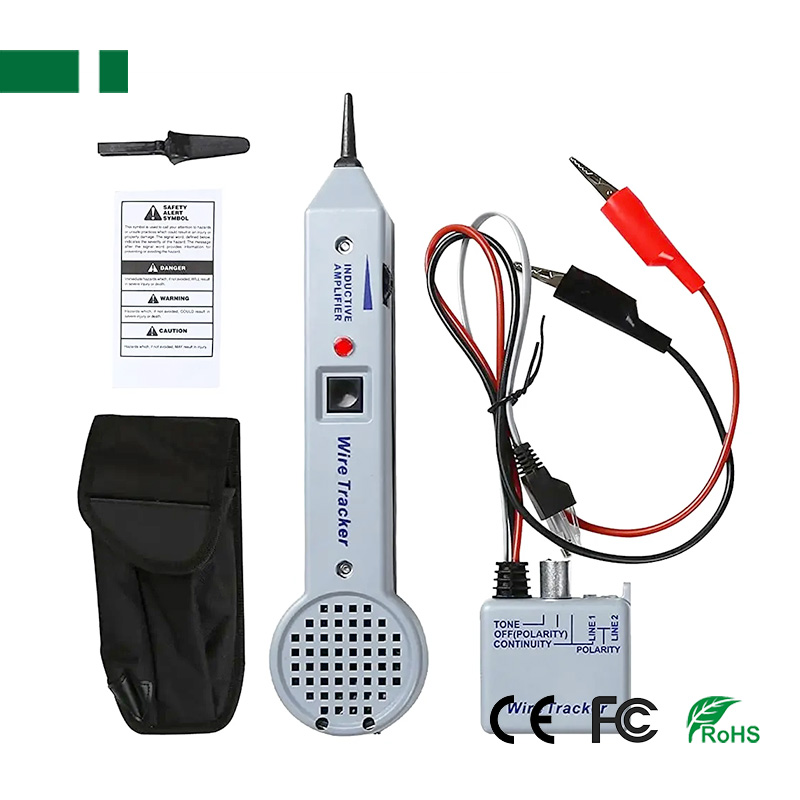

Package List:
1 x Detector
1 x Receiver
1 x Test Head
1 x User Manual

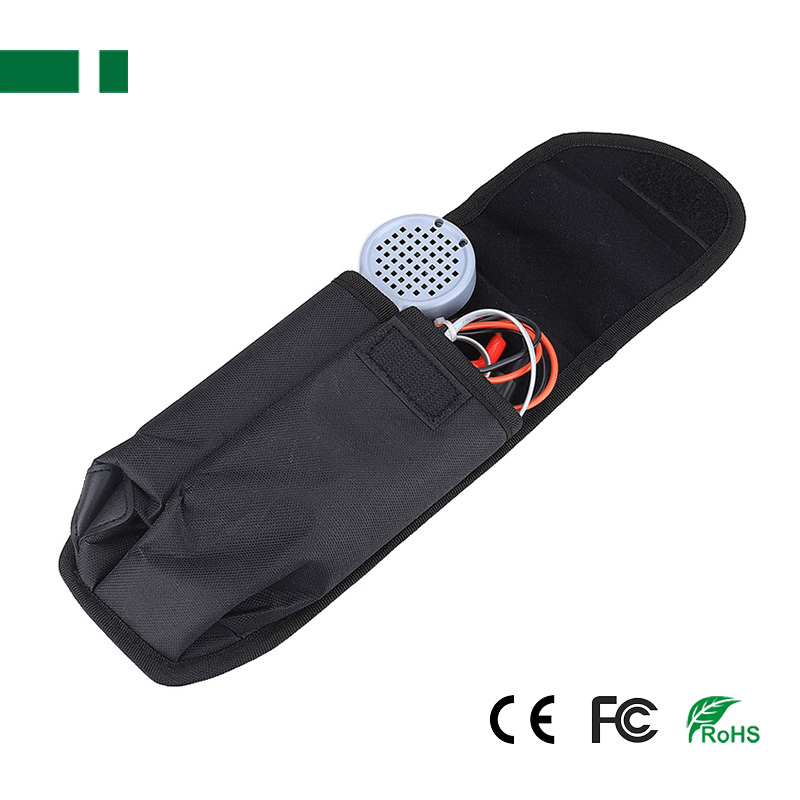

1 x Storage Bag
