10/100/1000Mbps POE Switch

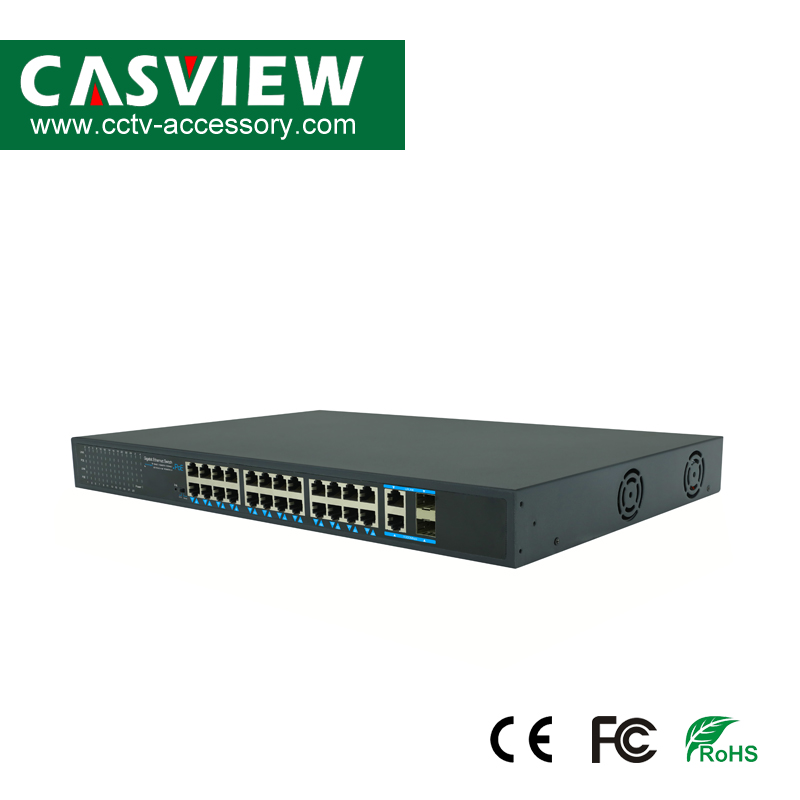

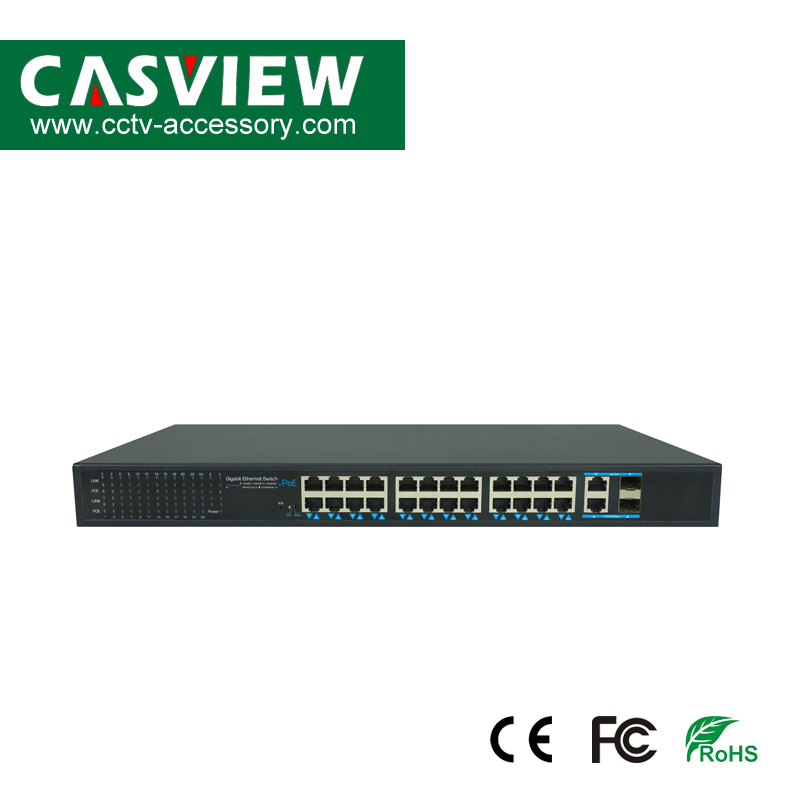

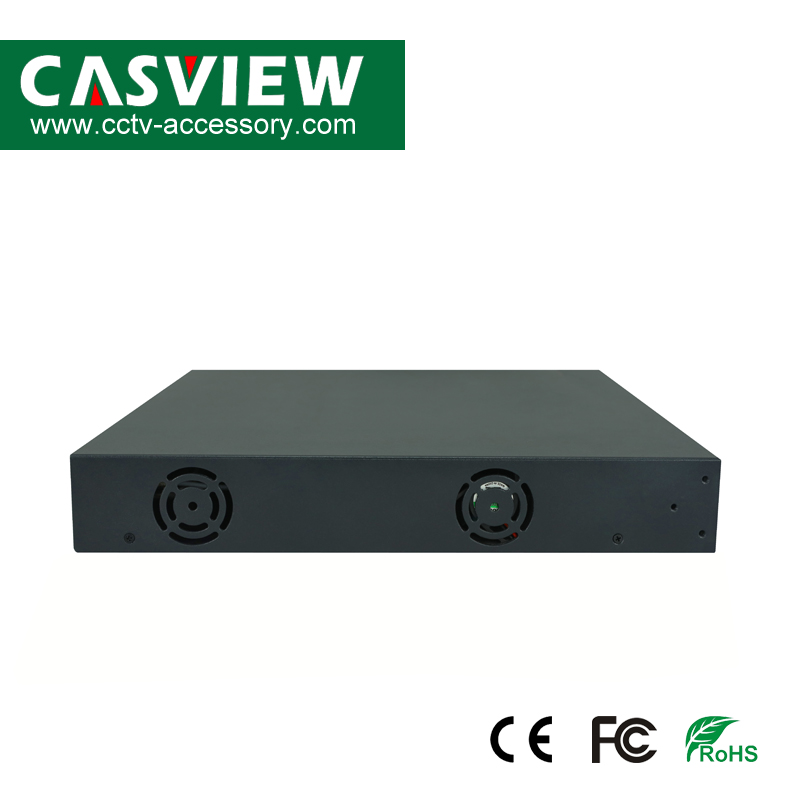

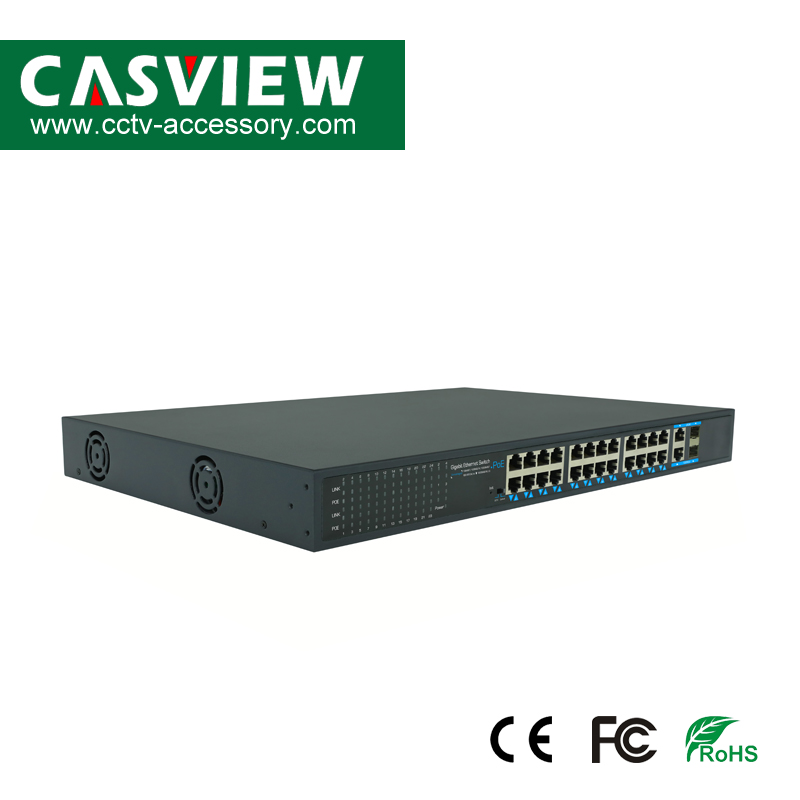

CPE-G4124BE

10/100/1000Mbps PoE ports
Uplink port
IEEE 802.3af/at
Protection: Excellent anti thunder, anti static and anti-Interference
Product description: 28 Ports 10/100/1000Mbps Switch; 24*10/100/1000Mbps PoE ports; 2*10/100/1000Mbps uplink port; 2*10/100/1000Mbps SFP port
INQUIRY EMAIL

Feature:

◆ 28x 10/100/1000Mbps auto-sensing RJ45 ports,
24x 10/100/1000Mbps PoE ports, 2x10/100/1000Mbps uplink port, ;2*10/100/1000Mbps SFP port
◆ Supports port auto-flip (Auto MDI/ MDIX);
◆ Maximum power of single PoE port: 15.4W/30W;
◆ Adopts store-and-forward architecture;
◆ IEEE 802.3af/at power on up to 24 ports;
◆ With anti-theft lock;
◆ Protection: Excellent anti thunder, anti static and anti-Interference;
◆ Built in power supply, suitable for desktop

Specification

Model	CPE-G4124BE
Power Adapter voltage	48-57V DC
POE Ethernet port	1-24 port: 10/100/1000Mbps
Ethernet port	2Uplink port: 10/100/1000Mbps, 210/100/1000Mbps SFP port
Transmission Distance	1-24 port: 0-100m, uplink port: 100m, via Cat5/ 5e/ 6 standard Network Cable
Network standard	IEEE 802.3/ 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
Switching capacity	52Gbps
Packet Forwarding rate	38.688Mpps
MAC table	8K
POE Standard	IEEE 802.3AF/AT
POE Power Supply type	End-span (1/2+, 36-)
POE power consumption	af=15.4W (each port), at=30W (each port)
Working temperature	0℃~55℃
Relative humidity	20~95%
Storage temperature	-20℃~70℃
MTBF	>30000h
