CPE-G102 1000Mbps POE Injector

10/100/1000Mbps POE Injector
POE: Pin(45+, 78-) for power & Pin(12345678) for data;
DC Connector: 5.5*2.1mm
58*28*21mm
Product description: Working with IEEE 802.3af compliant PDs, expands home and office network. This passive PoE injector can be used with any PoE device. Use with a power supply to power IP security cameras, phones, wi
INQUIRY EMAIL

10/100/1000Mbps POE Injector Power over Ethernet for IP Camera

Description:
Working with IEEE 802.3af compliant PDs, expands home and office network.
This passive PoE injector can be used with any PoE device.
Use with a power supply to power IP security cameras, phones, wireless access points and other devices.
Allows power to be combined with data for 10/100/1000Mbps networks.

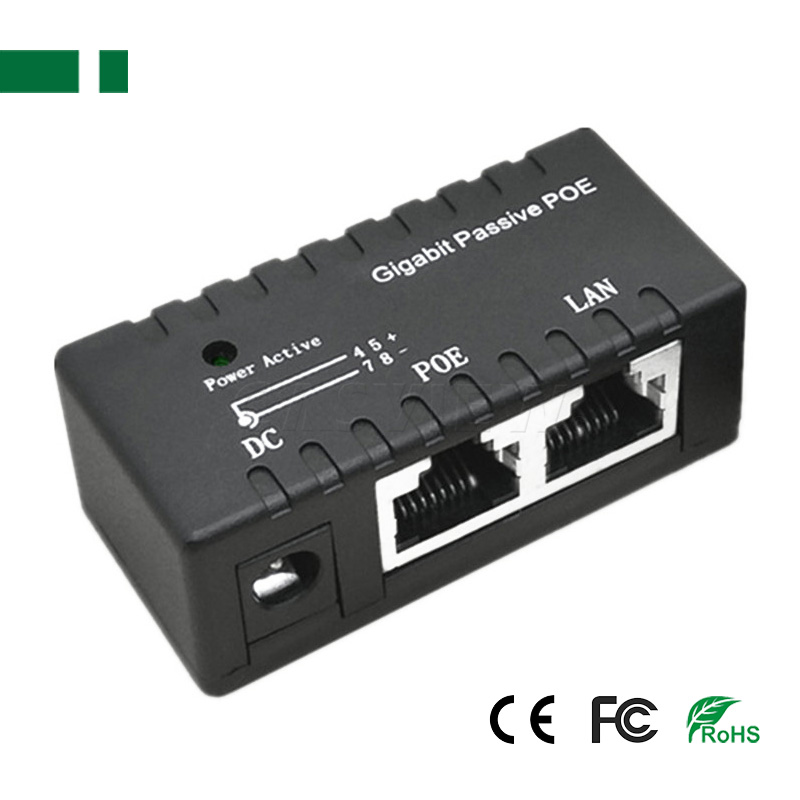

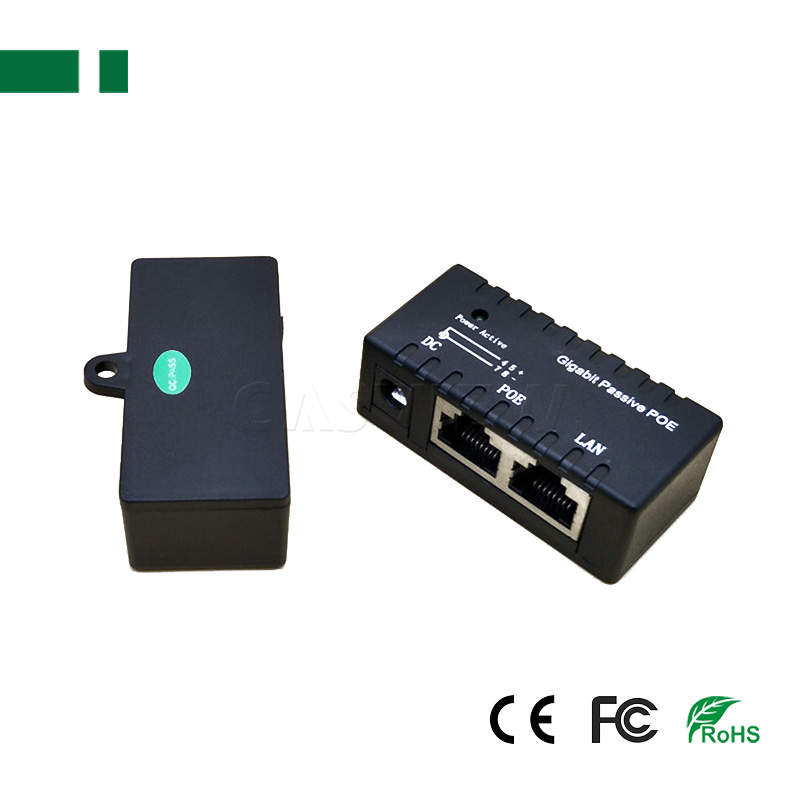

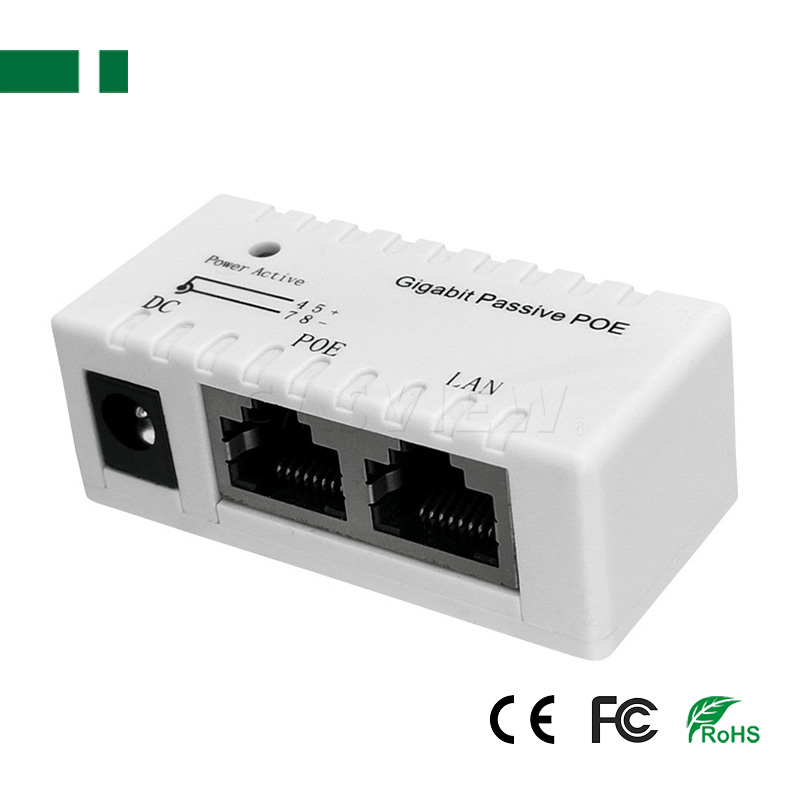

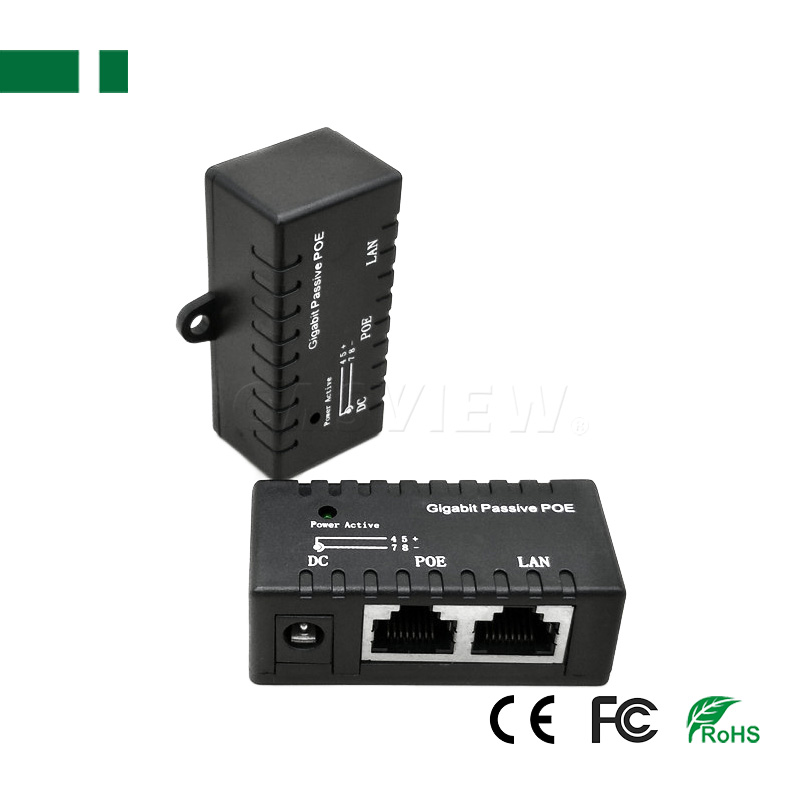

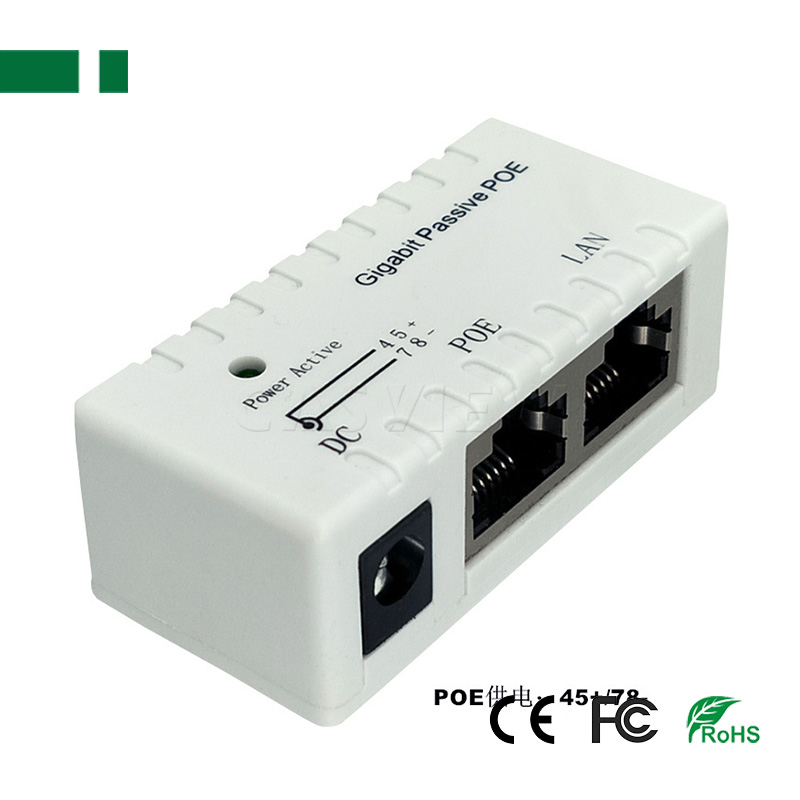

Mini Style Passive POE Injector w/ LED Indicator
POE: Pin(45+, 78-) for power & Pin(12345678) for data;
LAN: Pin(12345678)
Output current: 2A
Output power: 12-52W
Input voltage: 12-52V
Output voltage: 12-52V
DC Connector: 5.5*2.1mm
Standard: IEEE802.3af(at) POE standard power over Ethernet
Material:ABS
Color: White/ Black
Size:about 58*28*21mm

Note:If you need support POE IP camera, Pls use 48V Power Adapter to support this injector.
