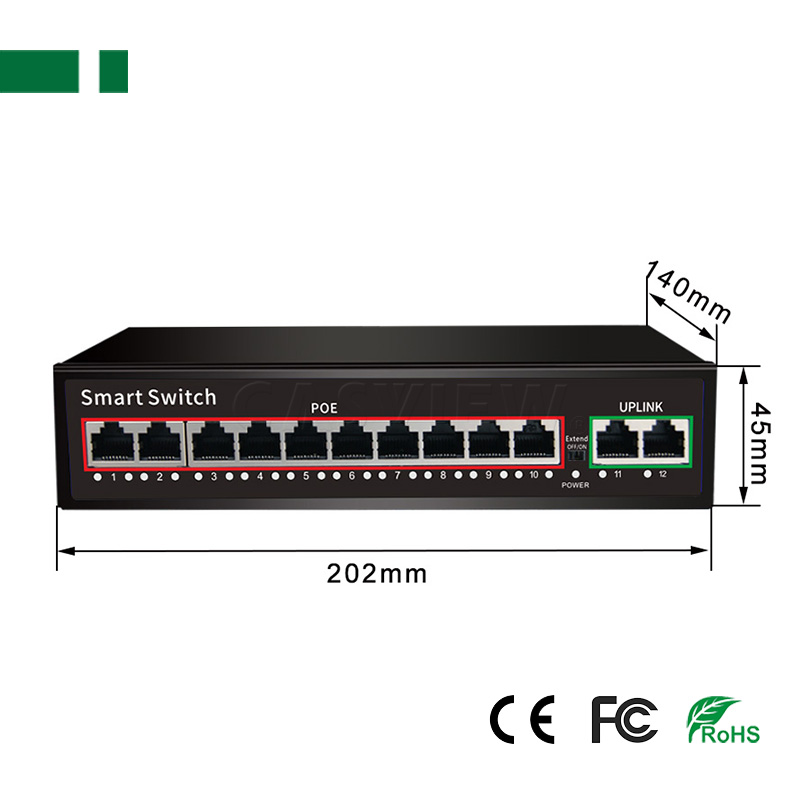

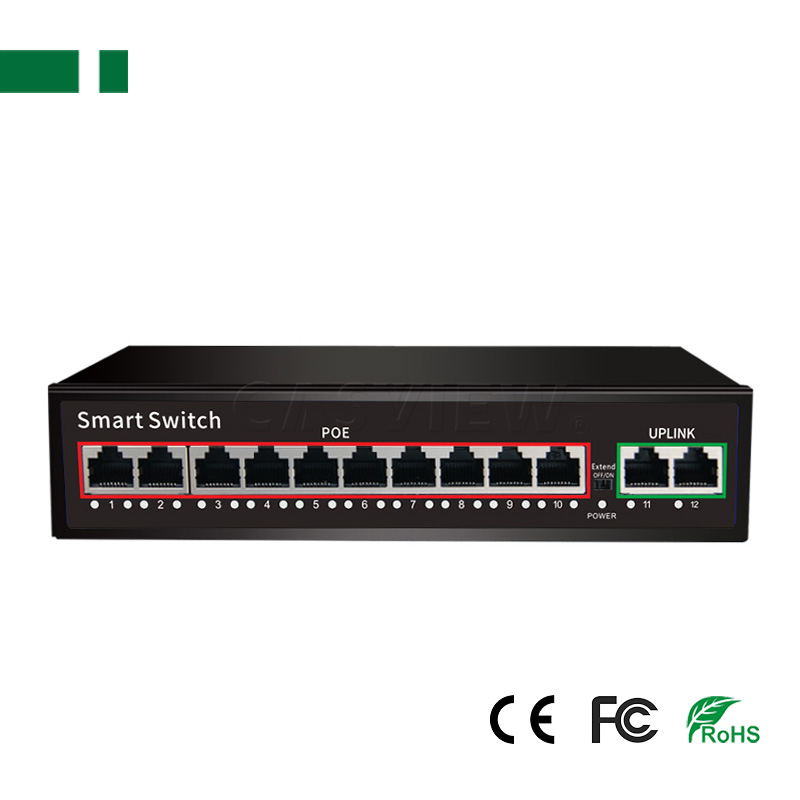

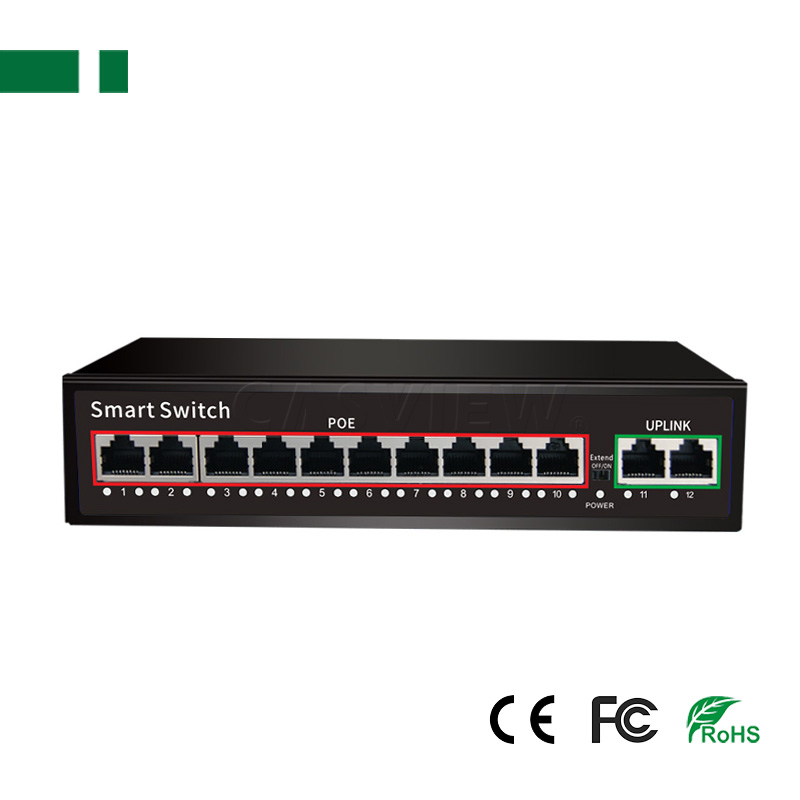

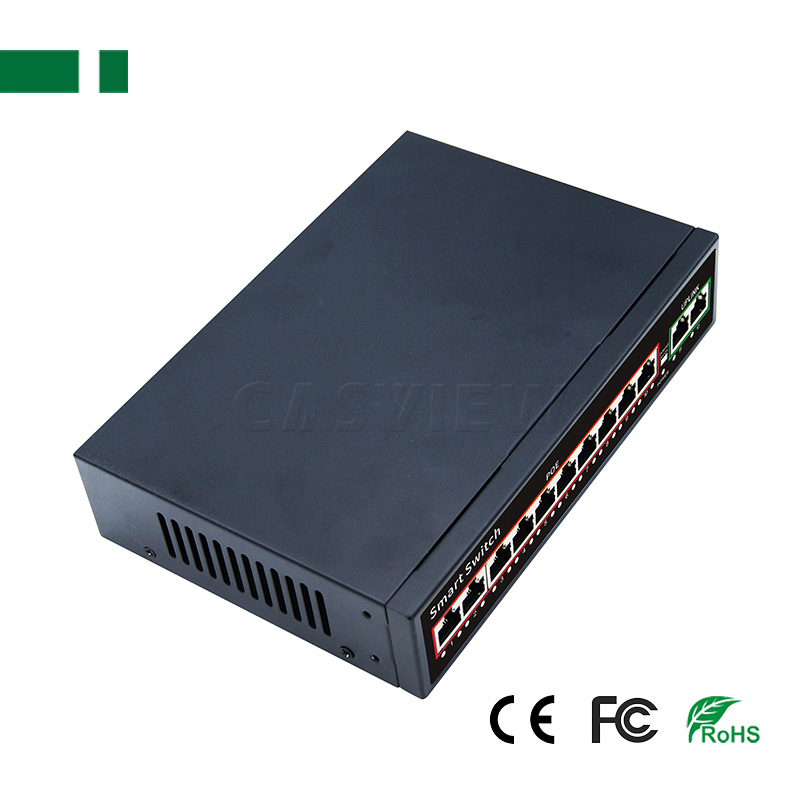

CPE-5102B 10 Ports 100Mbps POE Switch

Description:
The POE Ethernet Switch is security surveillance Ethernet switch which aims at Ethernet high definition surveillance and security system. The products fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and  fluent transmission. The product support one key  camera model, with VLAN function can restrain the network storm, protect the information security, prevent the viral transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.

Feature:
1. 10 ports 10/100Mbps POE Switch with 10 ports PoE ports and 2 uplink ports;
10*10/100Mbps PoE ports, 2*10/100Mbps uplink port;
2. Support IEEE802.3AF/AT;
3. Build-in DC52V 2.3A 120W power supply;
4. The communication distance extends up to 250 meters;
5. All port supported by MDI/MDIX auto flip and self negotiation;
6. Support 10*10/100Mbps adaptive high speed forwarding data packet non-lost;
7. Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode;
8. Fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall;
9. Application: Wireless Access Point, IP Camera, IP Phone, Computer Networks etc..

Specification:
