CPE-102PM-M RJ45 Splitter and combiner uPoe cable Support Dahua and Hikvision POE NVR

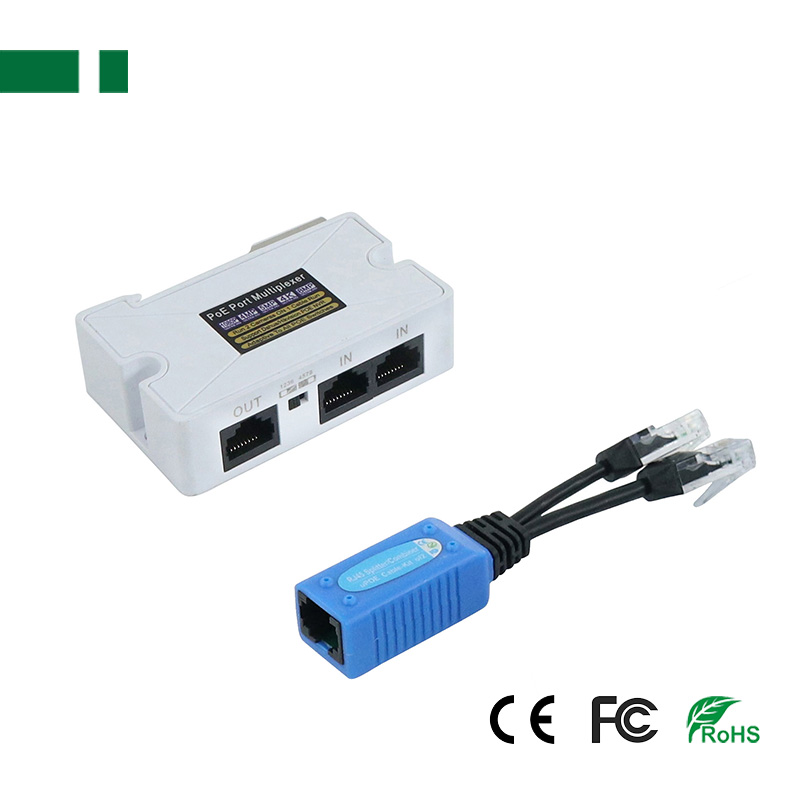

RJ45 Splitter and Combiner uPOE cable-Kit of 2
Injector (Connect to the POE Switch): RJ45 Male to RJ45 Female, Supports transmission of power from POE switch.
Splitter (Connect to the IPC): RJ45 Female to RJ45 Male, Supports power supply to IPC.

*** Added anti-interference filtering to solve the problem of network on-off and freeze caused by line interference.
*** Self-adaptive compatible with12/36 or 45/78 Powered PoE switches, to adapt to all standard and non-standard POE switches.

Use as uPoE operation:
• Use with a injector to double the power into one device from 25 watts to 50 watts- combines two 802.3at ports into one uPOE port.
• Supports gigabit data rates and 50 watts per CAT-6 cable
• Use two for each uPOE device-one on the PoE side and one on the LAN side of a PoE Switch device.

Use as Ethernet doubler operation:
• Use to put two 10/100 ethernet circuits onto one long run ethernet cable with or without PoE.
• Supports 2 individual 10/100 data rate connections and up to 25 watts for each(50watts total) on CAT5e.
• Connect two male RJ45 to your switch, then remotely connect each male RJ45 to your camera, WIFI or phone. Use any CAT5e cable between the two device.

Feature:
