POE Power Adapter

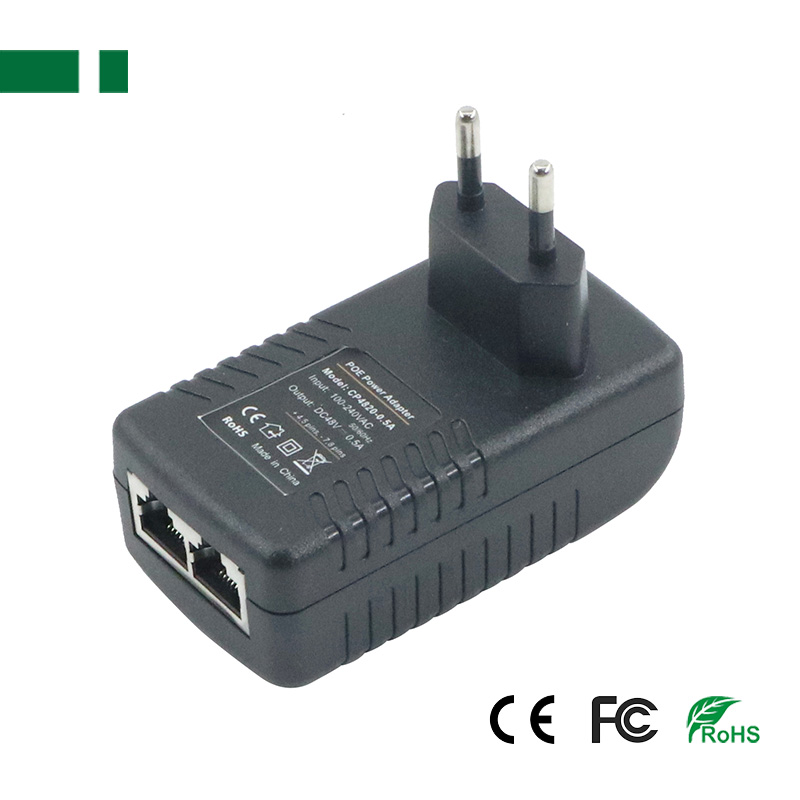

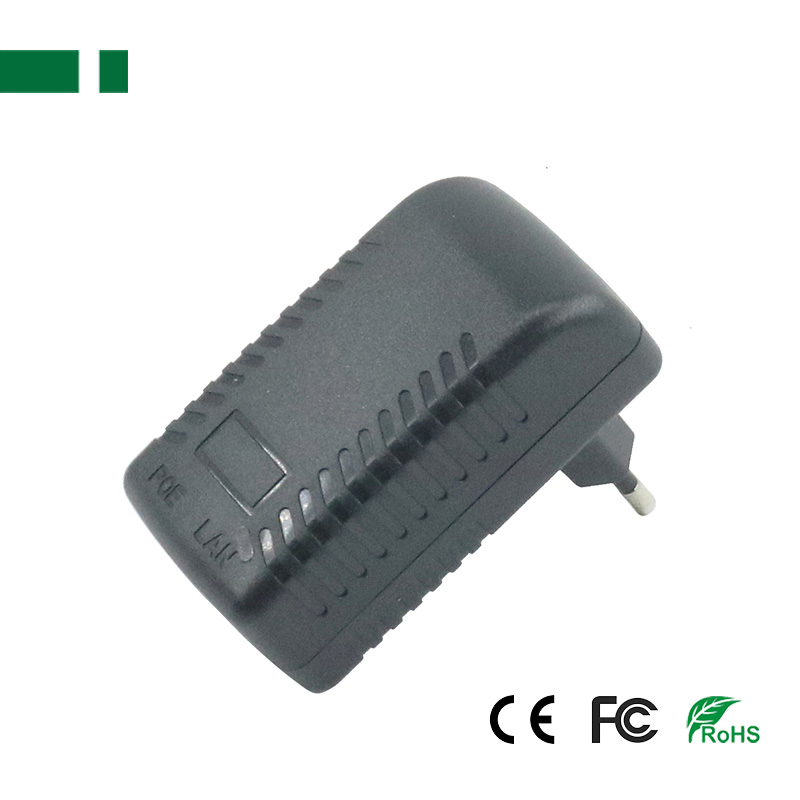

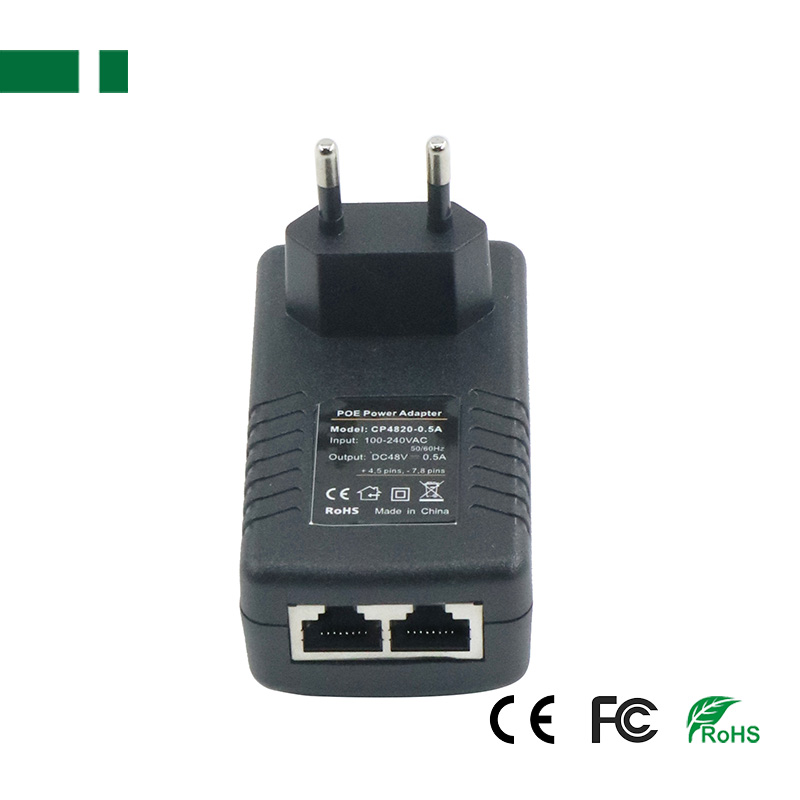

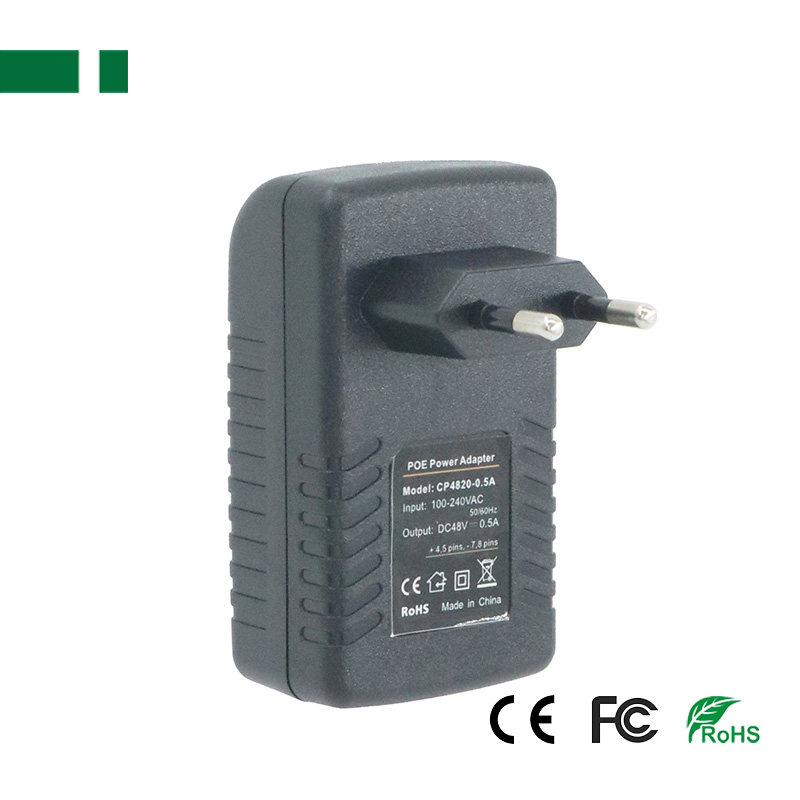

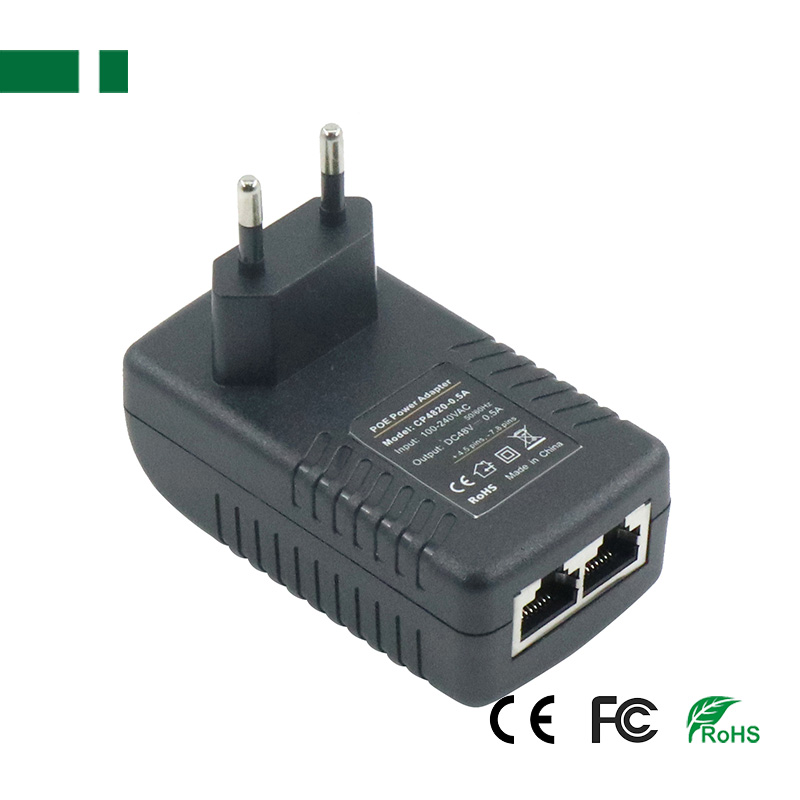

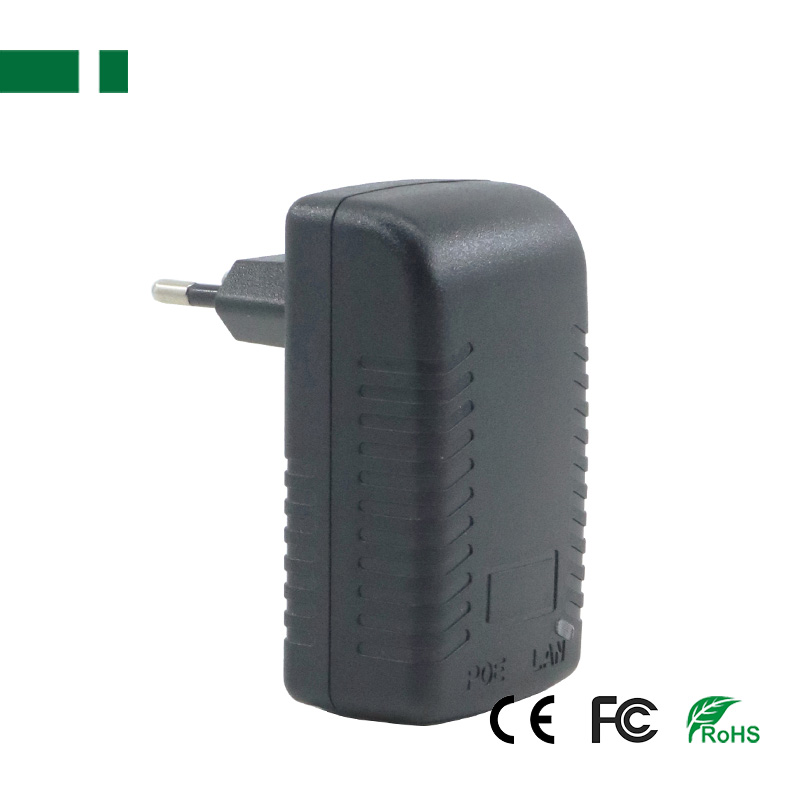

CP2420-0.5A 100Mbps 12W POE Power Adapter

100Mbps 12W POE Power Adapter
DC48V 0.5A 24W
Size: 83*45*30mm (L*W*H)
US/ EU/ UK Plug Optional
Product description: The ideal solution for applications in which an electrical outlet may not be available, the injector adapter can be used to power devices with poe support, such as IP cameras or wireless access points
INQUIRY EMAIL

100Mbps DC24V 0.5A 12W POE Power Supply Plug Injector Splitter For CCTV IP Camera Ethernet Switch Adapter

The ideal solution for applications in which an electrical outlet may not be available, the injector adapter can be used to power devices with poe support, such as IP cameras or wireless access points (WAPs). Compact, Wall-mounted design makes it easy to install the adapter in areas where space is limited, and can be set in seconds without the need for configuration.

Features:
Compatible with IEE802.3af/at.POE protocol.
Standard PD port power supply priority function.
Forwarding Rate: 10/100BASE-TX:148800pps/port
Interface: LAN(DATA:1236), POE(DATA:1236; POWER: 4/5:+, 7/8:-)
Power input Rated Voltage range: 100~240VAC
Power output Rated voltage: DC24V
Rated current: 0.5A
Short circuit, over-current, and over-voltage protection
System reliability: MTBF>100k hours
Anti-thunder design, bearing positive and passive 5KB, 8/20uS electric shockwave up to 5 times for every minute.
Failure alert function and FUSE.

Specification:

Model		CP1220-1A	CP2420-0.5A	CP2420-1A	CP1520-0.8A	CP4820-0.5A
Output	DC output Voltage	12V±10%	24V±10%		15V±10%	48V±10%
	Output Current Range	0-1A	0-0.5A	0-1A	0-0.8A	0-0.5A
	Wave and Noise	120mVp-p
	DC output Power	12W	12W	24W	12W	24W
	Efficiency	0.85
	DC Voltage Adjustable Scope	（at full load）≦0.5%
Input	Voltage Range	85~264VAC 47-63Hz
	Input Current	0.14A/115V, 0.07A/230V
	Leakage Current	<1mA/ 240VAC
	Inrush Current	Cold start 36A/ 230VAC
Protection	Over-load	105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed
	Over-voltage	105%---150% Rated Voltage, Protection type: Shut off
	High-temperature	RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment	Working temperature and humidity	-10°C~+50°C, 20~90%RH
	Store temperature and humidity	-20°C~+85°C, 10~95%RH
	Temperature coefficient	±0.03%°C(0~50°C)
	Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Safety	Withstand voltage	I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
	Isolation resistance	I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC
Standard	CE EMC Standard	EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
	CE LVD Standard	EN61347-2-13:2014+A1:2017, EB61347-1:2015
	ROHS Standard	IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.
Other	Dimension	834530mm (LWH)
	Weight	83g
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure
