UPS Power Supply

CP2415-2.5A-B DC26.5V 60W UPS Power Supply Box Access Control System

DC26.5V 2.5A 60W UPS Power Supply Box
Max. output current: 2.5A
Max. charge current: 1.0A
AC input / DC output / charge / batttery low voltage LED indicators;
Product description: The UPS (Uninterruptible Power Supply) is a power supply control device. It is mainly suitable for applications such as burglar alarms, CCTV cameras, PTZ (Pan-Tilt-Zoom) devices, and access control s
INQUIRY EMAIL

Description:
The UPS (Uninterruptible Power Supply) is a power supply control device. It is mainly suitable for applications such as burglar alarms, CCTV cameras, PTZ (Pan-Tilt-Zoom) devices, and access control systems.

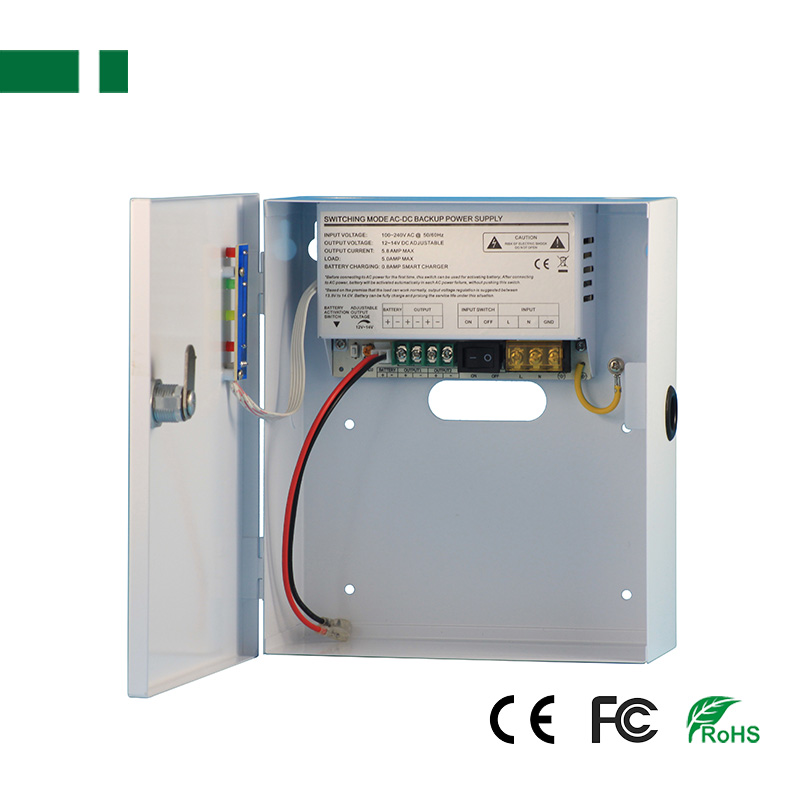

It features stable and adjustable voltage output and is housed in a metal boxed cabinet, providing reliable protection and heat dissipation. The device also includes a backup battery link function for providing alternative power during power outages.

Features:
1. 60W Output UPS Power Supply Box;
2. AC supply: 100-240 VAC @ 50-60Hz;
3. Nominal Output voltage: 26.5VDC;
4. Max. output current: 2.5A;
5. Max. charge current: 1.0A;

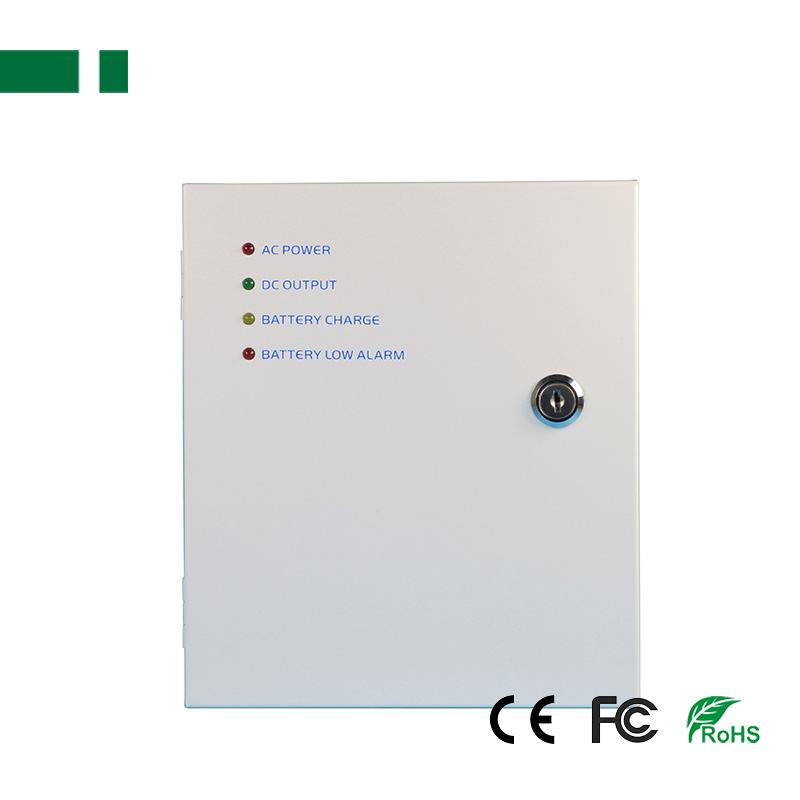

6. AC input / DC output / charge / batttery low voltage LED indicators;
7. Battery compartment: 2* 4Ah / 12V;
8. Built in EMI filter with tiny ripple;
9. Protection: Short circuit/ Overload/ Over voltage/ Over temperature.

More UPS Power Supply Box Optional
Model	Specification	Battery Compartment
CP1215-3A-B	DC13.8V 3A 36W, without Battery.	1pc*7Ah/12V
CP1215-5A-B	DC13.8V 5A 60W, without Battery.	1pc*7Ah/12V
CP1215-10A-B	DC13.8V 10A 120W, without Battery.	1pc*17Ah/12V
CP2415-2.5A-B	DC26.5V 2.5A 60W, without Battery.	2pcs*4Ah/12V
CP2415-5A-B	DC26.5V 5A 120W, without Battery.	2pcs*7Ah/12V

Specification:

Model		CP2415-2.5A-B	CP2415-5A-B
Output	DC output Voltage	26.5V±10%
	Output Current Range	0-2.5A	0-10A
	Charge Current Range	0-0.8A	0-1.8A
	Wave and Noise	120mVp-p
	DC output Power	60W	120W
	Efficiency	0.85
	DC Voltage Adjustable Scope	（at full load）≦0.5%
Input	Voltage Range	100~240VAC, 50-60Hz	190~240VAC, 50Hz
	Input Current	0.54A/115V, 0.27A/230V	1.1A/115V, 0.55A/230V
	Leakage Current	<1mA/ 240VAC
	Inrush Current	Cold start 20A/120VAC, 40A/230VAC
Protection	Over-load	105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed
	Over-voltage	105%---150% Rated Voltage, Protection type: Shut off
	High-temperature	RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment	Working temperature and humidity	-10°C~+50°C, 20~90%RH
	Store temperature and humidity	-20°C~+85°C, 10~95%RH
	Temperature coefficient	±0.03%°C(0~50°C)
	Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Safety	Withstand voltage	I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
	Isolation resistance	I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC
Standard	CE EMC Standard	EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
	CE LVD Standard	EN61347-2-13:2014+A1:2017, EB61347-1:2015
	ROHS Standard	IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.

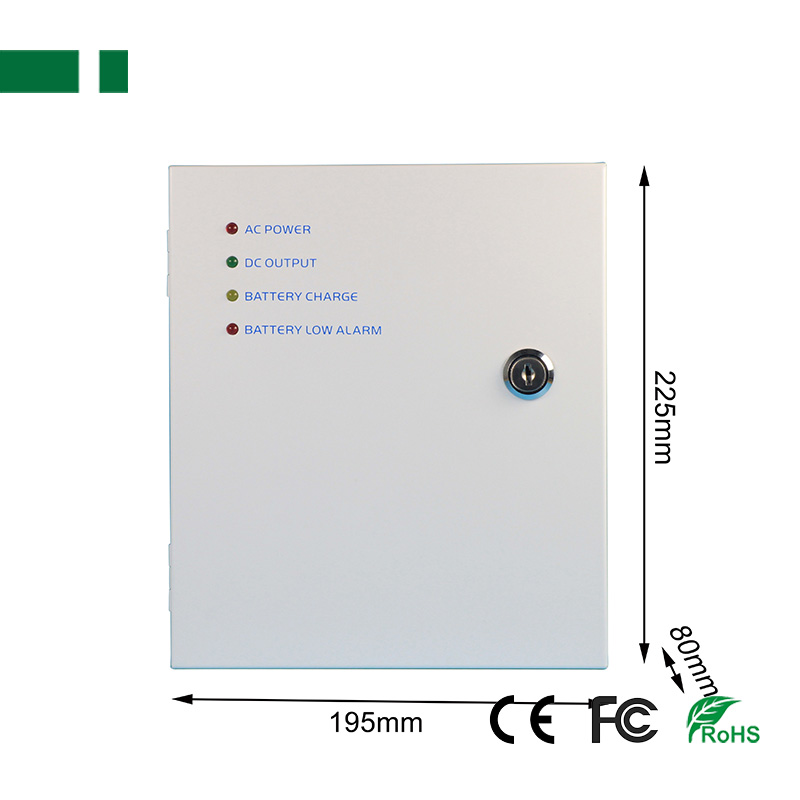

Other	Dimension	19580225mm (LWH)	33883308mm (LWH)
	Weight	1.5kg	3kg
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure
