CP1215-5A-B DC13.8V 60W UPS Power Supply Box for CCTV Cameras

  • DC13.8V 5A 60W UPS Power Supply Box
  • Max. output current: 5A
  • Max. charge current: 0.8A
  • AC input / DC output / charge / batttery low voltage LED indicators;
  • Product description: The UPS (Uninterruptible Power Supply) is a power supply control device. It is mainly suitable for applications such as burglar alarms, CCTV cameras, PTZ (Pan-Tilt-Zoom) devices, and access control s
  • INQUIRY   EMAIL
Description:
The UPS (Uninterruptible Power Supply)  is a power supply control device. It is mainly suitable for applications such as burglar alarms, CCTV cameras, PTZ (Pan-Tilt-Zoom) devices, and access control systems.

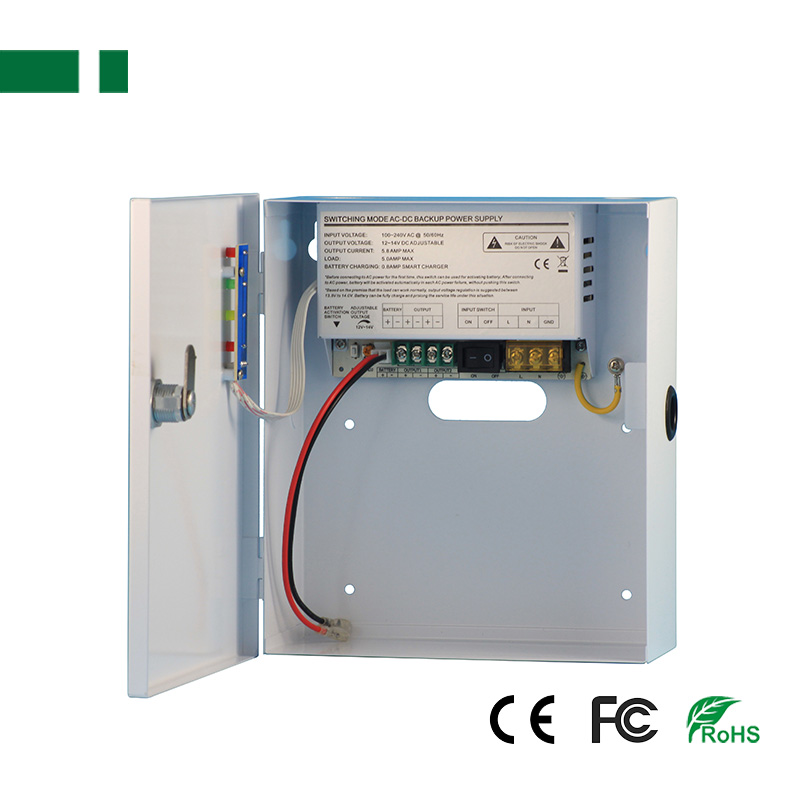

It features stable and adjustable voltage output and is housed in a metal boxed cabinet, providing reliable protection and heat dissipation. The device also includes a backup battery link function for providing alternative power during power outages.

Features:
1. 60W Output UPS Power Supply Box;
2. AC supply: 100-240 VAC @ 50-60Hz;
3. Nominal Output voltage: 13.8VDC;
4. Max. output current: 5A;
5. Max. charge current: 0.8A;

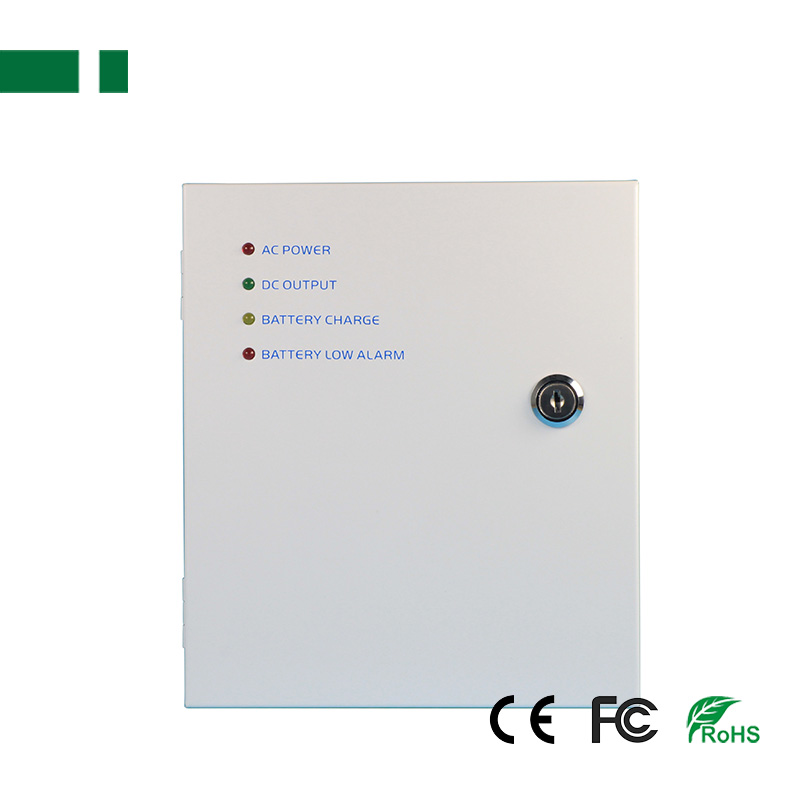

6. AC input / DC output / charge / batttery low voltage LED indicators;
7. Battery compartment: 7Ah / 12V;
8. Built in EMI filter with tiny ripple;
9. Protection: Short circuit/ Overload/ Over voltage/ Over temperature.
More UPS Power Supply Box Optional
Model Specification Battery Compartment
CP1215-3A-B DC13.8V 3A 36W, without Battery. 1pc*7Ah/12V
CP1215-5A-B DC13.8V 5A 60W, without Battery. 1pc*7Ah/12V
CP1215-10A-B DC13.8V 10A 120W, without Battery. 1pc*17Ah/12V
CP2415-2.5A-B DC26.5V 2.5A 60W, without Battery. 2pcs*4Ah/12V
CP2415-5A-B DC26.5V 5A 120W, without Battery. 2pcs*7Ah/12V

Specification:
Model CP1215-3A-B CP1215-5A-B CP1215-10A-B
Output DC output Voltage 13.8V±10%
Output Current Range 0-3A 0-5A 0-10A
Charge Current Range 0-0.8A 0-0.8A 0-1.8A
Wave and Noise 120mVp-p
DC output Power 36W 60W 120W
Efficiency 0.85
DC Voltage Adjustable Scope at full load)≦0.5%
Input Voltage Range 100~240VAC, 50-60Hz 100~240VAC, 50-60Hz 190~240VAC, 50Hz
Input Current 0.36A/115V, 0.18A/230V 0.54A/115V, 0.27A/230V 1.1A/115V, 0.55A/230V
Leakage Current <1mA/ 240VAC
Inrush Current Cold start 20A/120VAC, 40A/230VAC
Protection Over-load
105%~135%,  Protection type: Constant current limiting,
recovers automatically after fault condition is removed
Over-voltage 105%---150% Rated Voltage, Protection type: Shut off
High-temperature RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment Working temperature and humidity -10°C~+50°C,   20~90%RH
Store temperature and humidity -20°C~+85°C,   10~95%RH
Temperature coefficient ±0.03%°C(0~50°C)
Vibration 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Safety Withstand voltage I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Isolation resistance I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC
Standard CE EMC Standard EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
CE LVD Standard EN61347-2-13:2014+A1:2017, EB61347-1:2015
ROHS Standard IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.

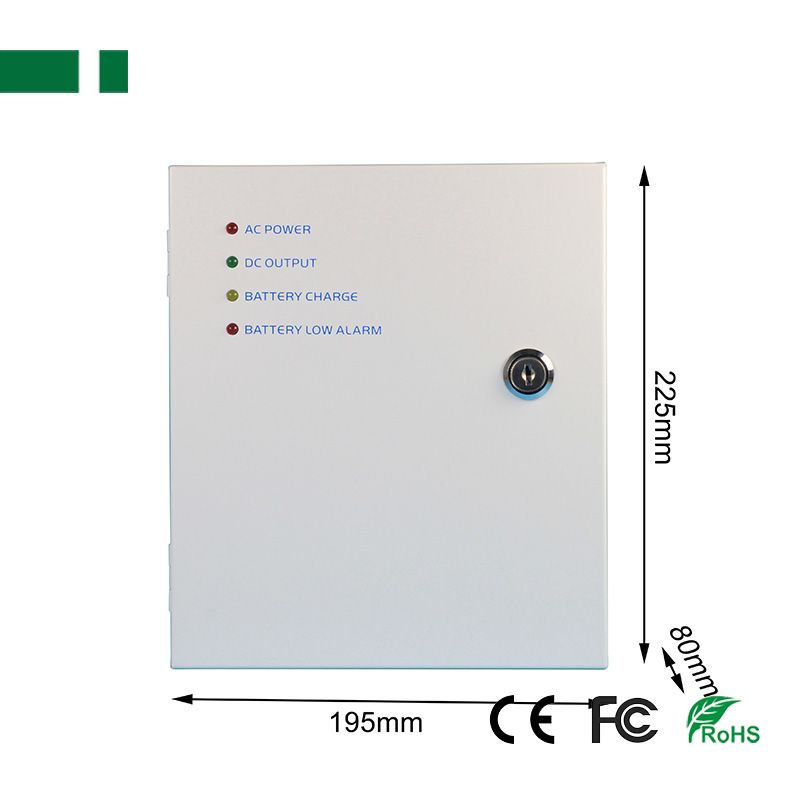

Other Dimension 195*80*225mm (L*W*H) 195*80*225mm (L*W*H) 338*83*308mm (L*W*H)
Weight 1.5kg 1.5kg 3.0kg
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. I/P-O/P: Input and output interval,  I/P-FG: Input and enclosure,  O/P-FG: Output and enclosure
