Centralized Power Supply Box

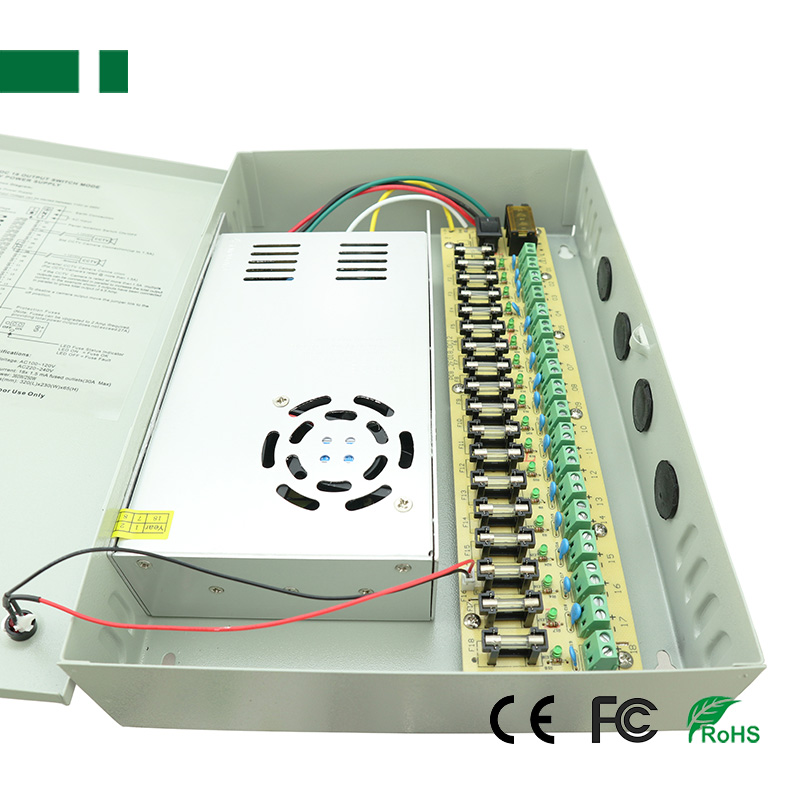

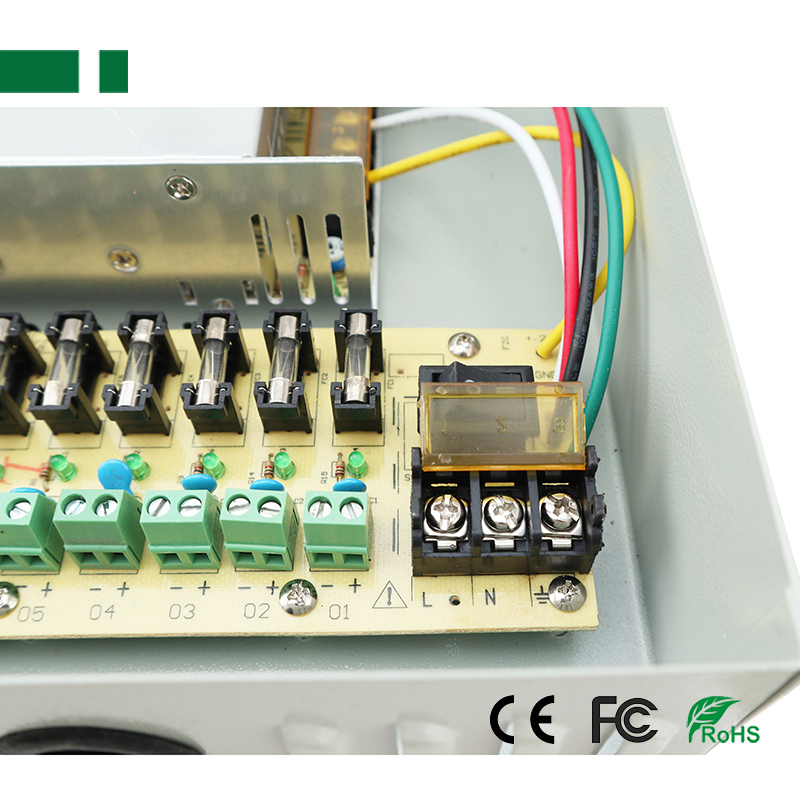

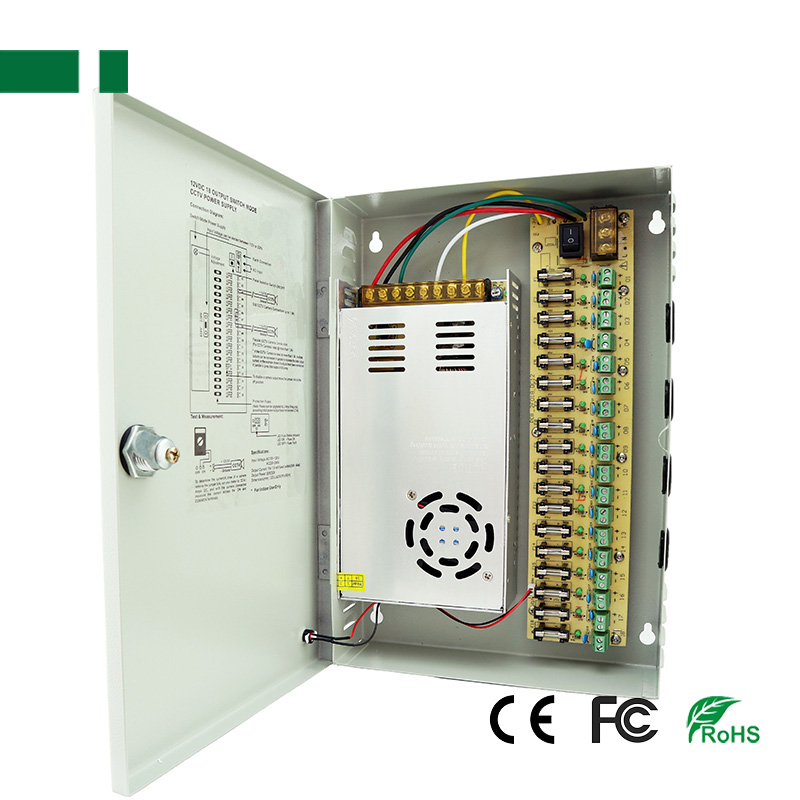

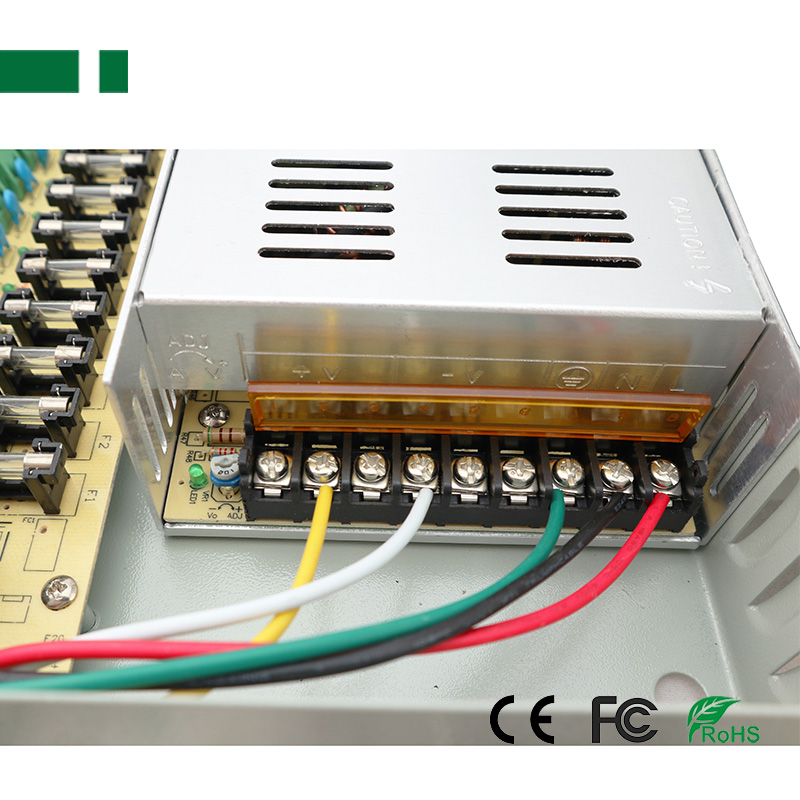

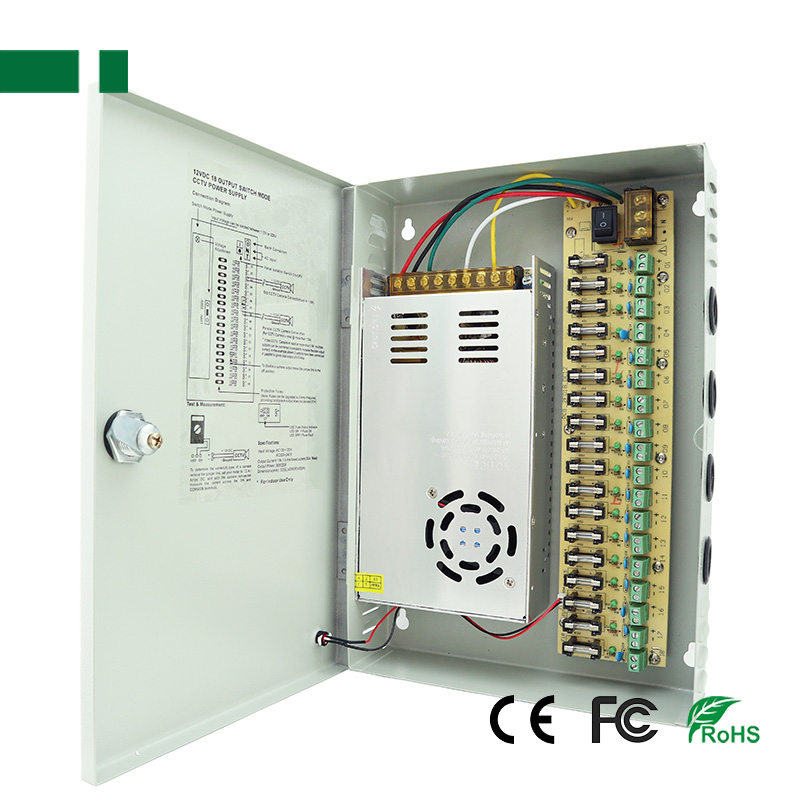

CP1209-40A-18 480W 18-CH Centralized Power Supply Box

480W 18-CH Centralized Power Supply Box
Output voltage & current: DC12V 40Amp
DC regulated, over current and voltage protected
Size: 215*315*62mm
Product description: The CCTV Centralized Power Supply Box is primarily designed for CCTV system, access, building/house control, intrude alarm & other light-current.
INQUIRY EMAIL

Introduction:
The CCTV Centralized Power Supply Box is primarily designed for WUF-GV, PTZ and camera of CCTV system. It's also used for access, building/house control, intrude alarm and other light-current. It is for desktop or wall-mounted installation.

Features:
● 480W 18chs Output Centralized Power Supply Box;
● Output voltage & current: DC12V 40Amp;
● Built in EMI filter with tiny ripple;
● 100% full load burn-in test;
● DC regulated, over current and voltage protected;

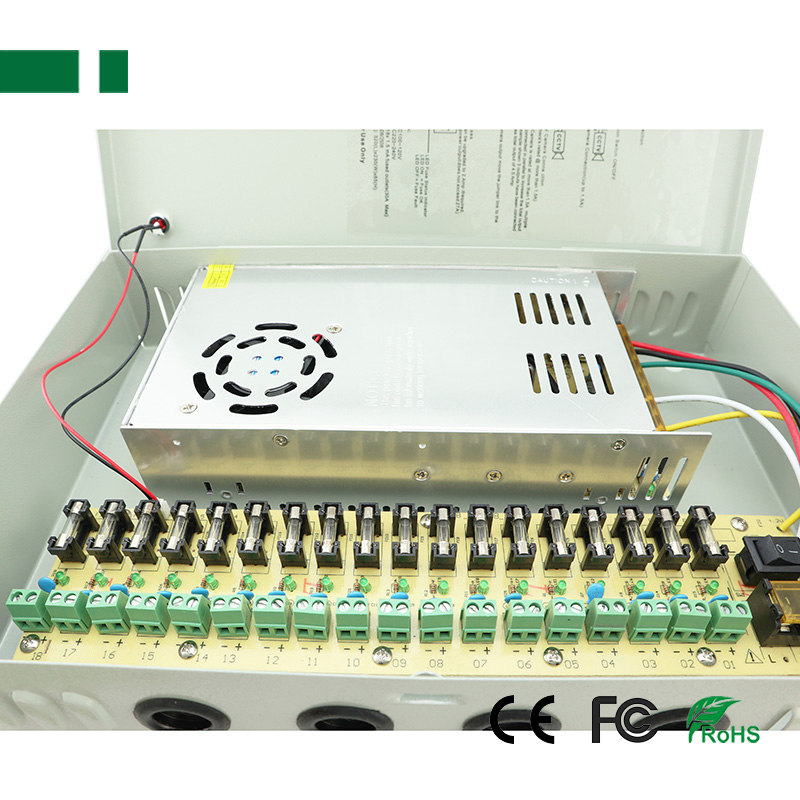

● Individual LED indicator for each output.

DC12V Multi-channel Centralized Power Supply Box
More Model	Channels	DC Output	Input Current	Dimension	Weight
CP1209-3A-4	4-CH	DC12V 3A 36W	0.36A/ 115V, 0.18A/ 230V	16316347mm	733g
CP1209-5A-4	4-CH	DC12V 5A 60W	0.54A/ 115V, 0.27A/ 230V	16316347mm	733g
CP1209-5A-9	9-CH	DC12V 5A 60W	0.54A/ 115V, 0.27A/ 230V	20823955mm	1300g
CP1209-10A-8	8-CH	DC12V 10A 120W	1.1A/ 115V, 0.55A/ 230V	20823955mm	1378g
CP1209-10A-9	9-CH	DC12V 10A 120W	1.1A/ 115V, 0.55A/ 230V	20823955mm	1378g
CP1209-15A-9	9-CH	DC12V 15A 180W	1.32A/ 115V, 0.66A/ 230V	20823955mm	1378g
CP1209-10A-18	18-CH	DC12V 10A 120W	1.1A/ 115V, 0.55A/ 230V	20531553mm	1660g
CP1209-15A-18	18-CH	DC12V 15A 180W	1.32A/ 115V, 0.66A/ 230V	20531553mm	1673g
CP1209-20A-18	18-CH	DC12V 20A 240W	2.2A/ 115V, 1.1A/ 230V	21531562mm	1900g
CP1209-30A-18	18-CH	DC12V 30A 360W	3.2A/ 115V, 1.6A/ 230V	21531562mm	1982g
CP1209-40A-18	18-CH	DC12V 40A 480W	3.5A/ 115V, 1.75A/ 230V	21531562mm	2081g

Specification:

Model		CP1209-40A-18
Output	DC output Voltage	12V±10%
	Output Current Range	0-40A
	Wave and Noise	120mVp-p
	DC output Power	480W
	Efficiency	85%
	DC Voltage Adjustable Scope	（at full load）≦0.5%
Input	Voltage Range	85~264VAC 47-63Hz
	Input Current	0.14A/115V, 0.07A/230V
	Leakage Current	<1mA/ 240VAC
	Inrush Current	Cold start 20A/120VAC, 40A/230VAC
Protection	Over-load	105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed
	Over-voltage	105%---150% Rated Voltage, Protection type: Shut off
	High-temperature	RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment	Working temperature and humidity	-10°C~+50°C, 20~90%RH
	Store temperature and humidity	-20°C~+85°C, 10~95%RH
	Temperature coefficient	±0.03%°C(0~50°C)
	Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Safety	Withstand voltage	I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Safety	Isolation resistance	I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC
Standard	CE EMC Standard	EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
	CE LVD Standard	EN61347-2-13:2014+A1:2017, EB61347-1:2015
	ROHS Standard	IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.
Other	Dimension	31021262mm (LWH)
Other
	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure
