Switch Power Supply

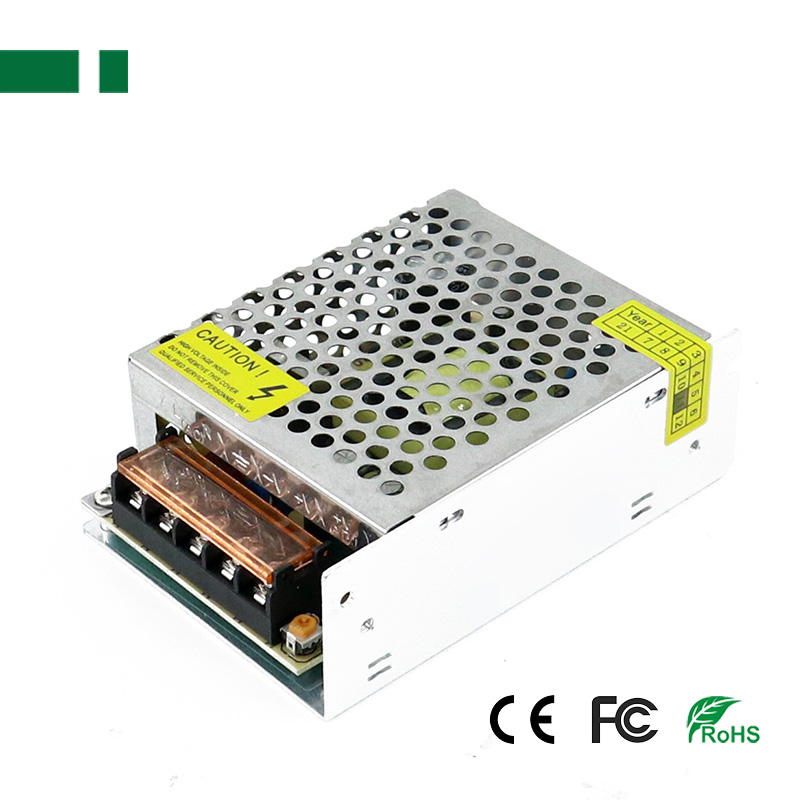

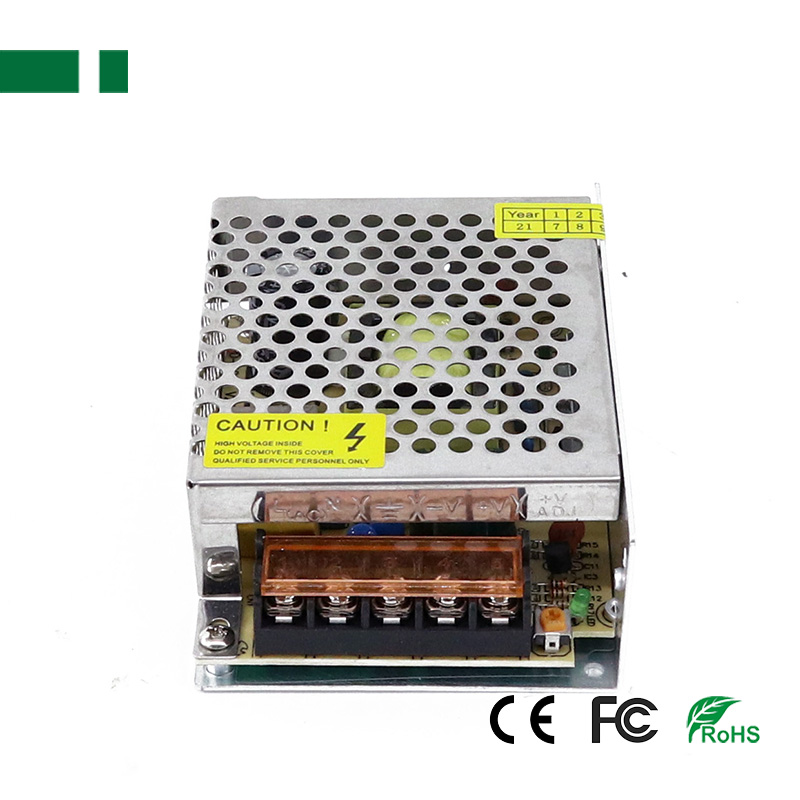

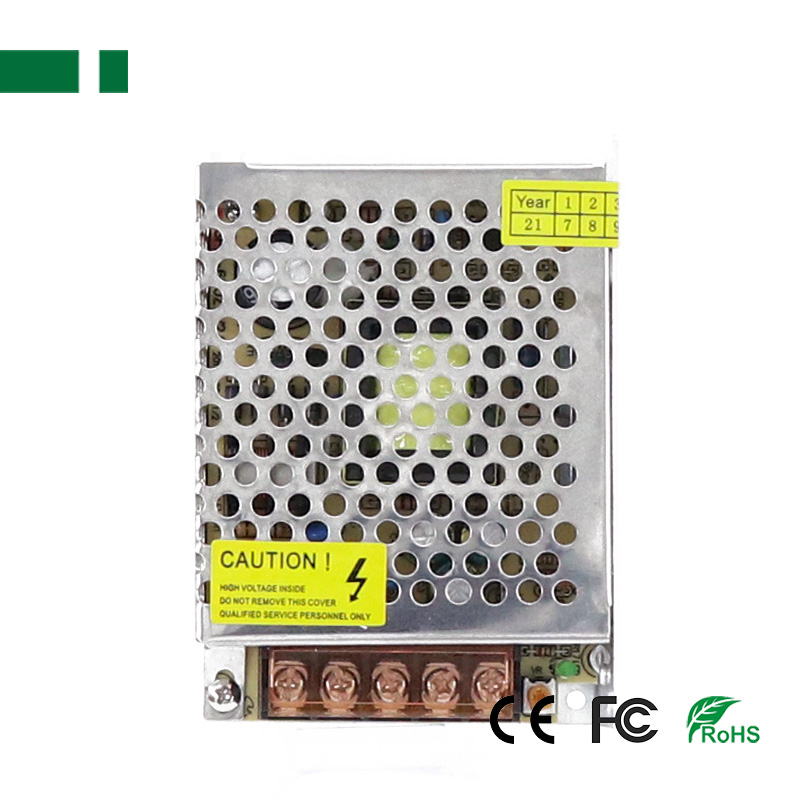

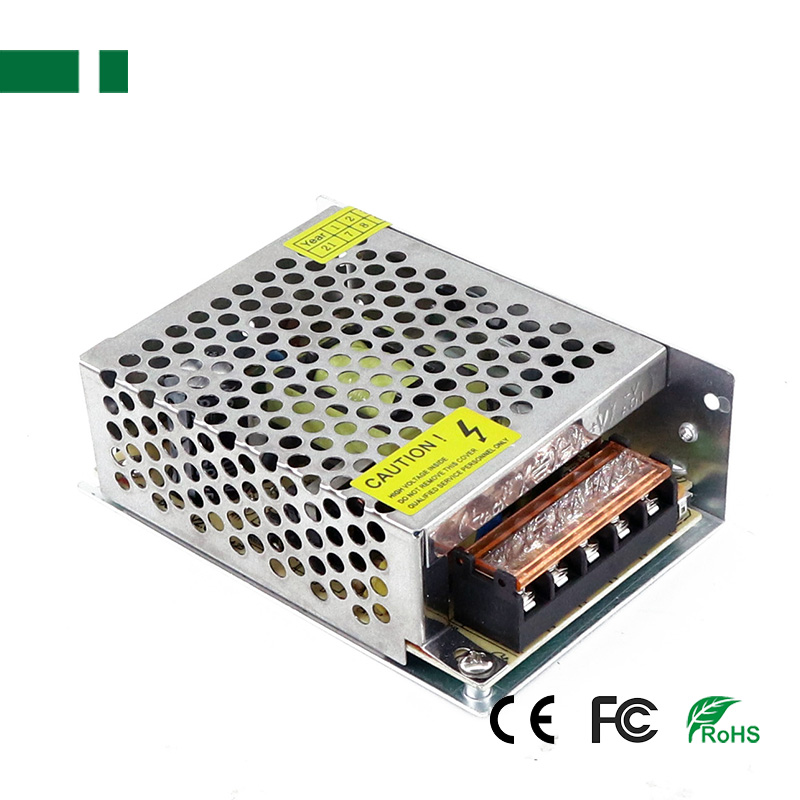

CP1207-5A(S) 60W-Switching-Power-Supply

60W Output Switching Power Supply
DC12V 5A
100% full load burn-in test
Product description: DC12V 5A 60W Switching Power Supply ◆ Built in EMI filter with tiny ripple ◆ 100% full load burn-in test ◆ Protection: Short circuit/ Overload/ Over voltage/ Over temperature
INQUIRY EMAIL

Features:

1. 60W Output Switching Power Supply
2. Output voltage & current: DC12V 5A
3. Input voltage range: 85~264VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
8. Built-in constant current limiting circuit (C.C.+C.V.mode);

More Model	DC Output	Input Current	Dimension	Weight
CP1207-1A	DC12V 1A 15W	0.14A/ 115V, 0.07A/ 230V	714032mm	59g
CP1207-2A	DC12V 2A 24W	0.24A/ 115V, 0.12A/ 230V	855933mm	88g
CP1207-3A	DC12V 3A 36W	0.36A/ 115V, 0.18A/ 230V	1107835mm	183g
CP1207-5A(S)	DC12V 5A 60W	0.54A/ 115V, 0.27A/ 230V	1107835mm	191g
CP1207-8.5A	DC12V 8.5A 100W	0.88A/ 115V, 0.44A/ 230V	1609842mm	312g
CP1207-10A	DC12V 10A 120W	1.1A/ 115V, 0.55A/ 230V	1999842mm	415g
CP1207-15A	DC12V 15A 180W	1.32A/ 115V, 0.66A/ 230V	1999842mm	425g
CP1207-20A	DC12V 20A 240W	2.2A/ 115V, 1.1A/ 230V	20311556mm	663g
CP1208-20A	DC12V 20A 240W	2.2A/ 115V, 1.1A/ 230V	20311550mm	676g
CP1208-30A	DC12V 30A 360W	3.2A/ 115V, 1.6A/ 230V	21511550mm	720g
CP1208-40A	DC12V 40A 480W	3.5A/ 115V, 1.75A/ 230V	21511550mm	718g
CP1208-50A	DC12V 50A 600W	5.3A/ 115V, 3.15A/ 230V	24412667mm	1069g

Specification:

Model		CP1207-5A(S)
Output	DC output Voltage	12V±10%
	Output Current Range	0-5A
	Wave and Noise	120mVp-p
	DC output Power	60W
	Efficiency	85%
	DC Voltage Adjustable Scope	（at full load）≦0.5%
Input	Voltage Range	85~264VAC 47-63Hz
	Input Current	0.54A/115V, 0.27A/230V
	Leakage Current	<1mA/ 240VAC
	Inrush Current	Cold start 20A/120VAC, 40A/230VAC
Protection	Over-load	105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed
	Over-voltage	105%---150% Rated Voltage, Protection type: Shut off
	High-temperature	RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment	Working temperature and humidity	-10°C~+50°C, 20~90%RH
	Store temperature and humidity	-20°C~+85°C, 10~95%RH
	Temperature coefficient	±0.03%°C(0~50°C)
	Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Safety	Withstand voltage	I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Safety	Isolation resistance	I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC
Standard	CE EMC Standard	EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
	CE LVD Standard	EN61347-2-13:2014+A1:2017, EB61347-1:2015
	ROHS Standard	IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.

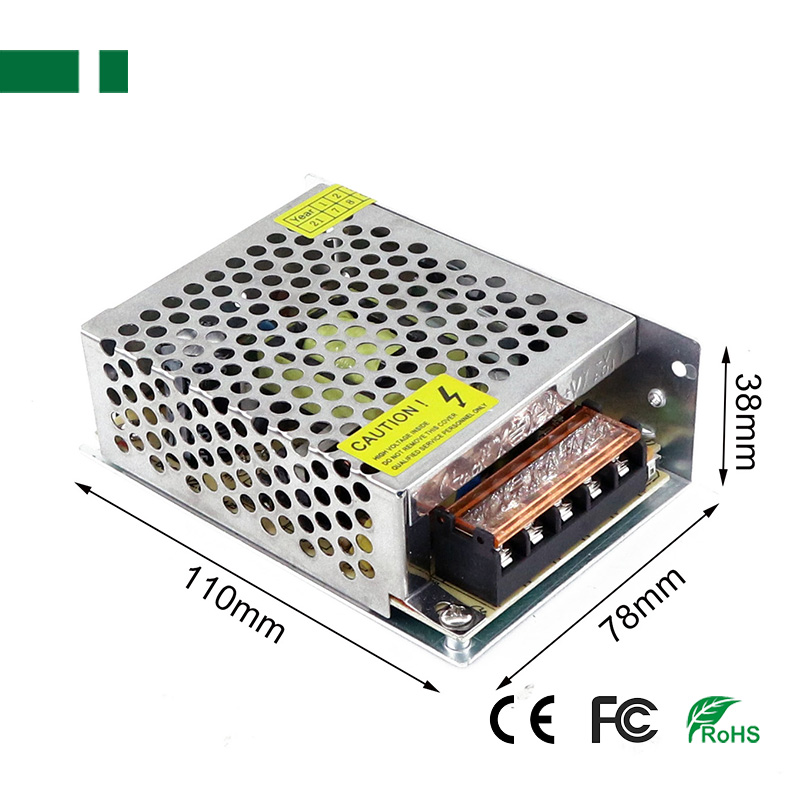

Other	Dimension	1107835mm (LWH)
Other	Weight	191g
	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure
