Power Adapter

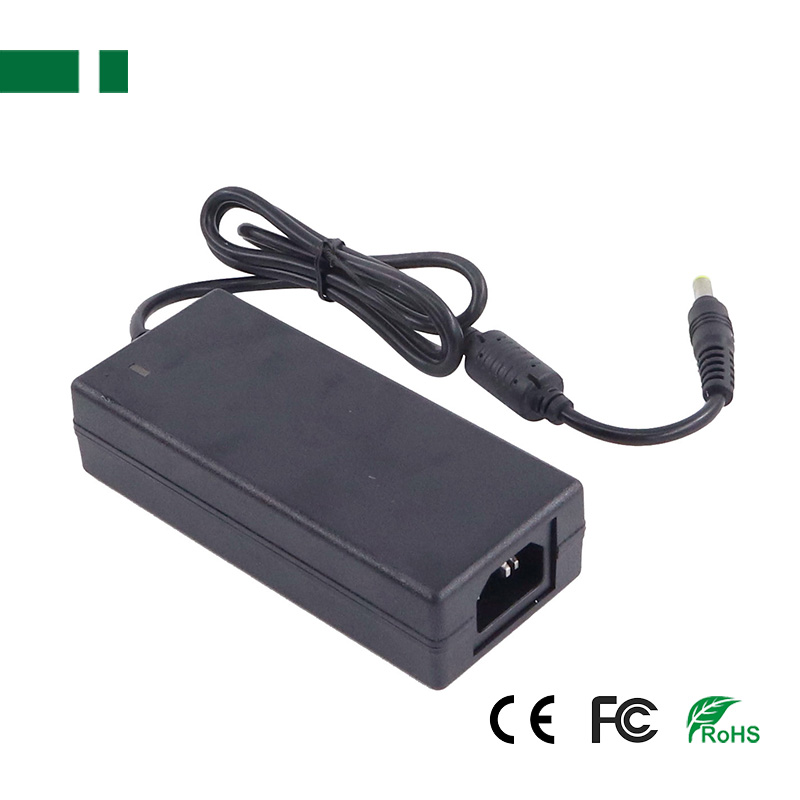

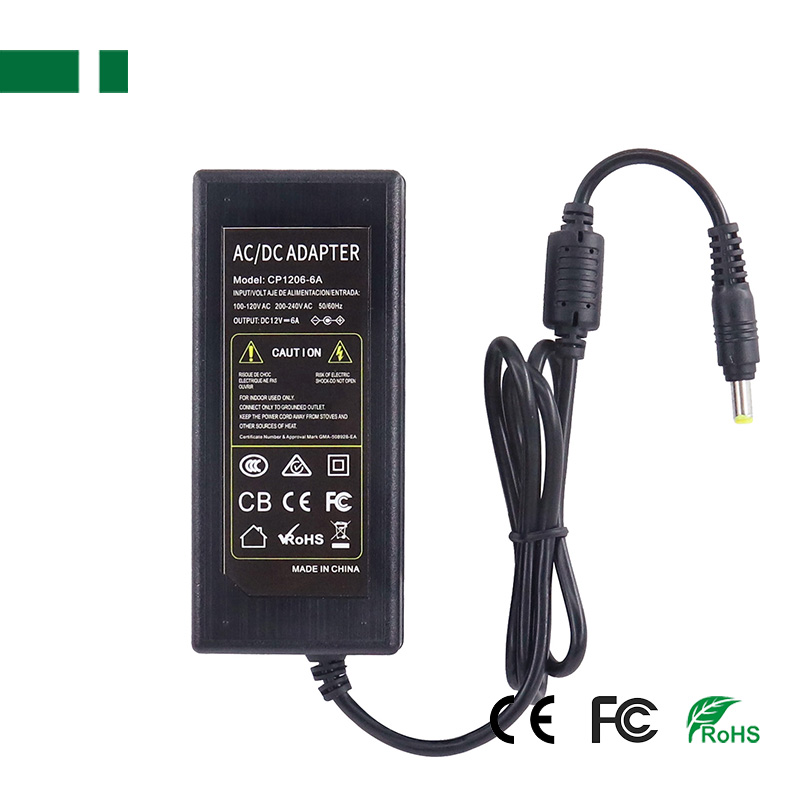

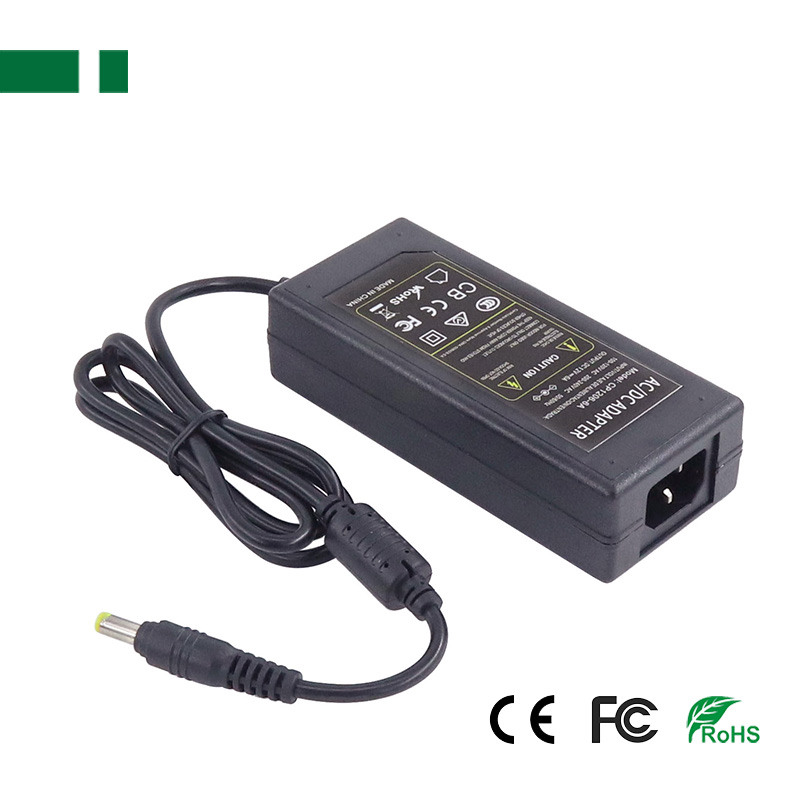

CP1206-6A 72W DC12V 6A Power Adapter for CCTV Cameras

1. DC12V 6A 72W Output Power Adapter
2. Input voltage range: 85~264VAC
3. 100% full load burn-in test
4. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
Product description: An AC-DC power supply or adapter is an electrical device that obtains electricity from a grid-based power supply and converts it into a different current, frequency, and voltage. AC-DC power supplies
INQUIRY EMAIL

Features:

1. 72W Output Power Adapter
2. Output voltage & current: DC12V 6A
3. Input voltage range: 85~264VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature

More Model	DC Output	Input Current	Dimension	Weight
CP1206-3A	DC12V 3A 36W	0.36A/ 115V, 0.18A/ 230V	509731mm	170g
CP1206-4A	DC12V 4A 48W	0.48A/ 115V, 0.24A/ 230V	5111431mm	190g
CP1206-5A	DC12V 5A 60W	0.54A/ 115V, 0.27A/ 230V	5712733mm	250g
CP1206-6A	DC12V 6A 72W	0.66A/ 115V, 0.33A/ 230V	5612832mm	260g

Specification:

Model		CP1206-6A
Output	DC output Voltage	12V±10%
	Output Current Range	0-6A
	Wave and Noise	120mVp-p
	DC output Power	72W
	Efficiency	85%
	DC Voltage Adjustable Scope	（at full load）≦0.5%
Input	Voltage Range	85~264VAC 47-63Hz
	Input Current	0.66A/115V, 0.33A/230V
	Leakage Current	<1mA/ 240VAC
	Inrush Current	Cold start 20A/120VAC, 40A/230VAC
Protection	Over-load	105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed
	Over-voltage	105%---150% Rated Voltage, Protection type: Shut off
	High-temperature	RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment	Working temperature and humidity	-10°C~+50°C, 20~90%RH
	Store temperature and humidity	-20°C~+85°C, 10~95%RH
	Temperature coefficient	±0.03%°C(0~50°C)
	Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Safety	Withstand voltage	I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Safety	Isolation resistance	I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC
Standard	CE EMC Standard	EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
	CE LVD Standard	EN61347-2-13:2014+A1:2017, EB61347-1:2015
	ROHS Standard	IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.

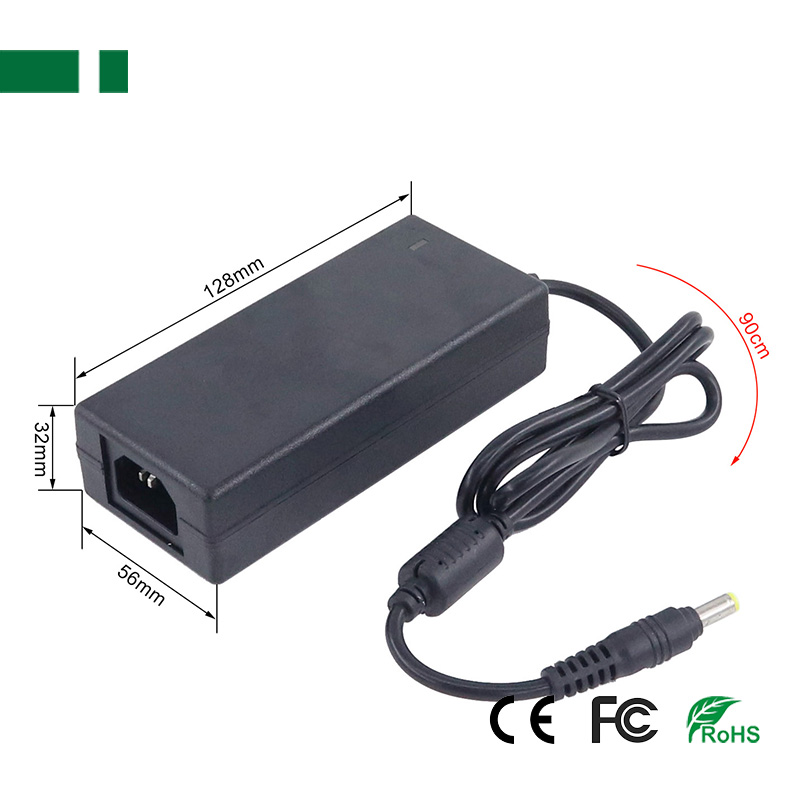

Other	Dimension	5612832mm (LWH)
Other	Weight	0.26kg
	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure
