Fiber Optic Media Converter

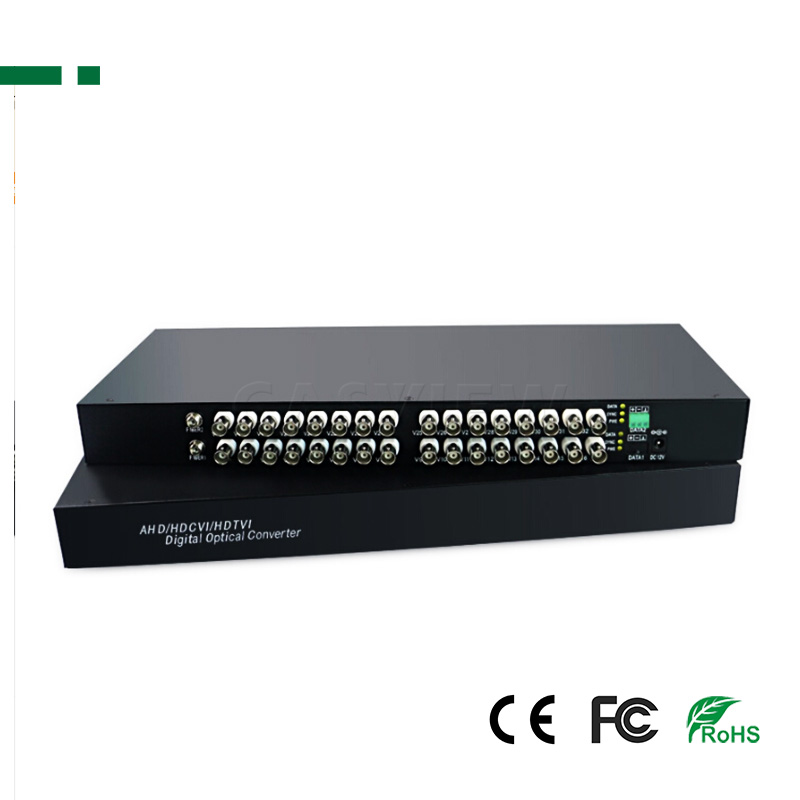

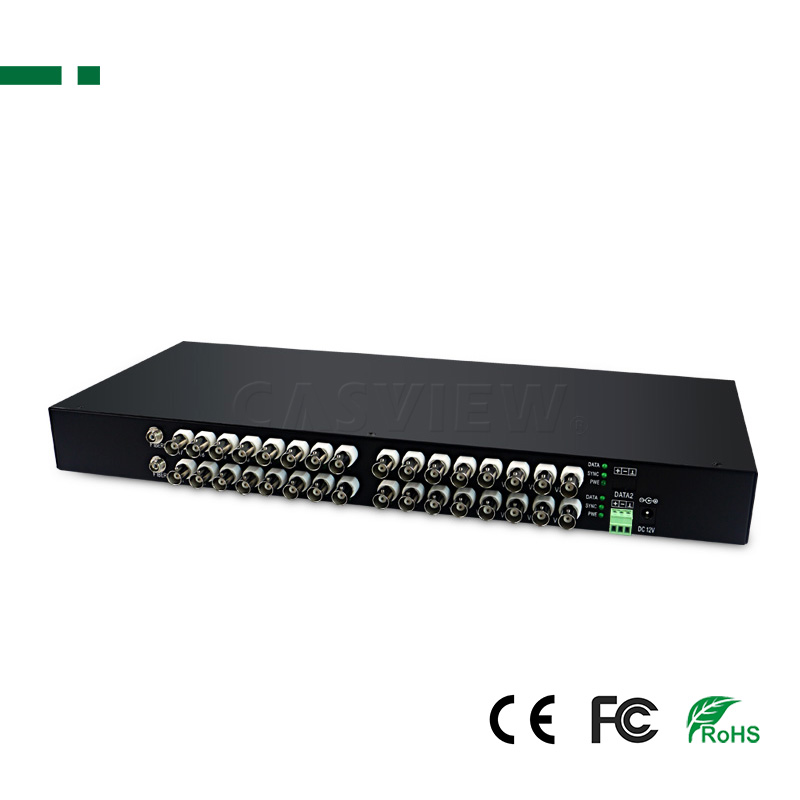

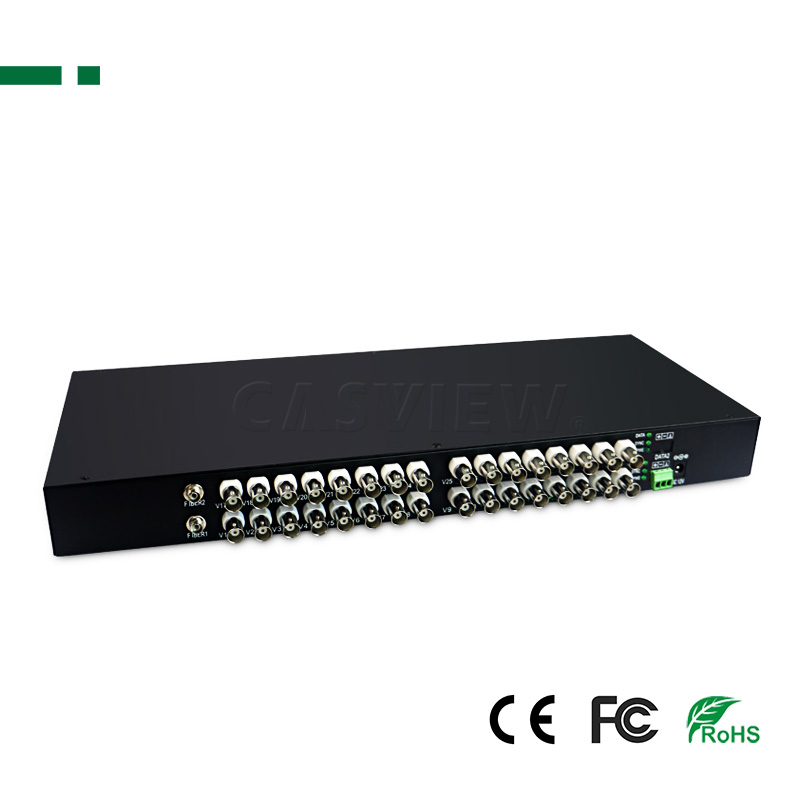

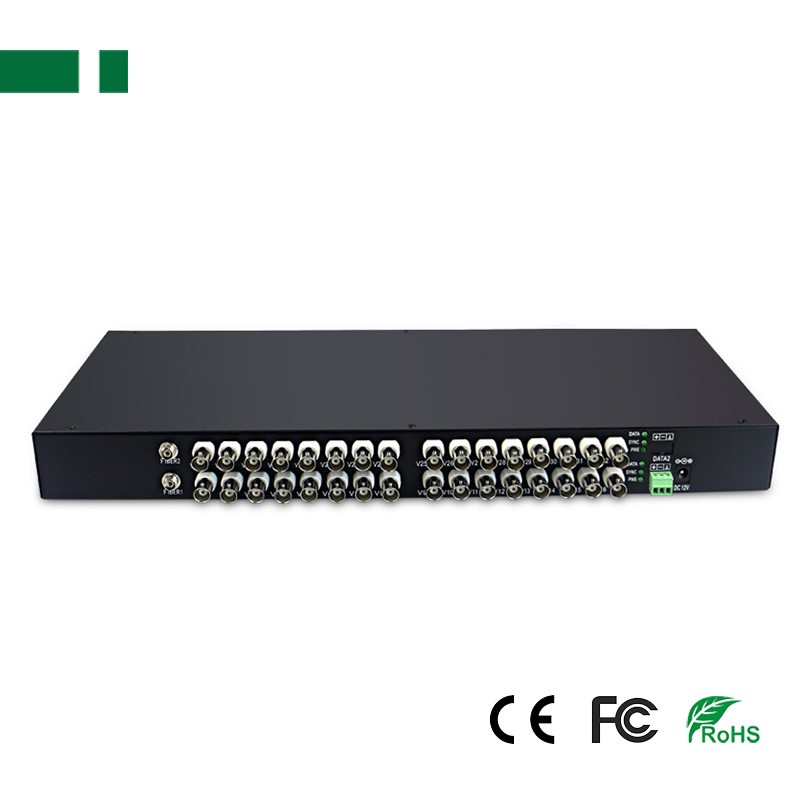

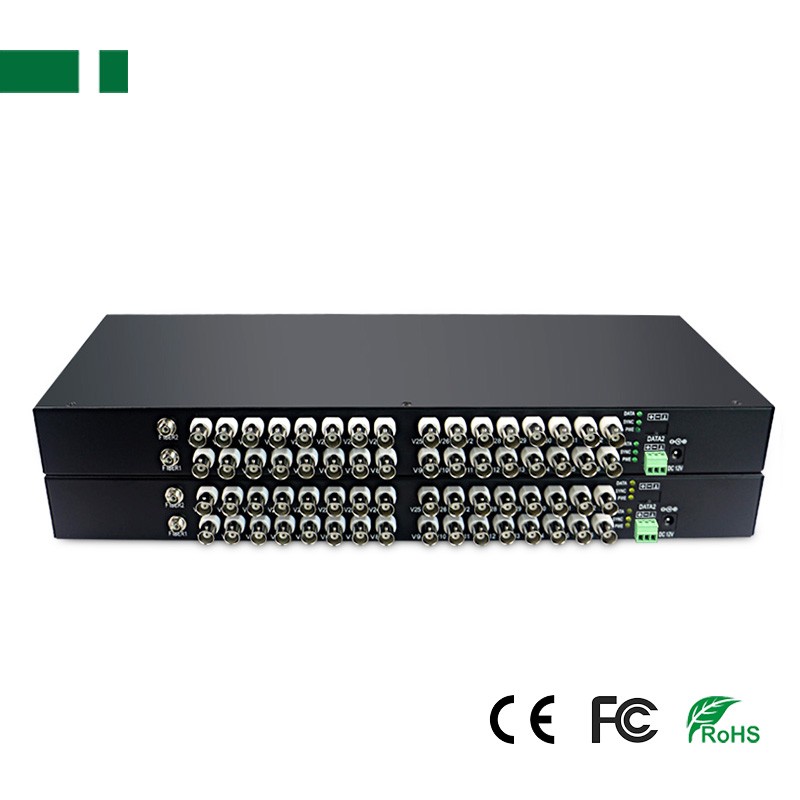

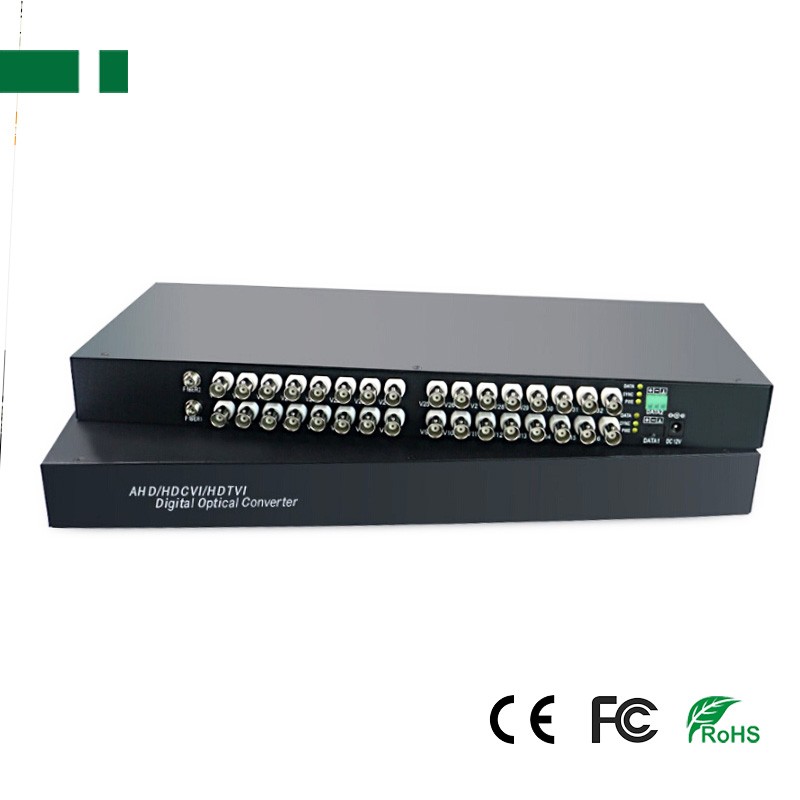

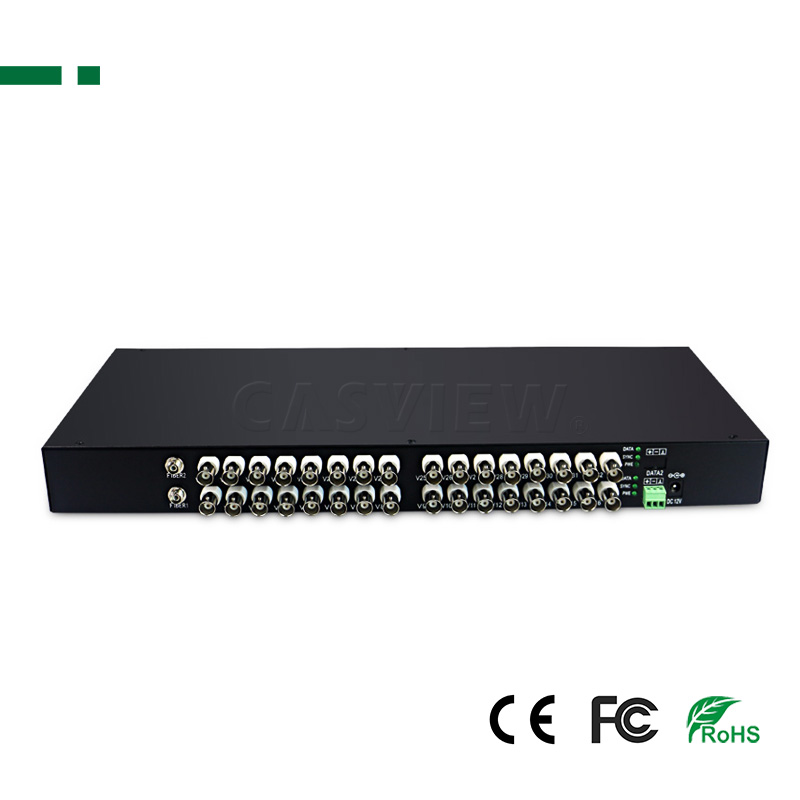

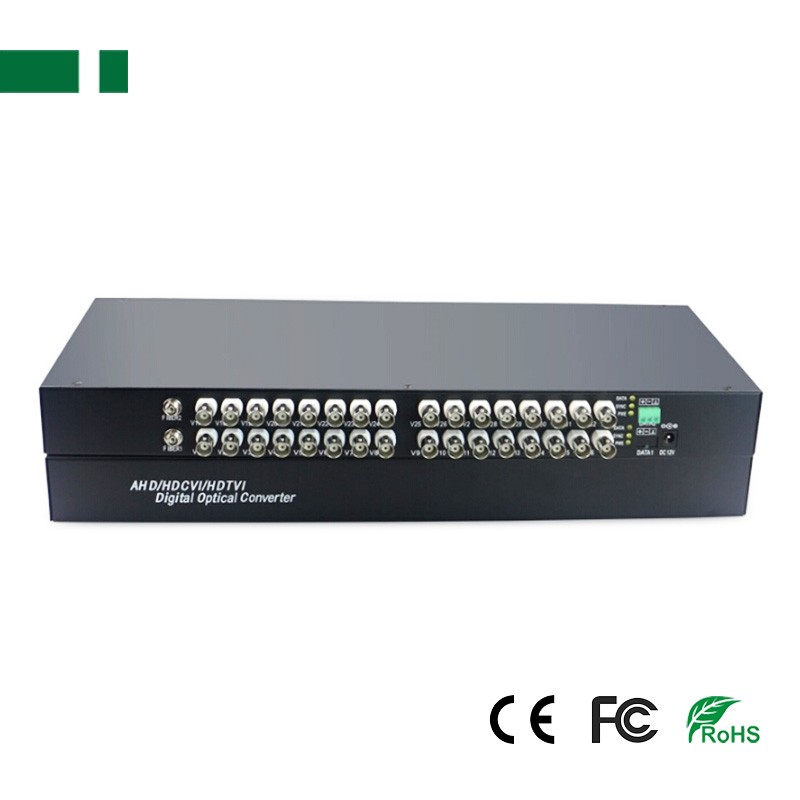

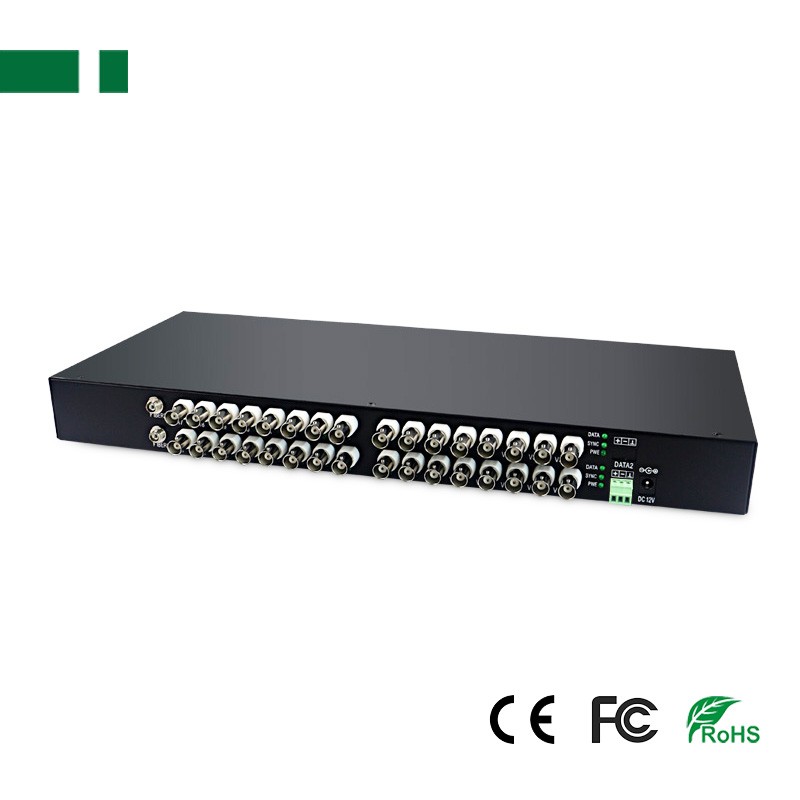

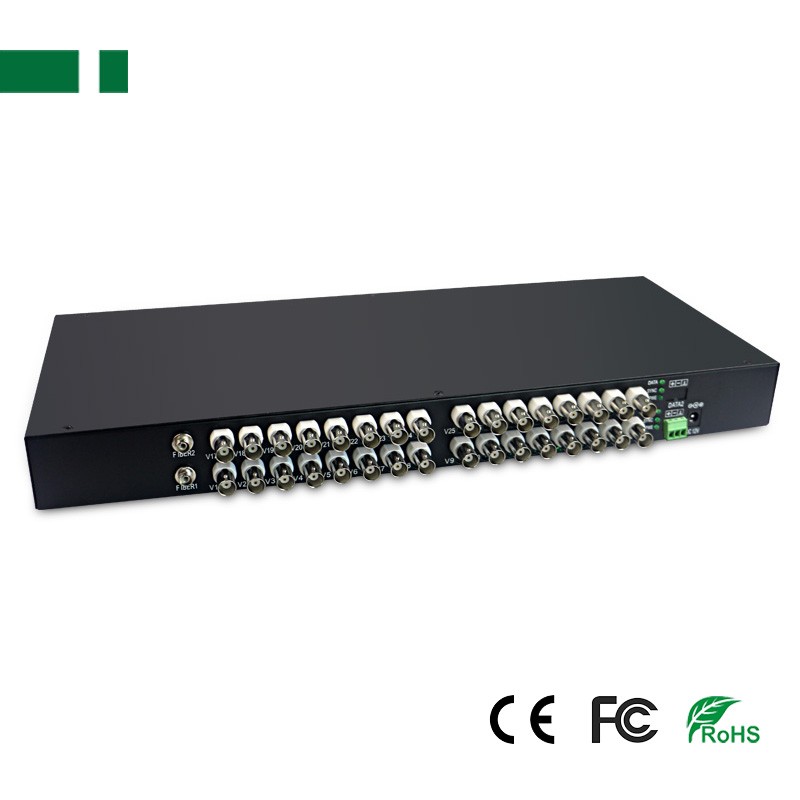

COV-HD32V1D-960P CVI-TVI-AHD Fiber Converter

COV-HD32V1D-960P CVI-TVI-AHD Fiber Converter

Support HD-CVI/TVI/AHD & CVBS
Support Resolution: 720P, 960P
Single-Mode Fiber transmit up to 10KM
Optical interface: FC interface
Product description: Multiple HD video optical transceiver supports HD-AHD/ CVI/ TVI & CVBS signals, Support 960P/ 720P, Transmission distance up to 10KM.
INQUIRY EMAIL

The coaxial HD optical transceiver is designed for long-distance optical fiber transmission HD-CVI/ AHD/ TVI composite video, and adopts self-developed uncompressed digital photoelectric conversion technology. Use fiber-optic point-to-point transmission of megapixel HD video for video transmission without delay and high reliability.
Multiple HD coaxial HD composite video can be transmitted at the same time.Supports 1280×720,1280x960 resolutions, 1280H/25f, 1280H/30f 1280H/50f, 1280H/60f.

Feature:

● Compatible with Hikvision (TVI), Dahua (CVI), XM (AHD) Coaxial HD camera;

-CVI: 960P/1.3MP (1280×960), 720P/1MP (1280×720);
-AHD: 960P/1.3MP (1280×960), 720P/1MP (1280×720);
-TVI: 960P/1.3MP (1280×960), 720P/1MP (1280×720);

● Compatible with both digital analog cameras and coaxial HD cameras;
● Transmission distance: 0 - 10KM;
● 12V power supply, shared camera power supply does not burn out the machine;
● Internal use of power protection chip to effectively prevent voltage instability and burn out the machine.

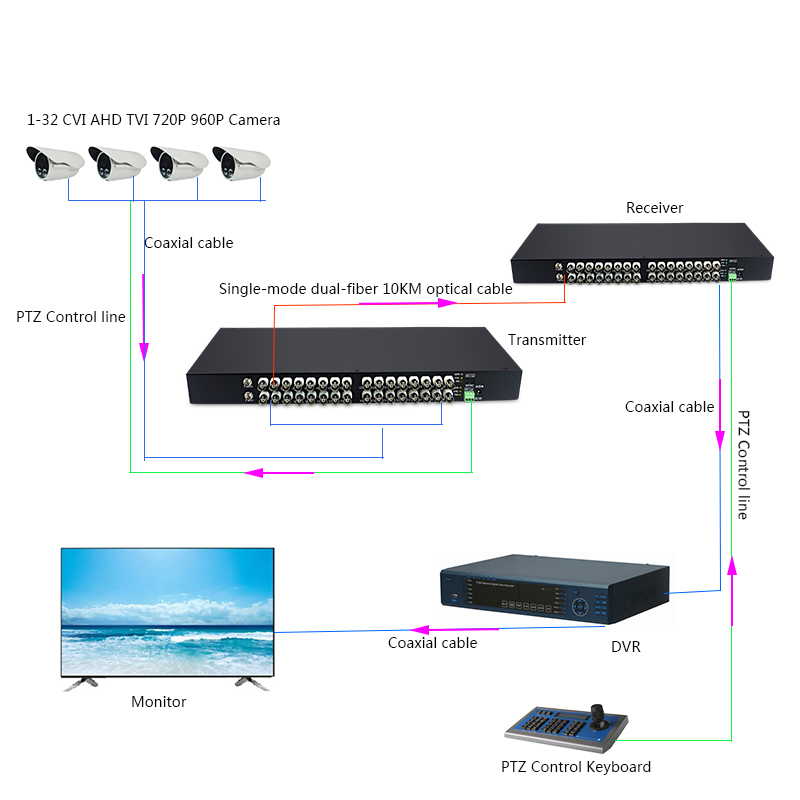

Application:
● Transportation monitoring system;
● Security monitoring system;
● Remote multimedia teaching, campus monitoring & video conferencing system etc.;

● Intelligent community system.

Specification:

Model	COV-HD32V-960P	COV-HD32V1D-960P
Description	32 channelS HD-CVI/ TVI/ AHD Coaxial HD Fiber Converter
Fiber interface	Single mode Dual fiber FC/ UPC
Input/Output Impedance	75Ω (Non-equilibrium)
Video Bandwidth	45MHz
Video Voltage	500MVP-P
Input Reflection Loss on Transmitting Terminal	>15dB
Maximum Jitter on Receiving Terminal	<0.2UI
Rise/Fall Time on Video Receiving Terminal	<0.8ns
Video interface	BNC
Transmission distance	10KM
Video bandwidth	45MHZ
Video resistance	75Ω
Support video format	HD-CVI/ HD-TVI/ HD-AHD
Support video pixels	1280×960P, 1280×720P
Support Cameras	CVI: 960P/1.3MP (1280×960), 720P/1MP (1280×720)
	AHD: 960P/1.3MP (1280×960), 720P/1MP (1280×720)
	TVI: 960P/1.3MP (1280×960), 720P/1MP (1280×720)
Data format	N/A	RS485, does not support coaxial encryption
Data rate	N/A	0~200 Kbps
Bit error rate	N/A	< 10-9
Data interface	N/A	Terminal Block
Power Consumption	2.5W (input: DC12V 1A)
Working Environment	Operating temperature: -30 °C ~ +75 °C
	Storage temperature: -40 °C ~ +85 °C
	Relative humidity: 0 ~ 95% (no condensation)
Power Adapter	External power adapter (input AC100-240V 50/ 60Hz; output 12V 2A)
Dimension	Product Size: 188(L)185(W)45(H)mm
