Ultra-Thin Power Supply

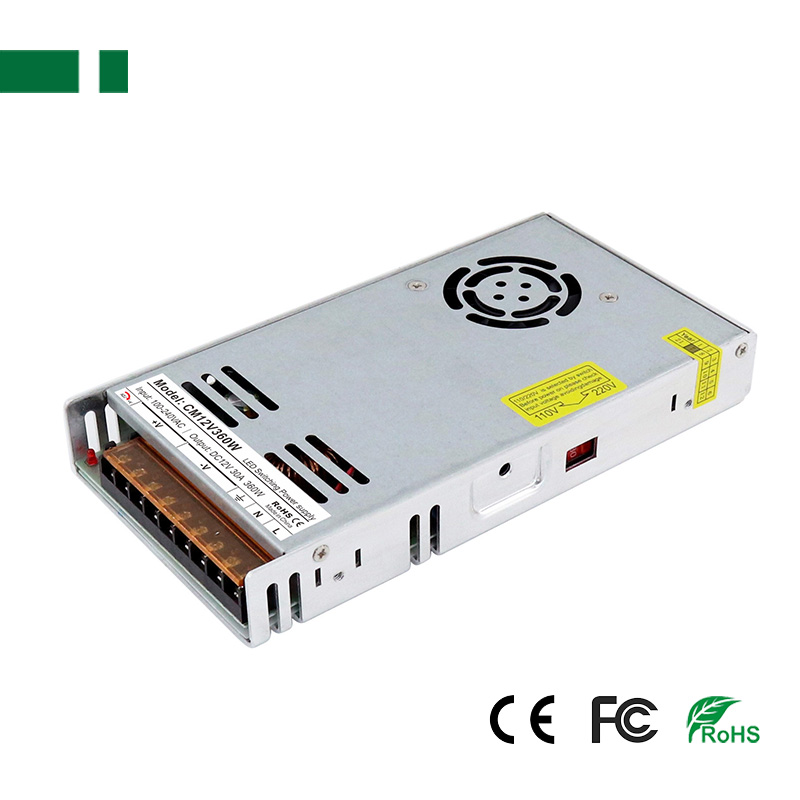

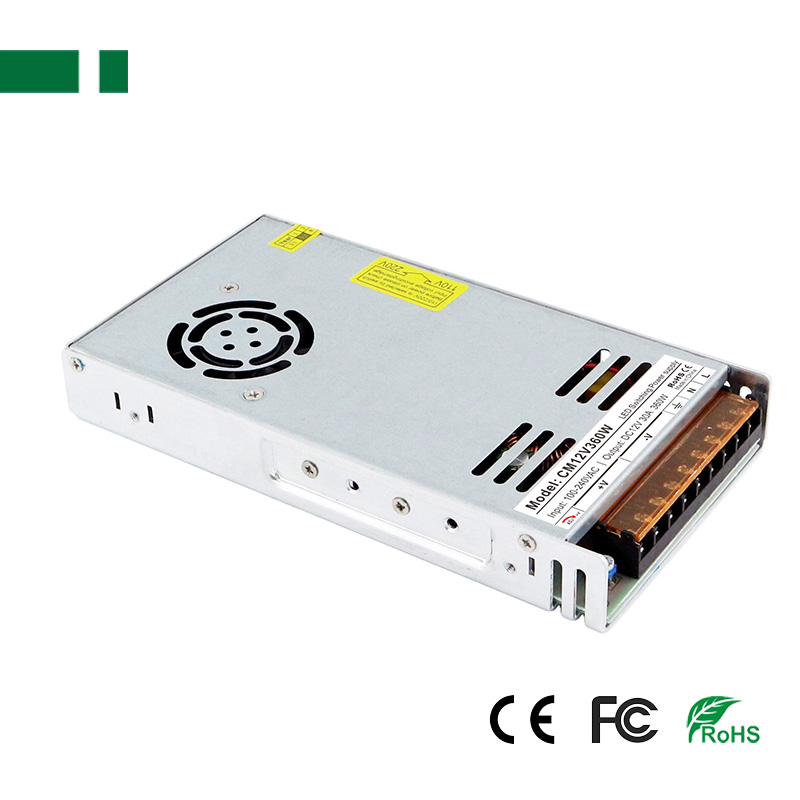

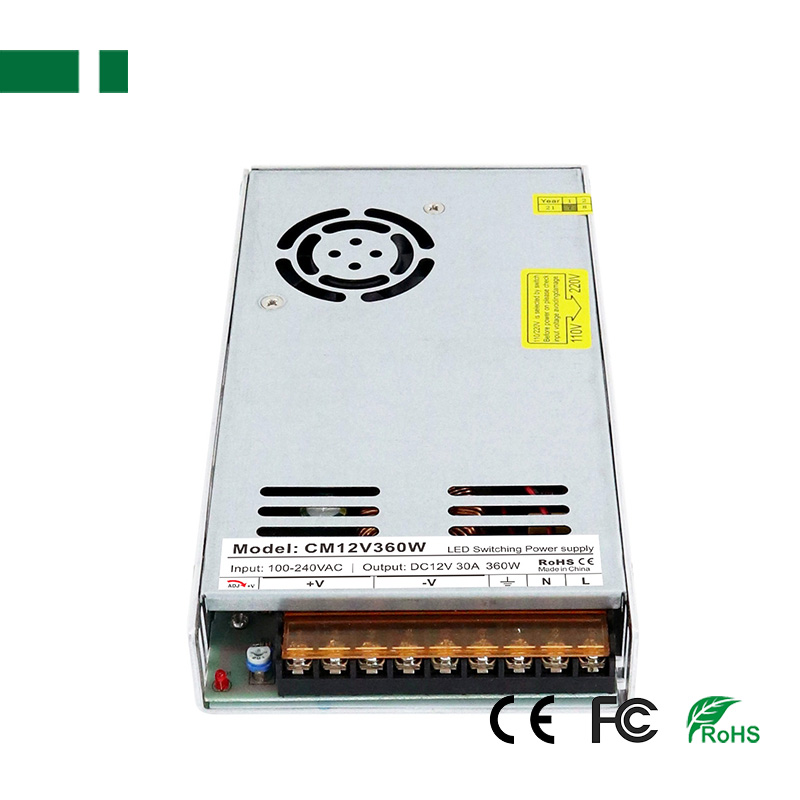

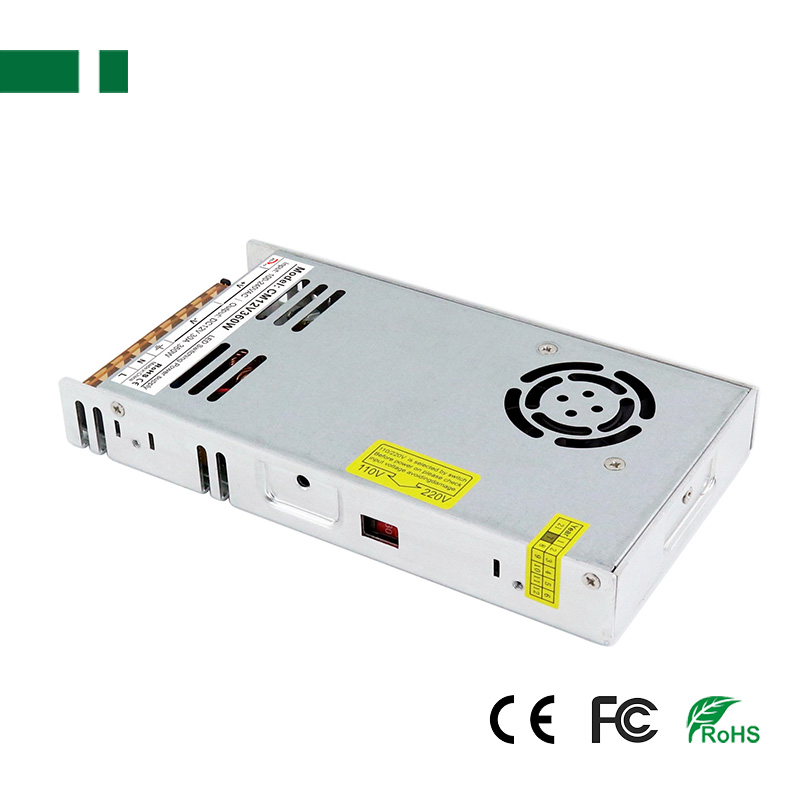

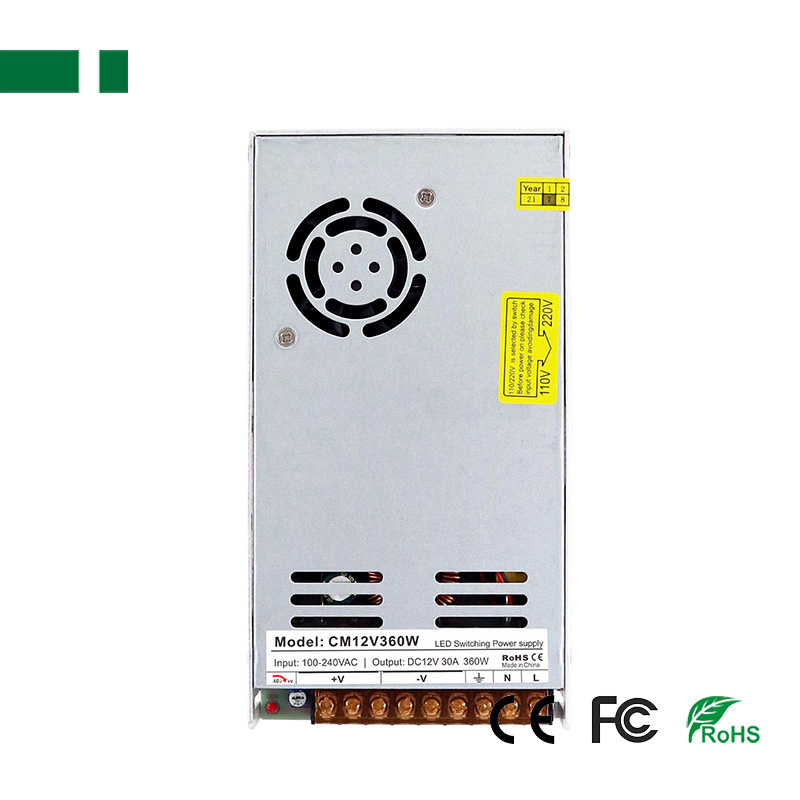

CM12V360W DC12V-24V 360W Switching Power Supply

CM12V360W DC12V-24V 360W Switching Power Supply

360W Switching Power Supply
DC12V 30A
100% full load burn-in test
Product description: ◆ Built in EMI filter with tiny ripple ◆ 100% full load burn-in test ◆ Protection: Short circuit/ Overload/ Over voltage/ Over temperature
INQUIRY EMAIL

Features:

1. 360W Output Switching Power Supply
2. Output voltage & current: DC12V 30A
3. Input voltage range: 180~260VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Forced air Cooling by built-in DC fan
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
8. Built-in constant current limiting circuit (C.C.+C.V.mode);

DC12V-DC24V Thin Switching Power Supply for LED Lightbox
More Model	DC Output	Input Voltage	Input Current	Dimension	Weight
CM12V60W	DC12V 5A 60W	180~260VAC	0.27A/ 230V	598533mm	180g
CM12V75W	DC12V 6.25A 75W	180~260VAC	0.35A/230V	1049730mm	220g
CM12V100W	DC12V 8.3A 100W	180~260VAC	0.44A/ 230V	1629730mm	370g
CM12V150W	DC12V 12.5A 150W	180~260VAC	0.67A/230V	1629730mm	370g
CM12V200W	DC12V 16.5A 200W	180~260VAC	0.9A/230V	21511530mm	600g
CM12V250W	DC12V 21A 250W	180~260VAC	1.1A/230V	21511530mm	600g
CM12V360W	DC12V 30A 360W	180~260VAC	1.6A/230V	21511530mm	680g
CM12V400W	DC12V 33.3A 400W	180~260VAC	1.8A/230V	21511530mm	680g

Specification:

Model		CM12V360W
Output	DC output Voltage	12V±10%
	Output Current Range	0-30A
	Wave and Noise	120mVp-p
	DC output Power	360W
	Efficiency	85%
	DC Voltage Adjustable Scope	（at full load）≦0.5%
Input	Voltage Range	180~260VAC 47-63Hz
	Input Current	1.6A/230V
	Leakage Current	<1mA/ 240VAC
	Inrush Current	Cold start 36A/ 230VAC
Protection	Over-load	105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed
	Over-voltage	105%---150% Rated Voltage, Protection type: Shut off
	High-temperature	RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment	Working temperature and humidity	-10°C~+50°C, 20~90%RH
	Store temperature and humidity	-20°C~+85°C, 10~95%RH
	Temperature coefficient	±0.03%°C(0~50°C)
	Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Safety	Withstand voltage	I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Safety	Isolation resistance	I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC
Standard	CE EMC Standard	EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
	CE LVD Standard	EN61347-2-13:2014+A1:2017, EB61347-1:2015
	ROHS Standard	IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.

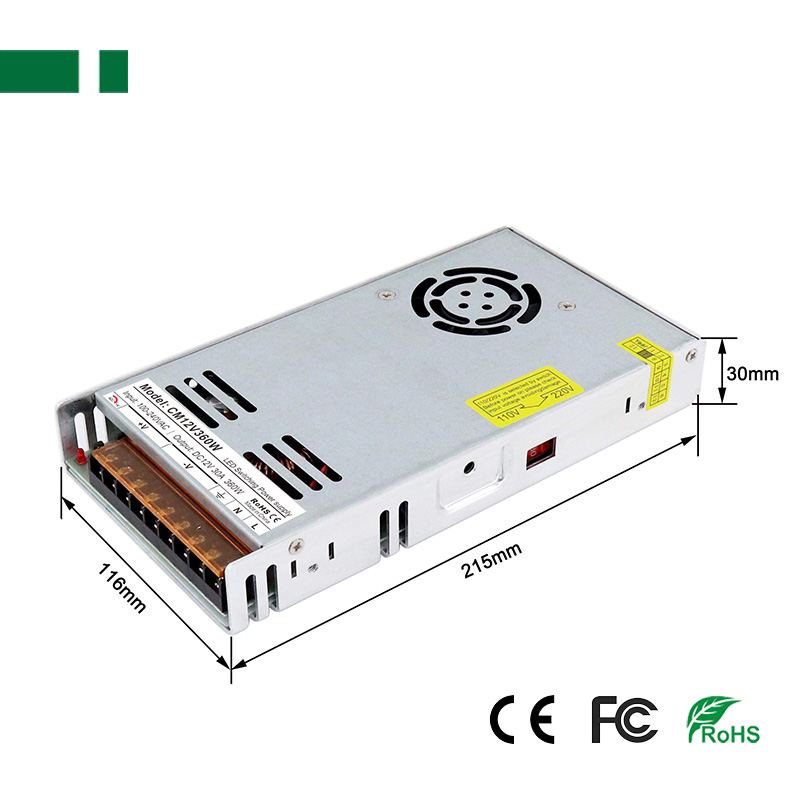

Other	Dimension	21511530mm (LWH)
Other	Weight	0.68kg
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure
