Fiber Optic Loopback

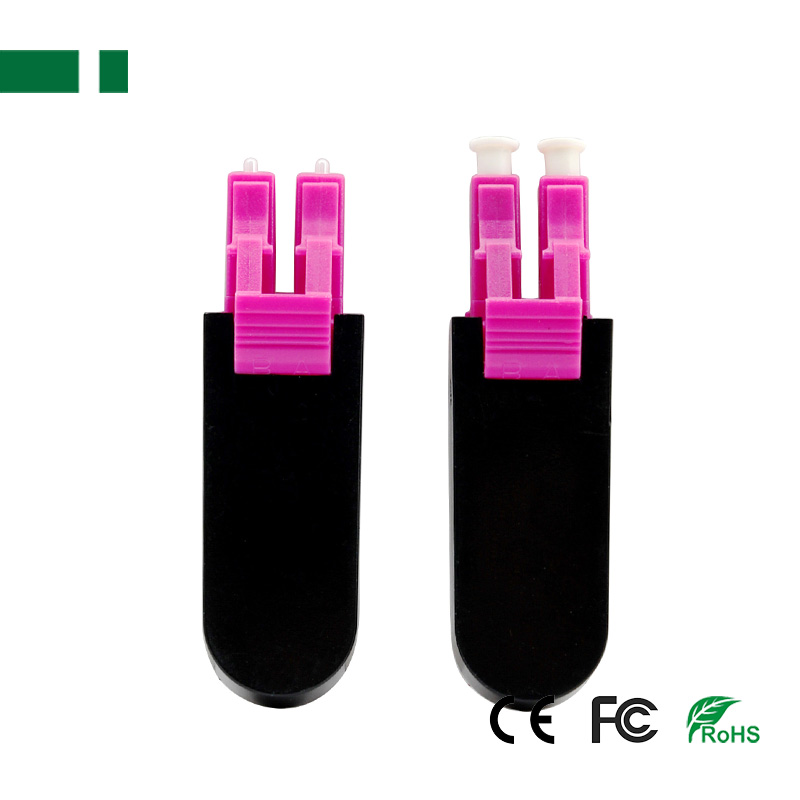

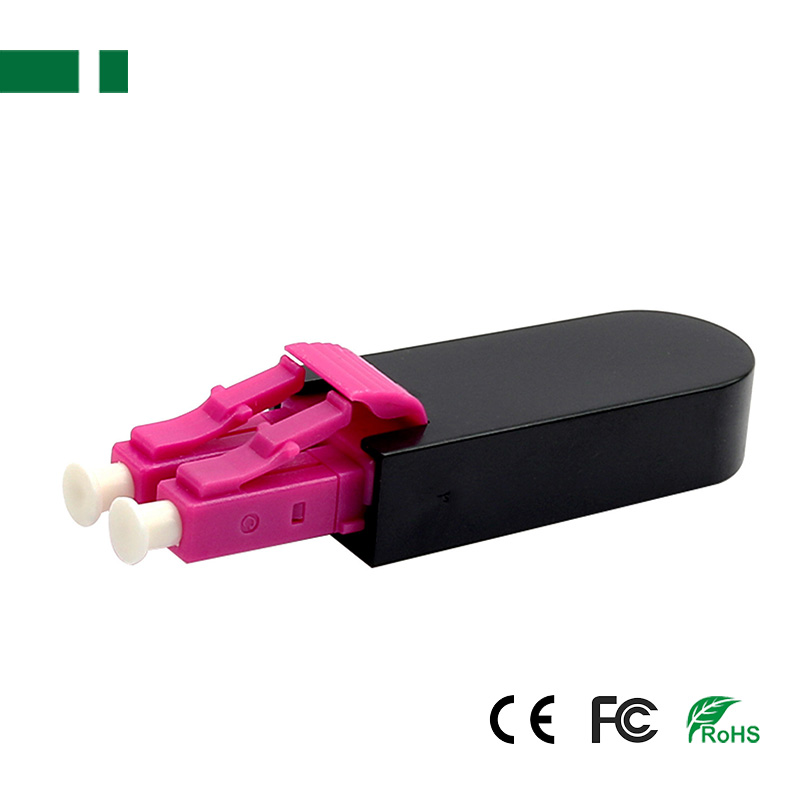

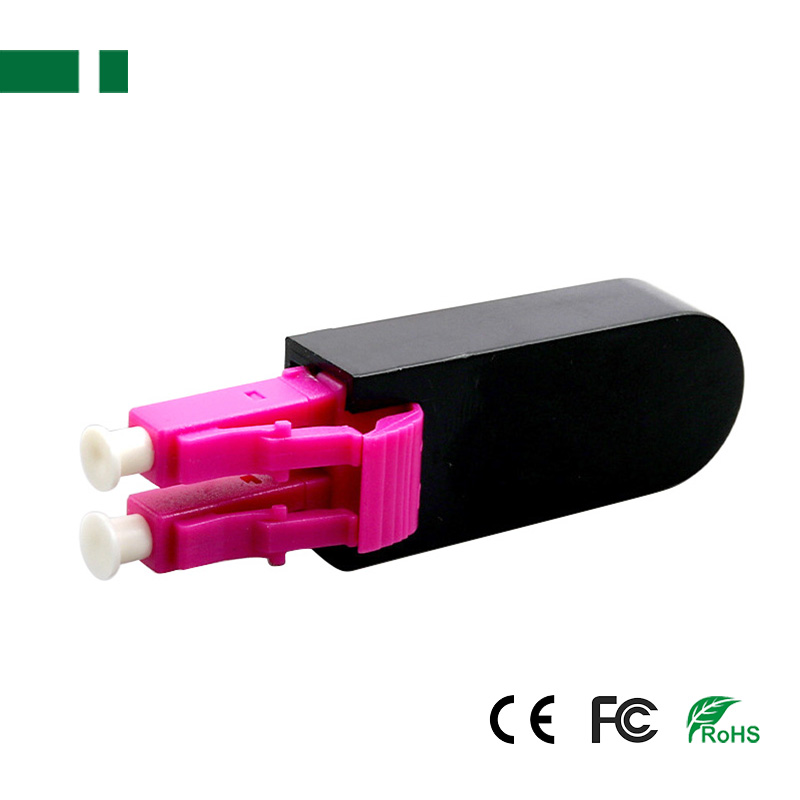

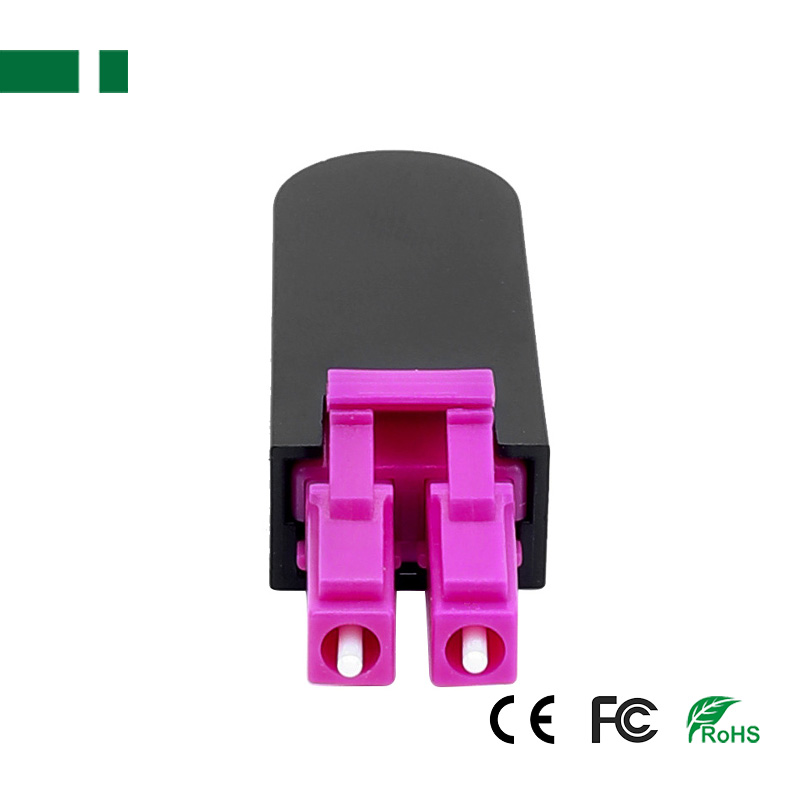

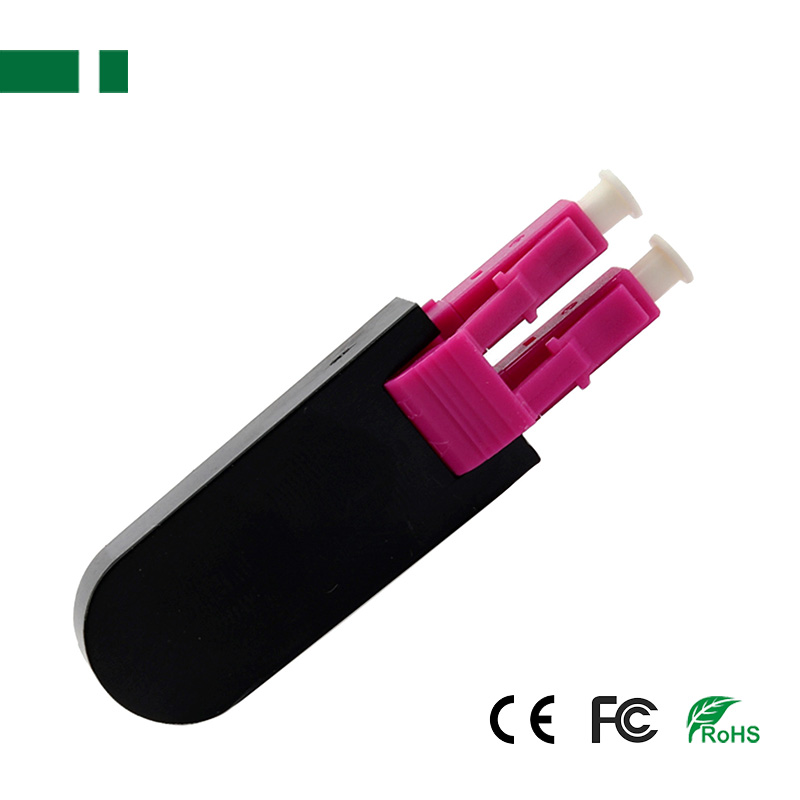

CLC-OM4 LC/UTP Multi-mode Fiber Optic Loopback
- LC/UTP Duplex Fiber Optic Loopback Adapter
- Multi-mode: 62.5/125μm OM1
- Multi-mode: 50/125μm OM2 OM3 OM4
- Single-mode: 9/125μm SM
- Product description: Fiber Loopback Module is designed to provide a media of return patch for a fiber optic signal. Typically, it is used for fiber optic testing applications or network restorations.
Description:
Fiber Loopback Module is designed to provide a media of return patch for a Fiber Optic signal. Typically, it is used for fiber optic testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem. Fiber Loopback Module is absolutely an economical solution for a number of fiber optic test applications.
Features:
1. Low Insertion Loss≤0.3dB, High Return Loss≥20dB.
2. Easy insertion and extraction with push-pull design.
3. Used in Testing 10G or 40G or 100G LC/UPC Interface Transceivers.
4. Designed for Troubleshooting Network Failure Nodes.
Specification:
Fiber Loopback Module is designed to provide a media of return patch for a Fiber Optic signal. Typically, it is used for fiber optic testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem. Fiber Loopback Module is absolutely an economical solution for a number of fiber optic test applications.
Features:
1. Low Insertion Loss≤0.3dB, High Return Loss≥20dB.
2. Easy insertion and extraction with push-pull design.
3. Used in Testing 10G or 40G or 100G LC/UPC Interface Transceivers.
4. Designed for Troubleshooting Network Failure Nodes.
Specification:
| Model | CLC-OM1 | CLC-OM2 | CLC-OM3 | CLC-OM4 | CLC-SM |
| Item | LC/UTP Duplex Fiber Optic Loopback Adapter | ||||
| Fiber Type | OM1 | OM2 | OM3 | OM4 | SM |
| Multi/Single Mode | MM: 62.5/125μm | multi-mode: 50/125μm | SM: 9/125μm | ||
| Connector | LC/UTP | ||||
| Insertion Loss | ≤0.2dB | ||||
| Consistency | 0.1dB | ||||
| Return loss | PC≥45dB; UPC≥50dB; APC≥60dB. | ||||
| Wavelength | 850nm, 1300nm | ||||
| Usage times | 1000 times | ||||
| Type of Ferrule | ceramics | ||||
| Operating Temperature | —40℃~85℃ | ||||
| Storage Temperature | —55℃~85℃ | ||||

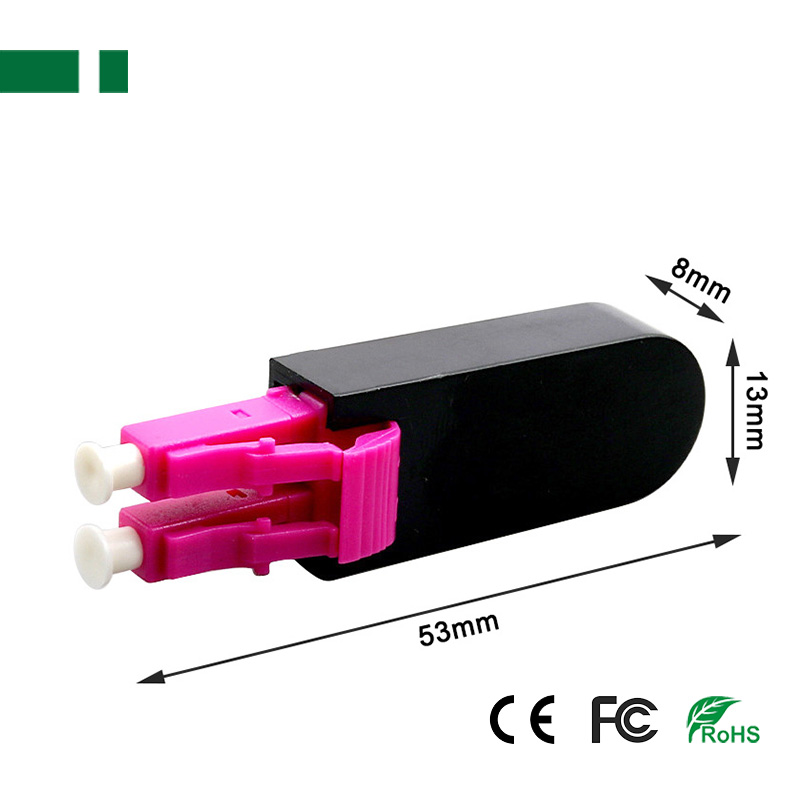

| Size | 53*13*8mm | ||||
| Weight | 6g | ||||
| Package | 100pcs/pack, 160*270mm, 546g | ||||
