Optic Fiber mechanical splice

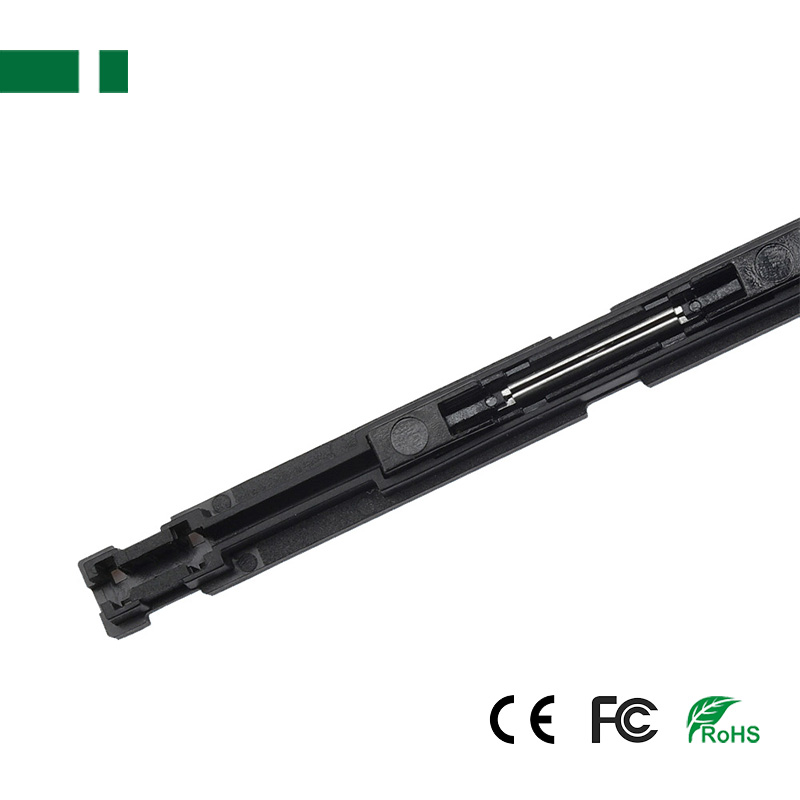

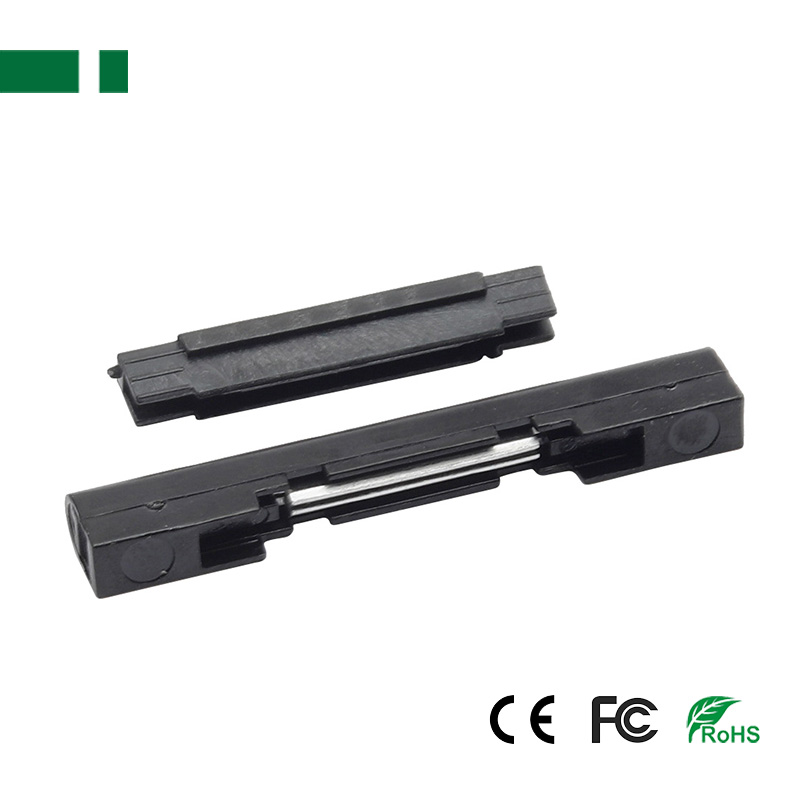

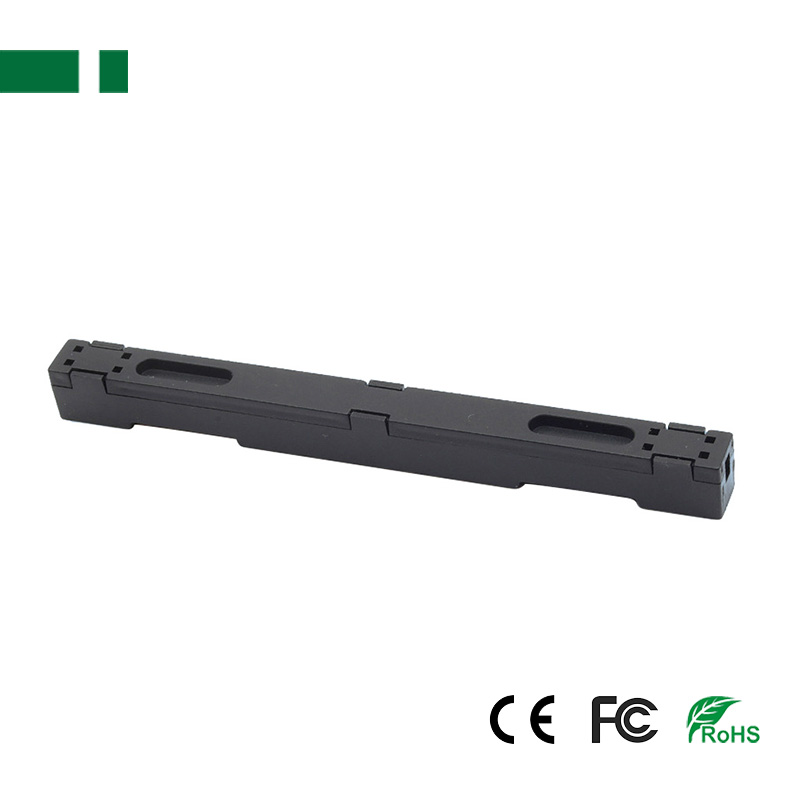

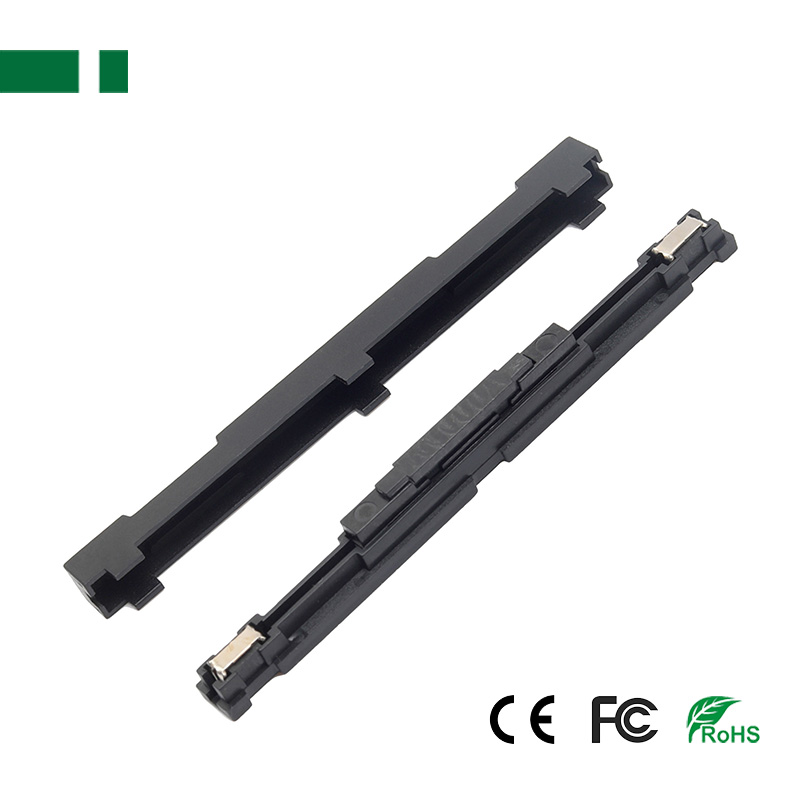

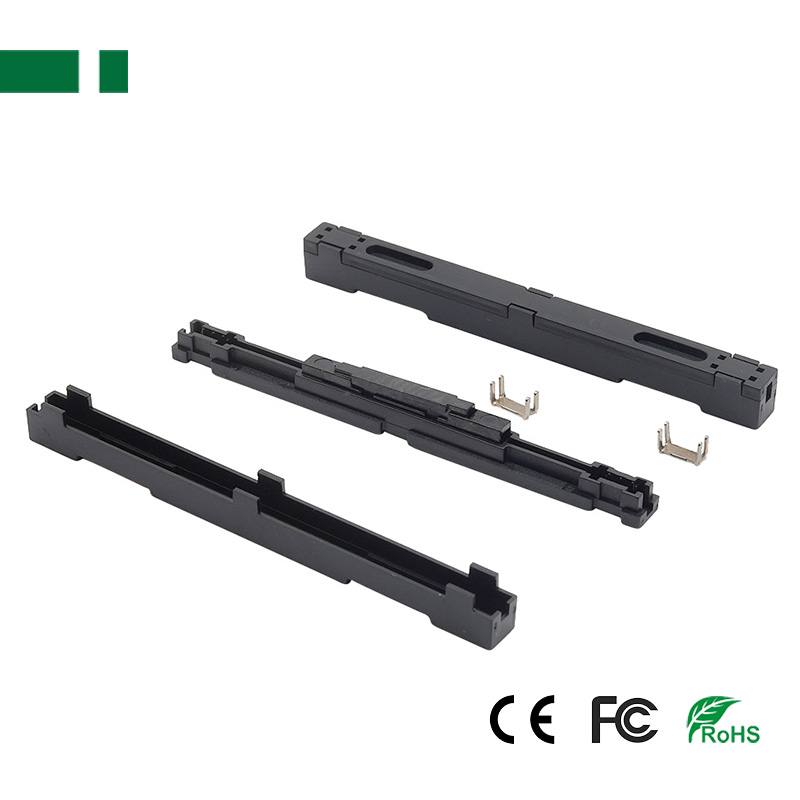

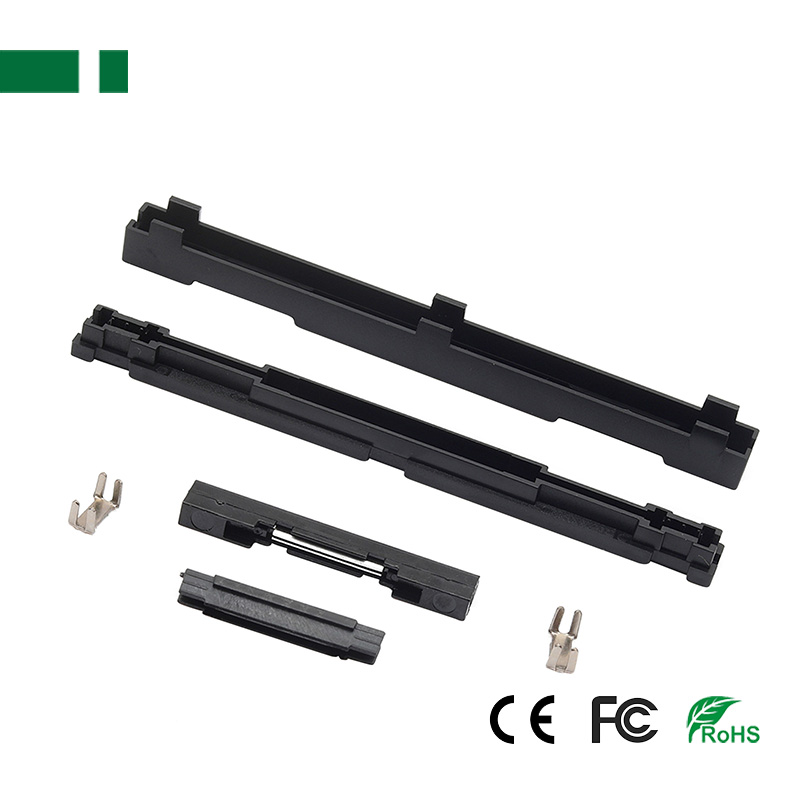

CL924B Fiber Optic Mechanical Quick Splice
- Fiber Optic Mechanical Quick Splice
- Fiber Diameter: 125μm
- Housing: ABS
- Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
- Product description: The optical fiber splice provides a precise, simple and low cost method of splicing optical fiber. The splice design utilizes an articulated metalic splicing element held inside a molded plastic body
Fiber Optic Mechanical Quick Splice
Description
The optical fiber splice provides a precise, simple and low cost method of splicing optical fiber. The splice design utilizes an articulated metalic splicing element held inside a molded plastic body and cap to provide a fast, permanent, low-loss splice
Feature:
1, Metal V groove design, optical fiber butt precision is high, technical indicators are excellent.
2, The core structure: the box structure design, good sealing performance, matching fluid is not easy to lose, weather resistance is strong;
3, Applicable optical cable: suitable for any combination of 0.25mm optical fiber and 0.9mm optical fiber.
4, Simple operation, fast construction speed, high success rate of installation, long life cycle, simple and convenient maintenance later.
5, Application: for FTTH engineering and optical cable repair.
Specification:
Description
The optical fiber splice provides a precise, simple and low cost method of splicing optical fiber. The splice design utilizes an articulated metalic splicing element held inside a molded plastic body and cap to provide a fast, permanent, low-loss splice
Feature:
1, Metal V groove design, optical fiber butt precision is high, technical indicators are excellent.
2, The core structure: the box structure design, good sealing performance, matching fluid is not easy to lose, weather resistance is strong;
3, Applicable optical cable: suitable for any combination of 0.25mm optical fiber and 0.9mm optical fiber.
4, Simple operation, fast construction speed, high success rate of installation, long life cycle, simple and convenient maintenance later.
5, Application: for FTTH engineering and optical cable repair.
Specification:
| ITEM | Single Optical Fiber Mechanical Splice for Telecommunication | ||
| Model | CL924B | CL925B | CL925BP |
| Dimension | 90*0.4*0.6mm | Φ0.2*40mm | Φ0.6*90mm |
| Net Weight | 2.7g | 0.7g | 2.8g |
| Fiber Diameter | 125μm (657A & 657B) | ||
| Compact Diameter | 250μm & 900μm | ||
| Housing | ABS | ||
| Scope of Application | 3.0*2.0mm Butterfly shaped leather Cable | ||
| Application | Single mode & Multi mode | ||
| Insert Loss | ≤0.1dB | ||
| Return Loss | ≤40dB. | ||
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times mating) | ||
| Bare Fiber Tightening Force | >5N | ||
| Tight Wrapping Force | >8N | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
| Package | 100pcs/Pack | 10pcs/Pack | 10pcs/Pack |
| Size | 200*165*60mm | 60*50*15mm | 82*120*10mm |
| Gross Weight | 506g | 20g | 32g |
