KVM Extender

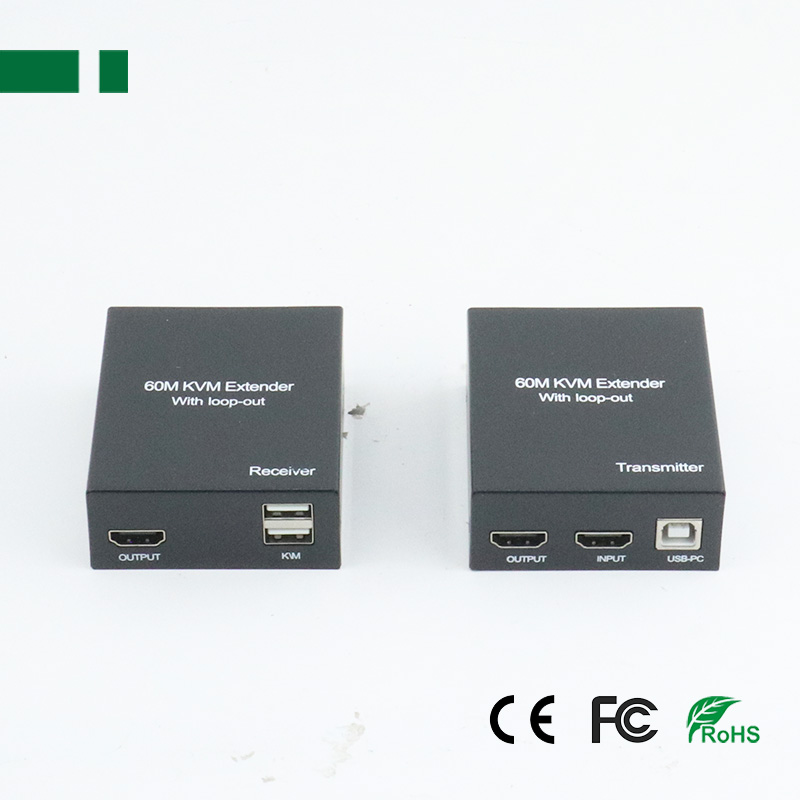

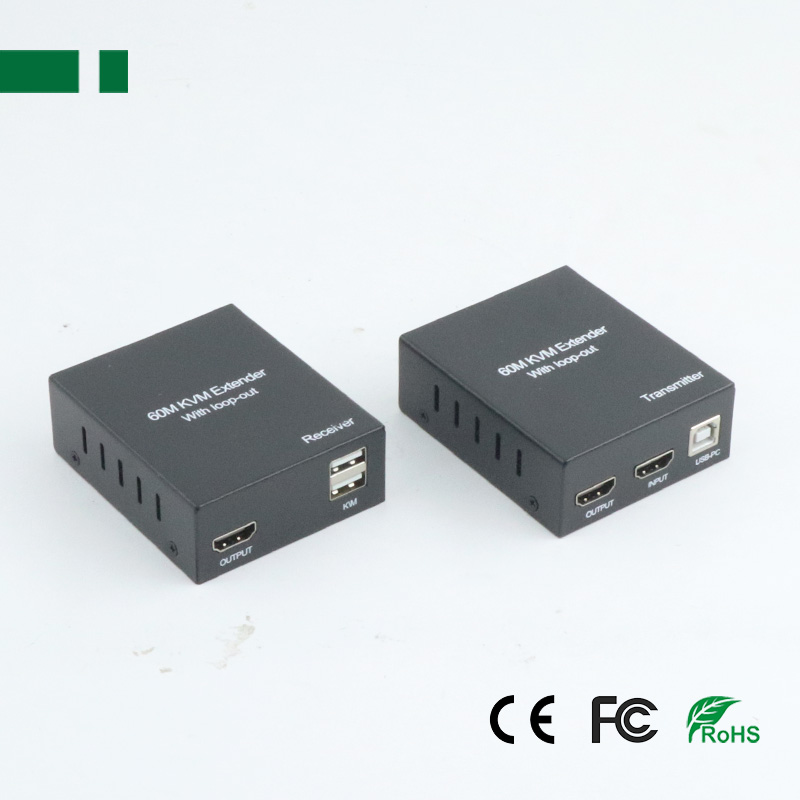

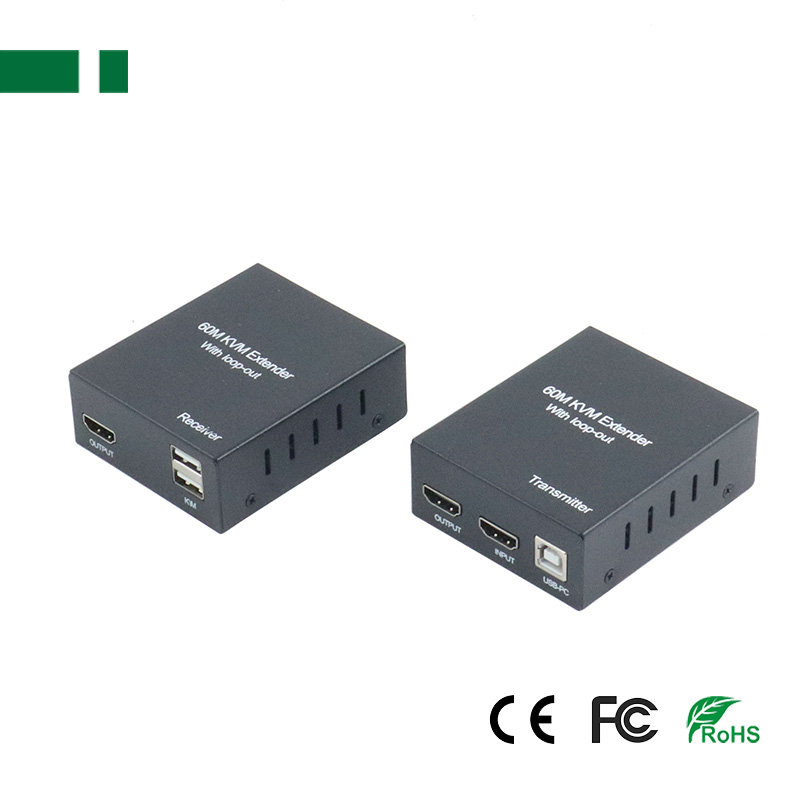

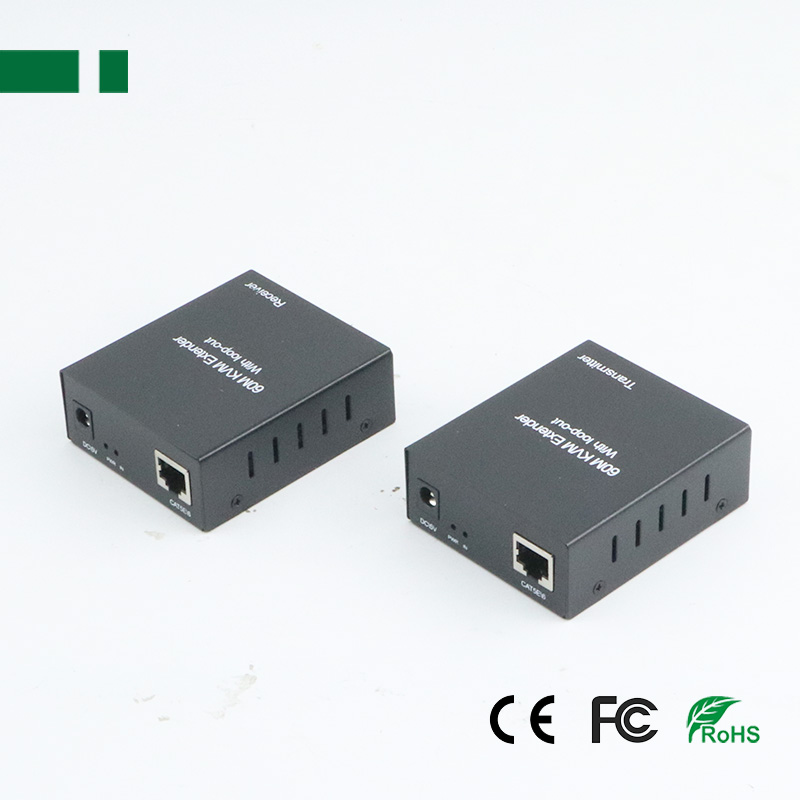

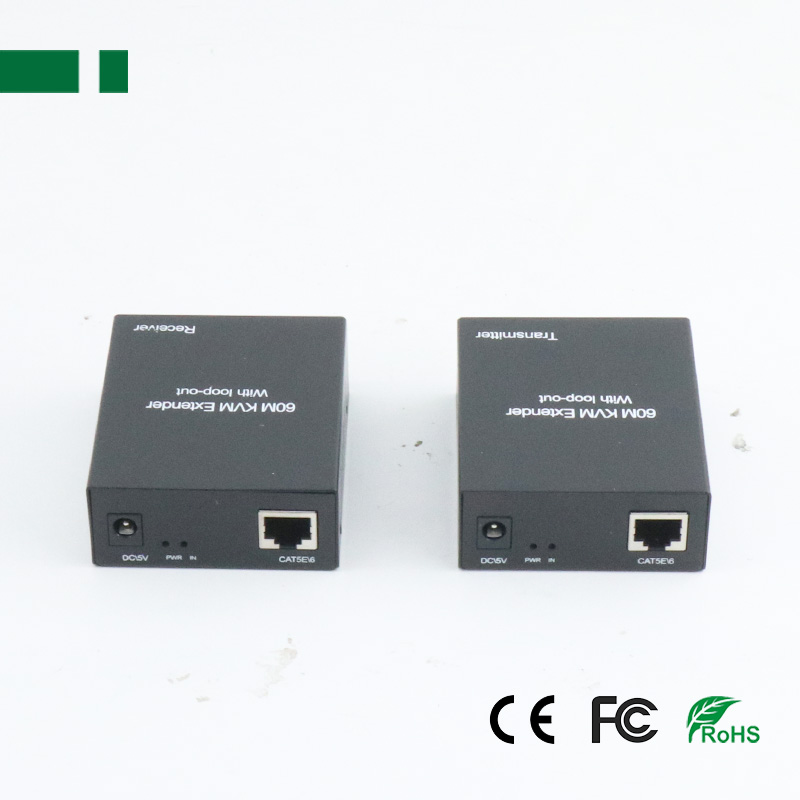

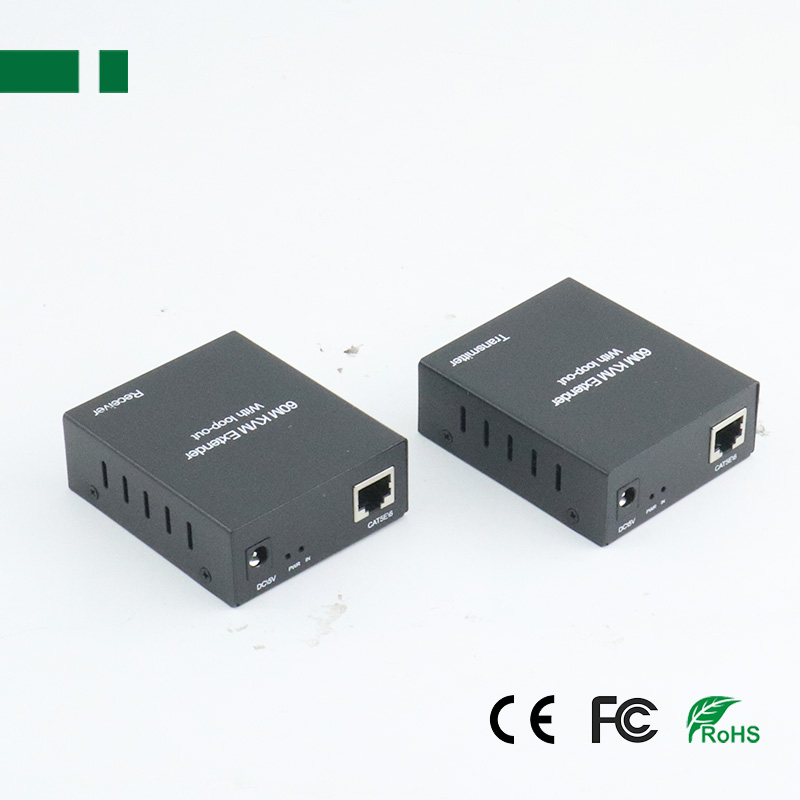

CKM-B60 1080P 60M HDMI KVM Extender

1080P 60M HDMI KVM Extender
Support 1920*1080P@60Hz
Transmission distance: 60M
Power supply interface: DC 5V
Product description: The Extender uses single cat6(recommended)cables instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost.
INQUIRY EMAIL

Introduction
The Extender uses single cat6(recommended)cables instead of HDMI Cable to transmit high definition signal up to 60 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.

Features
1. Support 60m long distance transmission:
2. Low power consumption, low temperature and high safety;
3. Support USB mouse and keyboard extension;
4. Support local loop-out；
5. The design of pure hardware, plug and play, no need for additional software.

Specifications

Model	CKM-B60	CKM-B120	CKM-B150
Max. Distance	Up to 60 meters	Up to 120 meters	Up to 150 meters
HDMI Input	1920*1080@60Hz	4K*2K@30Hz	1920*1080@60Hz
HDMI Output	1920*1080@60Hz	4K*2K@30Hz	1920*1080@60Hz
Max band width	148.5MHz
Max baud rate	1Gbps
Input HDMI cable distance	10m AWG26 HDMI standard cable
Output HDMI cable distance	10m AWG26 HDMI standard cable
TX Max working current	450mA
RX Max working current	350mA
Power Supply	Input:AC(50HZ,60HZ) 100V-240V; Output: DC5V/1A Operating
Temperature range	(-15 to +55℃)
Operating Humidity range	5 to 90%RH (No Condensation)
Dimension (L x W x H)	79X67X28(mm)
TX Weight	122g
RX Weight	120g
