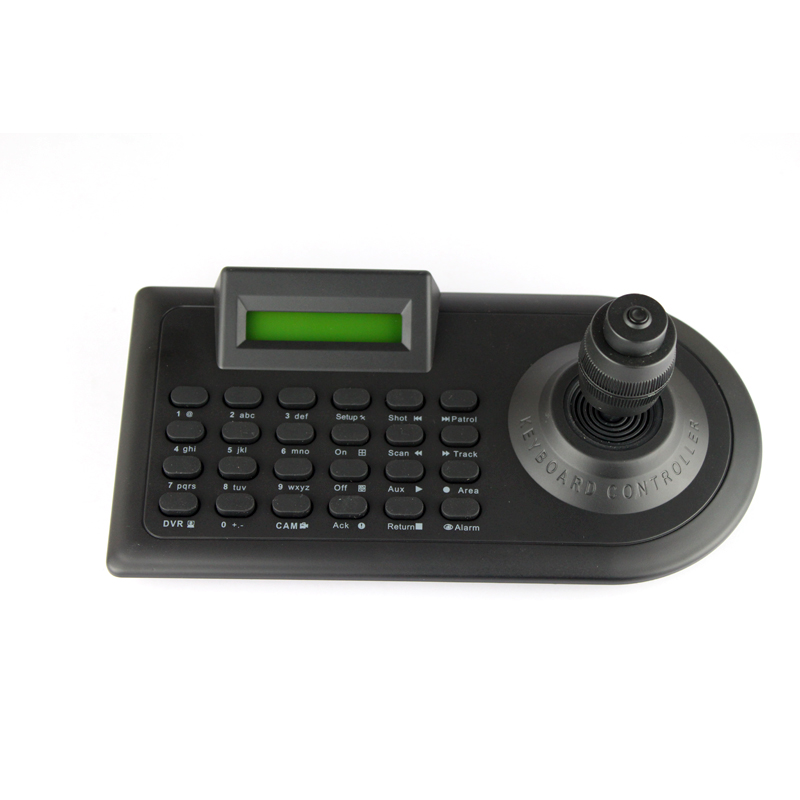

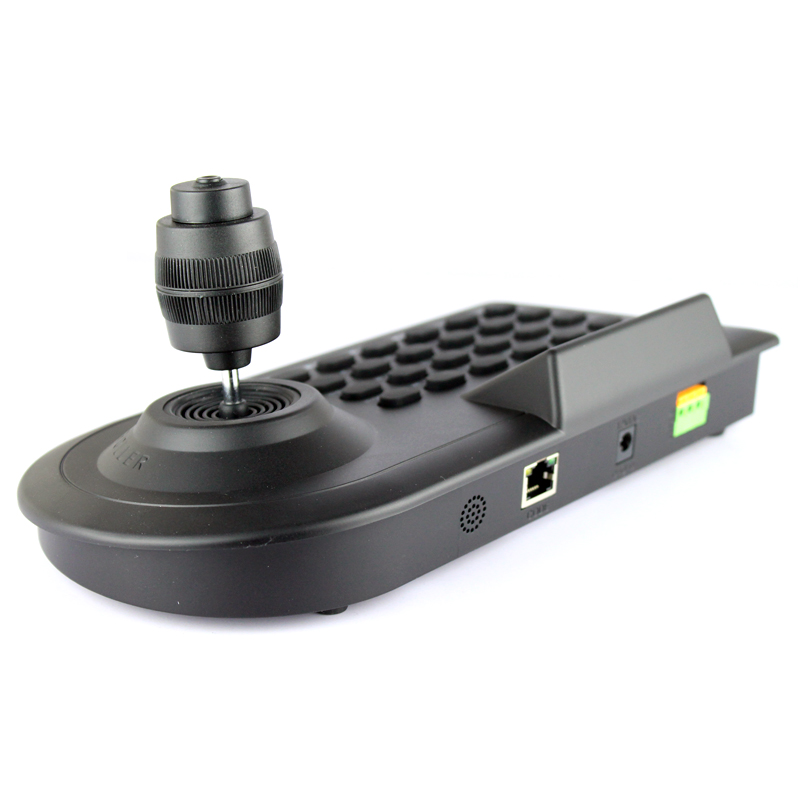

CCTV Camera 4-Axis (4D) Keyboard Controller
Rocker type: Four-dimensional shift lever (4D / 4-Axis)
LCD display more convenient and easy to understand
Build-in multi-protocol: Pelco-D Pelco-P Pelco-D1 Pelco-P1etc
Communication rate: 1200 2400 4800 9600 19200bps/s
Communication mode: RS-485 half-duplex
Can be combined to control the PTZ camera with a Stand alone DVR
Maximum 1.5KM (4900ft) long communication distance
Power supply: DC12V


*Built-in variety of video cameras, digital video recorder control protocol, five kinds of commonly used baud rate for choice.
*Using the keyboard password management, the need to enter password to operate.
*LCD display monitor number, camera number, recorder number and operating status.
*Four-dimensional vector variable speed controller with a unique control capabilities, flexible control over the full range of motion and control PTZ camera focus, zoom and aperture.
*Support set up a smart camera, digital video recorder menu functions.
*Support quick set, called the smart camera Presets, queues and other functions.
*Control the digital video recorder with multi-screen monitoring, recording, playback, fast forward, rewind and other functions.
*The key tone, backlit LCD screen can be set via the keyboard menu.
*Communication using RS-485 half-duplex mode, the keyboard can be connected to control 16 to 32 intelligent camera or digital video recorder.
*Dimension:255mm(L)*128mm(W)*72mm(H)     Screen:45mm*15mm
